Barebone Lex Tera 2I380NX-I44
CPU Intel® Bay Trail: Atom ™ E3845 / E3825, Celeron® J1900
A bordo DDR3L 2 / 4GB
2 x PoE, 1 x GbE, VGA, 1 x USB 3.0, 1 x USB 2.0
2 x Mini PCIe, 1 x SIM, 2 x COM, DI / O
Amplio rango de entrada de 9 ~ 36V DC
A bordo DDR3L 2 / 4GB
2 x PoE, 1 x GbE, VGA, 1 x USB 3.0, 1 x USB 2.0
2 x Mini PCIe, 1 x SIM, 2 x COM, DI / O
Amplio rango de entrada de 9 ~ 36V DC
P/N: TE2I380NX-I44
603,17 € Without VAT
729,84 € With VAT
2 years
of guarantee
of guarantee
sending
shipping
shipping
100%
Secure pay
Secure pay

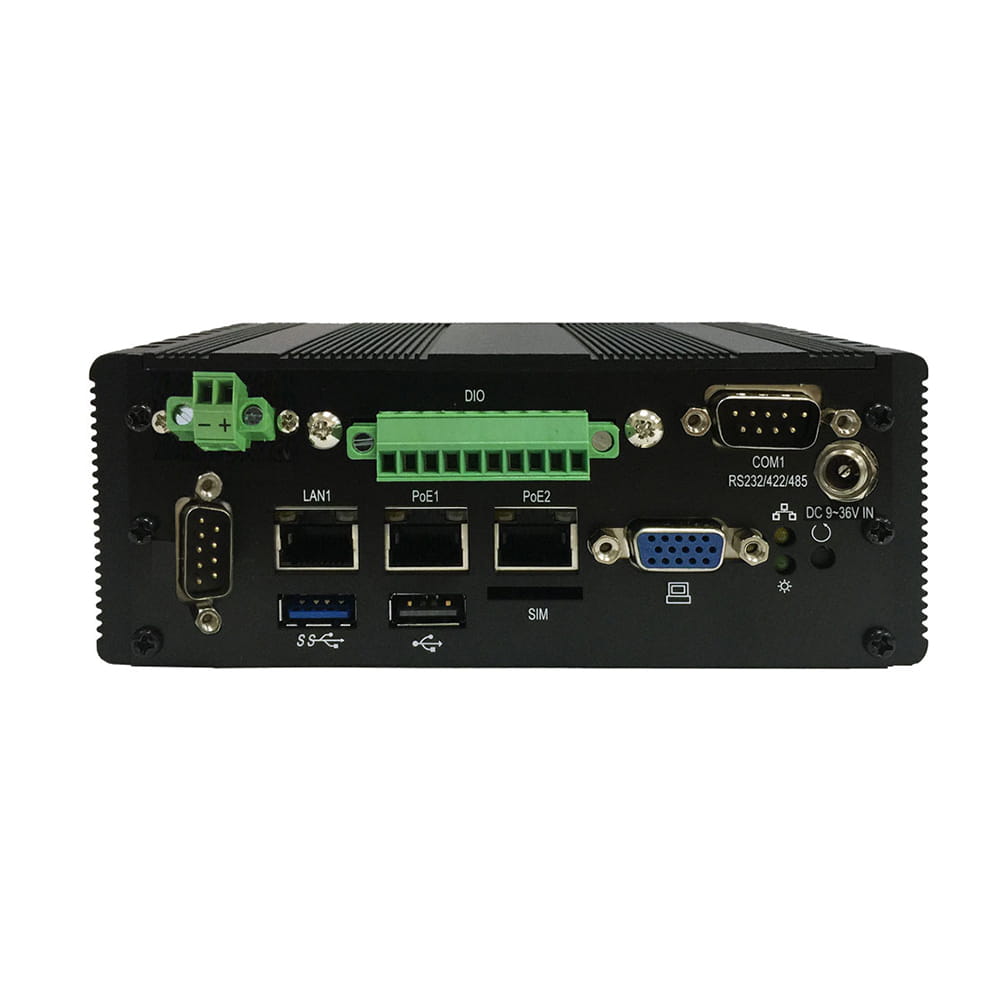

Compact Fanless Embedded Computer with Intel® Bay Trail Processor
| System Dimension(WxDxH) | 145W x 106.2D x 56.5H mm | |
| Weight(Incl.M/B) | 0.9 kg | |
| CPU | Intel® Bay Trail E3845 / E3825 / J1900 | |
| Chipset | Intel® Bay Trail SoC | |
| Memory | On Board DDR3L 2 / 4GB | |
| Storage | mSATA, HDD / SSD* (without DI/O) | |
| Expansion slots | 1 x Full-size Mini PCIe (USB / mSATA) 1 x Full-size Mini PCIe (PCIe / USB / mSATA) ; 1 x SIM |
|
| I/O ports | Network | 2 x PoE , 1 x Intel GbE |
| USB | 1 x USB 3.0, 1 x USB 2.0 | |
| Serial ports | 2 x COM | |
| Display | 1 x VGA | |
| GPIO | 4DI/4DO ( Option) | |
| Optional Modules & Accessory |
GPS, Bluetooth, PoE, WiFi, 4G LTE, Isolated COM, battery UPS, DI/DO, Video Input SATA Kit*, VESA Mount*, Wall Mount* |
|
| Power | DC input : +9~36V AC input : External AC / DC adapter 100 / 240V 60W |
|
| Operating Temp. (100 % CPU usage) |
-20°C to +60°C with mSATA / SSD 0°C to +50°C with HDD |
|
| Storage Temp. | -20°C to +70°C | |
| Relative Humidity | 95% @ 40°C, non-condensing | |
