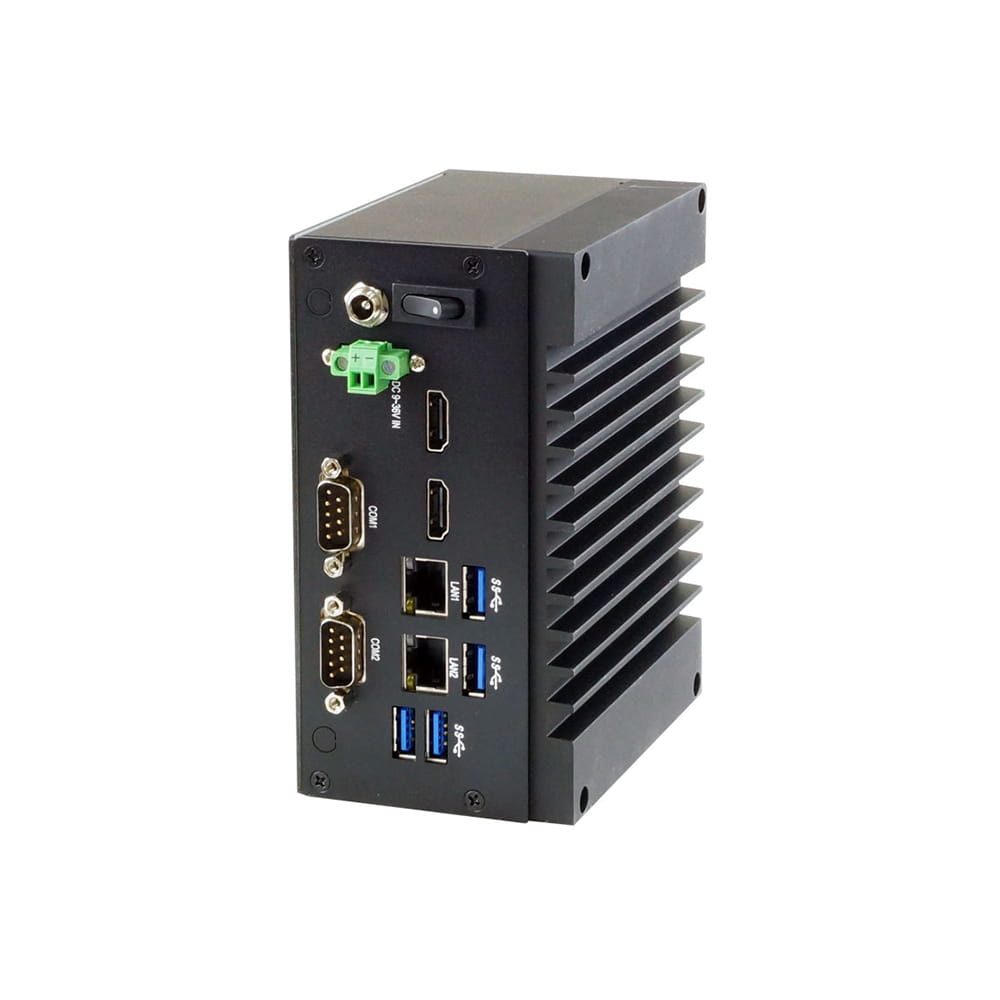

Barebone Lex Sky 2I612CW-EC0

System Dimension(WxDxH)	141W x 111.2D x 71.9H mm
Weight(Incl.M/B)	1.36 kg
CPU	6th / 7th Gen Intel® Skylake-U / Kaby Lake-U CPU
Chipset	Intel® Skylake-U / Kaby Lake-U SoC
Memory	1 x DDR4 SODIMM socket, Max. 16GB
Storage	mSATA, HDD / SSD*
Expansion slots	1 x Full-size Mini PCIe (PCIe / mSATA / USB) 1 x Full-size Mini PCIe (PCIe / USB 3.0 / USB 2.0)
Network	2 x Intel GbE
USB	4 x USB 3.0
Serial ports	2 x RS232 / 422 / 485
I/O ports : Display	2 x HDMI
DI/O	4DI /4DO (Option)
Optional Modules & Accessory	GPS, Bluetooth, PoE, WiFi, 4G LTE, Isolated COM, battery UPS, DI / DO, Video Input SATA Kit, Wall Mount Kit, DIN Rail Mounting Kit External power adapter
Power	DC input : +9V~36V AC input : External AC-DC adapter 100 / 240V (optional)
Operating Temp. (100 % CPU usage)	-20°C to +60°C (Celeron 3955U) -20°C to +50°C (Core i5 6200U) -20°C to +50°C (Core i7 6600U)
Storage Temp.	-20°C to +70°C
Relative Humidity	95% @ 40°C, non-condensing

Barebone Lex Sky 2 2I612CW-EC0
