Barebone Lex Sky 2I610DW-EC0
- Procesador Intel® Skylake-U / Kaby Lake-U i7 / i5 / i3 de 6.a / 7.a generación
- 1 x zócalo SODIMM DDR4, máx. 16 GB
- Pantalla independiente: VGA
- 3 x Intel GbE LAN, 3 x USB 3.0, 2 x COM
- 2 x Mini PCIe, 4DI / 4DO
P/N: SK2I610DW-EC0
503,97 € Without VAT
609,80 € With VAT
This product is not available in our warehouse or in any of our suppliers at this time.
The price that appears is indicative
The price that appears is indicative
2 years
of guarantee
of guarantee
Shipment
Insured
Insured
100%
Secure pay
Secure pay

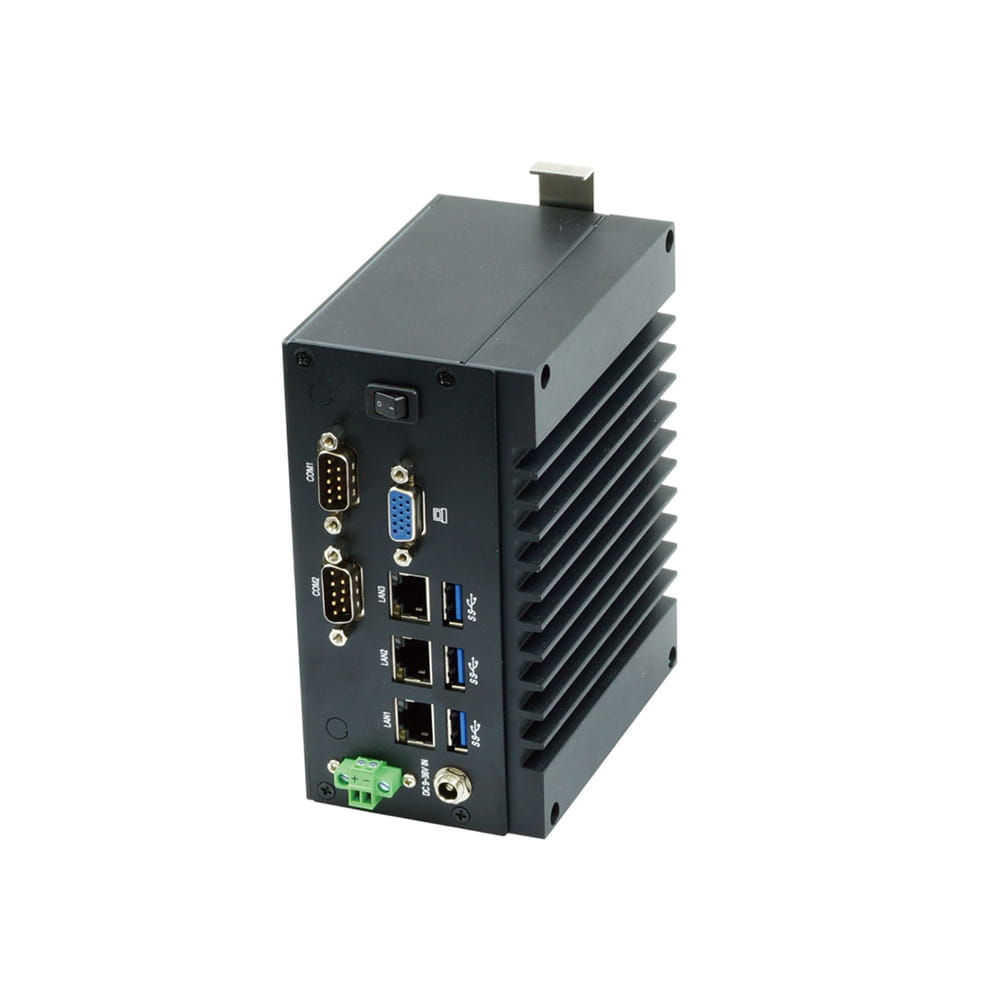

Compact Fanless Embedded Computer with 6th / 7th Gen Intel® Skylake-U / Kaby Lake-U i7 / i5 / i3 processor
| System Dimension(WxDxH) | 141W x 111.2D x 71.9H mm | |
| Weight(Incl.M/B) | 1.36kg | |
| CPU | 6th / 7th Gen Intel® Skylake-U / Kaby Lake-U CPU | |
| Chipset | Intel® Skylake-U / Kaby Lake-U SoC | |
| Memory | 1 x DDR4 SODIMM socket, Max. 16GB | |
| Storage | mSATA, HDD / SSD* | |
| Expansion slots | 1 x Full-size Mini PCIe (PCIe / mSATA / USB) 1 x Full-size Mini PCIe (PCIe / USB 3.0) |
|
| I/O ports | Network | 3 x Intel GbE |
| USB | 3 x USB 3.0 | |
| Serial ports | 2 x RS232 / 422 / 485 | |
| Display | 1 x VGA | |
| Optional Modules & Accessory |
GPS, Bluetooth, PoE, WiFi, 4G LTE, Isolated COM, battery UPS, DI / DO, Video Input *SATA Kit, Wall Mount Kit, DIN Rail Mounting Kit *External power adapter |
|
| Power | DC input : +9V~36V AC input : External AC-DC adapter 100 / 240V (optional) |
|
| Operating Temp. (100 % CPU usage) |
-20°C to +60°C (Celeron 3955U) -20°C to +50°C (Core i5 6200U) -20°C to +50°C (Core i7 6600U) |
|
| Storage Temp. | -20°C to +70°C | |
| Relative Humidity | 95% @ 40°C, non-condensing | |
