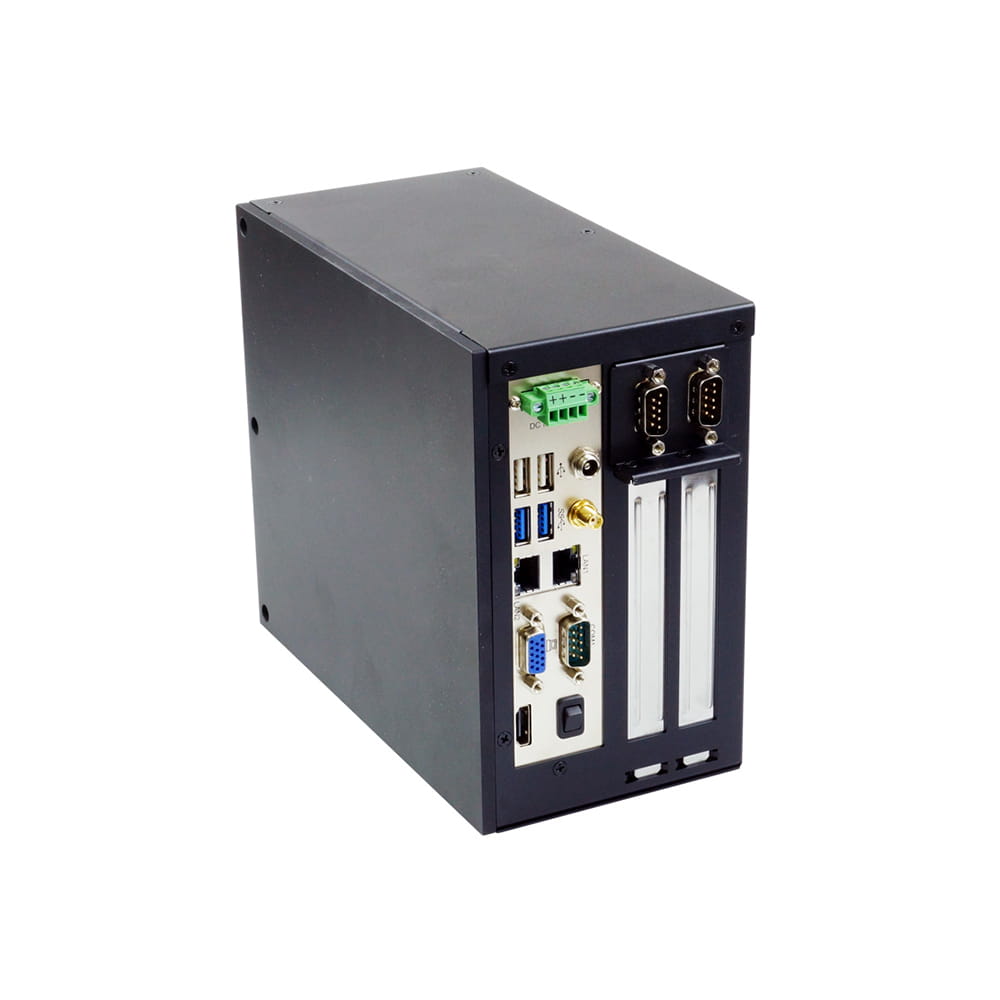

Barebone Lex Apollo 1 PM390CW-N4

System Dimension (WxDxH)		200W x 103.75D x 173H mm
Weight (Incl.M/B)		1.75 kg
CPU		Intel® Apollo Lake N4200 / N3350 / E3950 SoC CPU
Chipset		Intel® Apollo Lake SoC
Memory		1 x DDR3L SODIMM socket, Max. 8GB
Storage		mSATA, M.2, HDD / SSD*
Expansion slots		1 x Full-size Mini PCIe (PCIe / USB) 1 x Full-size Mini PCIe (PCIe / mSATA / USB)
I/O ports	Network	2 x Intel GbE
	USB	2 x USB 3.0 ; 2 x USB 2.0
	Serial ports	3 x RS232 / 422 / 485
	Display	1 x VGA, 1 x HDMI
	PCIe slot	2 x PCIe slots via BPM002 backplanes
Optional Modules & Accessory		GPS, Bluetooth, PoE, WiFi, 4G LTE, Isolated COM, battery UPS, DI/DO, Video Input, *SATA Kit, Wall Mount Kit
OEM IO Function		Audio, LAN, USB, DIO
Power		DC input : +9V~36V AC input : External adapter 100 / 240V AC-DC 60W
Operating Temp. (100 % CPU usage)		-20°C to +50°C (Atom x7 E3950) -20°C to +50°C (Celeron N3350) -20°C to +50°C (Pentium N4200)
Storage Temp.		-20°C to +70°C
Relative Humidity		95% @ 40°C, non-condensing
