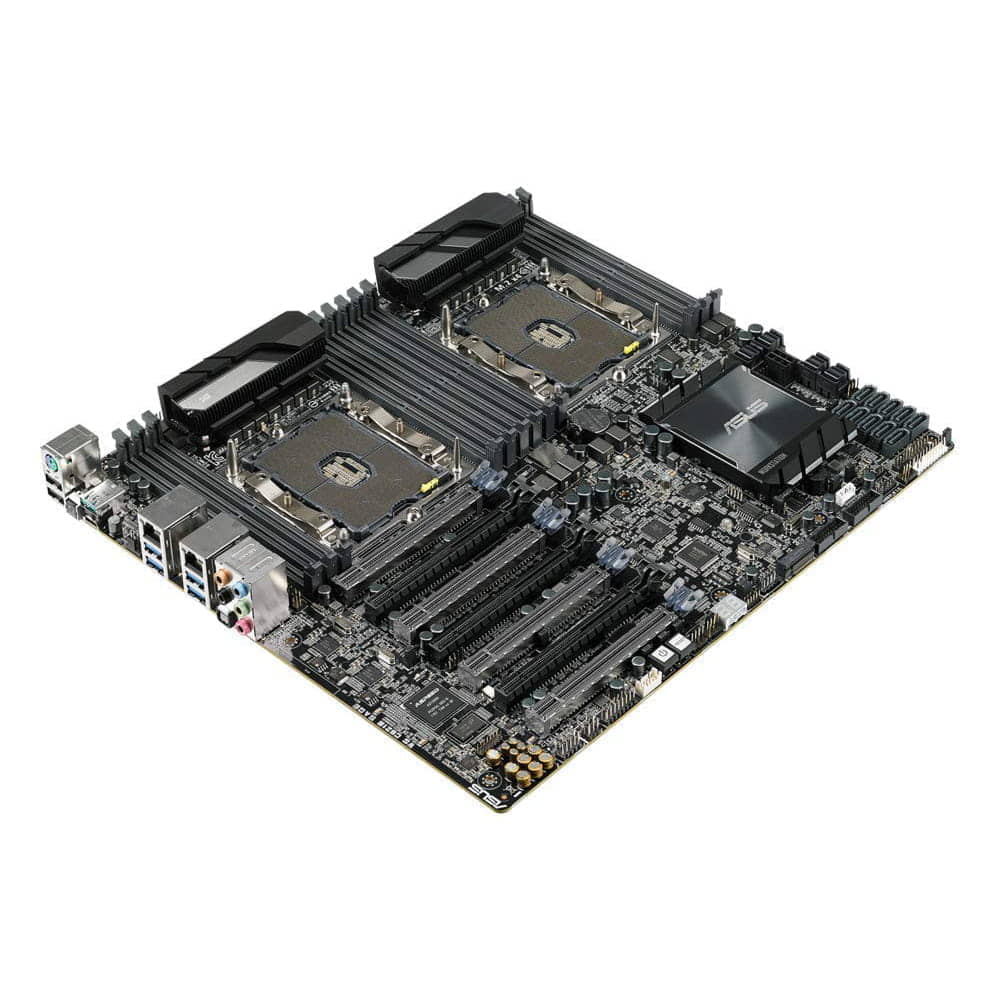

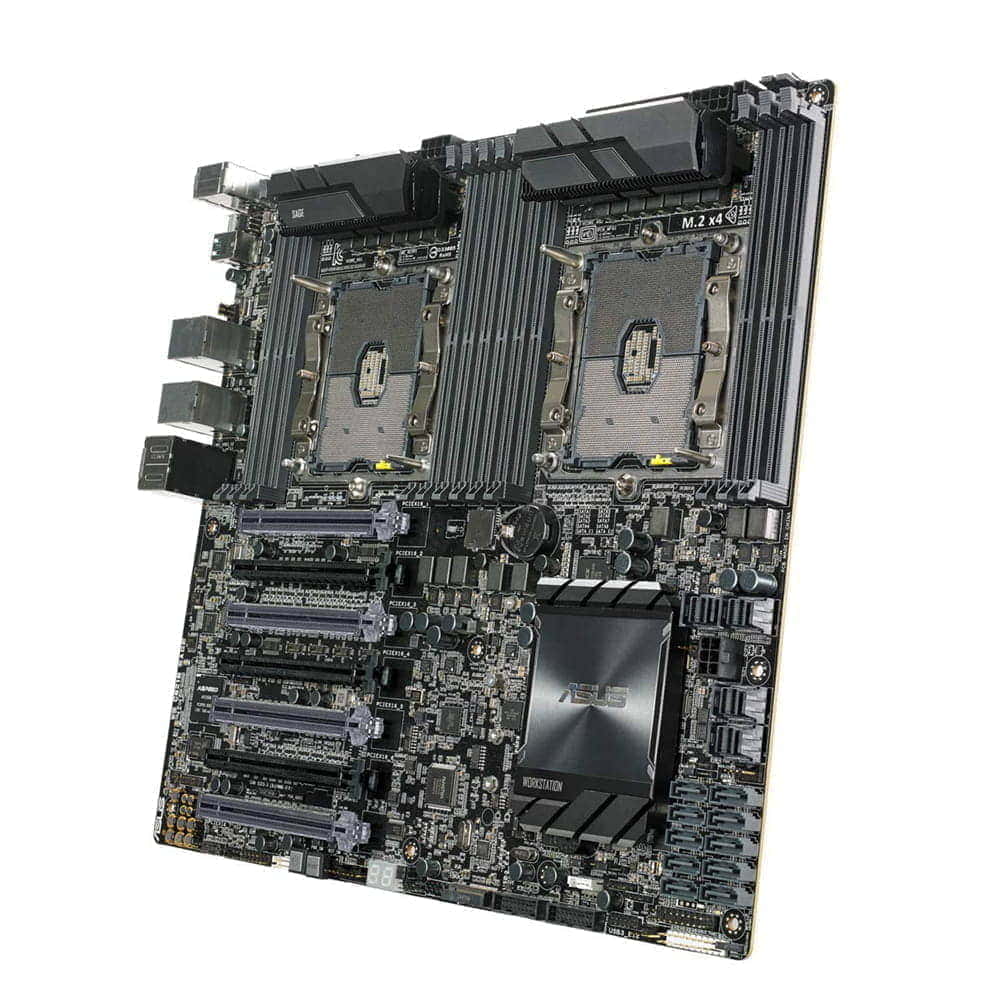

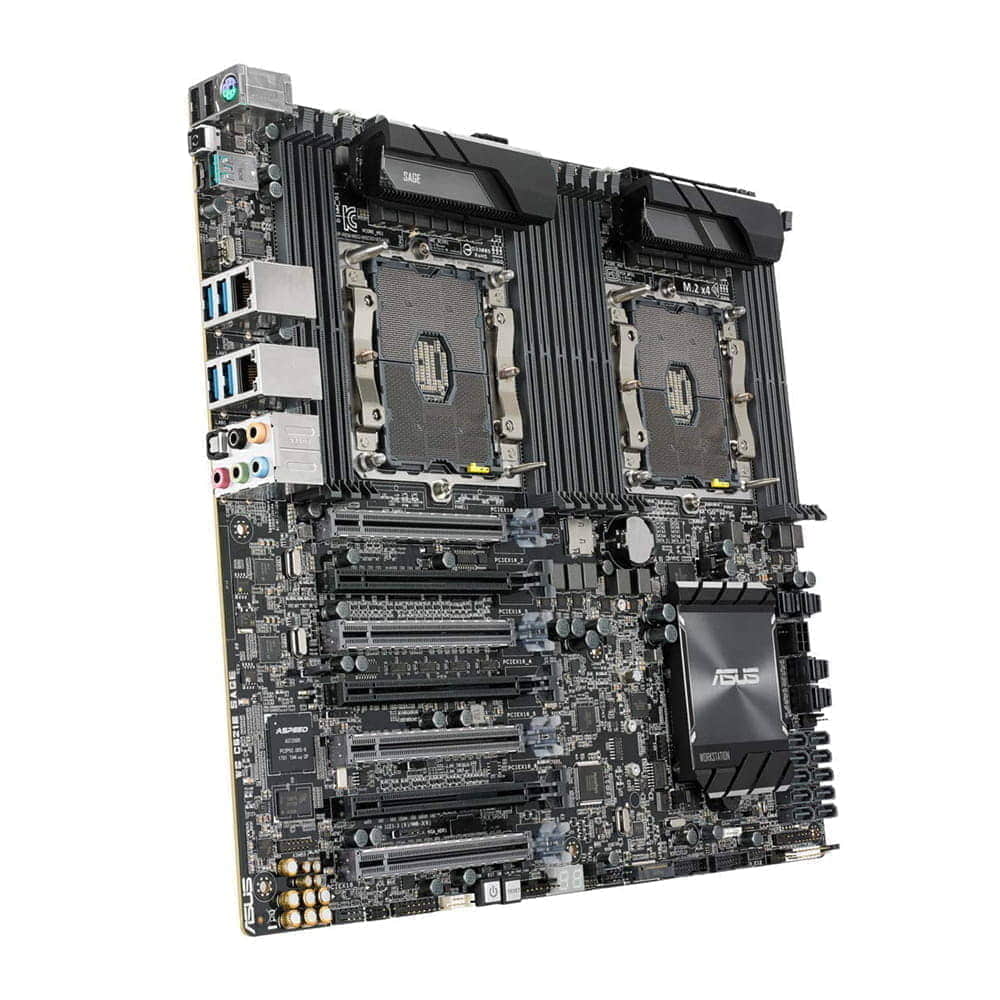

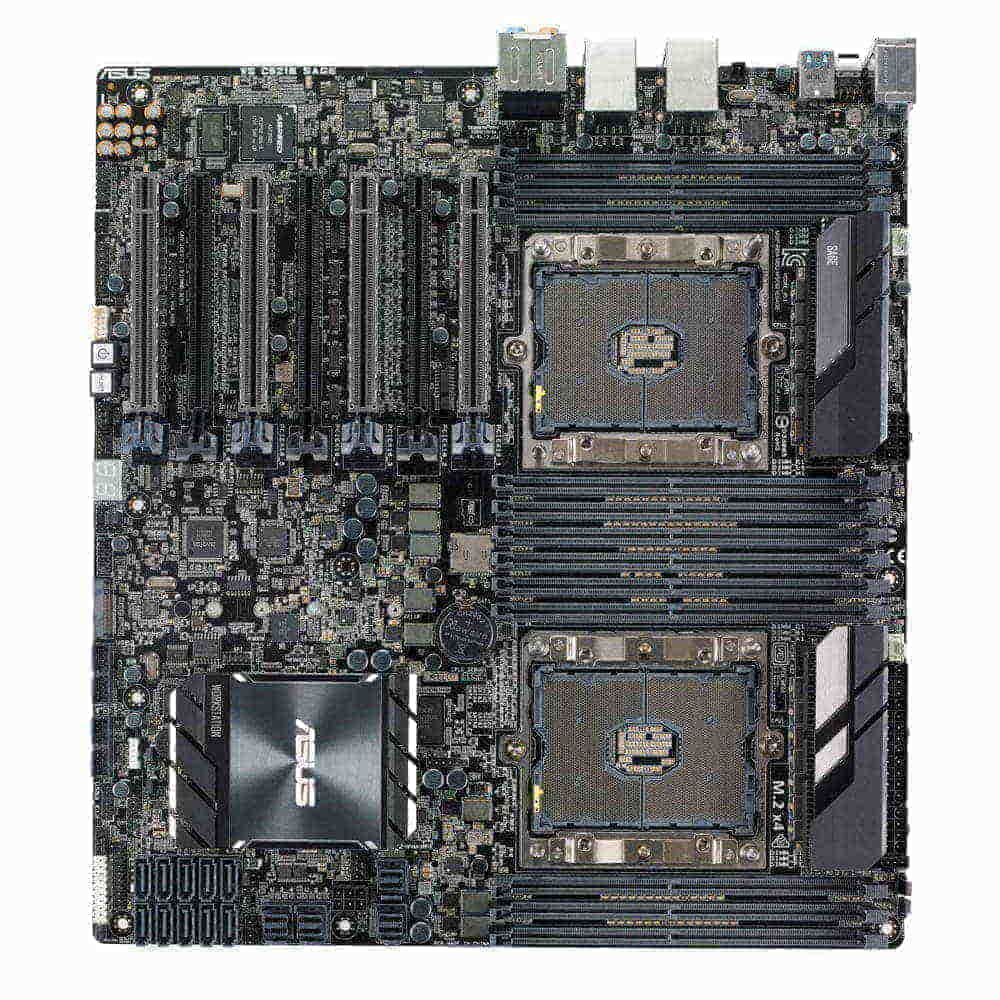

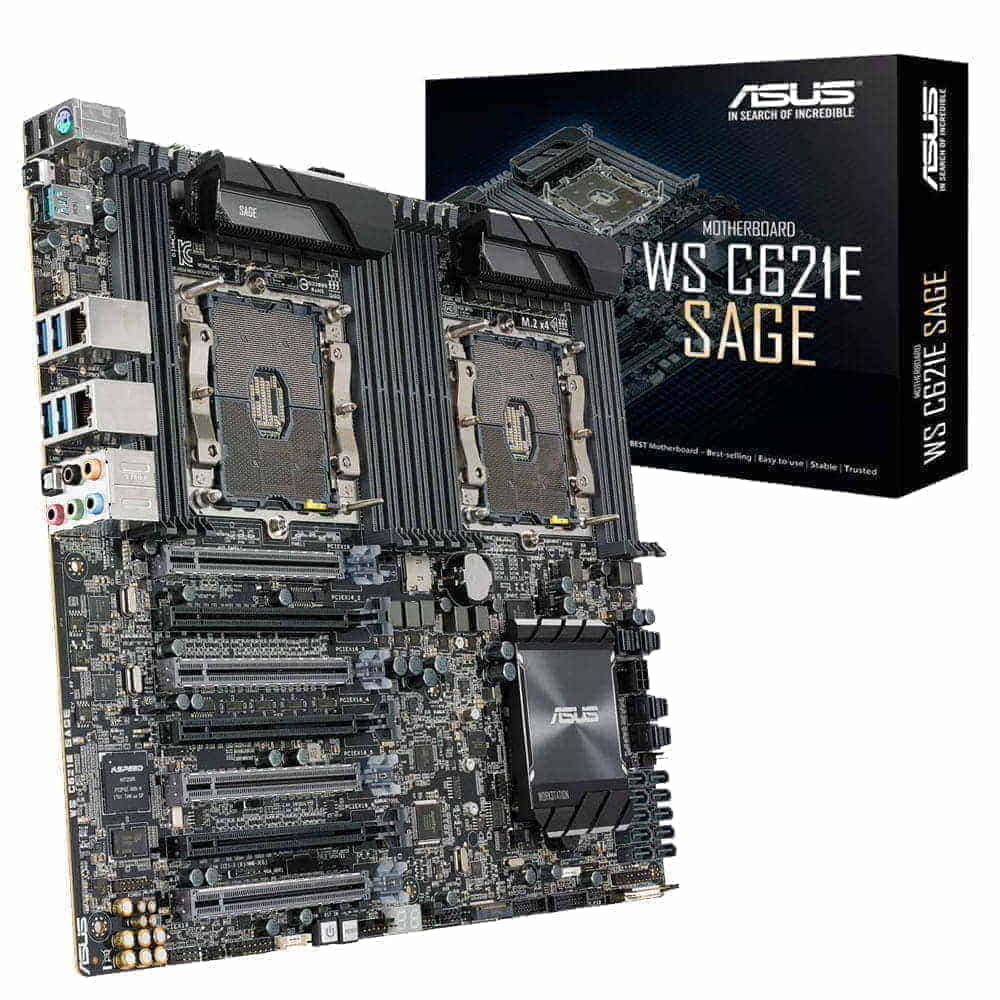

Asus WS C621E SAGE. 2x Socket 3647. EEB.

Asus WS C621E SAGE. 2x Socket 3647. EEB.

Asus
Supports up to NVIDIA SLI 4-Way and AMD Crossfire X configurations.
Two Xeon sockets and OC settings. for extreme performance
Excellent scalability and connectivity U.2, M.2, USB 3.1 Type-C and Type-A.
Made with premium components that promote energy efficiency.
Simple administration and maintenance through the ASUS Control Center (ACC) software and USB BIOS Flashback.

P/N: 90SW0021-M0EAY0 - EAN/UPC: 4712900910377

522,92 € Without VAT
632,73 € With VAT
Only 2 units left
Approximate delivery between 05 octubre and 05 octubre
2 years
of guarantee
sending
shipping
100%
Secure pay

Based on the Intel C621 chipset and equipped with two sockets, this workstation motherboard supports NVIDIA SLI and AMD CrossFireX technologies.

Equipped with 4 PCIe Gen3 x16 link slots, the ASUS WS C621E SAGE allows you to install four double graphics and take full advantage of its performance. And because it supports 4-way NVIDIA SLI, AMD CrossFireX and 2-Way NVIDIA Quadro SLI configurations, the WS C621E SAGE is a perfect choice for content creators, mechanical engineers, architects and any professional dedicated to intensive graphic tasks.

The ASUS WS C621E SAGE breaks down the established performance barriers by allowing you to accelerate two Intel Xeon CPUs. To do this, it has a unique BIOS system that speeds up the performance of the processors at incredible speeds.

It allows to work with multiple programs that use a lot of RAM without the system slowing down. The ASUS WS C621E SAGE supports up to 12 memory modules with error correction (ECC). In this way, the system can operate at full capacity even if it works simultaneously with several image, video and sound editing applications.

Thanks to the support of multiple NVMe PCIe drives in RAID 0 configuration, the ASUS WS C621E SAGE offers data transfers that are faster than the fastest storage units.

Equipped with M.2 and U.2 connectors, the ASUS WS C621E SAGE allows you to install 2.5-inch MVMe and M.2 SSD drives. And since they use the 32 Gbps of bandwidth that PCIe Gen. 3.0 x4 offers, you'll enjoy a speed up to 5.3 times higher than traditional storage units.

The USB 3.1 Gen2 Type A and USB 3.1 Gen. 2 Type C reversible connectors offer transfer speeds of up to 10 Gb / s, twice as fast as USB 3.0 or USB 3.1 Gen. 1.

The ASUS WS C621E SAGE incorporates an exclusive codec designed with Realtek experts. The Realtek S1220A provides 120 dB of signal-to-noise ratio at the stereo line output and 113 dB at the line input; specifications that attest to its quality.

DTS Headphone: X allows you to enjoy 3D surround sound with any type of headphones.

Highlights ...

* Supports up to NVIDIA SLI 4-Way and AMD Crossfire X configurations.
* Two Xeon sockets and OC settings. for extreme performance
* Excellent scalability and connectivity U.2, M.2, USB 3.1 Type-C and Type-A.
* Made with premium components that promote energy efficiency.
* Simple administration and maintenance through the ASUS Control Center (ACC) software and USB BIOS Flashback.

CPU Dual Intel Socket P (LGA 3647) for Intel Xeon Scalable Processors Family (205W)
Chipset Integrada Intel C621
Memory 12x Memoria DIMM, Max. 768GB, DDR4 2666/2400 MHz RDIMM, LR-DIMM
Graphic Procesador gráfico integrado
VGA(Opcional)
- Compatible con VGA con una resolución máxima de 1920 x 1200 a 60 Hz
Aspeed AST2500 with 64 MB VRAM
Multi-GPU Support Compatible con NVIDIA 4-Way SLI Technology
Compatible con AMD 4-Way CrossFireX Technology
Expansion Slots 3 x PCIe 3.0 x16 (modo x16)
2 x PCIe 3.0 x16 (Simple x16, dual a x8/x8)
2 x PCIe 3.0 x16 (modo x8)
Storage Intel C621 Chipset :
8 x puertos SATA 6Gb/s
Compatible con Raid 0, 1, 5, 10
ASMedia SATA 6Gb/s controller :
2 x puertos SATA 6Gb/s
4 x U.2 connector
1 x zócalo 3 M.2 , con M Key, compatible con dispositivos de almacenamiento 2242/2260/2280/22110 (modos SATA y PCIE)
LAN Intel I210-AT, 2 x Controladora de red Gigabit
Audio Realtek® S1220A 7.1 canales CODEC de audio de alta definición*2
- Compatible con: Jack-detection, Multi-streaming, Jack-retasking en panel frontal
- Power pre-regulator reduces power input noise to ensure consistent performance
Características de audio:
- Salida S/PDIF óptica en panel trasero
- DTS Connect
- DTS Headphone:X
- Circuito antipop: Reduce los ruidos al iniciar el equipo
- Condensadores fabricados en Japón con un sonido realista, cálido y natural
- Impedancia adaptativa (conector frontal y trasero)
- Conector de audio panel frontal (AAFP)
alta calidad salida SNR stereo playback y 113 dB entrada SNR recording (Entrada de línea)
- Compatible con hasta 32 Bits/192 kHz
USB Ports Controladora USB 3.1 ASMedia: :
2 x puerto(s) USB (2 en panel posterior, , Type-A + USB Type-CT)
Intel C621 Chipset :
8 x puerto(s) USB 3.1 Gen 1 (4 en panel posterior, , 4 en placa)
Intel C621 Chipset :
4 x puerto(s) USB 2.0 (2 en panel posterior, , 2 en placa)

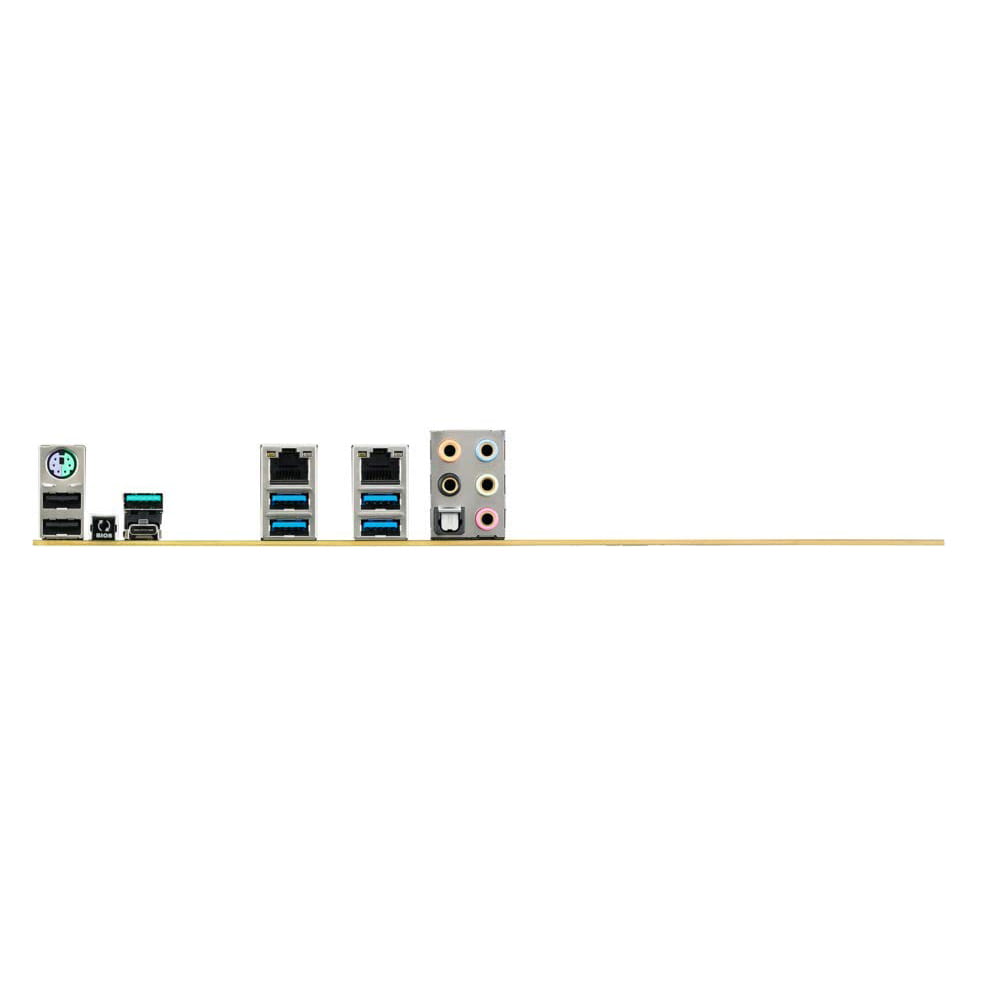

Back I/O Ports 1x Puerto combo teclado/ratón PS/2
2x Red (RJ45)
1x Salida S/PDIF óptica
2x USB 3.1 Gen 2 *4
4x USB 3.1 Gen 1 ,
4x USB 2.0
1x Botón USB BIOS Flashback
1x E/S 8 canales de audio
Internal I/O Ports 2x Conector(es) USB 3.0 soporta(n) 4 USB 3.0 extra(s)
1x Conector(es) USB 2.0 soporta(n) 2 USB 2.0 extra
1x Conector(es) COM
10x Conector(es) SATA 6Gb/s
1x Cabezal TPM
2x Conector(es) ventilador de CPU (2 x 4 -pin)
7x Conector(es) ventilador chasis
1x Conector de alimentación EATX de 24 contactos
1x Conector de audio en panel frontal (AAFP)
2x Conector de alimentación 12 V de 8-contactos EATX
1x M.2 Socket 3
1x Conector(es) VGA
1x VROC_HW_Key
1x Conector panel AUX
1x Conector SMBus
1x Conector de panel de sistema
1x 6-pin EATX 12V_3 Power connector
4x U.2 Connector (support U.2 NVMe device)
Form Factor EEB (30.5 x 33 cm)
Weight
