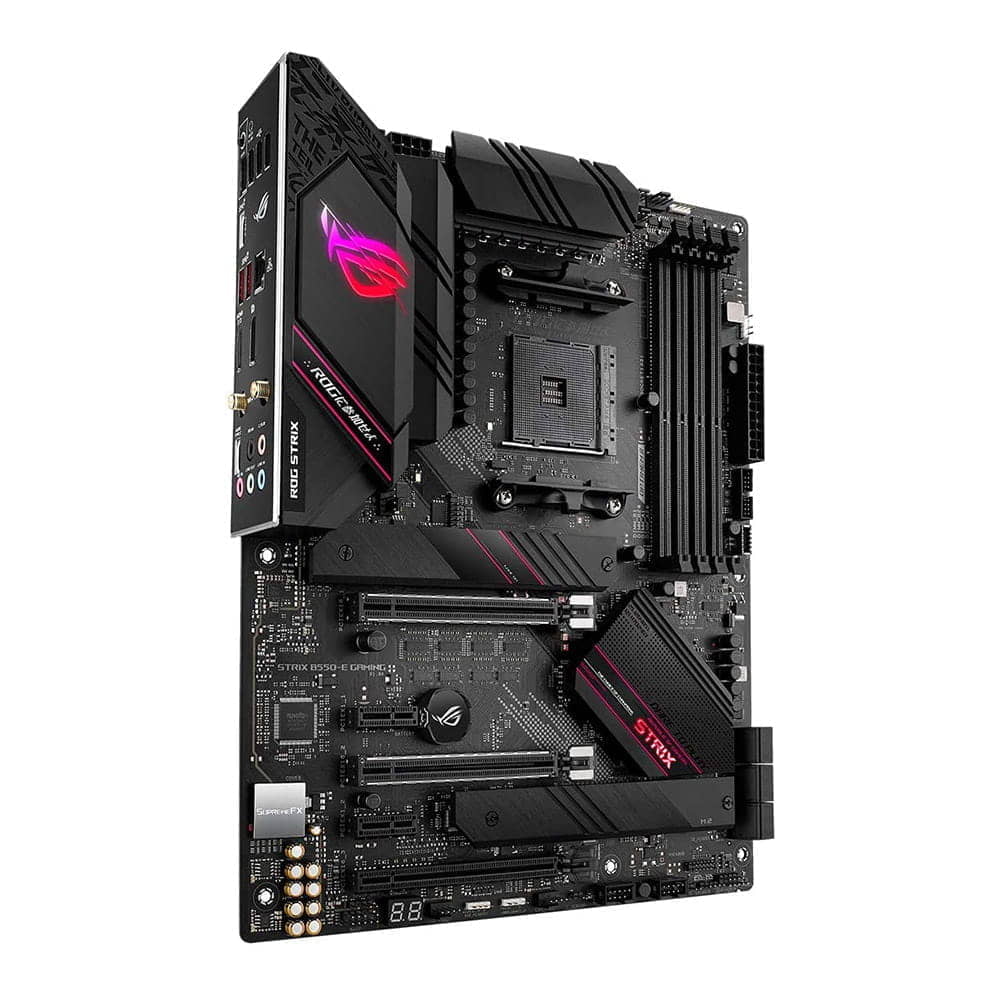

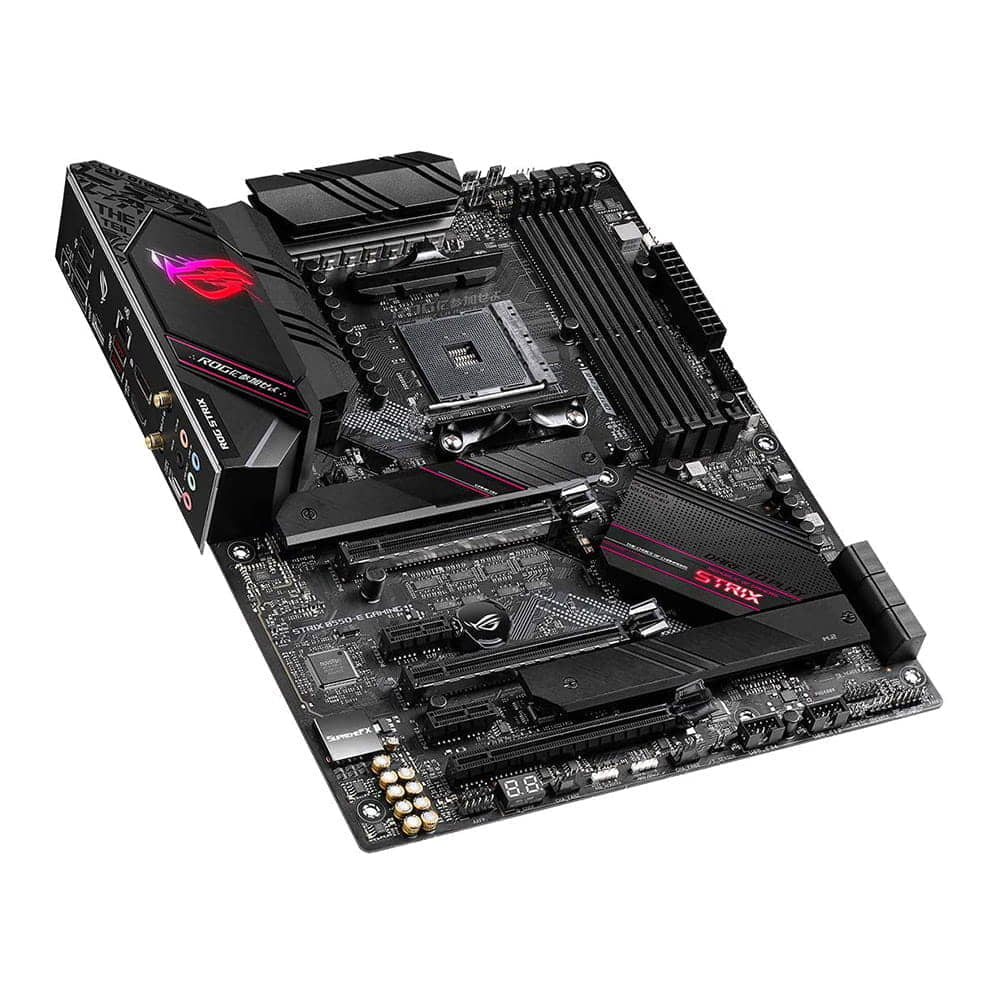

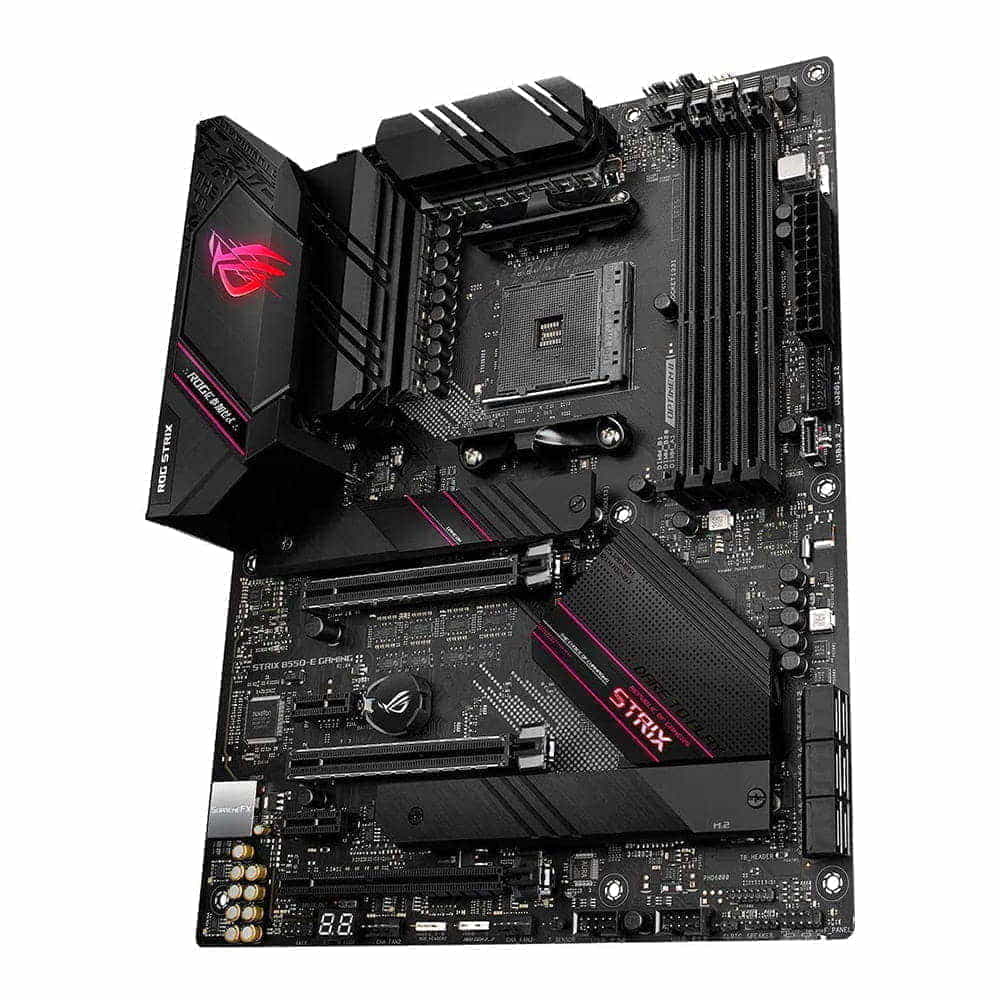

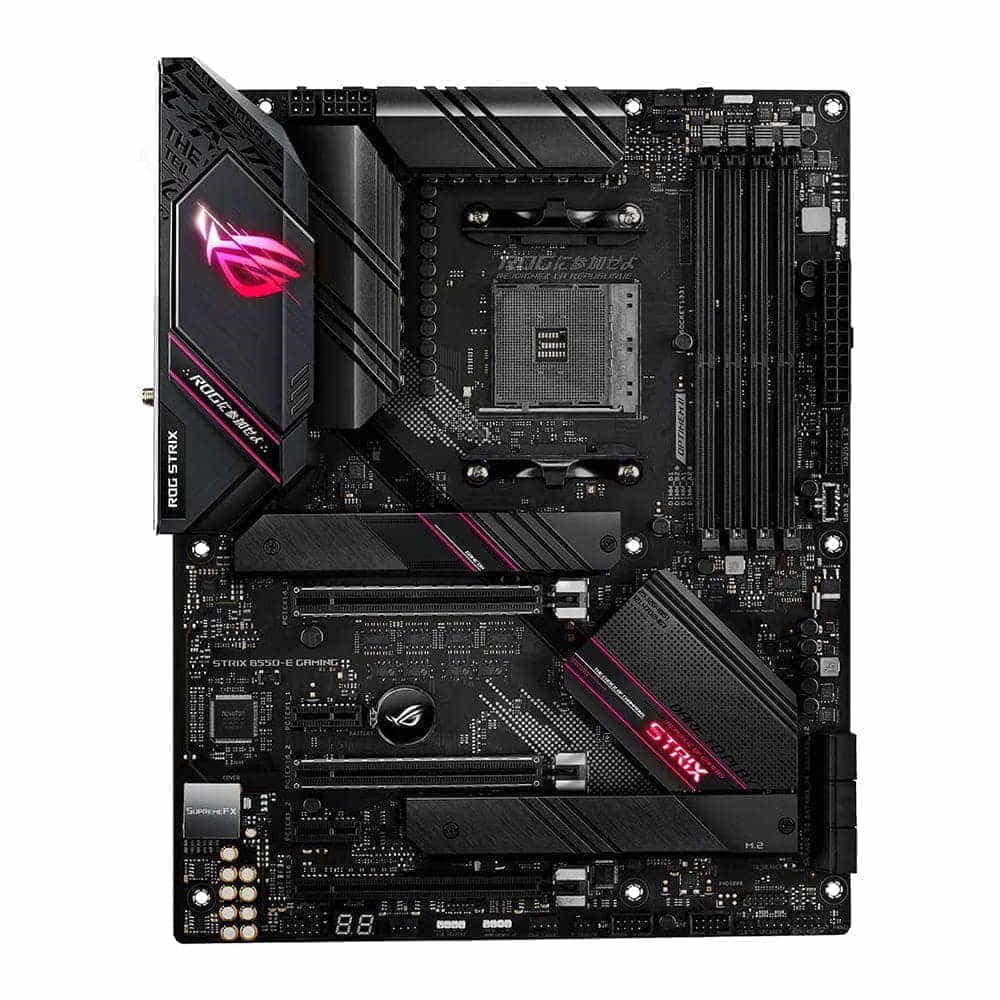

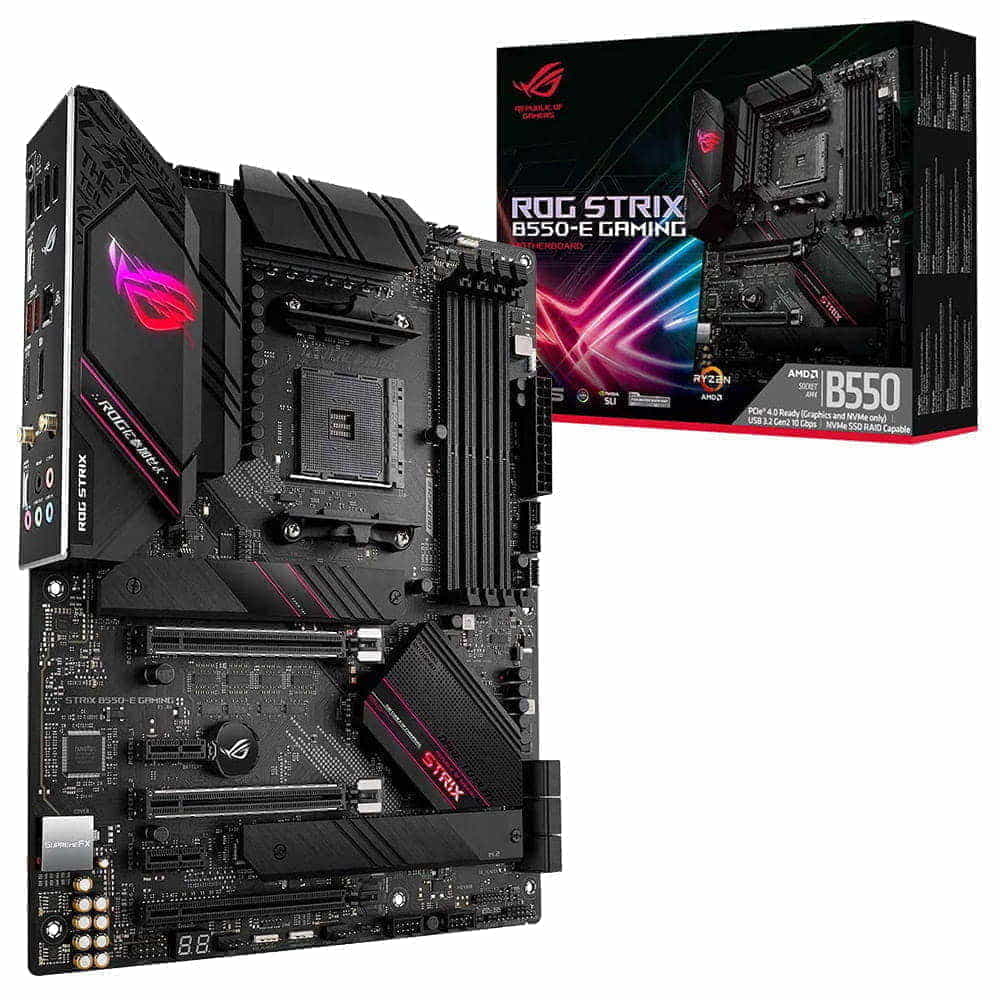

Asus Rog Strix B550-E Gaming. Socket AM4.

Asus Rog Strix B550-E Gaming. Socket AM4.

Asus
  • Supports AMD AM4 Socket 3rd Generation AMD Ryzen ™ Processors.
  • Supports up to 4 x DIMMs, max. 128 GB.
  • Compatible ECC memory.
  • Graphics output options: HDMI 2.1, DisplayPort 1.2.
  • Intel® Wi-Fi 6 AX200.

P/N: 90MB1470-M0EAY0 - EAN/UPC: 4718017750264

214,48 € Without VAT
259,52 € With VAT
In stock
Approximate delivery between 07 diciembre and 07 diciembre
2 years
of guarantee
sending
shipping
100%
Secure pay

ROG Strix B550 Gaming series motherboards offer a set of features typically found in the high-end ROG Strix X570 Gaming series, including the latest PCIe ® 4.0. With robust power delivery and efficient cooling, the ROG Strix B550 Gaming is well equipped to handle 3 rd Gen AMD Ryzen ™ CPUs. With a futuristic aesthetic and intuitive ROG software, ROG Strix B550-E Gaming gives you an edge in building your dreams.

ROG Strix B550-E Gaming is PCIe ® 4.0 ready and offers the latest connectivity options for super smooth networking and blazing fast file transfers. Audio enhancements give you a great advantage, allowing you to pick up the finest signals for a fully immersive gaming experience.

ROG Strix B550-E game features two M.2 slots, one of which supports the latest PCIe 4.0 standard to provide maximum storage flexibility and the fastest data speeds available through AMD's 3rd Gen Ryzen platform. Both M.2 slots support up to type 22110 socket and NVM Express® RAID for increased performance.

ROG Strix B550-E Gaming provides robust power delivery to power Ryzen cores, comprehensive cooling, and support for faster memory, so you have everything you need to load your build with high-performance components for gaming on the go. big leagues.

The ROG Strix B550-E Gaming cyberpunk-inspired aesthetic is accentuated by the bars and bold text. By combining your gear with other products from the diverse ROG ecosystem, you can create a fully customized gaming setup that reflects your personal style.

ROG Strix B550-E Gaming embodies the spirit of ROG with eye-catching aesthetics, including the next-generation distorted ROG eye logo and embossed cybertext design engraved on the I / O deck. These new designs move ROG Strix boldly into the future, while clearly reflecting the roots of the series' games.

ROG's exclusive software utilities offer intuitive audio tuning and game enhancements that let you configure your game build the way you want.

Be careful with complex settings with just one click. ASUS 5-Way Optimization is a system-wide tuning utility that speeds up the processor and adjusts fan speeds to ensure the best balance between cooling and acoustics. 5-Way Optimization's automatic CPU tuning feature takes advantage of the same built-in intelligence as AI Overclocking, but goes further by running a Prime95-based stress test that continuously monitors the system.

The TurboV Processing Unit (TPU) provides AI Suite 3 with the intelligence necessary to automatically adjust voltages, monitor system statistics, and adjust overclocking settings. AI Suite 3 also provides AI Overclocking prediction values ​​for users who want to learn more by experimenting with different settings.

The renowned ROG UEFI (BIOS) provides everything you need to set up, tune, and tune your computer. It offers simplified smart options for newcomers to DIY PCs, as well as comprehensive features for seasoned veterans.

Highlights...

* Supports AMD AM4 Socket 3rd Generation AMD Ryzen ™ Processors.
* Supports up to 4 x DIMMs, max. 128 GB.
* Compatible ECC memory.
* Graphics output options: HDMI 2.1, DisplayPort 1.2.
* Intel® Wi-Fi 6 AX200.

Características especiales

Aura Sync
- Encabezado (s) RGB estándar - Encabezado (s)
RGB Gen 2 direccionable
Diseño
ASUS Q - CÓDIGO
Q ASUS - ASUS Q-DIMM
- ASUS Q-LED (DRAM [amarillo], CPU [rojo], VGA [ blanco], Dispositivo de arranque [verde amarillo]
- ASUS Q-Slot
Solución térmica ASUS
- Disipador térmico de aluminio M.2
ASUS EZ DIY
-BIOS Flashback ™ button
-BIOS FlashBack ™ LED
-Base CMOS
clara
-Procool -Protector de E / S premontado
- SafeSlot
Audio posterior USB Conector Type-C®
CPU Socket AMD AM4 Procesadores AMD Ryzen ™ de 3.a generación
Memoria Procesadores AMD Ryzen ™ de 3.a generación
4 x DIMM, máx. 128 GB, DDR4 4600 (OC) / 4400 (OC) / 4266 (OC) / 4133 (OC) / 4000 (OC) / 3866 (OC) / 3600 (OC) / 3466 (OC) / 3200/3000/2800/2666 / 2400/2133 MHz Memoria sin búfer Procesadores
AMD Ryzen PRO de próxima generación
4 x DIMM, máx. 128 GB, DDR4 5100 (OC) / 4800 (OC) / 4600 (OC) / 4400 (OC) / 4266 (OC) / 4133 (OC) / 4000 (OC) / 3866 (OC) / 3600 (OC) / 3466 ( OC) / 3200/3000/2800/2666/2400/2133 MHz Memoria sin búfer
Arquitectura de memoria de doble canal La
compatibilidad con la
memoria ECC OptiMem II (modo ECC) varía según la CPU.

Gráficos

Procesador de gráficos integrado
1 x DisplayPort 1.2
1 x HDMI 2.1 (4K @ 60HZ)
Audio CODEC S1220A de audio de alta definición ROG SupremeFX de 7.1 canales
- Amplificadores OP dobles
- Sensor de impedancia para salidas de auriculares delanteras y traseras
- Soporta: detección de Jack, transmisión múltiple, reenganche de Jack del panel frontal
- Salida de reproducción estéreo SNR de 120 dB de alta calidad y 113 Entrada de grabación dB SNR
- Admite reproducción de hasta 32 bits / 192 kHz *
Característica de audio:
- Tecnología SupremeFX Shielding ™
- Audio posterior Puerto USB Type-C®
- Blindaje de
audio
- Condensadores de audio premium japoneses - Cubierta de audio
LAN Intel® Wi-Fi 6 AX200
2x2 Wi-Fi 6 (802.11 a / b / g / n / ac / ax) admite 1024QAM / OFDMA / MU-MIMO
Admite frecuencia de banda dual 2.4 / 5 GHz
Admite ancho de banda de canal: HT20 / HT40 / HT80 / HT160

Ranuras de expansión

Procesadores AMD Ryzen ™ de 3.a generación
2 x PCIe 4.0 x16 (x16 o dual x8)
Chipset AMD B550
1 x PCIe 3.0 x16 (modo x4) *
2 x PCIe 3.0 x1
Almacenamiento Total admite 2 x ranuras M.2 y 6 x puertos SATA de 6 Gb / s
Procesadores AMD Ryzen ™ de 3.a generación:
1 x M.2_1 socket 3, con clave M, soporte de dispositivos de almacenamiento tipo 2242/2260/2280/22110 (SATA y PCIe 4.0 x4)
AMD B550 Chipset:
1 x M.2_2 socket 3, con tecla M, tipo 2242/2260/2280/22110, dispositivos de almacenamiento compatibles (modo SATA y PCIE 3.0 x 4) *
6 x SATA 6Gb / s puerto (s )
Apoyo Raid 0, 1, 10
Conectores internos 1 x Conector (es) del ventilador de la CPU 1 x Conector (es) del
ventilador de la CPU OPT
3 x Conector (es) del ventilador del chasis
1 x Conector AIO_PUMP
1 x Conector AAFP
2 x Encabezado (s) de banda Aura RGB 2 x Encabezado (s)
direccionable Gen 2 )
1 x conector USB 3.2 Gen2 compatible con 1 puerto USB adicional (20 pines, tipo C)
1 x conector (es) USB 3.2 Gen 1 (hasta 5 Gbps) compatible (s) adicional (es) 2 puerto (s) USB 3.2 Gen 1
2 x conector (es) USB 2.0 compatible (s) adicional (es) 4 puerto (s) USB 2.0
1 x M.2 Socket 1 con llave M, tipo 2242/2260/2280/22110 compatible con dispositivos de almacenamiento (modo SATA y PCIe 4.0 x4)
1 x M.2 Socket 2 con clave M, tipo 2242/2260/2280/22110 compatible con dispositivos de almacenamiento (modo SATA y PCIE 3.0 x 4)
6 x conector (es) SATA 6Gb / s
1 x encabezado (s) Thunderbolt
1 x Conector (es) de alimentación EATX de 24 pines 1 x Conector (es)
de alimentación ATX 12V de 8 pines 1 x Conector (es)
de alimentación ATX 12V de 4 pines
1 x Panel (es) del sistema
1 x Conector (es) de sensor térmico
1 x Borrar puente (s) CMOS
1 x Código Q

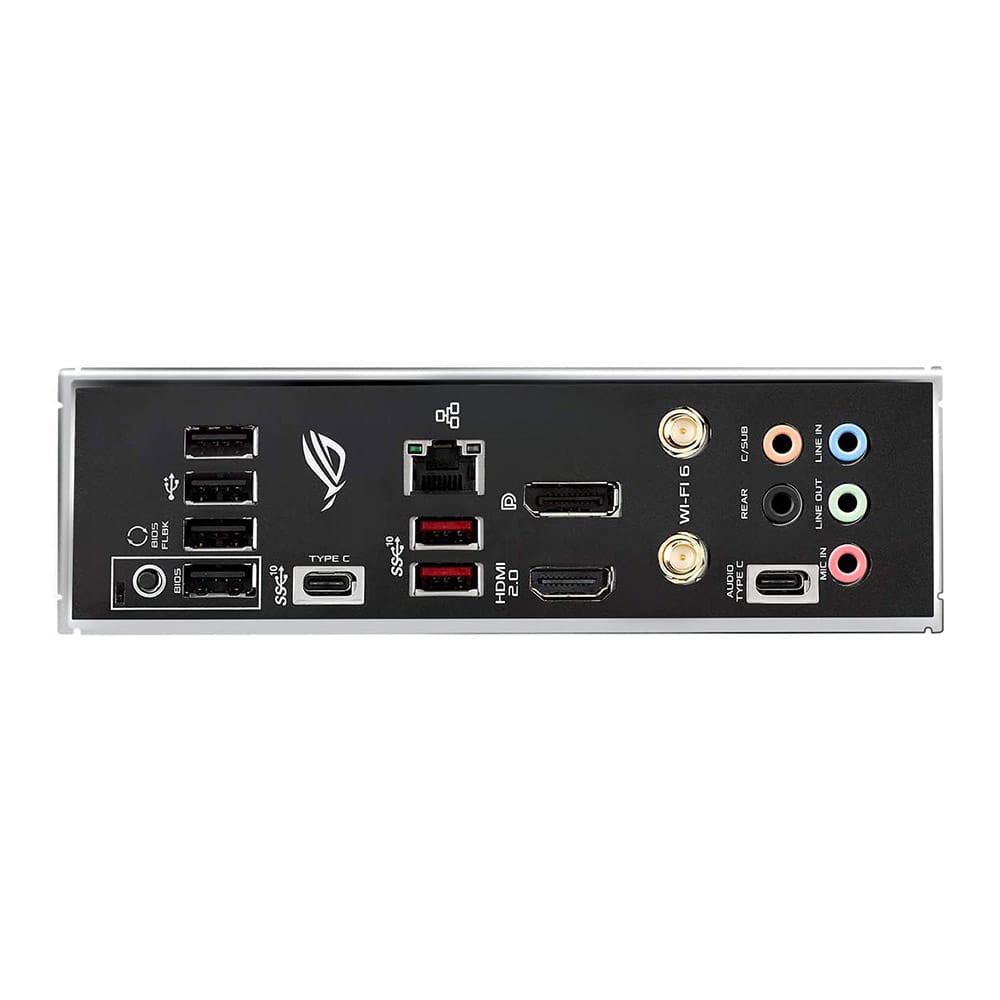

Panel trasero Entrada/salida

1 x Intel® I225-V 2.5Gb Ethernet
1 x DisplayPort
1 x HDMI
3 x USB 3.2 Gen 2 (2 x Type-A + 1 x USB Type-C ® )
5 x USB 2.0 (1 para audio USB Type-C ® )
5 x Jack (s) de audio
1 x Botón (s) BIOS FlashBack
Módulo Wi-Fi de ASUS (Wi-Fi 802.11 a / b / g / n / ac y Bluetooth v5.0)
Accesorios Manual del usuario
4 x SATA 6 Gb / s cable (s)
1 x DVD de soporte
1 x ROG Strix stickers
1 x Paquete (s)
de
bridas para cables 1 x Cable de extensión para tiras RGB (80 cm) 1 x Cable de extensión para LED direccionable
1 x ROG Tarjeta de agradecimiento
1 x antena móvil Wi-Fi
1 x paquete (s) de tornillos SSD M.2 1 x paquete (s)
de goma M.2
1 x audio ROG cable USB Type-C®
1 llavero ROG

Monitorización del hardware

WOL por PME, PXE
Formato Factor de forma ATX
12 pulgadas x 9.6 pulgadas (30.5 cm x 24.4 cm)

Sistema Operativo

Compatible con Microsoft Windows® 10 64-bit
