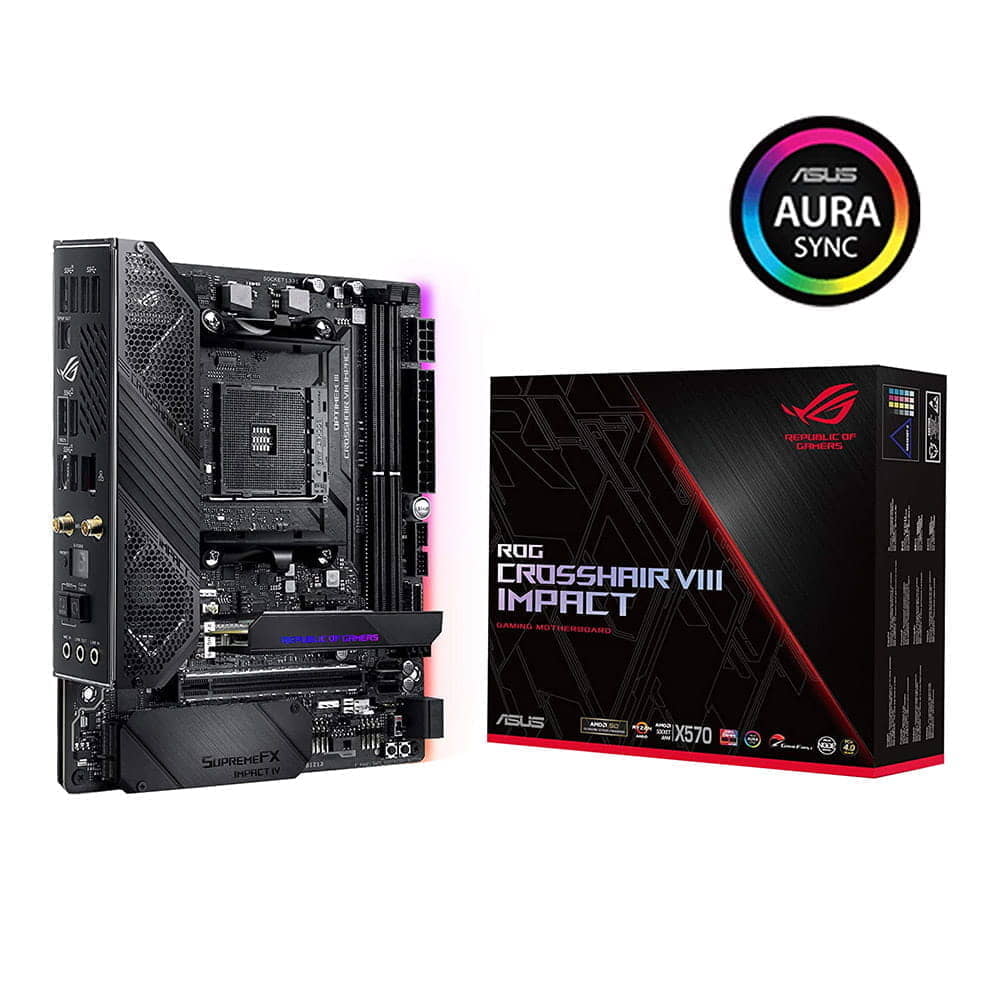

Español Asus ROG Crosshair VIII Impact. Socket AM4.
Asus ROG Crosshair VIII Impact. Socket AM4.
- Compatible with 3rd and 2nd Ge AMD Ryzen ™ processors.
- Expansion card included with two M.2 slots and a heatsink that allows SSDs to operate at full capacity.
- Full Thermal Design: Combo VRM and chipset heatsink and an aluminum backplate with a heat pipe that adds mass and helps absorb more temperature.
- Wi-Fi 6 (802.11ax) with MU-MIMO, Intel Gigabit Ethernet with ASUS LANGuard and GameFirst V features.
- SupremeFX S1220 and ESS® SABRE9023P for high-fidelity sound, Sonic Studio III and DTS Sound Unbound.

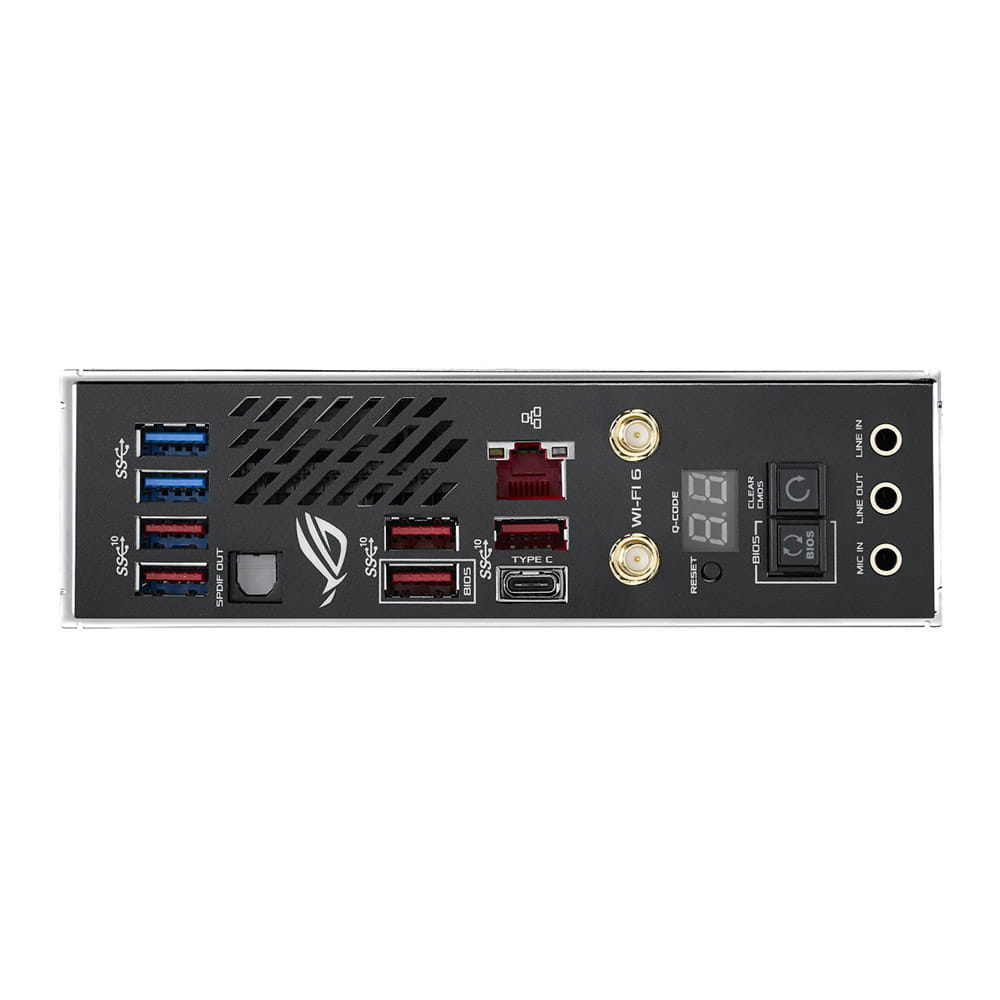

- I / O box, ASUS SafeSlot and IMPACT Control Card VI, which adds the BIOS Flashback, Clr CMOS, Q-Code and FlexKey functions.
of guarantee
shipping
Secure pay
The ROG Crosshair VIII series heralds the arrival of Impact, a compact motherboard packed with colossal potential. Prepared for the new 3rd Gen AMD Ryzen CPUs, the Crosshair VIII Impact Mini-DTX comes equipped with ATX-format features such as advanced power and cooling systems, two M.2, Wi-Fi 6 ( Next Generation 802.11ax) and Integrated SupremeFX Sound. It is the perfect choice for mounting a compact gaming platform capable of competing with full-size gaming systems.
The Impact's unusual Mini-DTX format is a well thought-out choice. Many Mini-ITX chassis have enough space for a dual-slot graphics card, which means that there is often unused space below the lower PCIe® slot, which could be used to mount more components or enable additional functions. Being slightly taller than mini-ITX boards, it includes additional features without losing compatibility with many mini-ITX chassis.
The ROG Crosshair VIII Impact combines storage, audio and control functions on secondary risers; This frees up space for connectivity and other features normally found on ATX boards.
The ROG Crosshair VIII Impact is equipped with an optimized power design and comprehensive cooling that allows you to exploit all the prodigious performance of the latest AMD Ryzen processors without incurring thermal issues. It also includes innovations to double memory and maximize frequencies.
The latest multi-core processors require a power circuit capable of instantly responding to huge current changes. Equipped with 10 strategically placed power phases, the Impact VRM is ready to handle any type of workload.
The renowned ROG UEFI (BIOS) provides everything you need to configure and adjust your equipment. It offers cleverly simplified options for newcomers to the PC DIY world, as well as comprehensive features for seasoned veterans.
The advanced connectivity of the ROG Crosshair VIII Impact enhances your online gaming experience. It is equipped with Intel Ethernet and Wi-Fi 6 (802.11x), as well as 2 M.2 slots integrated in the SO-DIMM and the integrated SupremeFX audio solution present in the rest of ROG motherboards.
Highlights...
* Compatible with 3rd and 2nd Ge AMD Ryzen ™ processors.
* Expansion card included with two M.2 slots and a heatsink that allows SSDs to operate at full capacity.
* Full Thermal Design: Combo VRM and chipset heatsink and an aluminum backplate with a heat pipe that adds mass and helps absorb more temperature.
* Wi-Fi 6 (802.11ax) with MU-MIMO, Intel Gigabit Ethernet with ASUS LANGuard and GameFirst V features.
* SupremeFX S1220 and ESS® SABRE9023P for high-fidelity sound, Sonic Studio III and DTS Sound Unbound.
* I / O box, ASUS SafeSlot and IMPACT Control Card VI, which adds the BIOS Flashback, Clr CMOS, Q-Code and FlexKey functions.
| PROCESADOR | |
| Fabricante de procesador | AMD |
| Socket de procesador | Zócalo AM4 |
| Procesador compatible | AMD Ryzen |
| Máx.número de procesador SMP | 1 |
| Sockets de procesador soportados | Zócalo AM4 |
| MEMORIA | |
| tipos de memoria compatibles | DDR4-SDRAM |
| Número de ranuras de memoria | 2 |
| Tipo de ranuras de memoria | DIMM |
| Canales de memoria | Dual |
| Velocidades de reloj de memoria soportadas | 2133,2400,2666,2800,2933,3000,3200,3400,3466,3600,3733,3866,4000,4133,4266,4400,4600,4800 MHz |
| Capacidades del módulo de memoria soportadas | 4GB,8GB,16GB,32GB |
| Memoria interna máxima | 64 GB |
| Memoria sin buffer | S |
| REGULADORES DEL ALMACENAJE | |
| Tipos de unidades de almacenamiento admitidas | Unidad de disco duro, SSD |
| Interfaces de disco de almacenamiento soportados | Serial ATA III |
| Número de HDDs soportados | 4 |
| Niveles RAID | 0,1,10 |
| INTERNO I/O | |
| USB 2.0, conectores | 1 |
| Conectores USB 3.2 Gen 1 (3.1 Gen 1) | 1 |
| Conectores USB 3.2 Gen 2 (3.1 Gen 2) | 1 |
| Número de conectores SATA III | 4 |
| conector de audio | Si |
| Conector de audio en panel frontal | Si |
| Conector de potencia ATX (24 pines) | Si |
| Conector para ventilador | Si |
| Conector de ventilador CPU | Si |
| Conector de energía EPS (8-pin) | S |
| PANEL TRASERO PUERTOS DE I/O (ENTRADA/SALIDA) | |
| Cantidad de puertos tipo A USB 3.2 Gen 2 (3.1 Gen 2) | 8 |
| Ethernet LAN (RJ-45) cantidad de puertos | 1 |
| Salidas para auriculares | 1 |
| Micrófono, jack de entrada | S |
| RANURAS DE EXPANSIÓN | |
| Ethernet | Si |
| Tipo de interfaz ethernet | 10 Gigabit Ethernet, Ethernet rápido, Gigabit Ethernet |
| Controlador LAN | Intel® I211-AT |
| Wifi | Si |
| Wi-Fi estándares | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac) |
| Bluetooth | Si |
| Versión de Bluetooth | 5.0 |
| BIOS | |
| Tipos de BIOS | UEFI AMI |
| BIOS, tamaño de memoria | 256 MB/s |
| Versión ACPI | 6.2 |
| Jumper Clear CMOS | Si |
| Versión de BIOS de administración del sistema (SMBIOS) | 3.2 |
| PESO Y DIMENSIONES | |
| Ancho | 203 mm |
| Profundidad | 170 mm |
