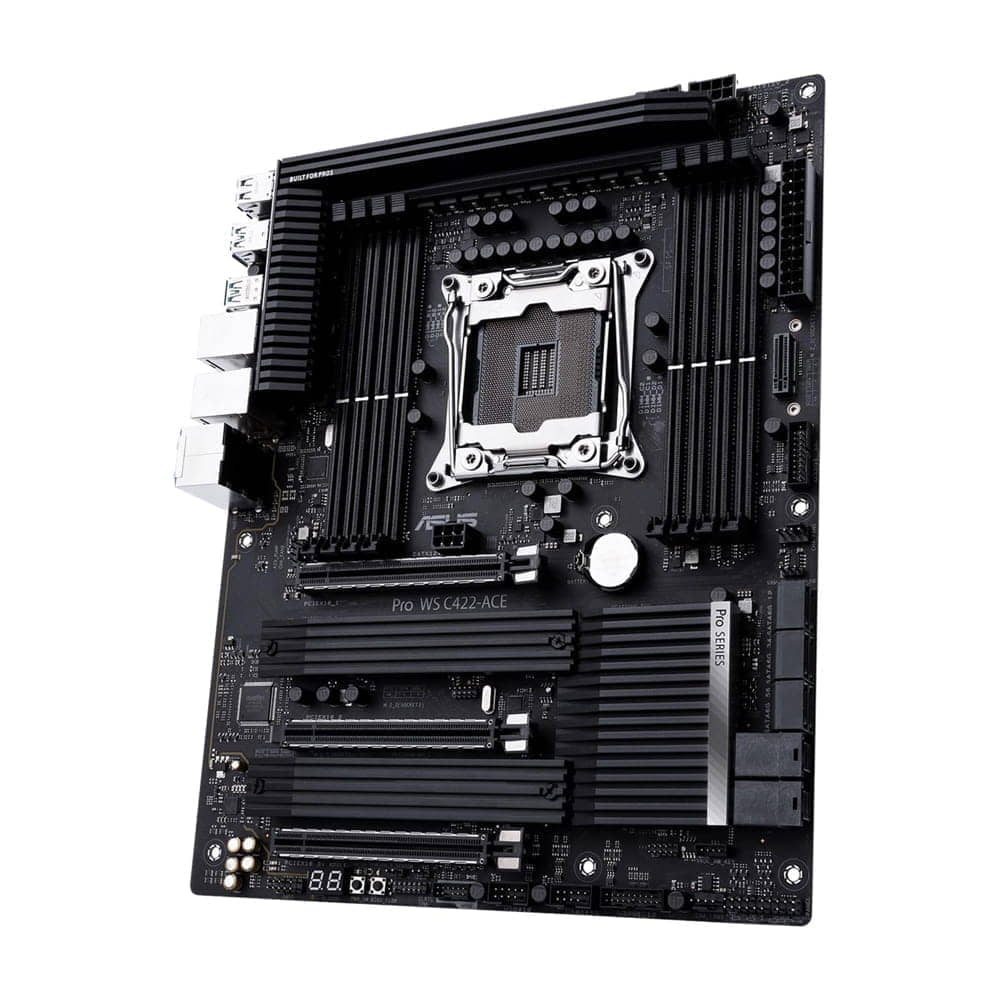

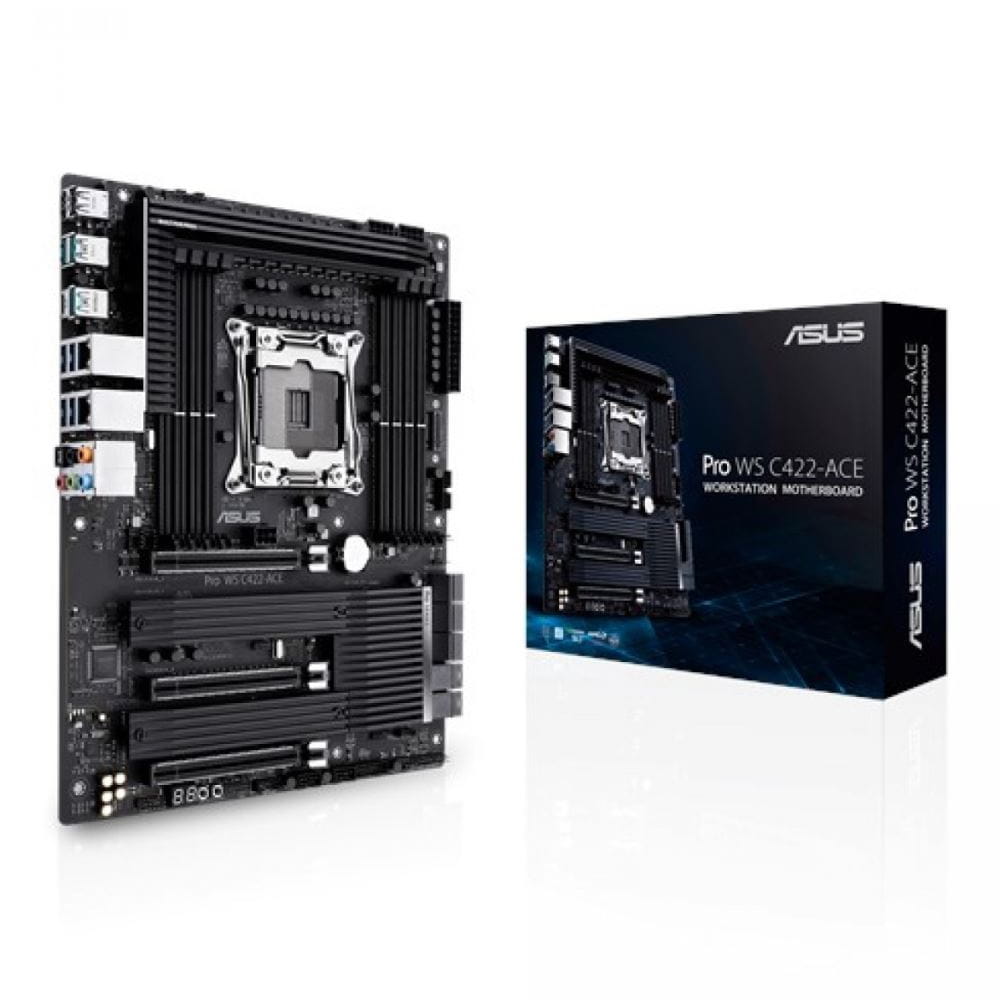

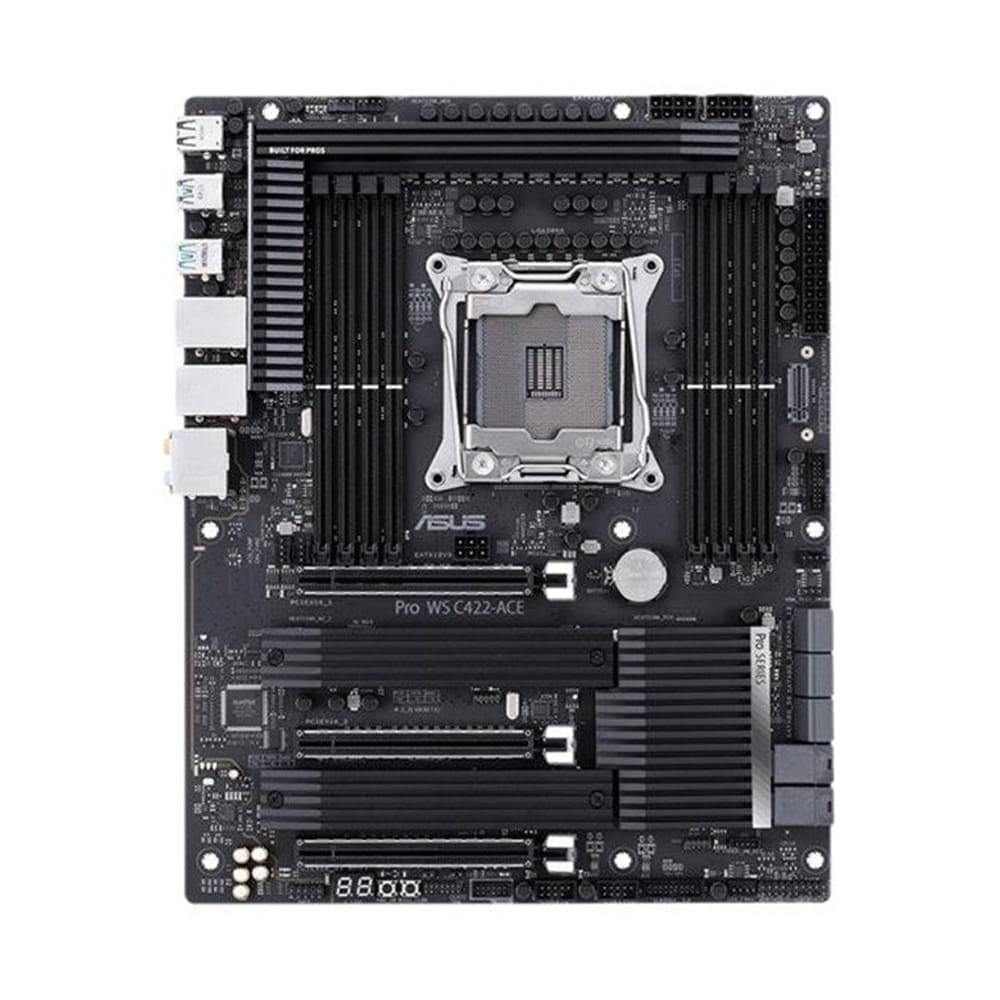

Asus Pro WS C422-ACE. Socket 2066.

Asus Pro WS C422-ACE. Socket 2066.

Asus
  • Compatible with Intel® Xeon® W workstation processors.
  • Three PCIe 3.0 x16 slots optimized in a 3-way x16 / x16 / x8 configuration to accelerate a wide variety of workloads.
  • Optimized Power Solution: 12 + 2 IR3555 power stages, ProCool power outlets and long life capacitors, alloy chokes, and 8-layer PCB for stable power.
  • High-speed transfers with three M.2 slots, two heatsinks and two U.2 slots for NVMe drives.
  • ASUS Express Control Center: A software for managing servers with remote capabilities and a very intuitive interface.
  • Server grade quality and proven reliability in various environments 24/7.
  • USB 3.2 Gen. 2 Type-A and Type-C ™ connectivity delivers up to 10Gbps speed.

P/N: 90MB11Y0-M0EAY0 - EAN/UPC: 4718017338561

337,93 € Without VAT
408,90 € With VAT
In stock
Approximate delivery between 03 noviembre and 04 noviembre
2 years
of guarantee
sending
shipping
100%
Secure pay

ASUS Pro Workstation motherboards are designed for professionals working in the field of AI, deep learning, animation, 3D rendering or multimedia production. Packed with expandable graphics, extensive storage options, impressive connectivity, and exceptional performance and reliability, Pro Workstation motherboards are the ideal solution for creative professionals. ASUS Pro Workstation motherboards include efficient centralized management software that supports out-of-band management.

When you have 48 PCI Express® lanes that you can configure in 3-way x16 / x16 / x8 mode using the three PCIe x16 slots on the board, the “Fully loaded” concept takes on a whole new dimension. Install the GPUs you need to speed up training for AI models, 3D rendering, scientific and financial models, and other advanced workloads.

The Pro WS C422-ACE comes with a rigid bracket that prevents the board from sagging under the weight of two high-end graphics cards in 2-way configuration. This stand is very easy to install and can be mounted with an additional 120mm fan to ensure your workstation has enough cooling to complete any task.

The power design of the Pro WS C422-ACE provides the stability needed for the new 18-core Intel® Xeon® W processors to perform at full capacity.

Aside from being more rugged, the new 8-pin EATX ProCool II power socket reduces impedance to prevent temperature build-up and connections failing. The new design includes metal reinforcements and solid contacts that better dissipate temperature, as well as an LED display with POST BIOS messages indicating incorrect connections.

With a PCI Express 3.0 x4 bandwidth, the Pro WS C422-ACE incorporates three M.2 slots (including a vertical one) that support up to 32 Gbps speed. These slots feature two highly efficient heat sinks that lower the temperature of M.2 SSDs by up to 18.7 ° C, optimizing their performance and extending their lifespan.

Experience transfer speeds of up to 32 Gbps with NVMe storage devices with the two U.2 ports and free up a PCIe slot for another expansion card.

The Pro WS C422-ACE offers enhanced features to facilitate IT operations, including comprehensive system protection, stability, and 24/7 reliability.

The Pro WS C422-ACE is designed to ensure optimal cooling and stability with the latest Intel® Xeon® W processors. New power requirements are countered with carefully optimized heatsinks. This board incorporates a VRM heatsink with a heat pipe positioned to maximize air circulation through the chassis, as well as a second fan-assisted heatsink that takes care of cooling the PCH.

Optimized for non-stop work, this motherboard is tested at temperatures of 45 ° C and humidity levels of 80% to verify its correct operation in various places and climates.

ASUS Express Control Center is centralized management software that installs in a minute and helps contain IT costs and improve efficiency. This powerful tool allows IT administrators to remotely manage and monitor multiple clients located in different locations, and includes features such as asset management and software deployment and monitoring. It also allows the visualization of software implementations, which facilitates their control in real time.

Highlights...

* Compatible with Intel® Xeon® W workstation processors.
* Three PCIe 3.0 x16 slots optimized in a 3-way x16 / x16 / x8 configuration to accelerate a wide variety of workloads.
* High speed transfers with three M.2 slots, two heatsinks, and two U.2 slots for NVMe drives.
* Server grade quality and proven reliability in various 24/7 environments.
* USB 3.2 Gen. 2 Type A and Type C ™ connectivity offers up to 10 Gbps speed.

Datos Generales
Procesador
Fabricante de procesador Intel
Socket de procesador LGA 2066
Procesador compatible Intel® Xeon® W
Memoria
tipos de memoria compatibles DDR4-SDRAM
Número de ranuras de memoria 8
Tipo de ranuras de memoria DIMM
Canales de memoria Quad-channel
Velocidades de reloj de memoria soportadas 2133,2400,2666,2933 MHz
Memoria interna máxima 512 GB
Reguladores del almacenaje
Tipos de unidades de almacenamiento admitidas HDD & SSD
Interfaces de disco de almacenamiento soportados M.2,Serial ATA III
Niveles RAID 0,1,5,10
Gráficos
Soporte para proceso paralelo 3-Way CrossFireX,3-Way SLI
Interno I/O
USB 2.0, conectores 2
Conectores USB 3.2 Gen 2 (3.1 Gen 2) 2
Número de conectores SATA III 6
Cantidad total de conectores SATA 6
Conector de potencia ATX (24 pines) Si
Conector para ventilador Si
Conector de ventilador CPU Si
Número de conectores a ventilador de chasis 3
Conector eléctrico de 12 V Si

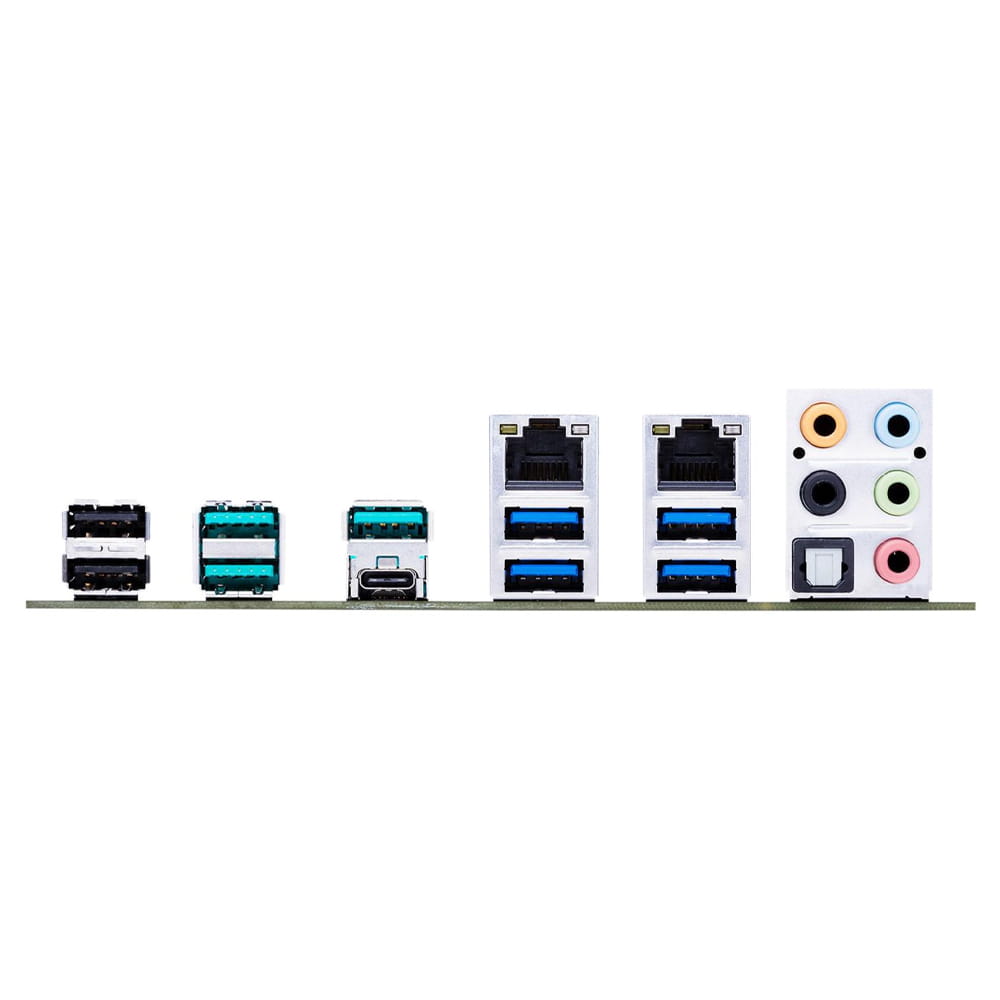

Panel trasero Puertos de I/O (entrada/salida)
Cantidad de puertos USB 2.0 2
Cantidad de puertos tipo A USB 3.2 Gen 1 (3.1 Gen 1) 4
Cantidad de puertos tipo A USB 3.2 Gen 2 (3.1 Gen 2) 3
Cantidad de puertos tipo C USB 3.2 Gen 2 (3.1 Gen 2) 1
Ethernet LAN (RJ-45) cantidad de puertos 2
Puerto de salida S/PDIF Si
Conector USB USB tipo A, USB Tipo C
Conexión
Ethernet Si
Tipo de interfaz ethernet 2.5 Gigabit Ethernet
Controlador LAN Intel® I210-AT, Intel I219LM
Características
Chip de sonido Realtek ALC S1220A
Canales de salida de audio 7.1 canales
Monitoreo de la salud de PC CPU, Ventilador, Tensión
Componente para PC
Factor de forma ATX
Familia del chipset Intel
Tipo de enfriamiento Activo
Alimentación ATX
Sistema operativo Windows soportado Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 IoT Enterprise,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64
Ranuras de expansión
PCI Express x16 Gen (3.x) ranuras 2
Ranuras de modo PCI Express x16 (Gen 3.x) @ dual x8/x8 1
BIOS
Tipos de BIOS UEFI AMI
Versión ACPI 6.0
Jumper Clear CMOS Si
Botón de limpieza CMOS Si
Peso y dimensiones
Ancho 305 mm
Profundidad 244 mm
Contenido del embalaje
Cables incluidos SATA
Controladores incluidos Si
Otras características
Modo PCI Express x16 dual ?8/x8 Si
Litografía del procesador 14 nm
