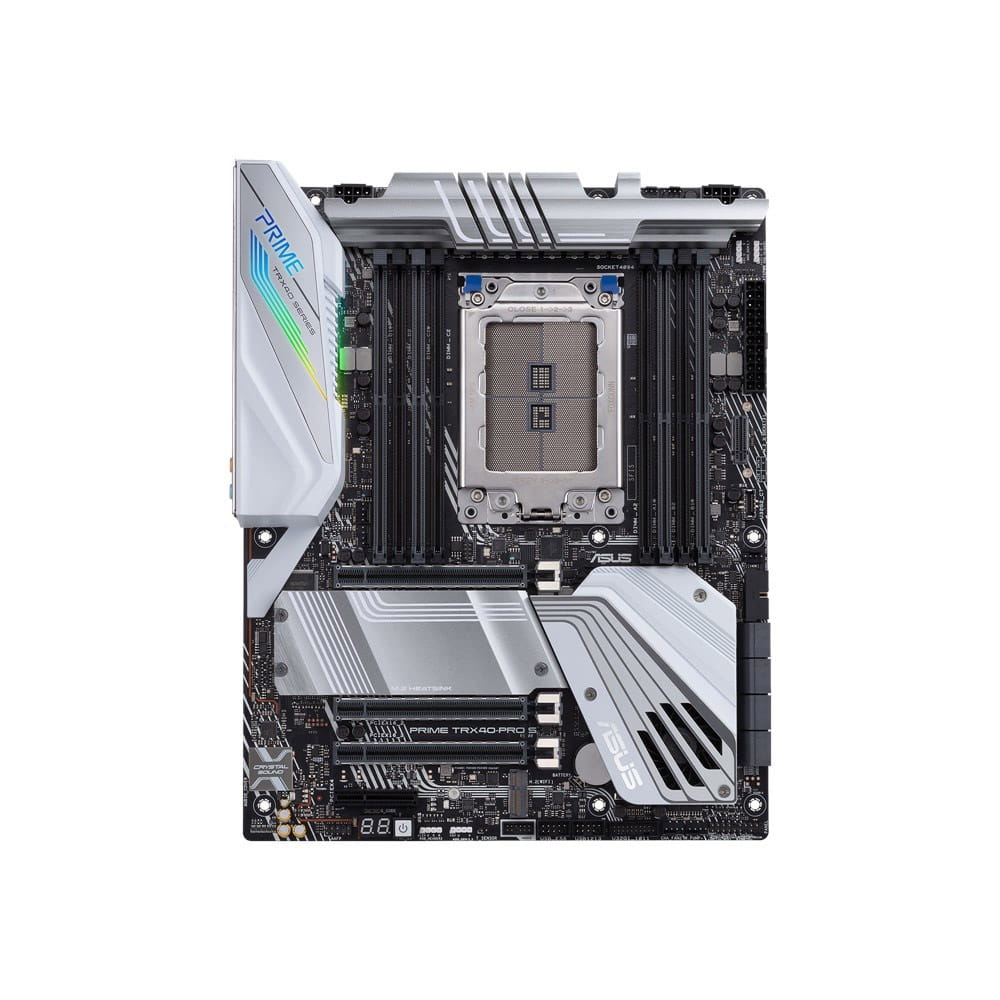

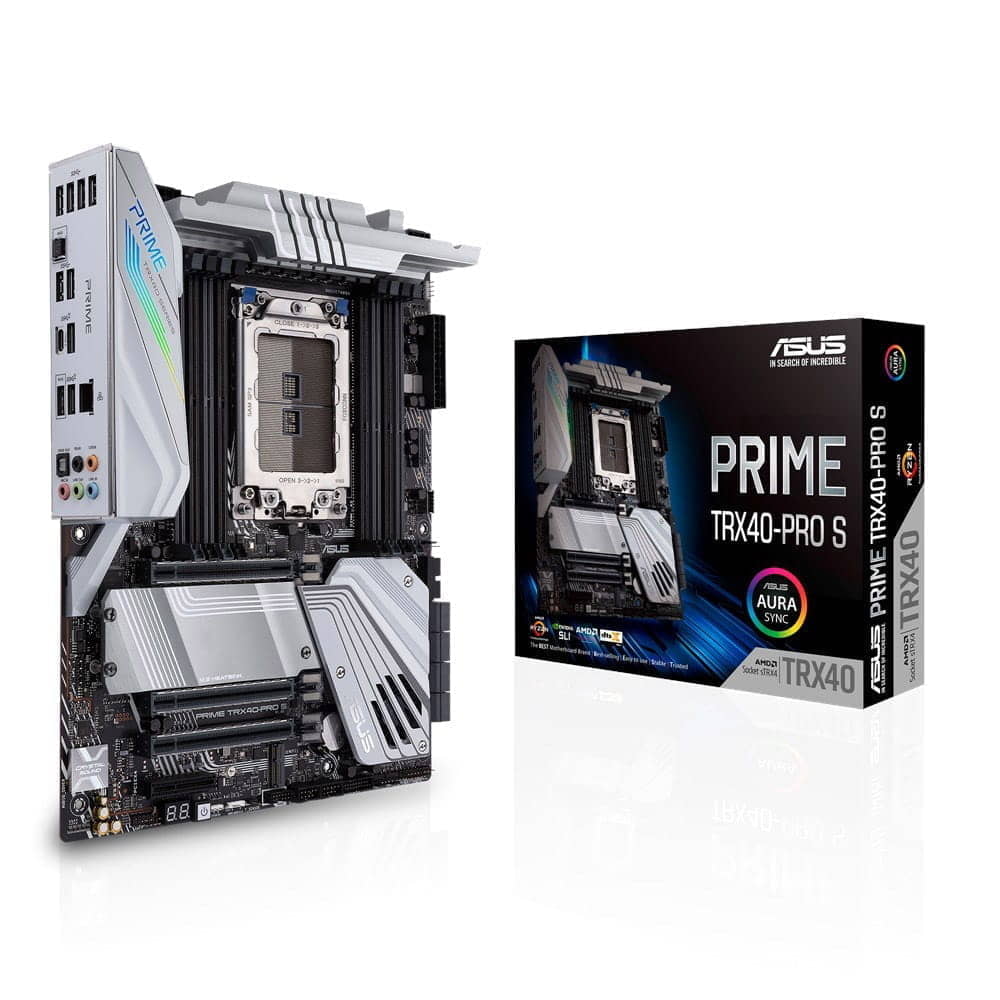

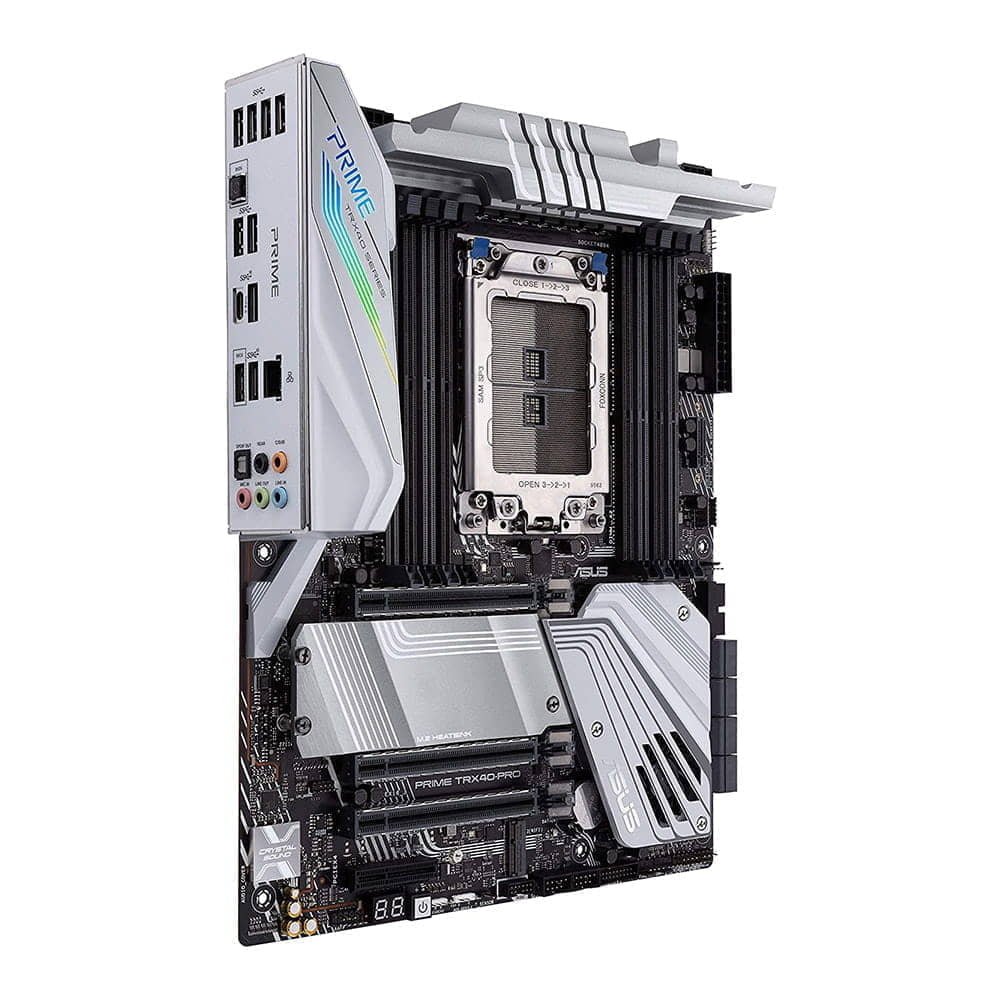

Asus Prime TRX40-Pro S. Socket sTRX4.

Asus Prime TRX40-Pro S. Socket sTRX4.

Asus
  • AMD sTRX4 socket: Compatible with 3rd generation Ryzen ™ Threadripper ™ processor series (up to 64 cores).
  • Robust power design: 16 power stages, ProCool II power outlets with solid contacts and high-quality chokes and capacitors for a stable power supply.
  • Complete thermal solution: VRM heatsink, M.2 heatsink, VRM SoC heatsink, active chipset heatsink, and various connectors for hybrid fans.
  • Next-generation connectivity: Three M.2 NVMe PCIe 4.0, USB 3.2 Gen. 2 Type-C slots for the front panel and Intel Gigabit Ethernet.
  • Smart Fit: ASUS 5-Way Optimization and our renowned UEFI BIOS offer configuration options for all levels of experience.

P/N: 90MB14J0-M0EAY0 - EAN/UPC: 4718017660914

424,49 € Without VAT
513,63 € With VAT
Only 2 units left
Approximate delivery between 07 diciembre and 08 diciembre
2 years
of guarantee
sending
shipping
100%
Secure pay

The ASUS Prime TRX40-Pro S is designed so that content creators, designers and other professionals can take advantage of all the potential performance of AMD's new processors with many cores. Packed with a robust power design, comprehensive cooling solutions, high-speed PCIe 4.0 connectivity, and smart tuning options, this high-end motherboard offers the performance and stability you need to turn your creative vision into reality.

The new 3rd Gen Ryzen ™ Threadripper ™ processors feature more cores and bandwidth than ever. The Prime TRX40-Pro S is built to withstand the processing power that comes with CPU intensive computation. Also, because they have more bandwidth, the new processors allow you to install more GPUs and NVMe SSDs to speed up any type of task.

The new AMD sTRX4 socket is compatible with 3rd Gen AMD Ryzen Threadripper processors with up to 64 cores, CPUs with up to 64 PCIe 4.0 tracks and a 280 Watt TDP. And because these specifications require a powerful power supply, the Prime TRX40-Pro S incorporates a 16-stage power supply solution that ensures your system doesn't miss a beat.

ProCool II jacks connect the 12V EPS lines firmly. The second generation incorporates metal reinforcements and solid connectors to better dissipate heat, as well as a warning LED screen that indicates incorrect connections with POST messages from the BIOS.

Refrigeration is a fundamental element of content creation. The Prime TRX40-Pro S incorporates multiple heatsinks and hybrid fan connectors so that your team stays stable under heavy workloads and dedicates all your attention to your creative goals.

The ASUS Prime series has a large number of controls. The Prime TRX40-Pro S includes options that help you customize and adjust your gear just the way you want to be as productive as possible.

Make complex adjustments at the touch of a button. ASUS 5-Way Optimization makes your PC smarter. Dynamically optimize the most essential aspects of the PC with overclocking profiles and custom cooling settings.
We pay special attention to small details that improve your overall experience, such as integrating a flash utility into the UEFI itself, simplifying firmware updates and the possibility of checking the vital signs of your system. The Prime TRX40-Pro S provides the tools you need to customize your gear and stay on top of everything.

Initially included in our high-end ROG motherboards, the Prime TRX40-Pro S now also incorporates the I / O box. This design greatly facilitates the system assembly process for both novice and experienced users.

The AMD TRX40 chipset offers outstanding overclocking capabilities with 3rd Gen Ryzen ™ Threadripper ™ processors for AMD sTRX4 socket. It includes PCIe 4.0 support, USB 3.2 Gen. 2 to 10Gbps ports and eight SATA to 6Gbps ports for faster data recovery.

The ASUS Prime TRX40-Pro S motherboard supports the latest third generation AMD Ryzen ™ Threadripper ™ processors and up to 32 cores. It features four-channel DDR4 memory, 64 PCI Express® 4.0 tracks, 16 GT / s transfers for M.2 Gen. 4 SSD and USB 3.2 Gen. 2 (10 Gbps) for superior performance.

Highlights...

* AMD sTRX4 socket: Compatible with 3rd generation Ryzen ™ Threadripper ™ processor series (up to 64 cores).
* Robust power design: 16 power stages, ProCool II power outlets with solid contacts.
* Complete thermal solution: VRM heatsink, M.2 heatsink, VRM SoC heatsink, active chipset heatsink, and various connectors for hybrid fans.
* Next-generation connectivity: Three M.2 NVMe PCIe 4.0, USB 3.2 Gen. 2 Type-C slots for the front panel and Intel Gigabit Ethernet.
* Smart Fit: ASUS 5-Way Optimization and our renowned UEFI BIOS offer configuration options for all levels of experience.

CPU AMD Socket sTRX4 for 3rd Gen AMD Ryzen Threadripper Series Desktop Processors *
Soporta CPU hasta 64 núcleos
Chipset AMD TRX40
Memoria 8 x Memoria DIMM, Max. 256GB, DDR4 4666(O.C.)/4600(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/3800(O.C.)/3733(O.C.)/3466(O.C.)/3400(O.C.)/3200/2933/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered
3rd Gen AMD Ryzen Threadripper Series Deskto
Compatible Multi-GPU Compatible con NVIDIA® Quad-GPU SLI™ Technology
Compatible con AMD Quad-GPU CrossFireX™ Technology
Compatible con NVIDIA® 2-Way SLI™ Technology
Ranuras de expansión 3rd Gen AMD Ryzen Threadripper Series Desktop processors
3 x PCIe 4.0 x16 (x16/x16/x16) *
AMD TRX40 chipset
1 x PCIe 4.0 (modo x4)
Almacenamiento 3rd Gen AMD Ryzen Threadripper Series Desktop processors :
2 x zócalo 3 M.2 with M key, type 2242/2260/2280/22110 storage devices support(PCIe 4.0 x4 mode)
AMD TRX40 chipset :
1 x zócalo 3 M.2 with vertical M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
8 x puertos SATA 6Gb/s,
Compatible con Raid 0, 1, 10
Red Intel® I211-AT
Utilidad ASUS Turbo LAN
ASUS LAN Guard
Audio Realtek® ALC S1220 8 canales CODEC de audio de alta definición
- Compatible con: Jack-detection, Multi-streaming, Jack-retasking en panel frontal
- Impedancia adaptativa (conector frontal y trasero)
Características de audio:
- Salida S/PDIF óptica en panel trasero
- DTS X®:Ultra
- Aislamiento de audio: Asegura la separación de las señales de sonido y las digitales, lo que reduce las interferencias notablemente.
- Capas dedicadas para audio: Las capas separadas para los canales derecho e izquierdo protegen las señales débiles de audio.
- Condensadores japoneses: ofrecen un sonido cálido, natural y realista.
- Circuito antipop: Reduce los ruidos al iniciar el equipo
- Amplificador integrado para disfrutar de sonido de alta calidad con auriculares y altavoces
alta calidad 120 dB (Salida de línea posterior) y 108 dB entrada SNR recording (Entrada de línea)
Puertos USB AMD Ryzen™ Threadripper™ Processors :
4 x puerto(s) USB 3.2 Gen 2 (4 en panel posterior, , 3 x Tipo A+1 x Type-C)
AMD TRX40 chipset :
1 x puerto(s) USB 3.2 Gen 2 front panel connector (1 en placa)
AMD TRX40 chipset :
6 x puerto(s) USB 3.2 Gen 1 (2 en panel posterior, , 4 en placa, Tipo A)
AMD TRX40 chipset :
2 x puerto(s) USB 2.0 (2 en placa)
Controladora ASMedia® USB 3.0 :
4 x puerto(s) USB 3.2 Gen 1 (4 en panel posterior, , Tipo A)
GL852G USB Hub :
2 x puerto(s) USB 2.0 (2 en placa)
Características especiales
ASUS Dual Intelligent Processors Optimización por 5 vías con Dual Intelligent Processors 5 :
- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App
ASUS SafeSlot - Protect your graphics card Investment
Características exclusivas ASUS :
- Botones integrados: Power
- AI Suite 3
- Ai Charger
- ASUS UEFI BIOS EZ Mode con interfaz gráfico de usuario amigable
- Turbo LAN
- Crystal Sound 3
- Armoury Crate
- Pre-mounted I/O Shield
Soluciones térmicas ASUS :
- Diseño libre de ventilador ASUS: Conductos disipadores
- Stylish Fanless Design with M.2 Heat-sink solution
- ASUS Fan Xpert 4
AURA :
- Conectores para tiras RGB
- Sincronización de iluminación Aura para dispositivos compatibles
- Addressable Gen 2 Header
ASUS EZ DIY :
- ASUS EZ Flash 3
- BIOS multilingüe
- ASUS USB BIOS FlashBack
- ASUS UEFI BIOS EZ Mode
ASUS Q-Design :
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, LED indicador de arranque de dispositivo)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
E/S Panel trasero 1 x Red (RJ45)
1 x Salida S/PDIF óptica
5 x Jack(s) de audio
1 x Botón USB BIOS Flashback®
4 x USB 3.2 Gen 2 (color azul) (3 x Tipo A+1 x Type-C) (Un puerto puede usarse para USB BIOS Flashback®)
6 x USB 3.2 Gen 1 (azul)
E/S internas
2 x Conector(es) USB 3.0 soporta(n) 4 USB 3.0 extra(s)
2 x Conector(es) USB 2.0 soporta(n) 4 USB 2.0 extra
2 x Zócalo M.2 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
8 x Conector(es) SATA 6Gb/s
1 x Q_Code
1 x Conector(es) ventilador de CPU (1 x 4 -pin)
3 x Conector(es) ventilador chasis (3 x 4 -pin)
1 x Conector Ventilador CPU OPT (1 x 4 -pin)
1 x Conector de alimentación EATX de 24 contactos
2 x Aura RGB Strip Header(s)
2 x Conector de alimentación ATX 12V de 8 contactos
2 x Addressable Gen 2 header(s)
1 x Conector de audio en panel frontal (AAFP)
1 x Paneles del sistema (Q-Connector) x With flexkey function
1 x Conector para sensor térmico
1 x M.2 Socket 3 with vertical M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
1 x M.2 with E key for Wi-Fi module
1 x Botón de encendido
1 x Jumper Clear CMOS
1 x AIO_PUMP connector (1 x 4 -pin)
1 x W_PUMP+ connector (1 x 4 -pin)
1 x Node Connector(s)
1 x USB 3.1 frontal
Accesorios Manual de usuario
4 x Cable(s) SATA 6Gb/s
1 x Vertical M.2 bracket set
1 x DVD de soporte
2 x Tornillos M.2
1 x Q-Connector
1 x Extension Cable for RGB strips (40 cm)
1 x Extension cable for Addressable LED
1 x CPU Fan Holder
BIOS 1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2
Capacidad de gestión WfM 2.0, WOL by PME, PXE
Sistema operativo Windows® 10 64-bit
Formato de fábrica Formato de fábrica ATX
12 pulgadas x 9.6 pulgadas ( 30.5 cm x 24.4 cm )
