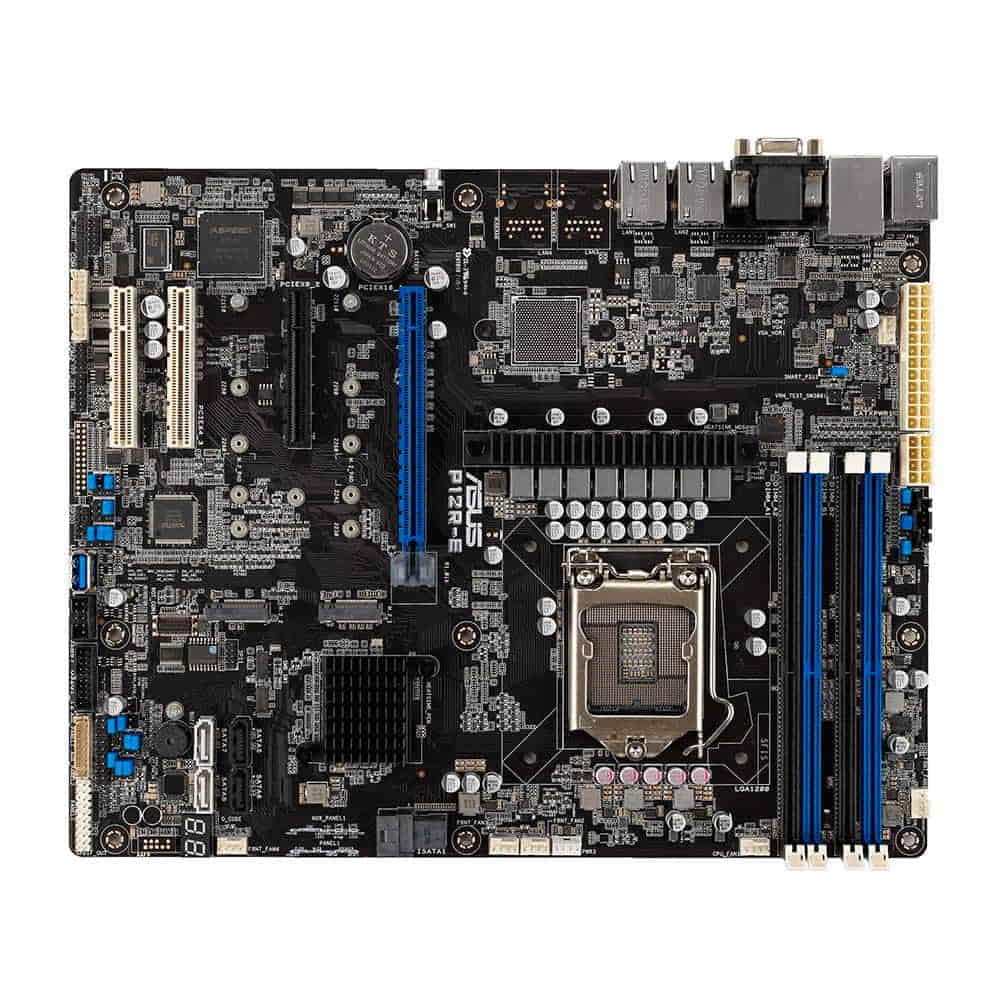

Asus P12R-E. Socket 1200.

Asus P12R-E. Socket 1200.

Asus
  • Ideal for use in remote/branch offices and everyday business environments
  • Powered by an Intel® Xeon E-2300 Octa-Core Processor with support for TDP up to 95W
  • Flexible expansion with eight native SATA hard drives and two PCIe Gen4 slots
  • Dual Intel I210AT Gigabit Ethernet with Team Support
  • Dual M.2 support up to 22110 PCIe Gen4 x4 Link and PCIe Gen3 x2 Link
  • HDMI 1.4 support for maintenance and monitoring of high-resolution displays
  • Optional ASUS ASMB10-iKVM with ASPEED AST2600 controller for out-of-band management
  • Optional PFR FPGA as platform root of trust solution for firmware resiliency

P/N: 90SB0A90-M0UAY0 - EAN/UPC: 4711081420217

360,55 € Without VAT
436,27 € With VAT
This product is not available in our warehouse or in any of our suppliers at this time.
The price that appears is indicative
3 years
of guarantee
Shipment
Insured
100%
Secure pay

Otros clientes que vieron este producto también se interesaron en
1.095,12 €
Without VAT
1.325,10 €
With VAT
Intel Xeon E5-2650LV4 1.7Ghz. Socket 2011-V3. TRAY
29,00 €
Without VAT
35,09 €
With VAT
Gelid GX-7
166,67 €
Without VAT
201,67 €
With VAT
In Win R100 caja Rack 1U sin fuente
157,92 €
Without VAT
191,08 €
With VAT
MSI B660-A Pro. Socket 1700.

At this time, we do not have in our catalog any product with characteristics identical to: Asus 90SB0A90-M0UAY0. However, we can show you very similar products, if you tell us what you are looking for:
Formate
Socket
Chipset
kind of product
No. of sockets

Small businesses require reliability and security to support their critical customer and business data needs. Available with up to eight cores and a TDP of up to 95 watts, Intel Xeon E-2300 processors bring essential server performance, expandability, and reliability to small businesses to support critical customer and business data needs.

ASUS P12R server motherboards feature an HDMI 1.4 port routed from the CPU to offer higher resolution monitoring and easier maintenance for IT administrators in business environments. A VGA port routed from the BMC is also available for dual screen monitoring.

With integrated dual LAN powered by an Intel I210AT Ethernet controller, the P12R server motherboards provide enterprise-grade connectivity and support high-density, high-bandwidth, and low-latency access layer networks to ensure faster transfers of large files. size used in data management. intensive applications.

ASUS ASMB10-iKVM is the latest server management solution from ASUS, based on the ASPEED 2600 chipset running on the latest MegaRAC SP-X AMI. The module provides various interfaces to enable out-of-band server management through the WebGUI, Intelligent Platform Management Interface (IPMI), and the Redfish® API.

ASUS P12R server motherboards integrate PFR FPGA as the Root-of-Trust platform solution for firmware resiliency to prevent hackers from gaining access to infrastructure. ASUS security solutions fully comply with the 2018 National Institute of Standards and Technology (NIST) specification SP 800 193.

Main features...

* Ideal for use in remote/branch offices and everyday business environments.
* Flexible expansion with eight native SATA hard drives and two PCIe Gen4 slots.
* Support dual M.2 up to 22110 PCIe Gen4 x4 Link and PCIe Gen3 x2 Link.
* HDMI 1.4 support for maintenance and monitoring of high resolution screens.
* Optional ASUS ASMB10-iKVM with ASPEED AST2600 controller for out-of-band management.


Procesador Socket LGA1200
Chipset Intel C256
Memoria Hasta 128Gb UDIMM
Tipo de memoria DDR4 3200/2933/266
Factor de forma ATX
Almacenamiento 8 puertos SATA3 de 6 Gb/s por 4 conectores Mini-SAS HD
2 conectores M.2 (2242/2260/2280/22110) tanto en modo SATA como PCIe
Redes 2 x Intel® I210AT + 1 x LAN de administración
Graficos Aspeed AST2600 con 64 MB de VRAM

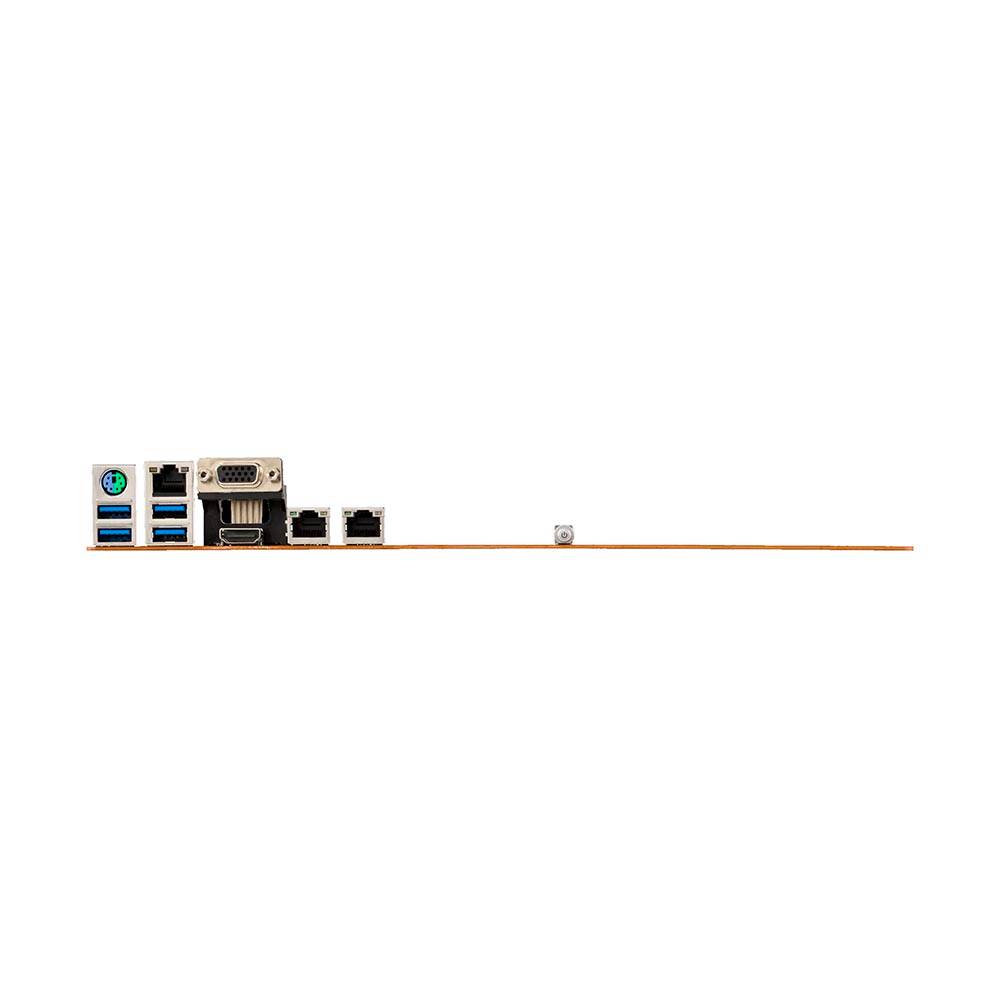

Puertos traseros 2 x USB 3.2 Gen 2
2 x USB 3.2 Gen 1
1 x puerto HDMI (utilizable solo con iGPU)
1 x puerto VGA (VGA de BMC)
2 x GbE LAN + 1 x Mgmt LAN
1 x PS/2 KB/ratón
Temperatura de funcionamiento 10 ℃ ~ 50 ℃*
-40 ℃ ~ 70 ℃

Small businesses require reliability and security to support their critical customer and business data needs. Available with up to eight cores and a TDP of up to 95 watts, Intel Xeon E-2300 processors bring essential server performance, expandability, and reliability to small businesses to support critical customer and business data needs.

ASUS P12R server motherboards feature an HDMI 1.4 port routed from the CPU to offer higher resolution monitoring and easier maintenance for IT administrators in business environments. A VGA port routed from the BMC is also available for dual screen monitoring.

With integrated dual LAN powered by an Intel I210AT Ethernet controller, the P12R server motherboards provide enterprise-grade connectivity and support high-density, high-bandwidth, and low-latency access layer networks to ensure faster transfers of large files. size used in data management. intensive applications.

ASUS ASMB10-iKVM is the latest server management solution from ASUS, based on the ASPEED 2600 chipset running on the latest MegaRAC SP-X AMI. The module provides various interfaces to enable out-of-band server management through the WebGUI, Intelligent Platform Management Interface (IPMI), and the Redfish® API.

ASUS P12R server motherboards integrate PFR FPGA as the Root-of-Trust platform solution for firmware resiliency to prevent hackers from gaining access to infrastructure. ASUS security solutions fully comply with the 2018 National Institute of Standards and Technology (NIST) specification SP 800 193.

Main features...

* Ideal for use in remote/branch offices and everyday business environments.
* Flexible expansion with eight native SATA hard drives and two PCIe Gen4 slots.
* Support dual M.2 up to 22110 PCIe Gen4 x4 Link and PCIe Gen3 x2 Link.
* HDMI 1.4 support for maintenance and monitoring of high resolution screens.
* Optional ASUS ASMB10-iKVM with ASPEED AST2600 controller for out-of-band management.


Procesador Socket LGA1200
Chipset Intel C256
Memoria Hasta 128Gb UDIMM
Tipo de memoria DDR4 3200/2933/266
Factor de forma ATX
Almacenamiento 8 puertos SATA3 de 6 Gb/s por 4 conectores Mini-SAS HD
2 conectores M.2 (2242/2260/2280/22110) tanto en modo SATA como PCIe
Redes 2 x Intel® I210AT + 1 x LAN de administración
Graficos Aspeed AST2600 con 64 MB de VRAM
Puertos traseros 2 x USB 3.2 Gen 2
2 x USB 3.2 Gen 1
1 x puerto HDMI (utilizable solo con iGPU)
1 x puerto VGA (VGA de BMC)
2 x GbE LAN + 1 x Mgmt LAN
1 x PS/2 KB/ratón
Temperatura de funcionamiento 10 ℃ ~ 50 ℃*
-40 ℃ ~ 70 ℃
