Asus P11C-M/4L. Socket 1151. Micro-ATX.

Asus P11C-M/4L. Socket 1151. Micro-ATX.

Asus
  • Powered by the Intel Xeon E platform.
  • 95W CPU and up to 128GB memory support (4 DIMMs).
  • Rack-optimized design maximizes cooling for excellent thermal efficiency.
  • Flexible expandability with 6 native SATA HDDs and two PCIe Gen3 slots.
  • Quad Intel I210AT Gigabit Ethernet with teaming support.
  • Dual M.2 for up to 32Gbps performance and data redundancy.

P/N: 90SB06R0-M0UAY0 - EAN/UPC: 4718017055451

184,53 € Without VAT
223,28 € With VAT
In stock
Approximate delivery between 02 noviembre and 02 noviembre
2 years
of guarantee
sending
shipping
100%
Secure pay

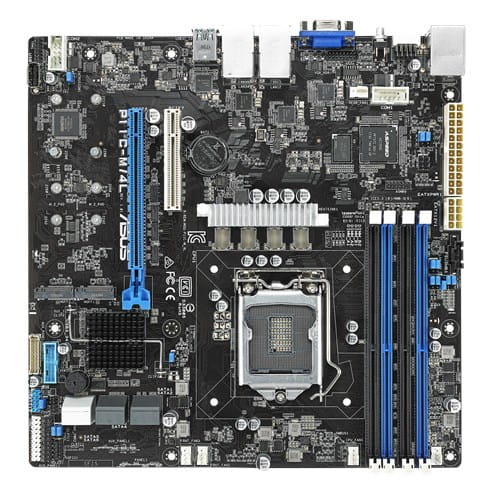

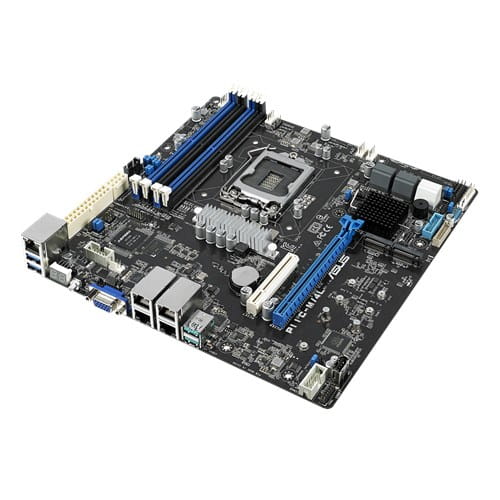

P11C-M/4L is a server motherboard based on the Intel Xeon E platform and Intel C242 chipset offering quad server-class Intel® Ethernet and flexible expandability with dual M.2, six SATA 6G, two PCIe. The 9.6” x 9.6” micro ATX form factor can be easily integrated in short-depth chassis to greatly increase rack compute density.

The layout is rack-optimized placement where the CPU and memory are placed in a parallel arrangement directly behind the fan inlet to promote maximum cooling for excellent thermal efficiency.

P11C-M/4L comes with dual M.2 support up to 22110-length M.2 drives via PCIe or SATA. In performance-maximizing RAID 0 configurations with dual M.2 SSDs, write speeds are up to 40% faster than a single M.2 SSD drive setup and read operations are an astonishing 84% faster. Or, for total reassurance, pair your M.2 devices into a RAID 1 configuration for instant data redundancy.

P11C-M/4L adopts the first-to-market NVMe technology to reduce latency, lower power consumption and provides faster CPU to data storage performance to gain larger throughputs. By offering flexible NVMe upgrade package of switching storage interface including PCIe to U.2 add-on card or M.2 to U.2 adapter, P11C-M/4L features shared common backplane to improve drive choices.

P11C-M/4L features quad server-class Intel Ethernet ports with the I210 controllers and teaming support that speed up the network bandwidth and the failover function ensures uninterrupted network connection. This suits virtualization applications perfectly which requires ultrafast and reliable network.

P11C-M/4L supports TPM-M 2.0 with a 14-1 TPM header to securely store keys, digital certificates, passwords and data. It helps to enhance network security, protect digital identities, and ensure platform integrity.

P11C-M/4L features an optional embedded iKVM module and is bundled with ASUS Control Center to provide comprehensive out-of-band and in-band management features for small and mid-size businesses.

The optional ASMB9-iKVM module supports remote BIOS updates, fan control, standalone KVMs, video recording, and BSOD capture, providing around-the-clock remote monitoring and diagnostics — even if the operating system is down or offline — through a user-friendly, web-based graphical interface that works with all major browsers.

ASUS Control Center (ACC) is a centralized and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.

Highlights...

* Powered by the Intel Xeon E platform.
* 95W CPU and up to 128GB memory support (4 DIMMs).
* Rack-optimized design maximizes cooling for excellent thermal efficiency.
* Flexible expandability with 6 native SATA HDDs and two PCIe Gen3 slots.
* Quad Intel I210AT Gigabit Ethernet with teaming support.
* Dual M.2 for up to 32Gbps performance and data redundancy.
* TPM 2.0 Ready secures store keys, digital certificates, passwords and data.
* Complete server management with ASUS Control Center.
* Optional ASMB9-iKVM module available for 24/7 remote monitoring and diagnostics.

Processor / System Bus  1 x Socket LGA1151
Intel Xeon processor E-2100 family
Intel Xeon processor E-2200 family
The 8th/9th generation Intel Core i3/Pentium/Celeron Processor
Core Logic Intel C242 Chipset
Memory Total Slots : 4 (2-channel)
Capacity : Maximum up to 128GB UDIMM
Memory Type :
DDR4 2666/2400 UDIMM non ECC and with ECC
Memory Size :
32GB, 16GB, 8GB, 4GB
Expansion Slots Total Slot : 2
Slot Location 6 : PCI-E x16 (Gen3 X16 Link), Auto switch to x8 link if slot 7 is occupied
Slot Location 7 : PCI-E x8 (Gen3 X8 Link)
Follow SSI Location#
Form Factor U ATX (9.6"x9.6", 244mm x 244mm)
Asus Features FAN speed control
Rack Ready (Rack and Pedestal dual use)
ASUS Control Center
Storage SATA Controller :
Intel® C242 Chipset
6 x SATA3 6Gb/s ports
2 x M.2 connector(2242/2260/2280/22110) both SATA & PCIe mode *1
Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows)
(Support Software RAID 0, 1, 5, 10 )
SAS Controller :
ASUS PIKE II 3008-8i 8-port SAS 12G RAID card(Optional)
ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card(Optional)
Networking 4 x Intel® I210AT + 1 x Mgmt LAN
Graphic Aspeed AST2500 with 32MB VRAM
On Board I/O 1 x TPM header
1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector)
1 x COM port
1 x USB 3.0 pin header , Up to 2 Devices
1 x USB 2.0 pin header , Up to 2 Devices
1 x USB connector*2
5 x Fan Header , 4pin
1 x SMBus
1 x Chassis Intruder
4 x Front LAN LED
1 x Serial Port Header
1 x VGA Header
2 x M.2 Connector
1 x Onboard header for optional management card
Back I/O Ports 1 x External Serial Port
2 x USB 3.1 Gen 2
2 x USB 3.1 Gen 1
1 x VGA Port
4 x GbE LAN + 1 x Mgmt LAN
Environment Operation temperature: 10℃ ~ 35℃
Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% ( Non condensing)
Monitoring CPU Temperature
Fan RPM
