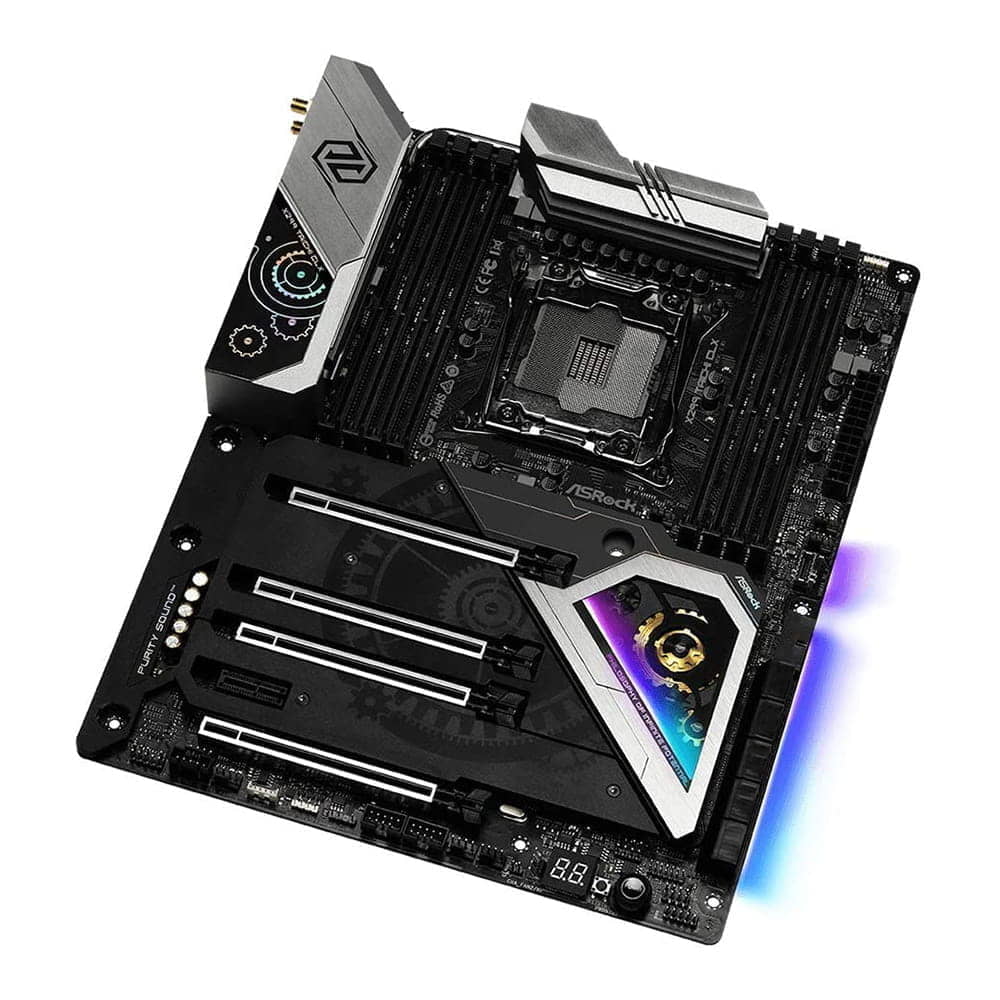

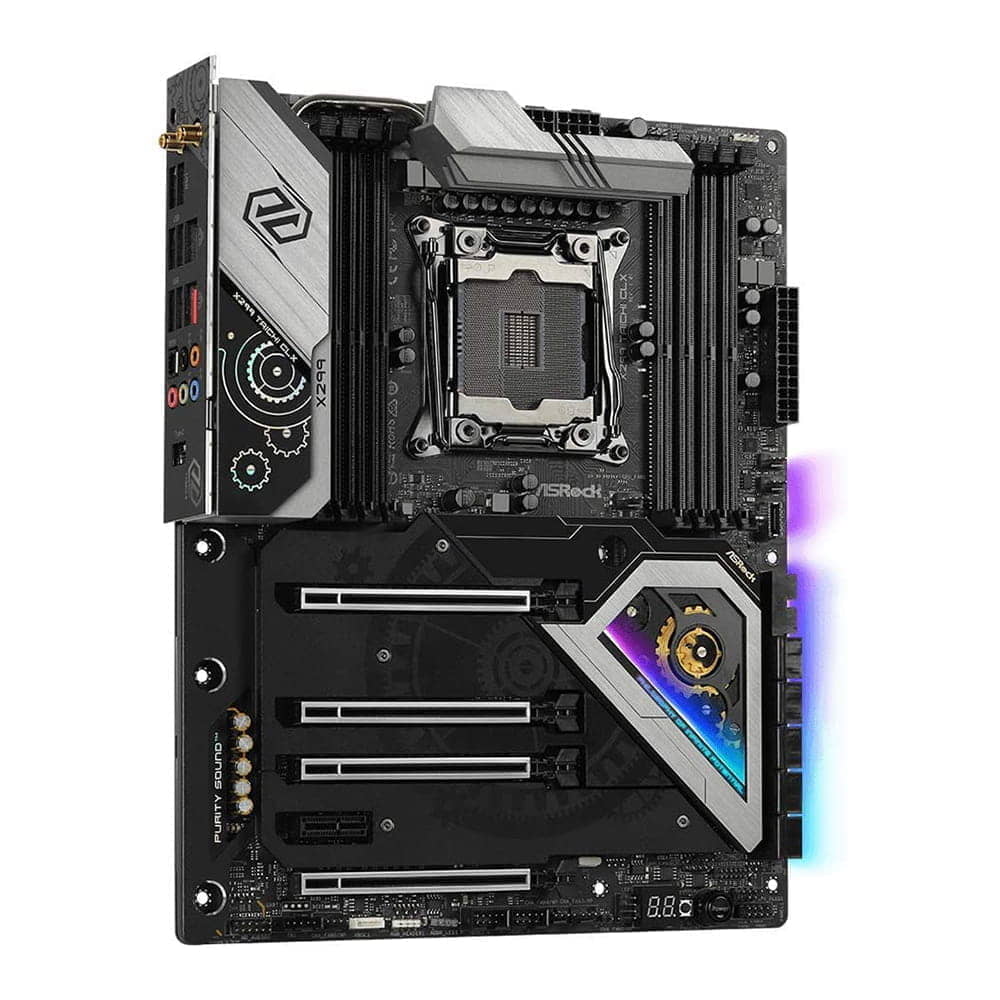

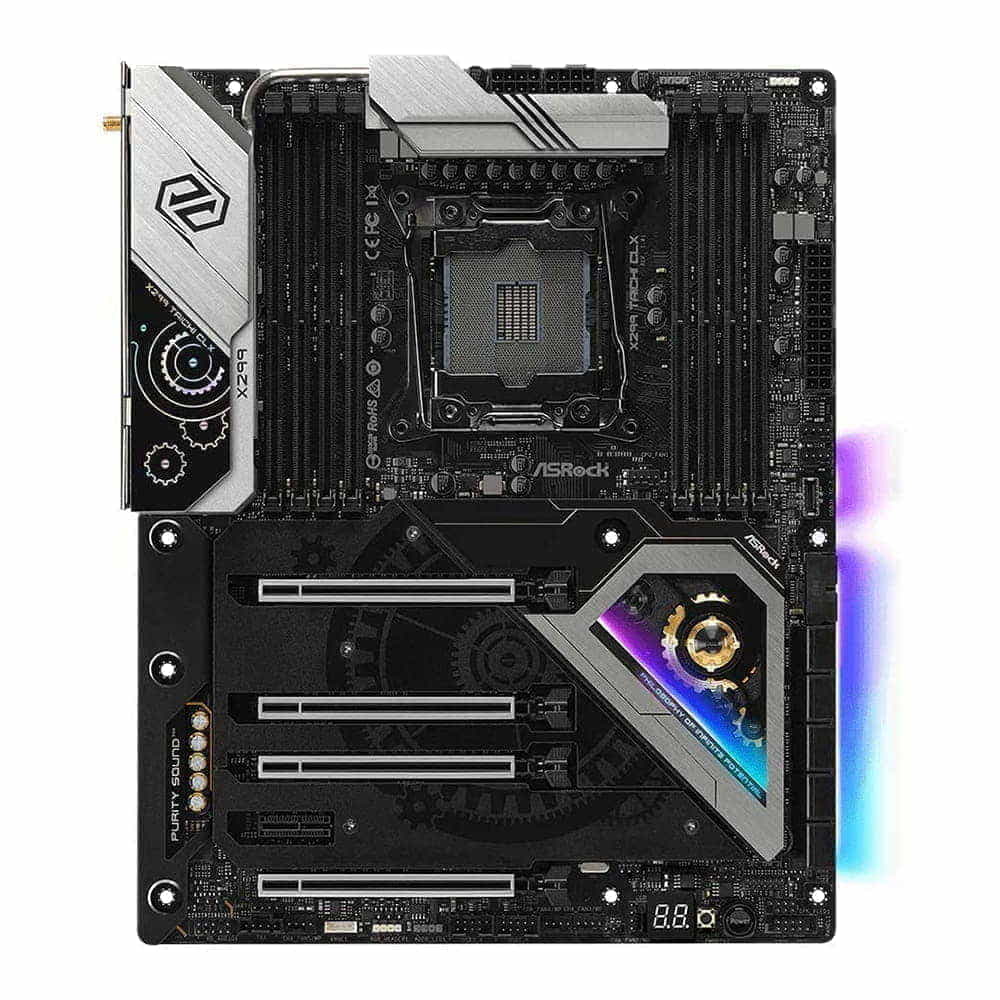

Asrock X299 Taichi CLX. Socket 2066.

Asrock X299 Taichi CLX. Socket 2066.

Asrock
  • Supports Intel® Core ™ X-Series processor family for LGA 2066 connector.
  • Power Phase 13 Design, Dr. MOS.
  • Supports DDR4 4400+ (OC) memory.
  • 4 PCIe 3.0 x16, 1 PCIe 2.0 x1.
  • NVIDIA® 3-Way SLI ™, AMD 3-Way CrossFireX ™.
  • 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Supports Purity Sound ™ 4 & DTS Connection.

P/N: 90-MXBBH0-A0UAYZ - EAN/UPC: 4717677339765

316,85 € Without VAT
383,39 € With VAT
Only 2 units left in secondary storage
Approximate delivery between 27 octubre and 28 octubre
2 years
of guarantee
sending
shipping
100%
Secure pay

No one has time for weak WiFi signals and slow internet! That is why this motherboard comes with a 802.11ac WiFi connection module (2.4g / 5G WiFi) that supports wireless networks and Bluetooth v4.2.

Triple the world's fastest PCIe Gen3 x4 Ultra M.2 slots offering transfer rates up to 32Gb / s, also supports SATA3 6Gb / s M.2 modules.

Designed with 13 Power Phase, this motherboard offers robust components and delivers completely smooth power to the processor. Therefore, this motherboard offers unprecedented overclocking capabilities and improved performance with the best stability, also with lower temperature for advanced gamers and extreme overclockers.

Dr. MOS design incorporates the latest SPS (Smart Power Stage) technology. It is optimized to monitor the current and temperature of each phase, thus providing a smoother and cleaner power supply to the CPU with higher performance and OC capacity.

The 8-layer PCB comes with 4 sets of 2-ounce copper inner layers, providing stable signal traces and power forms and delivering lower temperature and higher energy efficiency for overclocking! Thus, it is capable of supporting the latest DDR4 memory modules with higher extreme memory performance!

Users can connect two LAN cables to the rear I / O of this motherboard. Dual LAN with the Group Work feature enabled on this motherboard allows two independent connections to function as a single connection for twice the bandwidth, making data transmission more efficient.

The newest and most powerful ASM3142 USB 3.1 Gen2 controller not only offers data transfer speeds of up to 10 Gbps, but also supports "Multiple Ins" architecture, it is capable of maintaining a fast and stable data transfer rate at the same time. two USB storage devices at the same time without getting bogged down by their speed difference.

Build your own colorful lighting system! RGB LED and Header allows users to connect the LED strip and easily create their PC in unique style. The ASRock AURA RGB LED utility can be downloaded or from the all-in-one utility ASRock Live Update and APP Shop!

The advanced PCI-E Steel slots have a solid cover that prevents any signal interference with graphics cards. It also ensures that heavy graphics cards are securely installed in PCI-E slots.

Supports Intel® Optane ™ Memory Technology and Intel® Optane ™ Storage Technology, which redefines a new standard for responsiveness.

Download the most convenient BIOS with just a simple click. Users can easily get the latest BIOS support with a USB and power supply, without needing CPU, RAM or other components.

An additional external base clock generator that supports PCIe frequency overclocking. It provides a wider range of frequencies and more accurate clock waveforms, allowing any user to get more out of their CPU investment with stable and accurate overclocking.

Virtual RAID On CPU (VROC) is the latest technology that allows you to build a separate RAID array with M.2 NVME cards, using Lanes PCIe coming from the CPU. With VROC, users can configure RAID 0 to speed up the system with ease, and not only that, an optional Update Module is also available to open more RAID options, such as 1, 5 and 10.

Unlike traditional motherboards that use analog power, this motherboard uses next-generation digital PWM (Pulse Width Modulation) design that provides more efficient and trouble-free CPU Vcore voltage, so the stability and life of the motherboard is much larger.

Highlights...

* Compatible with Intel® Core ™ X-Series processor family for LGA 2066 connector.
* Power Phase 13 Design, Dr. MOS.
* Supports DDR4 4400+ (OC) memory.
* 4 PCIe 3.0 x16, 1 PCIe 2.0 x1.
* 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Supports Purity Sound ™ 4 & DTS Connection.

CPU  Compatible con la familia de procesadores Intel® Core™ X-Series para el conector LGA 2066
- Diseño Digi Power
- Diseño de fase de alimentación 13
- Soporta tecnología Intel® Turbo Boost Max 3.0
- Soporta ASRock Hyper BCLK Engine III
Chipset - Intel® X299
Memoria - Tecnología de Memoria DDR4 Quad Channel
- 8 x ranuras DDR4 DIMM
- Soporta memoria DDR4 4400+(OC)* / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933(OC) / 2800(OC) / 2666 / 2400 / 2133 non-ECC, un-buffered
- Soporta non-ECC RDIMM (DIMM Registrados)**
- Máxima capacidad de memoria del sistema: 256GB***
- Soporta Intel® Extreme Memory Profile (XMP) 2.0
- Ranuras DIMM con contactos 15μ Oro
BIOS - 2 x 128Mb AMI UEFI Legal BIOS con soporte GUI Multilingüe (1 x BIOS Principal y 1 x BIOS de seguridad)
- Soporta Tecnología UEFI Secure Backup
- Activación compatible con ACPI 6.1
- Soporta SMBIOS 3.0
- CPU, DRAM, VPPM, VTTM, PCH 1.0V, VCCMPHY, VCCIO, VCCST, VCCSA, VCCSFR, VCCPLL, CLK VDD multi-ajuste de voltaje
Audio - Audio 7.1 CH HD con protección de contenido (Códec de audio Realtek ALC1220)
- Soporta audio Premium Blu-ray
- Soporta protección contra sobretensiones
- Soporta Purity Sound™ 4
- Capacitadores finos de Audio Nichicon Serie oro
- Amplificador 120dB SNR DAC con diferencial
- Amplificador de auriculares TI® NE5532 premium para conector de audio del panel frontal (soporta auriculares de hasta 600 Ohms)
- Pure Power-In
- Tecnología Direct Drive
- PCB blindada de aislamiento
- Detección de impedancia en el puerto de salida posterior
- Capas de PCB individuales para el canal de audio I/D
- Audio Jack de Oro
- Conector de audio de 15μ Oro
- Compatibilidad Conexión DTS
LAN - Gigabit LAN 10/100/1000 Mb/s
- 1 x Giga PHY Intel® I219V, 1 x GigaLAN Intel® I211AT
- Soporta Wake-On-LAN
- Suporta Protección Lightning/ESD
- Soporta Dual LAN con Trabajo en equipo*
- Soporta Ethernet 802.3az eficiente energéticamente
- Soporta PXE

Ranuras de expansión

- 4 x ranuras PCI Express 3.0 x16*
- 1 x ranura PCI Express 2.0 x1
- Soporta AMD Quad CrossFireX™, 3-Way CrossFireX™ y CrossFireX™**
- Compatible con NVIDIA® Quad SLI™ 3-Way SLI™ y SLI™***
- 1 x Socket Vertical M.2 (Key E) con modulo WiFi-802.11ac (en la E/S trasera)
- Contactos 15μ Gold en Slot VGA PCIe (PCIE1 y PCIE3)

Almacenaje

- 8 x conectores SATA3 de 6.0 Gb/s, Soporta RAID (RAID 0, RAID 1, RAID 5, RAID 10, Tecnología Intel® Rapid Storage 15 y Tecnología Intel® Smart Response), NCQ, AHCI y Hot Plug*
- 2 x conectores SATA3 6.0 Gb/s de ASMedia ASM1061, soporta funciones NCQ, AHCI y "Hot Plug"
- 1 x Socket Ultra M.2 (M2_2), soporta modulo tipo M Key 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s y módulo M.2 PCIe hasta Gen3 x4 (32 Gb/s)**
- 2 x Sockets Ultra M.2 (M2_1 y M2_3), soporta modulo tipo M Key 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s y módulo M.2 PCIe hasta Gen3 x4 (32 Gb/s)
Conectores
- 1 x RAID virtual en el encabezado de la CPU
- 1 x cabecera TPM
- 1 x LED de alimentación y header de altavóz
- 2 x Cabezales RGB LED*
- 1 x conector ventilador Procesador (4-pin)**
- 1 x conector del ventilador CPU Opcional / Bomba de agua (4-pin) (Control de velocidad ventilador Smart Fan)***
- 2 x conectores ventilador caja (4-pin) (Control de velocidad ventilador Smart Fan)
- 1 x Conector ventilador bomba de agua Chasis Opcional (4-pin) (Control de velocidad ventilador Smart Fan)****
- 1 x conector alimentación 24 pin ATX (Conector de Alimentación de Alta Densidad)
- 1 x conector alimentación 8 pin 12V (Conector de Alimentación de Alta Densidad)
- 1 x Conector panel frontal audio (Conector de audio de 15μ Oro)
- 1 x Conector Thunderbolt™ AIC (5-pin)*****
- 2 x cabezales USB 2.0 (soporta 4 puertos USB 2.0) (Soporta Protección ESD)
- 2 x cabezales USB 3.1 Gen1 (soporta 4 puertos USB 3.1 Gen1) (ASMedia ASM1074 cubo) (Soporta Protección ESD)
- 1 x Dr. Debug con LED

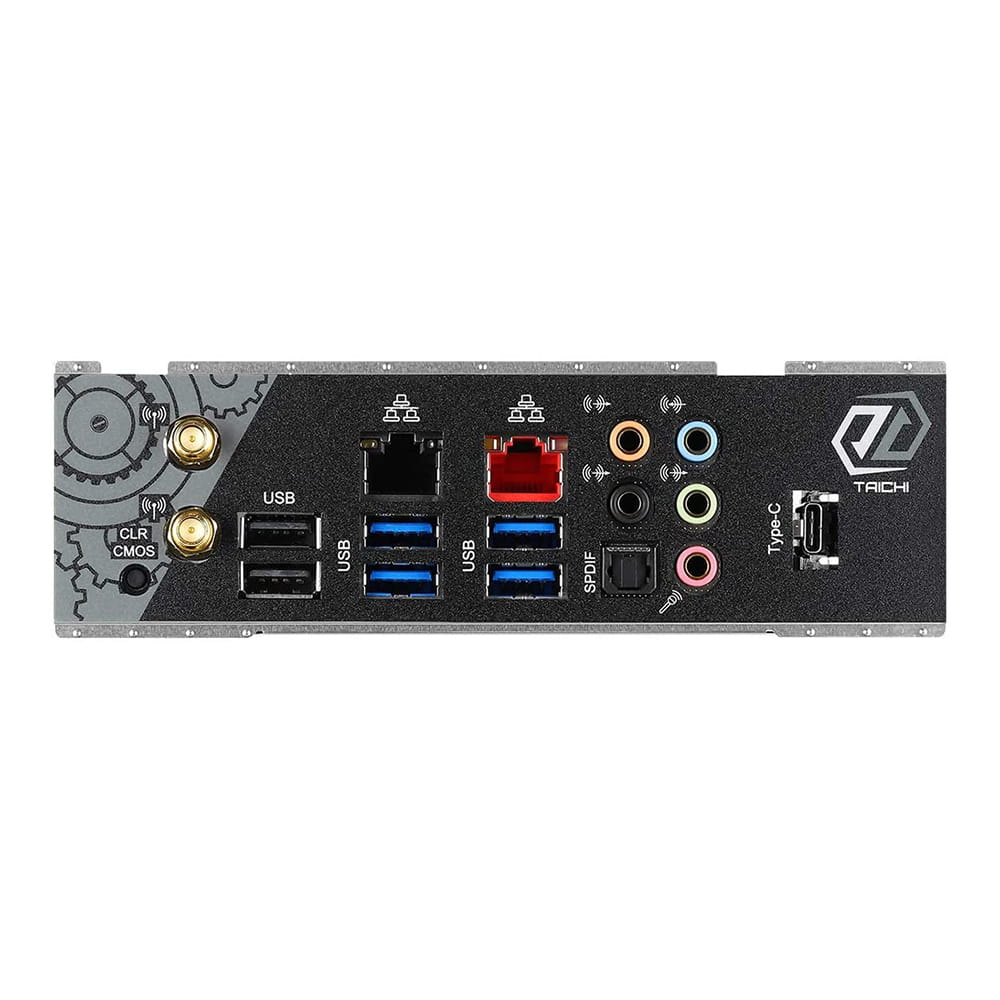

Panel trasero Entrada/salida - 2 x Puertos de antena
- 1 x Puerto PS/2 Teclado/Ratón
- 1 x Puerto de salida Óptico SPDIF
- 2 x puertos USB 2.0 (Soporta Protección ESD)
- 1 x puerto USB 3.1 Gen2 Type-A (10 Gb/s) (ASMedia ASM3142) (Soporta Protección ESD)
- 1 x puerto USB 3.1 Gen2 Type-C (10 Gb/s) (ASMedia ASM3142) (Soporta Protección ESD)*
- 4 x puertos USB 3.1 Gen1 (Soporta Protección ESD)
- 2 x Puertos con LED LAN RJ-45 (LEDs de Activación/conexión y velocidad)
- 1 x Interruptor Flashback del BIOS
- 1 x Interruptor de borrado CMOS
- Conectores HD Audio: Altavoz posterior / Central / Bajo / entrada de línea / Altavoz Delantero / Micrófono (Audio Jack de Oro)

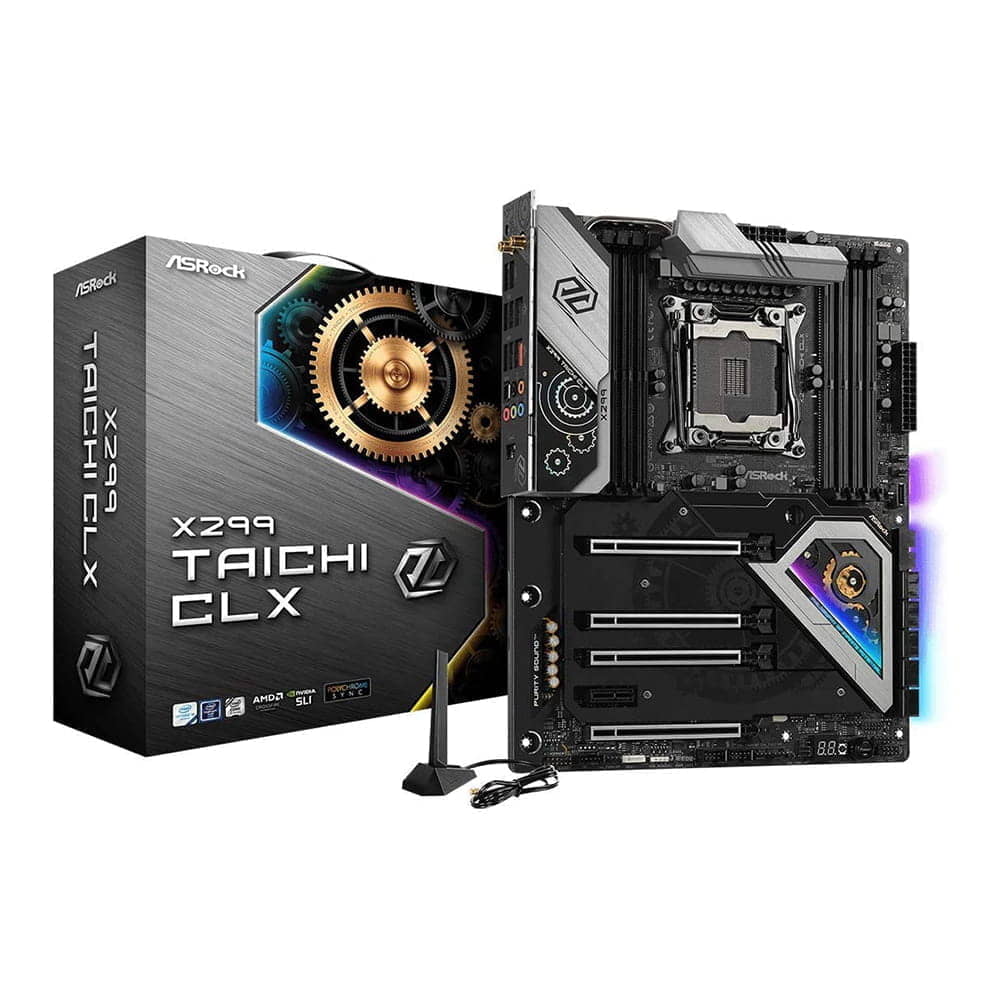

Accesorios - Guía de instalación rápida, CD de Soporte, Placa entrada/salida
- 4 x cables de datos SATA
- 1 x Tarjeta SLI_HB_Bridge_2S
- 1 x Tarjeta 3-Way SLI-2S1S Bridge
- 2 x Antenas WiFi ASRock 2.4/5 GHz
- 3 x Tornillos para Socket Ultra M.2

Monitorización del hardware

- Sensor de Temperatura: CPU, CPU Bomba de agua opcional, chasis, Chasis Opcional / Bomba de agua
- Ventilador Tacómetro: CPU, CPU Bomba de agua opcional, chasis, Chasis Opcional / Bomba de agua
- Ventilador silencioso (Ajuste automático de la velocidad del ventilador del chasis por la temperatura de la CPU): CPU, CPU Bomba de agua opcional, chasis, Chasis Opcional / Bomba de agua
- Ventilador con Control de velocidad múltiple: CPU, CPU Bomba de agua opcional, chasis, Chasis Opcional / Bomba de agua
- Control de voltaje: +12V, +5V, +3.3V, CPU Vcore, DRAM, PCH 1.0V, VCCIO, VCCSA, VCCSFR
Formato - Formato ATX: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
- PCB 8 capas
- PCB 2oz Cobre
