Asrock Rack X570D4I-2T. Socket AM4. Mini-ITX.
Asrock Rack X570D4I-2T. Socket AM4. Mini-ITX.
- Supports 3rd generation AMD Ryzen ™ series processors (max 105W).
- Supports 4x DDR4 ECC and non-ECC SO DIMMs, total DIMM size 128GB.
- Supports up to 8 x SATA3 per OCulink and 1x M.2 ports.
- Integrated IPMI 2.0 with KVM and Dedicated LAN (RTL8211E).
- Supports 1x PCIe Gen4x16 link (Matisse).
- Supports 2x 10GLAN Intel X550-AT2.
of guarantee
shipping
Secure pay

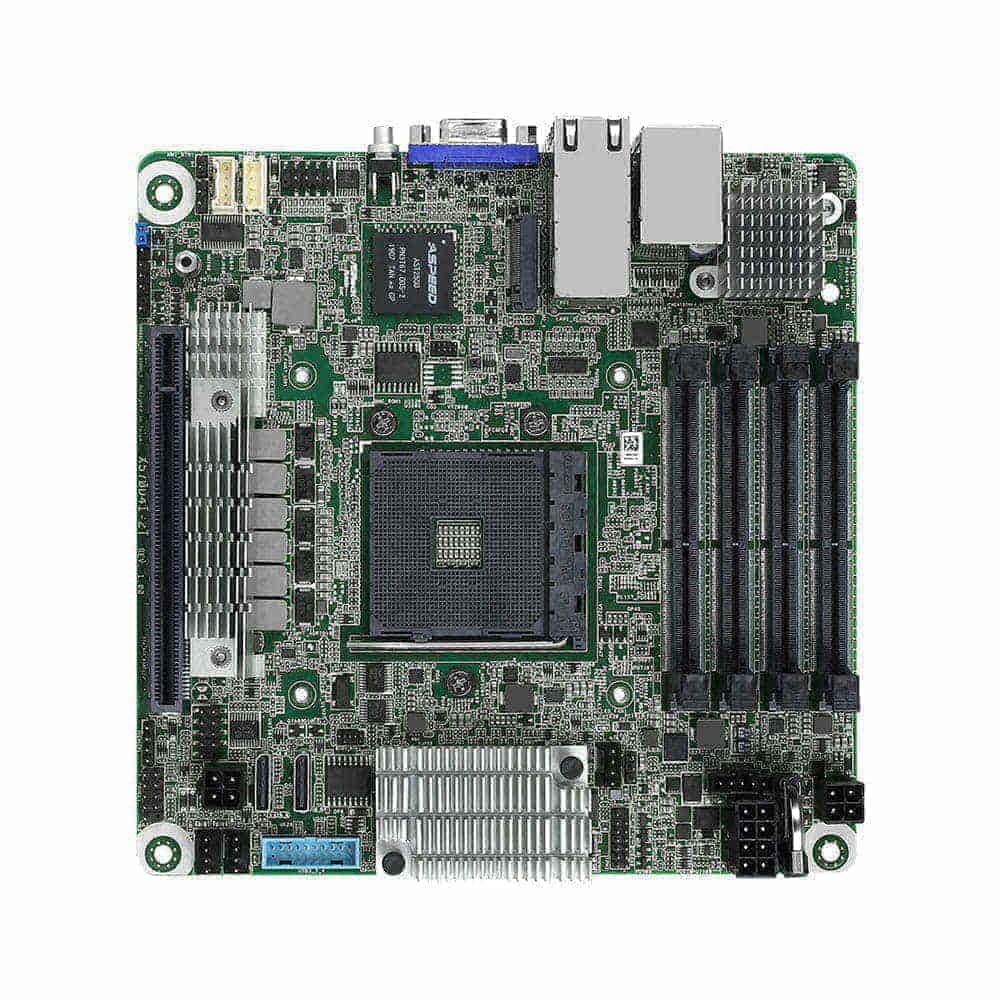

Motherboard for servers and workstations with socket AM4 in Mini-ITX format.
Highlights....
* Supports 3rd generation AMD Ryzen ™ series processors (max. 105W).
* Supports 4x DDR4 ECC and non-ECC SO DIMMs, total DIMM size 128GB.
* Supports up to 8 x SATA3 over OCulink and 1x M.2 ports.
* Integrated IPMI 2.0 with KVM and dedicated LAN (RTL8211E).
* Supports 1x PCIe Gen4x16 link (Matisse).
* Supports 2x 10GLAN Intel X550-AT2.
MB Physical Status | |
Form Factor | - mini-ITX |
Dimensions | - 6.7'' x 6.7'' (17.02 cm x17.02 cm) |
Processor System | |
CPU | - AMD Ryzen™ 3rd Generation Series Processors(Max 105W) *We recommend using the CPU HS listed in the Cooler QVL section on our ASRock Rack website. |
Socket | - AM4 PGA 1331 |
Chipset | - AMD Premium X570 |
System Memory | |
Capacity | - 4 x DDR4 SO DIMM slots |
Type | - Dual Channel DDR4 memory technology, Support DDR4 ECC & non-ECC SO DIMM - Supports DDR4 ECC/UDIMM,up to 2933MHz One DIMM: 1R DIMM @2933MT/s; 2R/2DR DIMM@2400T/s Two DIMMs: (2) 1R DIMM @2400 MT/s; (2) 2R/2DR DIMM@2400MT/s; Max per DIMM size is: 32 GB *Conditionally support ECC error reporting function |
Voltage | - 1.2V |
Expansion Slot | |
PCIe 4.0 x 16 | -PCIE7: Gen4x16 link (Matisse)* *When use Picasso CPU, only PCIe3.0 x8 |
Storage | |
SATA Controller | - AMD X570:8 x SATA3 by OCulink |
M.2 slot | -1 (2280, supports PCIe 4.0 x4/SATA3 6.0Gb/s)* *When use Picasso CPU, only PCIe3.0 x4 |
Ethernet | |
Interface | - 10000/1000 /100 /10 Mbps |
LAN Controller | - 2 x RJ45 10GLAN by Intel® X550-AT2 - Supports Wake-On-LAN - Supports Energy Efficient Ethernet 802.3az - Supports Dual LAN with Teaming function - Supports PXE |
Management | |
BMC Controller | - ASPEED AST2500 |
IPMI Dedicated GLAN | - 1 x Realtek RTL8211E for dedicated management GLAN |
Features | - Watch Dog |
Graphics | |
Controller | - ASPEED AST2500 |
VRAM | - DDR4 16MB |
Rear Panel I/O | |

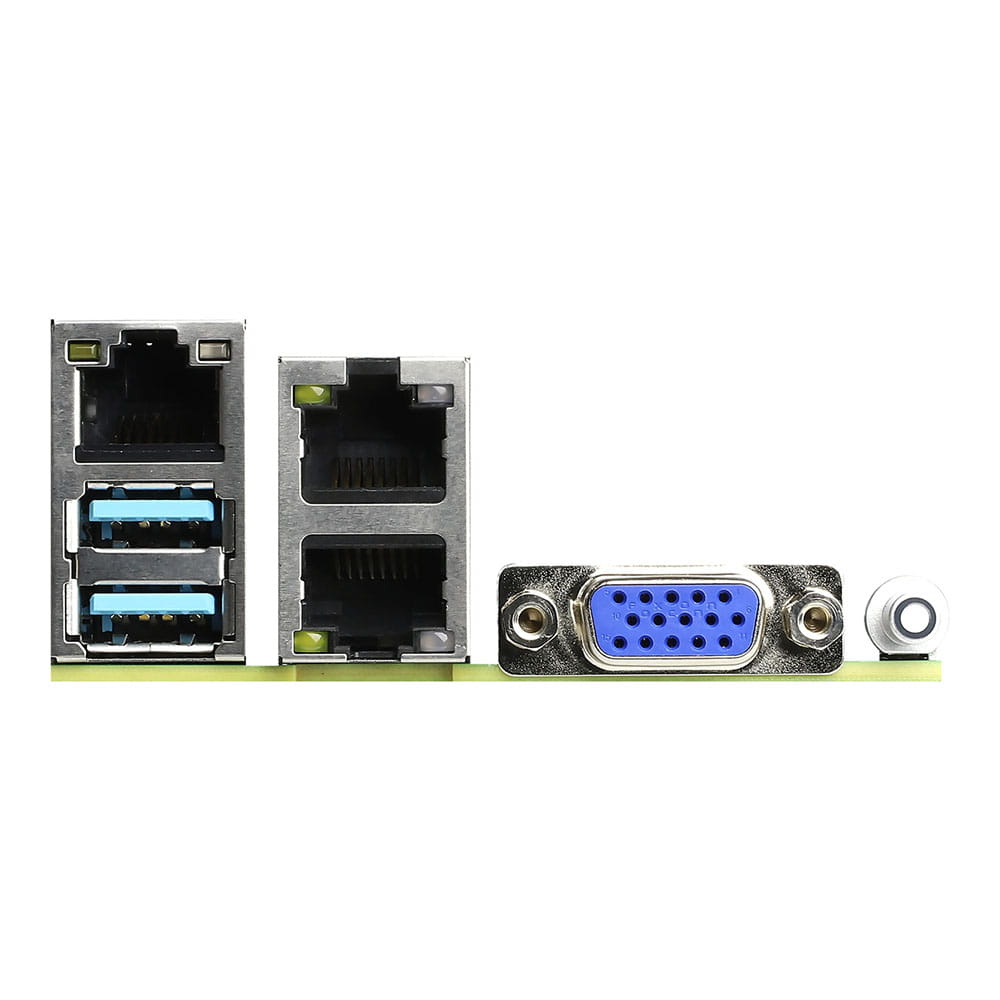

VGA Port | - 1 x D-Sub |
USB 3.1 Gen2 Port | - 2(Gen2) |
Lan Port | - RJ45:2+1(IPMI) - LAN Ports with LED (ACT/LINK LED and SPEED LED) |
UID Button/UID LED | - 1 |
Internal Connector | |
COM Header | - 1 |
SATA DOM | - 0 |
M.2 | - 1(M-key,only 2280, Support PCIe 4.0 x4 or SATA3 6.0Gb/s) *When use Picasso CPU, only PCIe3.0 x4 |
OCuLink | -2(4xSATA3 6.0Gb/s/PCIe 4.0x4 for each) *When use Picasso CPU, only PCIe3.0 x4 |
Auxiliary Panel Header | - 1 (include Caseopen,sys_fault_LED, 2FLANLED) ) |
TPM Header | - 1(13pin) |
IPMB Header | - 1 |
Buzzer | - N/A |
Fan Header | - 3(4-pin Fan header) |
USB 3.1 (Gen1) Header | - 1 (support 2 USB 3.0) |
USB 2.0 Header | - N/A |
Front Panel | - 1 (RST, PWRBTN, HDDLED, PWRLED) |
Speaker Header | - 1(4pin) |
SMBUS from BMC | - 1 |
Power Connector | - 8pin(DC-IN)+4pin(ATX)+4pin(HDD PWR) |
ME/SPS Recovery | - N/A |
Clear CMOS | - 1 |
PSU SMB Header | - 1 |
Onboard LED | |
80 Debug Port LED | - N/A |
Fan Fail LED | - 3 |
System BIOS | |
BIOS Type | - 32MB AMI UEFI Legal BIOS |
BIOS Features | - Plug and Play (PnP) - ACPI 2.0 Compliance Wake Up Events - SMBIOS 2.8.0 Support - ASRock Rack Instant Flash |
Hardware Monitor | |
Temperature | - CPU/DDR temperature sensing - MB/Card side temperature sensing |
Fan | - Fan Tachometer - Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) - Fan Multi-Speed Control |
Voltage | - Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM,1.05V_PCH, +BAT, 3VSB, 5VSB |
Environment | |
Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
