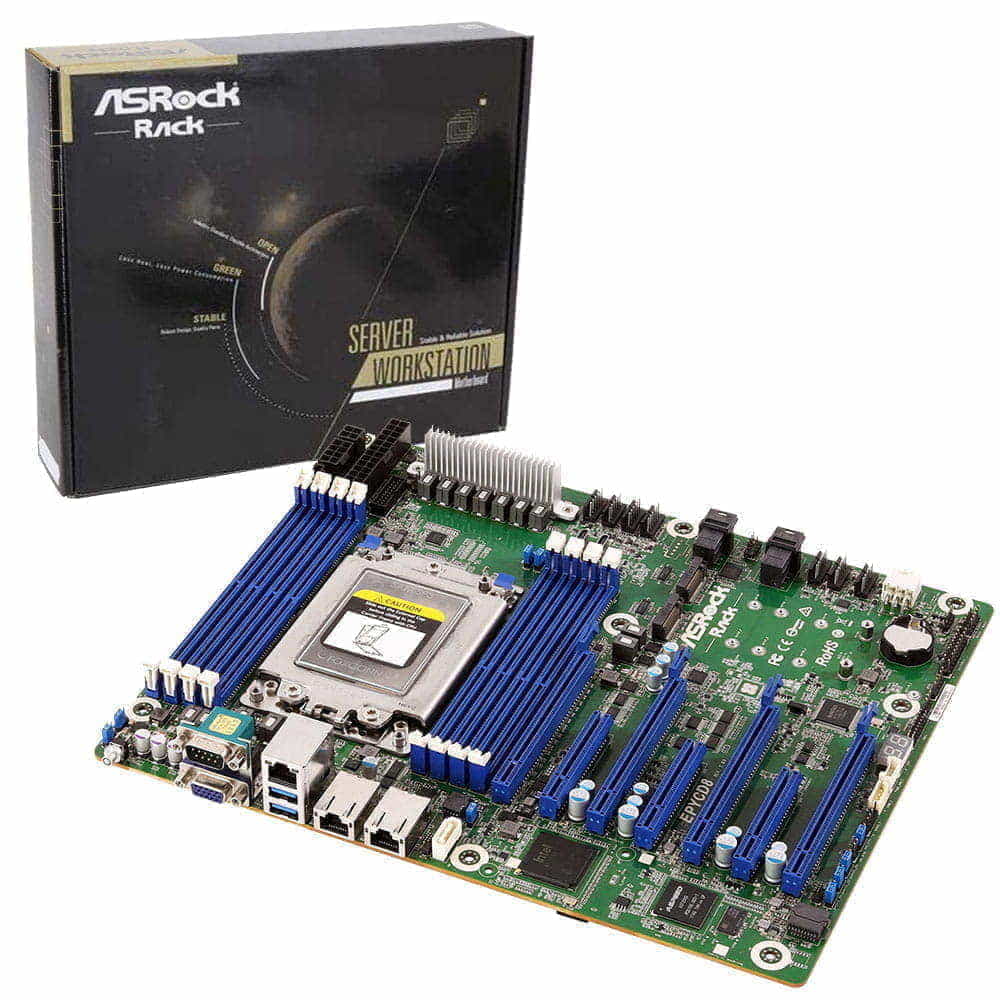

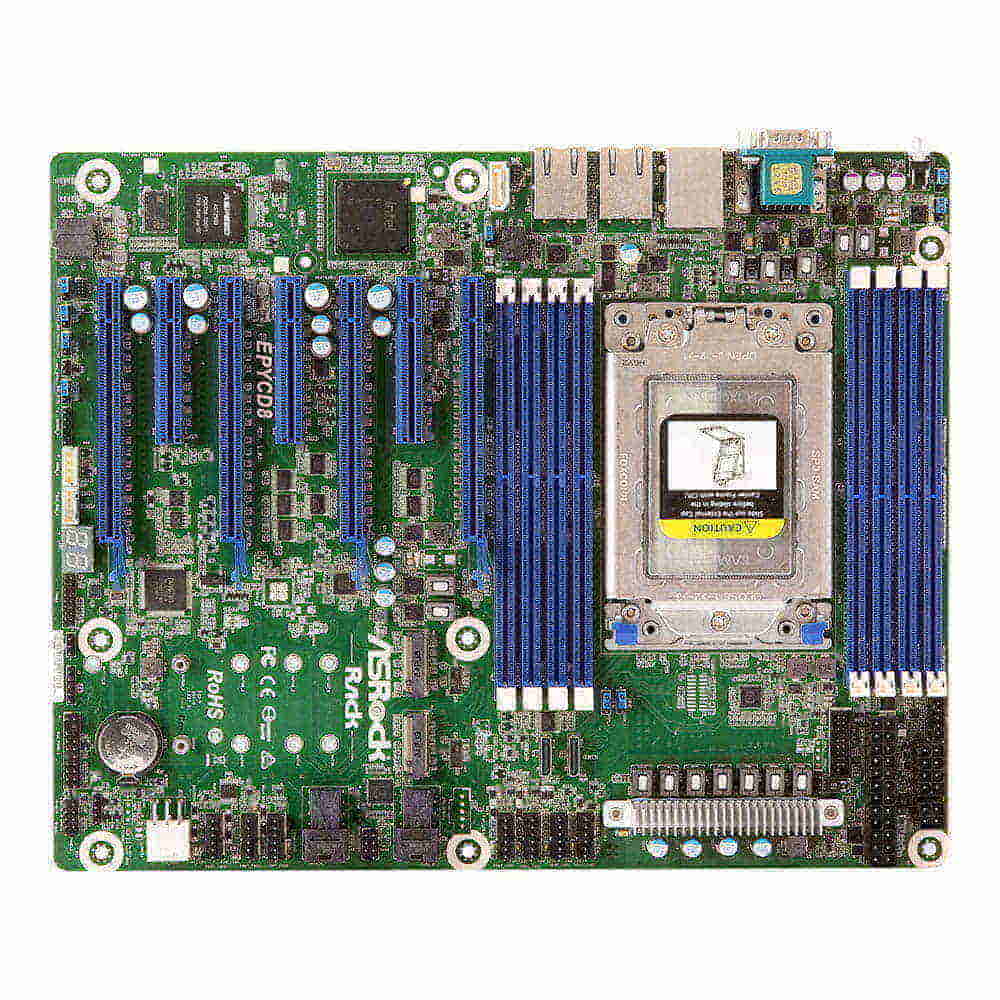

| MB Physical Status |
| Form Factor | - ATX |
| Dimensions | - 12'' x 9.6'' (30.5 cm x 24.4 cm) |
| Processor System |
| CPU | - AMD EPYC™ 7002/7001 series processor family |
| Socket | - Single Socket SP3 (LGA4094) |
| System Memory |
| Capacity | - 8 DIMM slots |
| Type | - Eight Channel DDR4 memory technology
- Supports DDR4 RDIMM and LRDIMM |
| DIMM Size Per DIMM | - RDIMM: 32GB, 16GB, 8GB
- LRDIMM: 128GB, 32GB |
| DIMM Frequency | - RDIMM: 3200/2933/2666/2400MHz
- LRDIMM: 3200/2933/2666/2400MHz |
| Voltage | - 1.2V |
| Expansion Slot |
| PCIe 3.0 x 16 | - PCIE1: Gen3 x16 link
- PCIE3: Gen3 x16 link
- PCIE5: Gen3 x16 link
- PCIE7: Gen3 x16 link |
| PCIe 3.0 x 8 | - PCIE2: Gen3 x8 link
- PCIE4: Gen3 x8 link
- PCIE6: Gen3 x8 link |
| Storage |
| SATA Controller | - 9 x SATA3 6.0 Gb/s (from 2x mini SAS HD and 1x SATA DOM port) |
| OCuLink for U.2 | - 2 |
| Ethernet |
| Interface | - 1000 /100 /10 Mbps by Intel® i350 |
| LAN Controller | - 2 x RJ45 GLAN by Intel® i350
- 1 x RJ45 Dedicated IPMI LAN port by RTL8211E
- Supports Wake-On-LAN
- Supports Energy E_cient Ethernet 802.3az
- Supports Dual LAN with Teaming function
- Supports PXE
- LAN1 supports NCSI |
| Management |
| BMC Controller | - ASPEED AST2500 |
| IPMI Dedicated GLAN | - 1 x Realtek RTL8211E for dedicated management GLAN |
| Features | - Watch Dog
- NMI |
| Graphics |
| Controller | - ASPEED AST2500 |
| VRAM | - DDR4 128Mb |

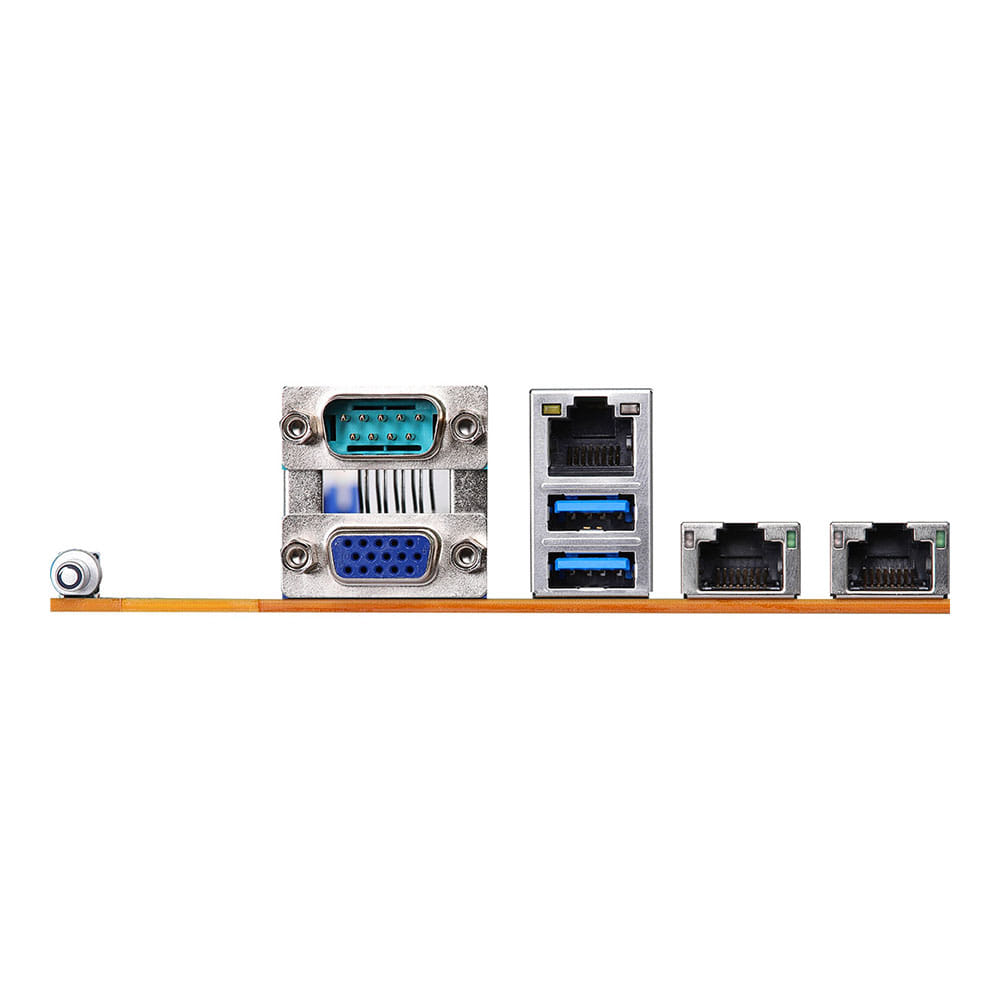

| Rear Panel I/O |
| VGA Port | - 1 x D-Sub |
| USB 3.1 Gen1 Port | - 2 |
| Lan Port | - 2+1 RJ45 Gigabit Ethernet LAN port
- LAN Ports with LED (ACT/LINK LED and SPEED LED) |
| Serial Port | - 1 x COM port |
| UID Button/UID LED | - 1 |
| Internal Connector |
| SATA DOM | - 1 |
| M.2 | - 2(M2_1: 2230/2242/2260/2280, SATA/PCIE(X4); M2_2:2230/2242/2260/2280/22110, SATA/PCIE(X4)) |
| Front LED | - 1 |
| Auxiliary Panel Header | - 1 (includes chassis intrusion, location button & LED, and front LAN LED) |
| TR1 Header | - 1 |
| TPM Header | - 1 |
| IPMB Header | - 1 |
| Fan Header | - 7 Fans x 6-pin (1CPU/4Front/2Rear) |
| ATX Power | - 1 x (24-pin) + 1 x (8-pin) + 1 x (4-pin) + 1 x (6-pin)(6 pin for GPU for PCIE Slot) |
| USB 3.1 (Gen1) Header | - 1 (supports 2 USB 3.0 ports) |
| USB 2.0 Header | - 1 |
| Speaker Header | - 1 |
| BMC_SMB Header | - 1 |
| Clear CMOS | - 1 |
| PSU SMB Header | - 1 |
| Onboard LED |
| 80 Debug Port LED | - 1 |
| Fan Fail LED | - 1 (only Fan Fail LED) |
| System BIOS |
| BIOS Type | - 32MB AMI UEFI Legal BIOS |
| BIOS Features | - Plug and Play (PnP)
- ACPI 2.0 Compliance Wake Up Events
- SMBIOS 2.8 Support
- ASRock Rack Instant Flash |
| Hardware Monitor |
| Temperature | - CPU Temperature Sensing
- MB/TR1/Card side Temperature Sensing |
| Fan | - CPU/Rear/Front Fan Tachometer
- CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature)
- CPU/Rear/Front Fan Multi-Speed Control |
| Voltage | - Voltage Monitoring: Vsoc,Vcpu, VCCM, VPPM, 3V/5V/12V, +BAT, 3VSB, 5VSB |
| Support OS |
| OS | Microsoft® Windows®
- Server 2012 R2 (64 bit)
- Server 2016 (64 bit)
Linux
- RedHat Enterprise Linux Server 6.9 (64 bit) / 7.3 (64 bit)
- CentOS 6.9 (64 bit) / 7. 3 (64 bit)
- SUSE Enterprise Linux Server 11 SP4 (64 bit) / 12 SP2 (64 bit)
- Ubuntu 16.04 (64 bit) / 17.04 (64 bit)
- CITRIX XenServer 7.5
Virtual:
- VMWare® ESXi 6.5 u1
- vSphere 6.5 u1
* Please refer to our website for the latest OS support list. |
| Environment |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
