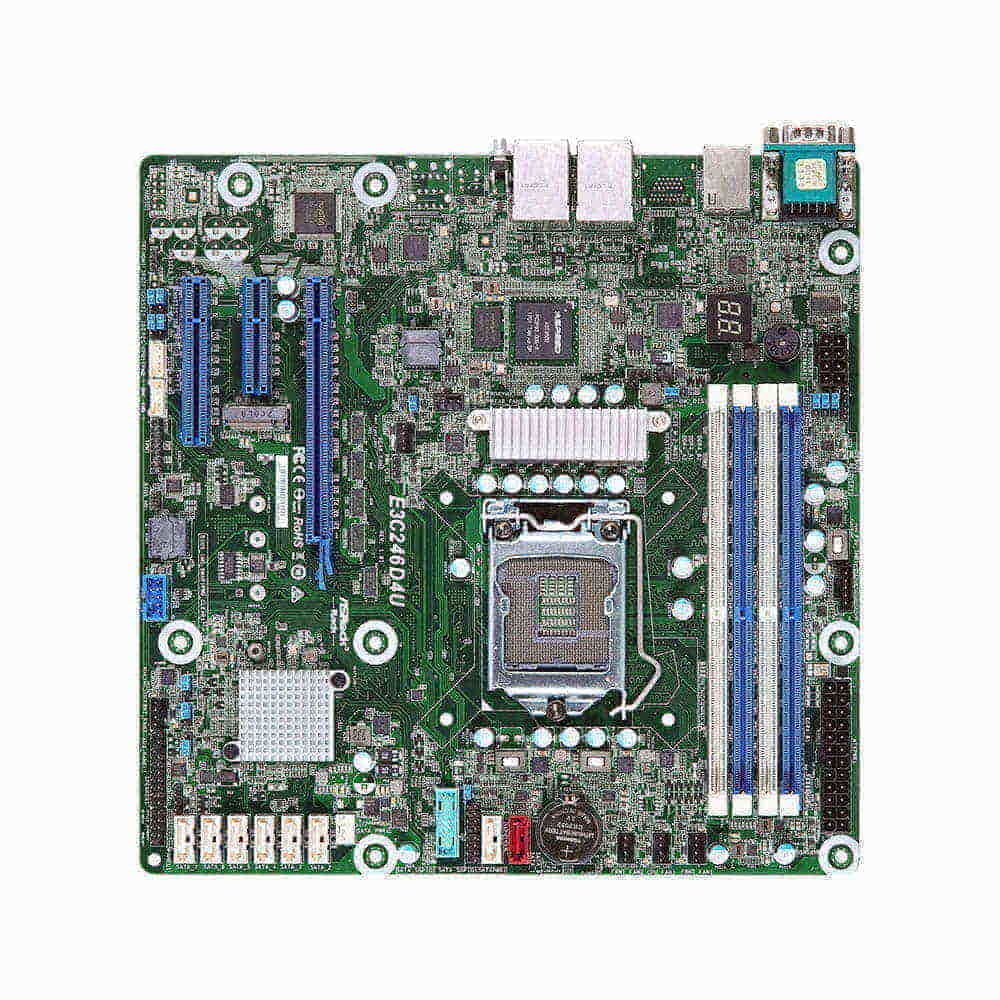

| MB Physical Status |
| Form Factor | - mATX |
| Dimensions | - 9.6'' x 9.6'' (24.4 cm x24.4 cm) |
| Processor System |
| CPU | - Supports Intel® Xeon® E-2100 / E-2200 Processors
- Supports Intel i3, i5, i7, i9 8th and 9th generation. |
| Socket | - 1151 |
| Chipset | - Intel® C246 |
| System Memory |
| Capacity | - 4 x 288-pin DDR4 DIMM slots
- Support up to 128GB DDR4 ECC/non-ECC UDIMM |
| Type | - Dual Channel DDR4 memory technology
- Supports DDR4 ECC/non-ECC UDIMM (client O.S only) |
| DIMM Size Per DIMM | - ECC and non-EDD UDIMM : 4GB, 8GB, 16GB, 32GB |
| DIMM Frequency | - Non-ECC UDIMM: 1600/1866/2133/2400/2666 MHz
- ECC UDIMM: 1600/1866/2133/2400/2666 MHz |
| Voltage | - 1.2v |
| Expansion Slot |
| PCIe 3.0 x 16 | - Slot 6: Gen3 x16 link, auto switch to x8 link if Slot 4 is occupied |
| PCIe 3.0 x 8 | - Slot 4: Gen3 x8 link |
| PCIe 3.0 x 4 | - Slot 5: Gen3 x4 link |
| Storage |
| SATA Controller | - 8x SATA3 6Gb/s (SATA0-7, SATA0 supports SATA DOM, and is shared with M.2(PCIE3.0(x4))/ SATA3) |
| Ethernet |
| Interface | - 1000 /100 /10 Mbps |
| LAN Controller | - 2 x RJ45 GLAN by Intel® i210
- Supports Wake-On-LAN
- Supports Energy Efficient Ethernet 802.3az
- Supports Dual LAN with Teaming function
- Supports PXE
- LAN1 supports NCSI |
| Management |
| BMC Controller | - ASPEED AST2500 |
| IPMI Dedicated GLAN | - 1 x Realtek RTL8211E for dedicated management GLAN |
| Features | - Watch Dog
- NMI |
| Graphics |
| Controller | - ASPEED AST2500 |
| VRAM | - DDR4 16MB |

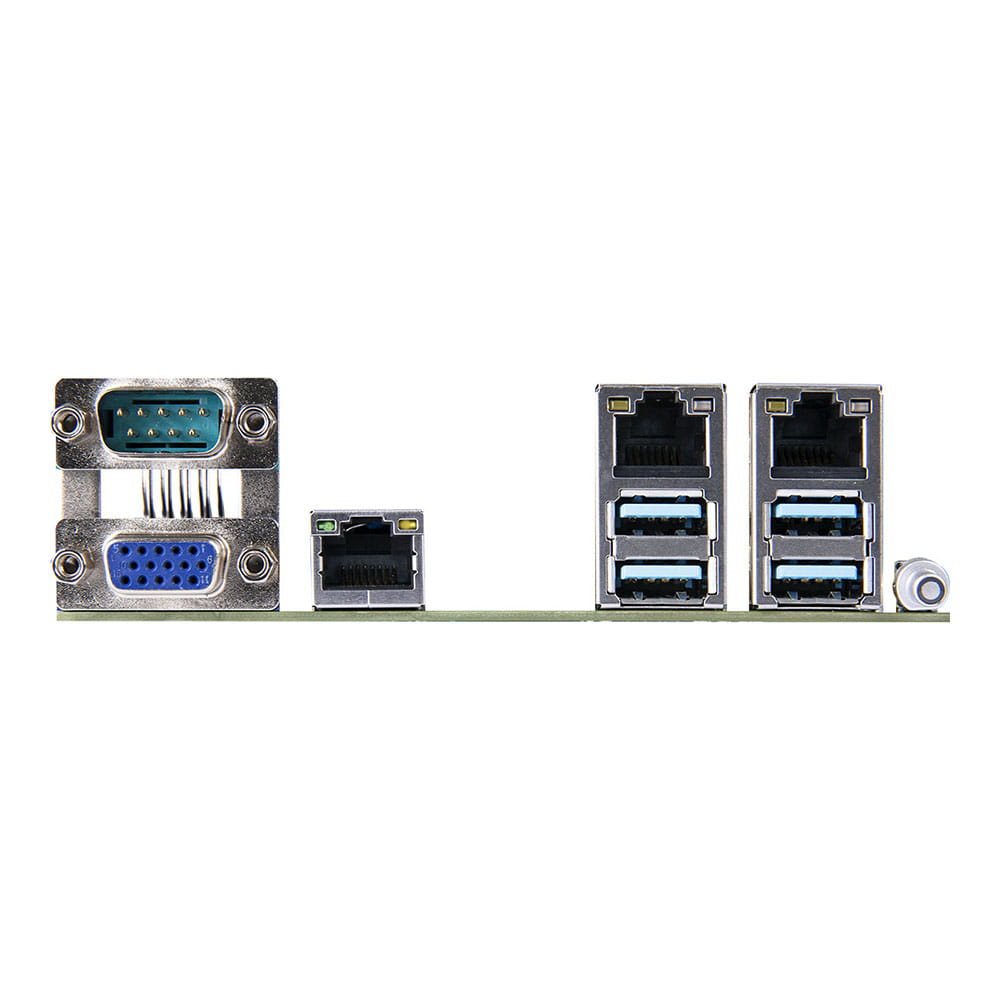

| Rear Panel I/O |
| VGA Port | - 1 x D-Sub |
| USB 3.1 Gen2 Port | - 2 (Gen2), 2(Gen1) |
| Lan Port | - 2 x RJ45 Gigabit Ethernet LAN ports
- 1 x RJ45 Dedicated IPMI LAN port
- LAN Ports with LED (ACT/LINK LED and SPEED LED) |
| Serial Port | - 1 |
| UID Button/UID LED | - 1 |
| Internal Connector |
| SATA DOM | - 1 (shared with M.2) |
| M.2 | - 1 (2230/2242/2260/2280, Supports PCIE3.0(X4)/SATA3) |
| Auxiliary Panel Header | - 1 (includes chassis intrusion, location button & LED, and front LAN LED) |
| TR1 Header | - 1 |
| TPM Header | - 1 |
| IPMB Header | - 1 |
| Buzzer | - 1 |
| Fan Header | - 6(1CPU/3Front/2Rear) |
| ATX Power | - 1x (24-pin) + 1x (8-pin) |
| USB 3.1 (Gen1) Header | - 1 (supports 2 USB 3.0 ports) |
| USB 2.0 Header | - 1 (supports 2 USB 2.0 ports) |
| NMI Header | - 1 |
| Front Panel | - 1 (RST, PWRBTN, HDDLED, PWRLED |
| Speaker Header | - 1(4pin) |
| BMC_SMB Header | - 1 |
| SGPIO Header | - 2 |
| ME/SPS Recovery | - 1 |
| Clear CMOS | - 1 (short pin) |
| PSU SMB Header | - 1 |
| Onboard LED |
| 80 Debug Port LED | - 1 |
| System BIOS |
| BIOS Type | - 256 Mb AMI UEFI Legal BIOS |
| BIOS Features | - Plug and Play (PnP)
- ACPI 2.0 Compliance Wake Up Events
- SMBIOS 2.8.0 Support
- ASRock Rack Instant Flash |
| Hardware Monitor |
| Temperature | - CPU/PCH Temperature Sensing
- MB/Card Side/TR1 Temperature Sensing |
| Fan | - CPU/Rear/Front Fan Tachometer
- CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature)
- CPU/Rear/Front Fan Multi-Speed Control |
| Voltage | - Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, VCCM, VPPM, VCCIO, VCCSA, VCCST_SFR, V1.0M, 3VSB, 5VSB, VBAT |
| Support OS |
| OS | Microsoft® Windows
- Server 2016 (64 bit) |
| Environment |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
