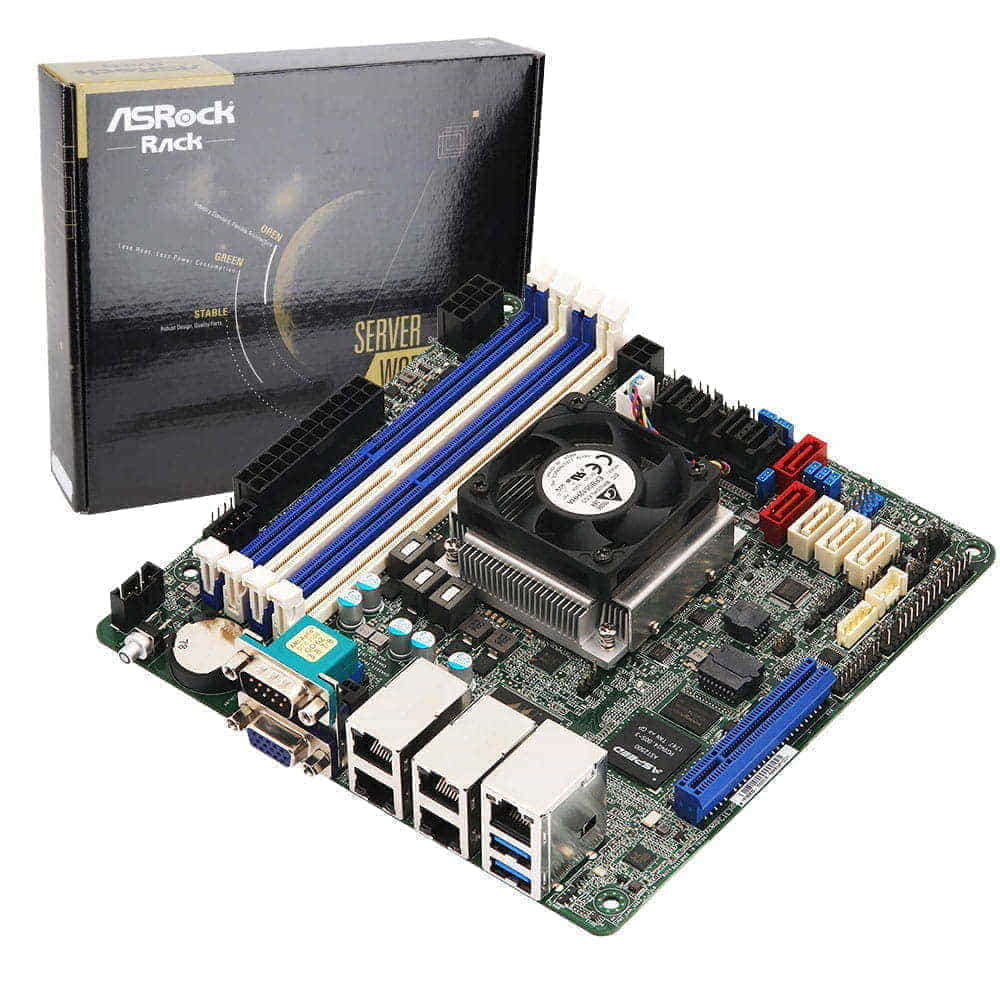

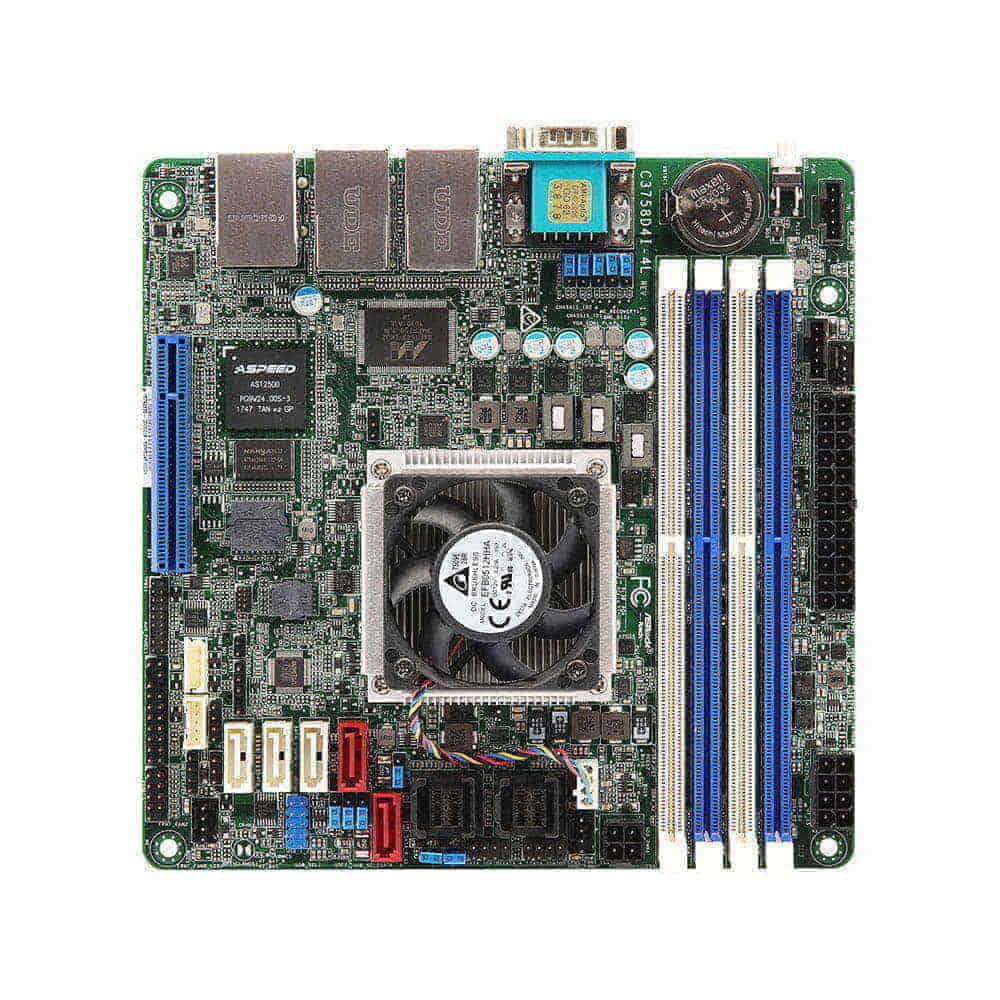

| MB Physical Status |
| Form Factor | - Mini ITX |
| Dimensions | - 6.7'' x 6.7'' (17.02 cm x17.02 cm) |
| Processor System |
| CPU | - Intel® Atom C3758 Series Processor: 8core, 25W |
| Socket | - SOC |
| System Memory |
| Capacity | - 4 x 288-pin DDR4 DIMM slots
- Support up to 256GB DDR4 RDIMM (32 GB w/8Gb DRAM)
- Support up to 64GB DDR4 UDIMM (16 GB w/8Gb DRAM) |
| Type | - Dual Channel DDR4 memory technology
- Non-ECC, ECC UDIMM: 4GB, 8GB, 16GB
- RDIMM: 4GB, 8GB, 16GB, 32GB |
| DIMM Size Per DIMM | - Dual Channel DDR4 memory technology
- Non-ECC, ECC UDIMM: 4GB, 8GB, 16GB
- LR/RDIMM: 4GB, 8GB, 16GB, 32GB, 64GB |
| DIMM Frequency | - Non-ECC UDIMM: 1600/1866/2133/2400MHz
- ECC UDIMM: 1600/1866/2133/2400MHz
- LR/RDIMM: 1600/1866/2133/2400MHz
*Only C3758D4I-4Lsupports DDR4 up to 2400. |
| Voltage | - 1.2V |
| Expansion Slot |
| PCIe 3.0 x 8 | - 1 x PCIe MEx8/ EE x8 (MAX x8 by BIOS setup) |
| Storage |
| SATA Controller | - 13 x SATA3 6.0 Gb/s: 5 x SATA3 ports (SATA_0, SATA_1, SATA_2, SATA_3 and SATA_12) and 8 x SATA ports from 2 mini SAS HD connectors (SATA_4_7 and SATA_8_11) |
| Ethernet |
| Interface | - Gigabit LAN 10/100/1000 Mb/s |
| LAN Controller | - Marvell 88E1543(4L)
- Supports Wake-On-LAN
- Supports Energy Efficient Ethernet 802.3az
- Supports Dual LAN with Teaming function
- Supports PXE
- LAN1 Supports NCSI |
| Management |
| BMC Controller | - ASPEED AST2500 : IPMI (Intelligent Platform Management Interface) 2.0 with Ikvm and vMedia support |
| IPMI Dedicated GLAN | - 1 x Realtek RTL8211E for dedicated management LAN |
| Features | - Watch Dog
- NMI |
| Graphics |
| Controller | - ASPEED AST2500 |
| VRAM | - DDR4 64MB |
| Output | - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz |

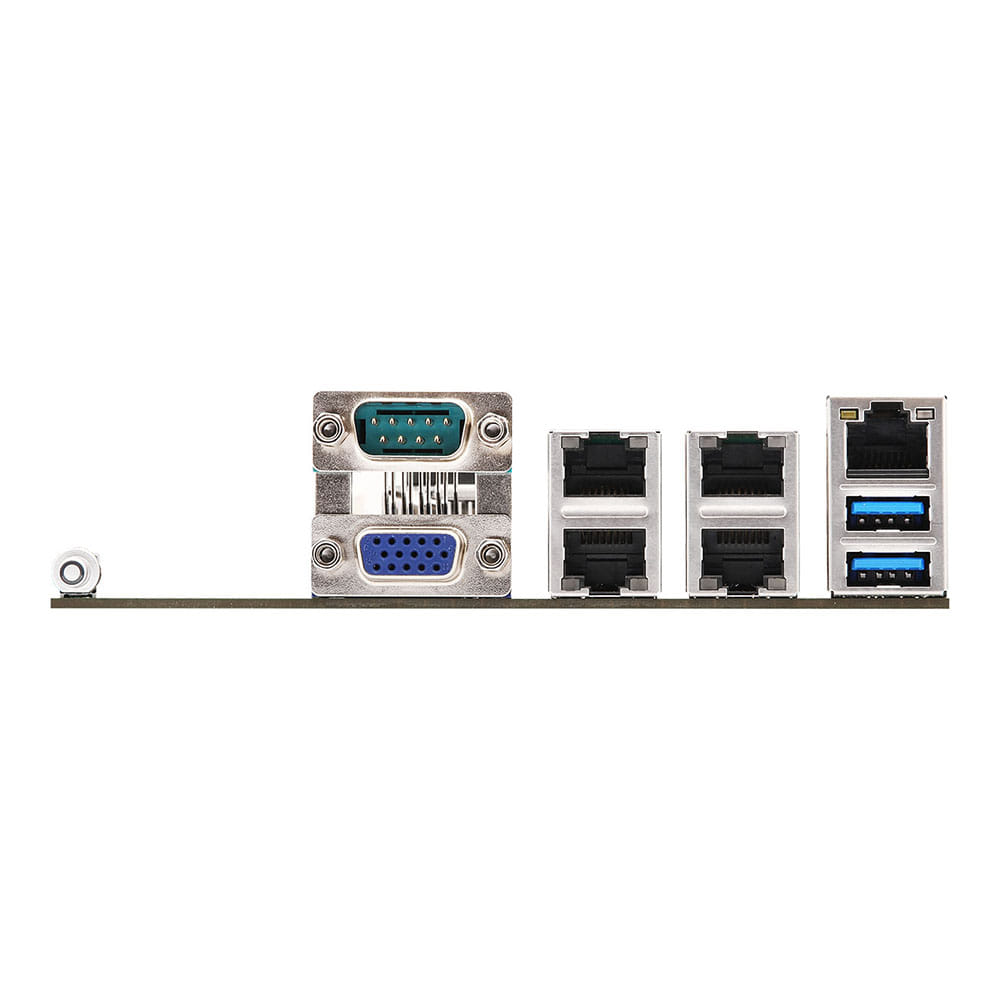

| Rear Panel I/O |
| VGA Port | - 1 x D-sub |
| USB 3.1 Gen1 Port | - 2 |
| Lan Port | - 4 x RJ45 Gigabit Ethernet LAN ports
- 1 x RJ45 Dedicated IPMI LAN port
- LAN Ports with LED (ACT/LINK LED and SPEED LED) |
| Serial Port | - 1 |
| UID Button/UID LED | - 1 |
| Internal Connector |
| Auxiliary Panel Header | - 1 (includes chassis intrusion, location button & LED, front LAN LED, and event log LED) |
| TPM Header | - 1 |
| IPMB Header | - 1 |
| Fan Header | - 4 pins x4 (1CPU/2Front/1Rear) |
| ATX Power | - 1 (24-pin) |
| DC IN | - 1 (8-pin) 12v |
| USB 2.0 Header | - 1 (support 1 USB port or 2 USB ports on header. The port number controlled by USB_ SEL1 and USB_SEL2 jumper) |
| Front Panel | - 1 |
| SATA Power Connector | - 1 (4-pin) |
| System BIOS |
| BIOS Type | - 128Mb AMI UEFI Legal BIOS |
| BIOS Features | - Plug and Play (PnP)
- ACPI 1.1 Compliance Wake Up Events
- SMBIOS 2.3.1 Support
- DRAM Voltage Multi-adjustment
- ASRock Instant Flash |
| Hardware Monitor |
| Temperature | - CPU/PCH/DDR/LAN/Storage Temperature Sensing
- MB/Card side/TR1 Temperature Sensing |
| Fan | - CPU/Rear/Front Fan Tachometer
- CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature)
- CPU/Rear/Front Fan Multi-Speed Control |
| Voltage | - Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, +BAT, 3VSB, 5VSB |
| Support OS |
| OS | Microsoft® Windows®
- Server 2016 (64 bit)
- Server 2012 (64 bit)
- Server 2012 R2 (64 bit)
Linux
- RedHat Enterprise Linux Server 6.8 (32 / 64 bit) / 7.2 (64 bit)
- CentOS 6.8 (32 / 64 bit) / 7.2 (64 bit)
- SUSE Enterprise Linux Server 11 SP4 (32 / 64 bit) / 12 SP1 (64 bit)
- Fedora core 24 (64 bit)
- Ubuntu 16.04 (64 bit) / 15.10 (64 bit) (AHCI mode)
Virtual
- VMWare® ESXi 6.0
* Please refer to our website for the latest OS support list. |
| Environment |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
* Install a CPU Fan when the airflow through the heatsink is below 2CFM. |
