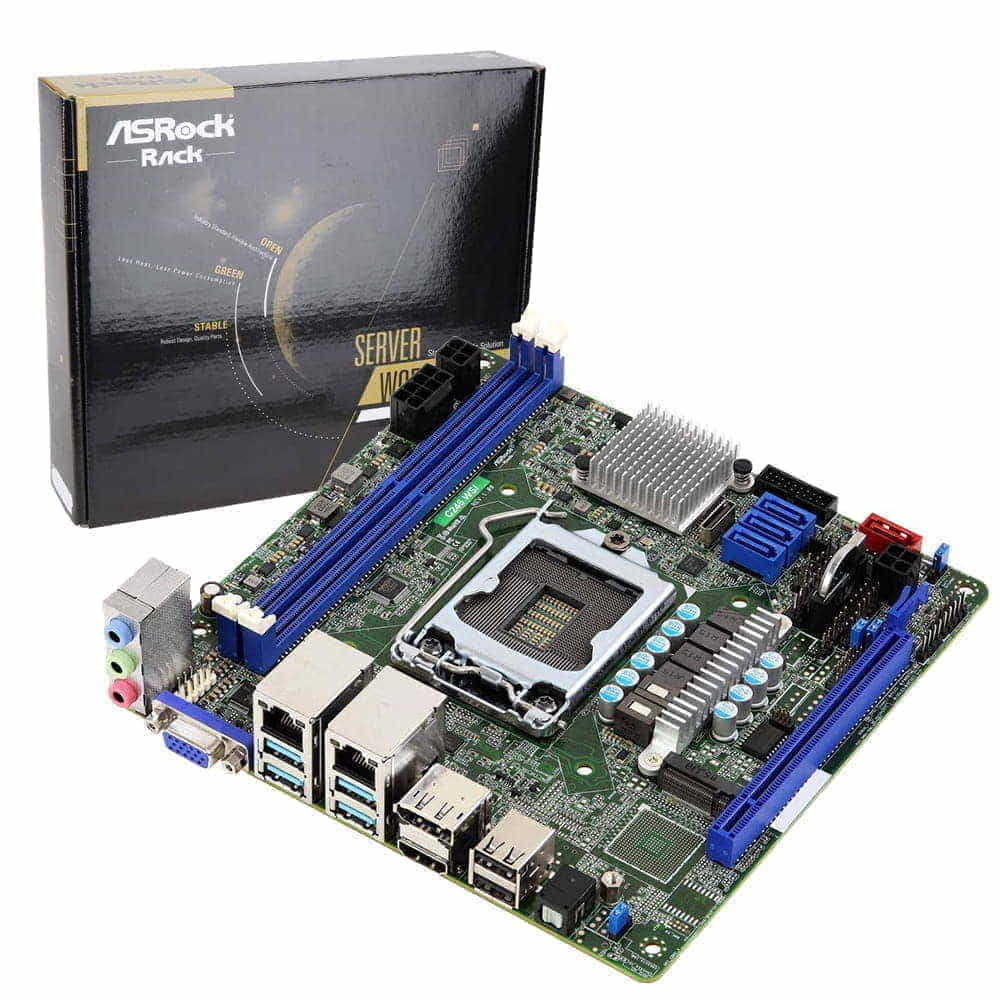

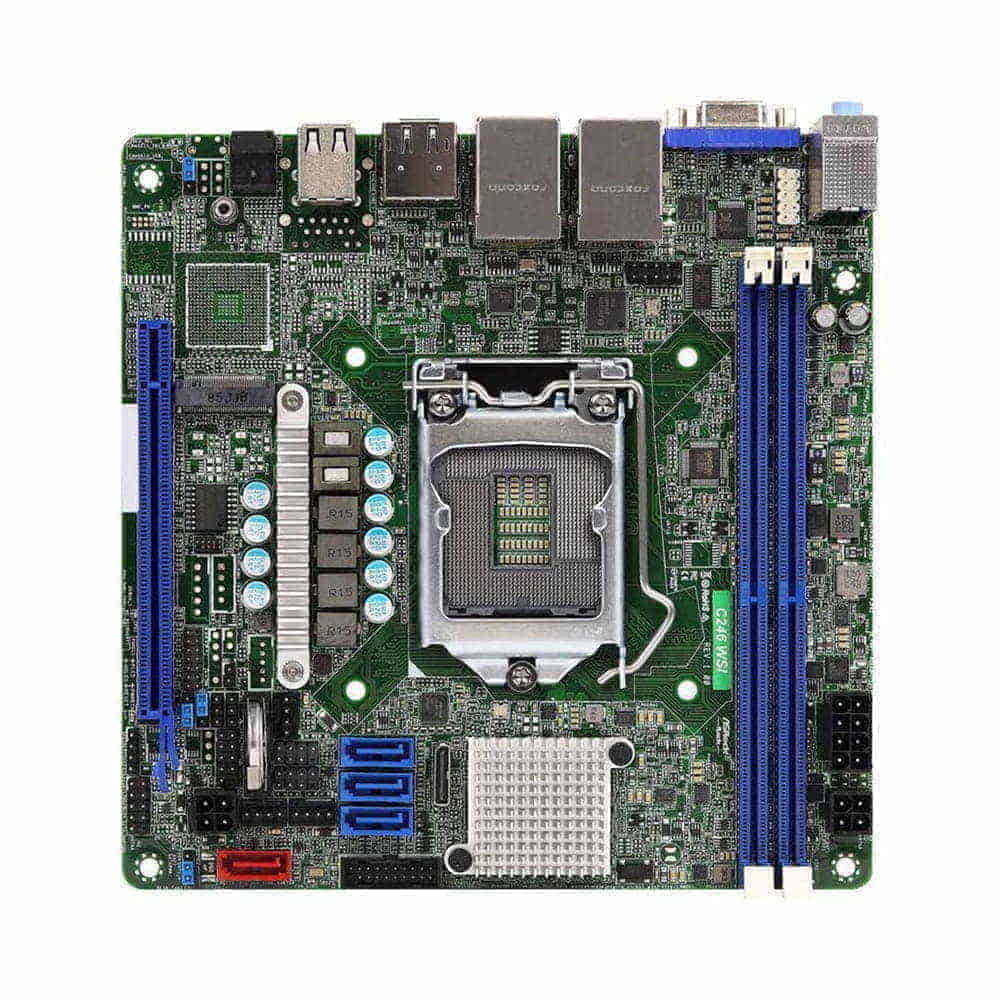

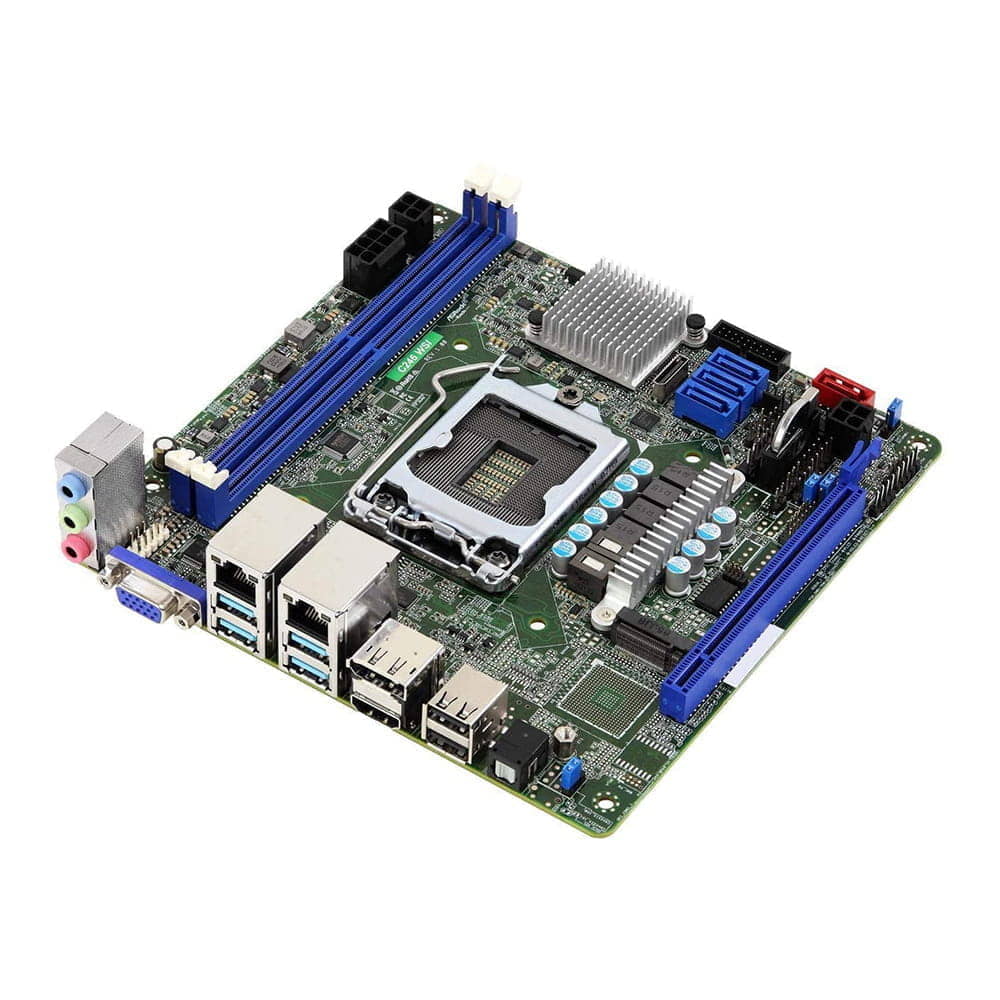

| MB Physical Status |
| Form Factor | - mini-ITX |
| Dimensions | - 6.7'' x 6.7'' (17.02 cm x17.02 cm) |
| Processor System |
| CPU | - Supports Intel® Xeon® E-2100 Processors (Max. 95W) |
| Chipset | - Intel® C246 |
| System Memory |
| Capacity | - 2 x DDR4 DIMM slots |
| Type | - Dual Channel memory technology
- Supports DDR4 2133/2400/2666 ECC UDIMM*
*The non-ECC UDIMMs support Client OS only. |
| DIMM Size Per DIMM | - ECC and non-ECC UDIMM : 4GB, 8GB, 16GB, 32GB
*Future support for 32GB via a BIOS update in Oct. |
| Voltage | - 1.2V |
| Expansion Slot |
| PCIe 3.0 x 16 | - SLOT7: Gen3 x16 link |
| Storage |
| SATA Controller | - Intel® C246: 1 x OCuLINK (SATA_0,1,2,3); 4 x SATA3 6Gb/s (SATA_4,5,6,7), 1 x SATA DOM included
*Please contact sales to buy the OCuLink to 4x SATA cable |
| NVMe Device | - NVMe SSDs PCIEx4 (Share with SATA_0,1,2,3) |
| M.2 slot | - 1 x M.2 (NGFF 2242, PCI-E Gen3 x4 link or SATA signal)*
*SATA 1 will be disable when M.2 is SATA signal |
| Ethernet |
| Interface | - 1000 /100 /10 Mbps |
| LAN Controller | - 2 x RJ45 GLAN by Intel® i210+Intel® i219LM
- Supports Wake-On-LAN
- Supports Energy Efficient Ethernet 802.3az
- Supports Dual LAN with Teaming function(TBD)
- Supports PXE
- LAN1 supports NCSI |
| Management | - 1 |
| Management |
| BMC Controller | - N/A |
| IPMI Dedicated GLAN | - N/A |
| Features | - Watch Dog
- NMI |
| Graphics |
| Controller | - CPU pGFX |
| Audio |
| Audio Codec | - Realtek ALC892 |

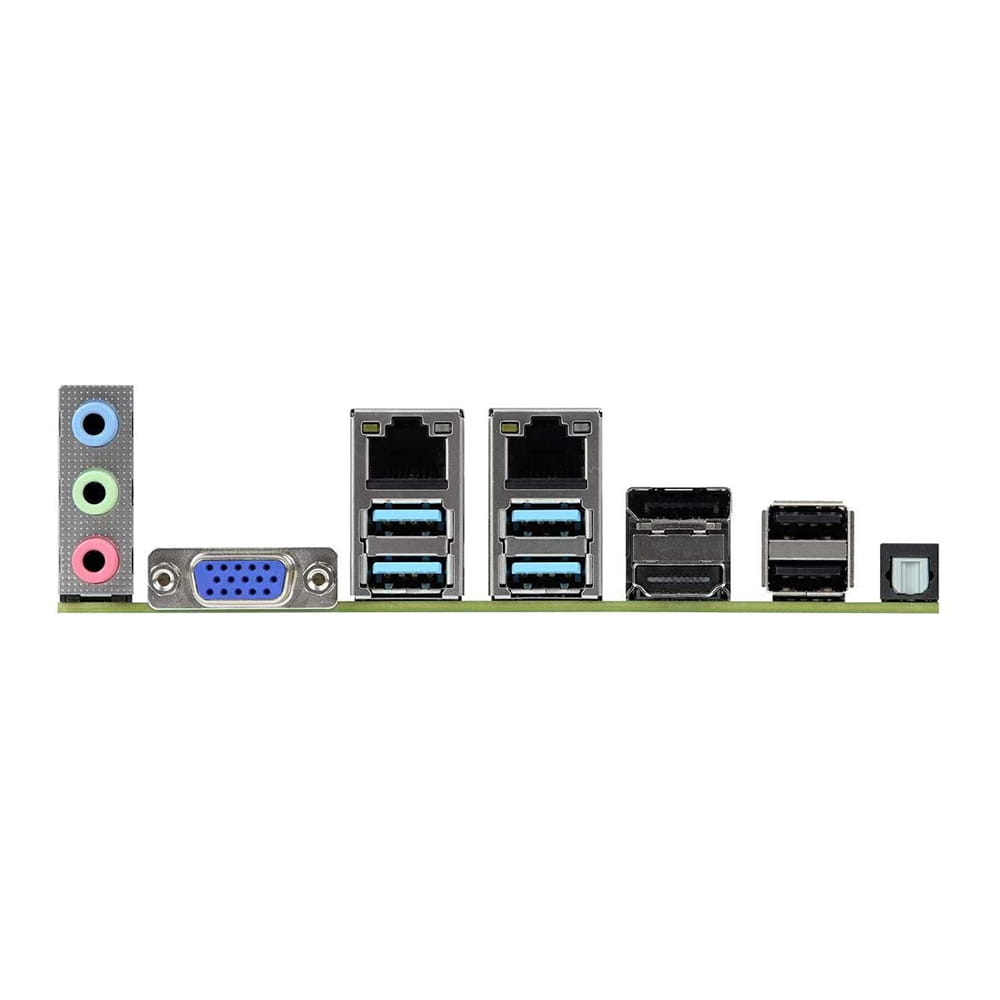

| Rear Panel I/O |
| HDMI | - 1 |
| VGA Port | - 1 x D-Sub |
| USB 2.0 Port | - 2 |
| USB 3.1 Gen1 Port | - N/A |
| USB 3.1 Gen2 Port | - 4 (Type A Gen2 x4) |
| Lan Port | - RJ45: 2x GLAN(by Intel® i210+ Intel® i219LM)
- LAN Ports with LED (ACT/LINK LED and SPEED LED) |
| Display Port | - 1 |
| UID Button/UID LED | - N/A |
| Audio | - 3+1 CH with SPDIF |
| SPDIF | - 1 |
| Internal Connector |
| COM Header | - 1 |
| SATA DOM | - 1 |
| M.2 | - 1(2242, PCIE(x4)/SATA3 6Gb/s(SATA 1)) |
| OCuLink | - 1 |
| Auxiliary Panel Header | - 1 (include chassis intrusion, location button & LED, front LAN LED, event log LED) |
| TR1 Header | - 1 |
| TPM Header | - 1 |
| IPMB Header | - N/A |
| Buzzer | - N/A |
| Fan Header | - 3(1CPU/1Front/1Rear) |
| ATX Power | - 1x (4-pin) |
| DC IN | - 1x (8-pin) |
| USB 3.1 (Gen1) Header | - 1 (support 2 USB 3.0) |
| USB 2.0 Header | - N/A |
| PWR SMB Header | - N/A |
| Front Panel | - 1 (RST, HDLED, PLED, PERBTN) |
| Serial ATA3 Connector | - 3 |
| SATA Power Connector | - 1x (4-pin) |
| Speaker Header | - 1(4pin) |
| Serial Port | - 1x (8-pin) |
| SGPIO Header | - 2 |
| Clear CMOS | - 1 (short pad) |
| Onboard LED |
| 80 Debug Port LED | - N/A |
| System BIOS |
| BIOS Type | - 256Mb AMI UEFI Legal BIOS |
| BIOS Features | - Plug and Play (PnP)
- ACPI 2.0 Compliance Wake Up Events
- SMBIOS 2.8.0 Support
- ASRock Rack Instant Flash |
| Hardware Monitor |
| Temperature | - CPU Temperature Sensing
- System Temperature Sensing
- System Inlet Temperature Sensing |
| Fan | - CPU/Rear/Front Fan Tachometer
- CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
- CPU/Rear/Front Fan Multi-Speed Control |
| Voltage | - 3V, Vcore, 12V, VCCST_SFR, 3VSB |
| Support OS |
| OS | Microsoft® Windows:
Windows® 10 (64 bit)
Linux
- RedHat Enterprise Linux Server 6.10 (64 bit) / 7.5 (64 bit)
- SUSE Enterprise Linux Server 11 SP4 (64 bit) / 12 SP3 (64 bit)
- Ubuntu 16.04 (64 bit)/ 18.04 (64 bit)
Virtual
- VMWare® ESXi 6.5 u1
- Win hyper-V Server 2016 |
| Environment |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
