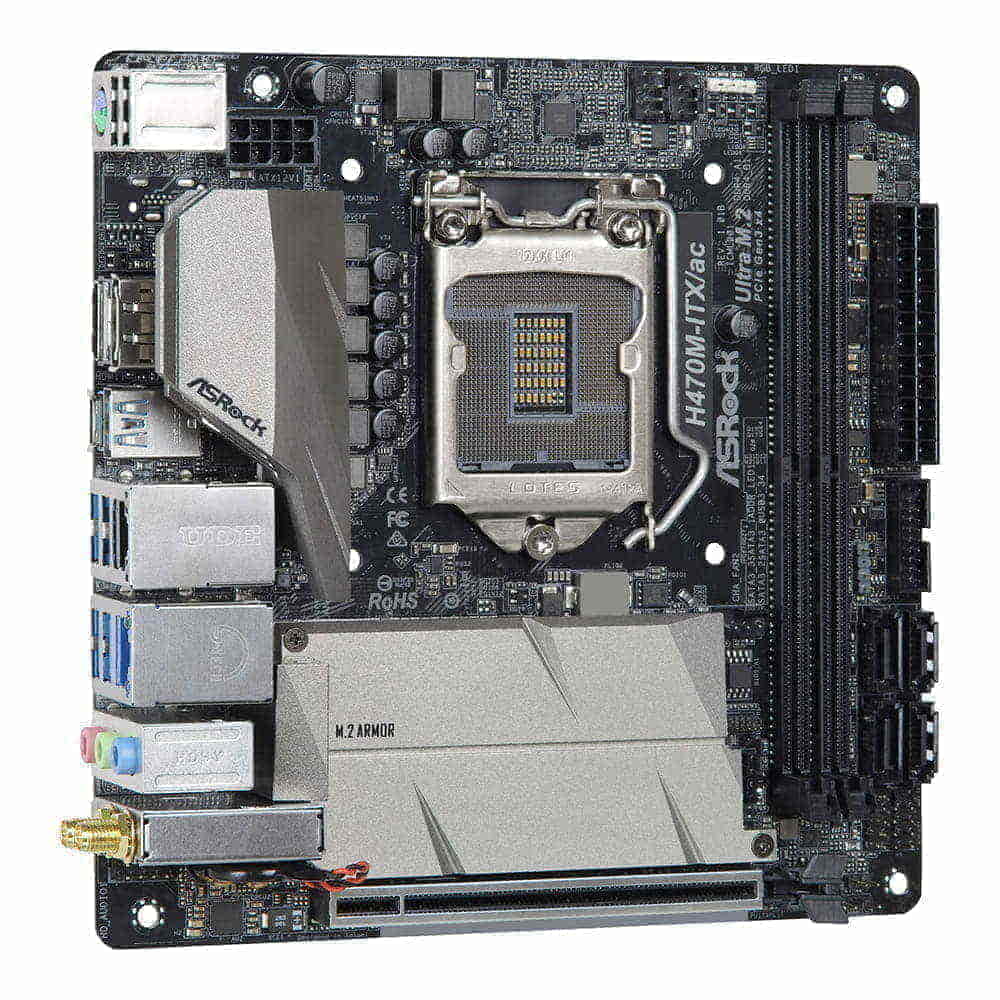

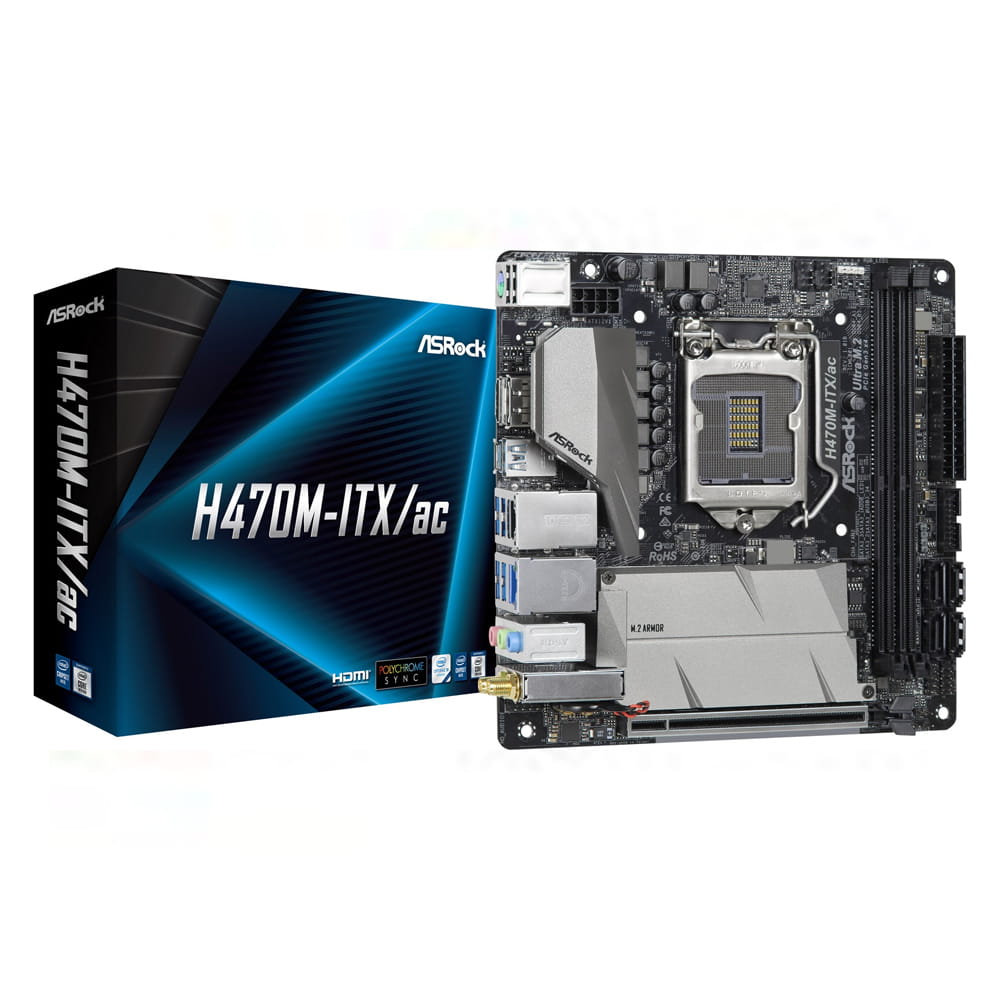

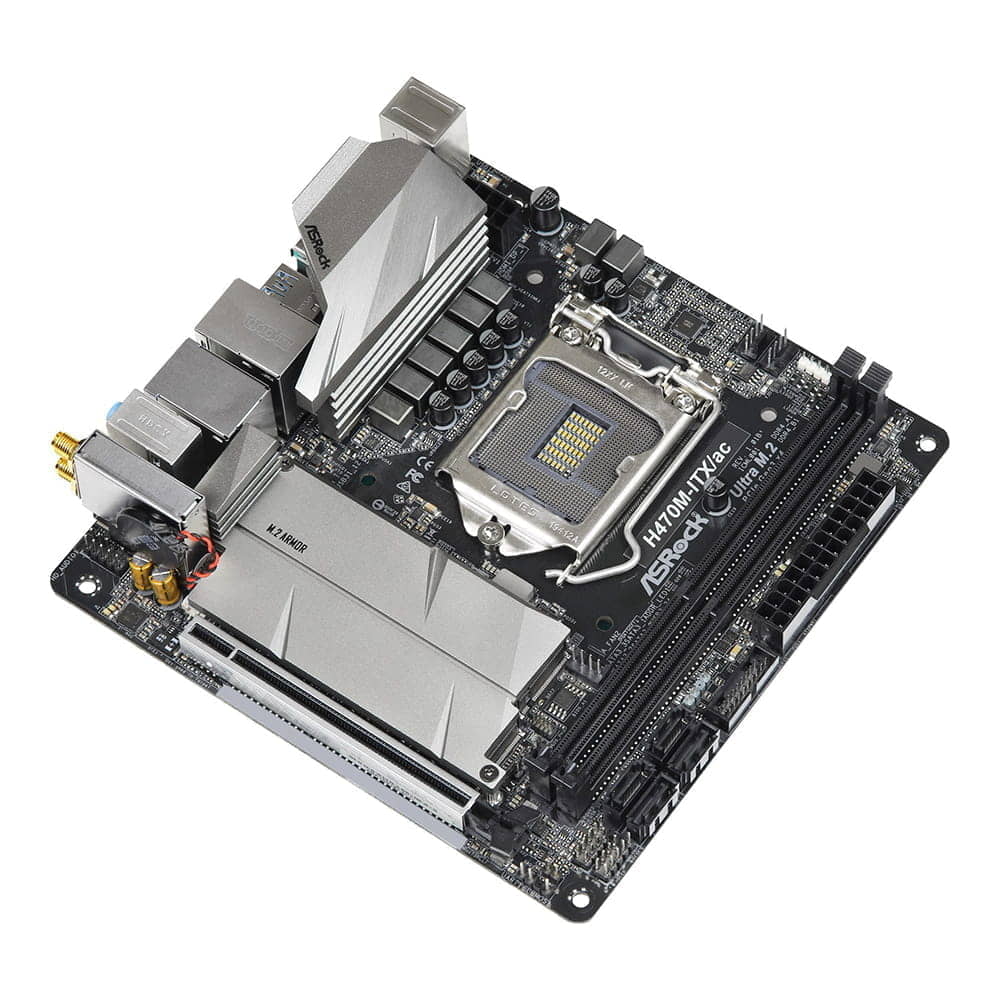

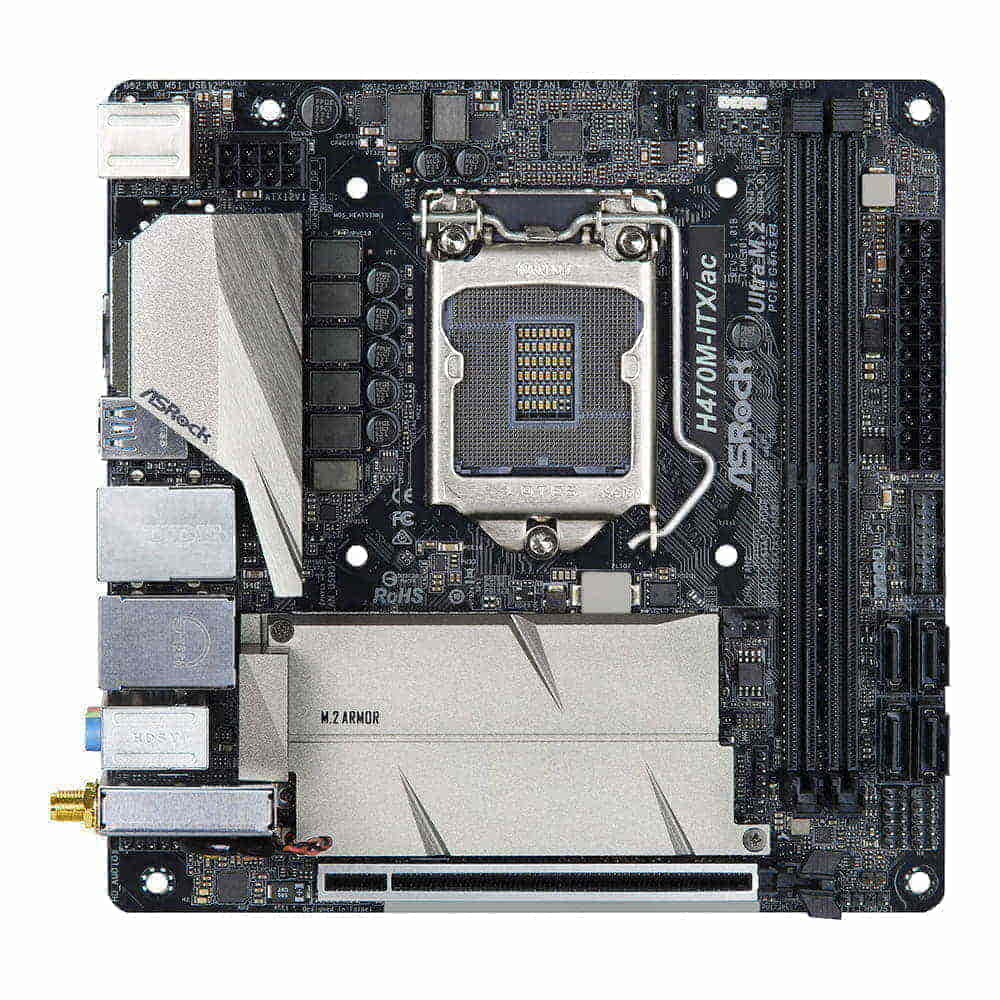

Asrock H470M-ITX/AC. Socket 1200. Mini-ITX.

Asrock H470M-ITX/AC. Socket 1200. Mini-ITX.

Asrock
  • Supports 10th generation Intel Core processors.
  • Supports DDR4 2933MHz.
  • 1 PCIe 3.0 x16.
  • Graphics output options: HDMI, DisplayPort.
  • 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), Nahimic Audio.
  • 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 and SATA3), 1 Ultra M.2 (PCIe Gen3 x4).
  • 4 USB 3.2 Gen2 Type-A (Rear).
  • 4 USB 3.2 Gen1 (Rear A + C Type, 2 Front).

P/N: 90-MXBCL0-A0UAYZ - EAN/UPC: 4710483931154

120,00 € Without VAT
145,20 € With VAT
In stock
Approximate delivery between 28 octubre and 29 octubre
2 years
of guarantee
sending
shipping
100%
Secure pay

Whether you're using headphones, earphones, internal or external speakers, via USB, Wi-Fi, analog output, or even HDMI, Nahimic Audio gives you the most engaging, vibrant, and detail-rich listening experience.

The sound tracker is a visual indicator that points out the directions from which the predominant sounds come. Each sound is properly positioned 360 ° on a radar for complete immersion during play.

Who said that only the K-series CPUs and the Z-family platform can be made at full power? Through ASRock BFB (Boost Frequency Boost) technology, users can install their K series CPUs on select ASRock 400 series motherboards and enjoy base frequency enhancement with the hidden power of righ now.

While ASRock BFB brings non-K-series CPUs to life, the boost frequency still depends on the cooling system applied to your computer.

Dr.MOS is the integrated power amp solution that is optimized for synchronous inversion reduction voltage applications! Compared to traditional discrete MOSFETs, it intelligently provides a higher current for each phase, thereby providing improved thermal output and superior performance.

Compared to traditional shocks, ASRock's premium 60A power shocks make saturation current up to three times better, thereby providing improved and enhanced Vcore voltage to the motherboard.

ASRock engineers went to great lengths to make the area of ​​the CPU backplate large enough to accommodate the wide variety of CPU coolers.

This motherboard features built-in RGB headers and an addressable RGB header that allows the motherboard to connect to compatible LED devices like bands, CPU fans, coolers, chassis, etc. Users can also sync RGB LED devices through Polychrome RGB Sync certified accessories to create their own unique lighting effects.

No one has time for weak WiFi signals and slow internet! That is why this motherboard comes with a WiFi 802.11ac (2.4G / 5G WiFi) module that supports wireless networking and Bluetooth v4.2.

The 2.5Gb / s smart LAN platform is built for maximum network performance for the demanding requirements of high-quality home networks, content creators, online gamers, and streaming media. Increase network performance up to 2.5 times bandwidth compared to standard gigabit Ethernet, you'll enjoy a faster and uncompromising connectivity experience for gaming, file transfers, and backups.

Automatically detects and accelerates game traffic before other network traffic for smoother, stutter-free in-game performance and competitive advantage.

Ready for increased capacity and even faster Type 22110 M.2 NVMe SSD to meet the need for performance. Two Ultra M.2 sockets supporting SATA3 6Gb / s and PCIe Gen3 x4 modes, increasing data transfer speeds up to 32Gb / s.

Good M.2 SSD protection is important for longevity and stability. ASRock provides a complete M.2 armor solution that makes SSDs work at a certain low temperature.

The advanced PCI-E steel slot includes a solid cover that prevents any signal interference with graphics cards. It also ensures that the heavy graphics cards are securely installed in the PCI-E slot securely.

This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum power of 2A to support the most popular water pumps. The user can also adjust the voltage of the water pump for better cooling performance with less noise.

ASRock Live Update & APP Shop is designed for your convenience. We provide various applications and support software for users to download. You can also easily optimize your system and keep your motherboard updated with ASRock Live Update & APP Shop.

Highlights...

* Supports 10th Gen Intel Core Processors (Socket 1200).
* Supports DDR4 2933MHz.
* Mini-ITX format.
* Graphics output options: HDMI, DisplayPort.

Características
Características especiales ASRock USB 3.2 Gen2
- puertos USB 3.2 Gen2 Type-A ASRock (10 Gb/s)
ASRock Super Alloy
- Power Choke 60A Premium
- 50A Dr.MOS
- Capacitadores Nichicon 12K Negros (Capacitadores 100% fabricados en Japón con polímeros conductivos de alta calidad)
- PCB Negro Zafiro
- Alta densidad Tejido de vidrio PCB 2.5G LAN Intel® 802.11ac WiFi
Ranura de acero ASRock
Disipador de calor ASRock de cobertura total M.2
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Full Spike Protection (para todos los puertos USB, Audio, LAN)
ASRock Live Update & APP Shop
CPU - Soporta 10th Gen Intel® Core™ Processors (Socket 1200)
- Diseño Digi Power
- Diseño de fase de alimentación 8
- Soporta Intel® Turbo Boost Max 3.0 Technology

Chipset

- Intel® H470

Memoria  Tecnología de memoria Dual Channel DDR4
- 2 x ranuras DDR4 DIMM
- Soporta memoria DDR4 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered *
- Soporta módulos de memoria ECC UDIMM (operan en modo no-ECC)
- Máxima capacidad de memoria del sistema: 64GB**
- Soporta Intel® Extreme Memory Profile (XMP) 2.0
- Ranuras DIMM con contactos 15μ Oro
Graficos - Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1**
- Graphics, Media & Compute: Microsoft® DirectX 12, OpenGL 4.5, Intel® Built In Visuals, Intel® Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1
- Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft® PlayReady 3.0, Intel® SGX Content Protection, UHD/HDR Blu-ray Disc
- Salida Dual graphics: Soporta HDMI y DisplayPort 1.4 ports por controladores de pantalla independientes
- Soporta tecnología HDMI 1.4 con maxima resolución hasta 4K x 2K (4096x2160) @ 30Hz
- Soporta DisplayPort 1.4 con max. resolution up to 4K x 2K (4096x2304) @ 60Hz
- Soporta Auto Lip Sync, Deep Color (12bpc), xvYCC y HBR (High Bit Rate Audio) con HDMI 1.4 (Se necesita compatibilidad con monitor HDMI)
- Soporta HDCP 2.3 con HDMI 1.4 y DisplayPort 1.4 Ports
- Soporta 4K Ultra HD (UHD) playback con HDMI 1.4 y DisplayPort 1.4 Ports
Audio - Audio 7.1 CH HD con protección de contenido (Códec de audio Realtek ALC1200)
- Soporta audio Premium Blu-ray
- Soporta protección contra sobretensiones
- PCB blindada de aislamiento
- Capas de PCB individuales para el canal de audio I/D
- Nahimic Audio
LAN - 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG)
- Soporta Dragon 2.5G LAN Software
- Control de ancho de banda inteligente de ajuste automatico
- UI visual amigable para el usuario
- Estadísticas de uso de la red visual
- Configuración predeterminada optimizada para modos de juego, navegador y Streaming
- Control de prioridad personalizado del usuario
- Soporta Wake-On-LAN
- Suporta Protección Lightning/ESD
- Soporta Ethernet 802.3az eficiente energéticamente
- Soporta PXE 1 x Gigabit LAN 10/100/1000 Mb/s (Intel® I219V)
- Soporta Wake-On-LAN
- Suporta Protección Lightning/ESD
- Soporta Ethernet 802.3az eficiente energéticamente
- Soporta PXE
LAN Inalámbrico - Modulo Intel® 802.11ac WiFi
- Soporta IEEE 802.11a/b/g/n/ac
- Compatible con Dual-Band (2.4/5 GHz)
- Soporta la conexión inalámbrica de alta velocidad de hasta 433Mbps
- Soporta Bluetooth 4.2 / 3.0 + Alta velocidad clase II
Ranuras de expansión - 1 x ranura PCI Express 3.0 x16 (PCIE1: modo x16)*
- 1 x Socket Vertical M.2 (Key E) con modulo WiFi-802.11ac (en la E/S trasera)
Almacenaje - 4 x conectores SATA3 de 6.0 Gb/s, Soporta RAID (RAID 0, RAID 1, RAID 5, RAID 10, Tecnología Intel® Rapid Storage 17), NCQ, AHCI y Hot Plug
- 1 x Socket Ultra M.2 (M2_1), soporta modulo tipo M Key 2280 M.2 SATA3 6.0 Gb/s y módulo M.2 PCIe hasta Gen3 x4 (32 Gb/s)*
- 1 x Socket Ultra M.2 (M2_2), soporta módulo tipo M Key 2280 M.2 PCIe hasta Gen3 x4 (32 Gb/s)*
Conectores - 1 x Encabezado RGB LED*
- 1 x Encabezado LED direccionable**
- 1 x conector ventilador Procesador (4-pin)***
- 1 x conector ventilador caja (4-pin)****
- 1 x Conector ventilador bomba de agua Chasis (4-pin) (Control de velocidad ventilador Smart Fan)*****
- 1 x conector alimentación 24 pin ATX
- 1 x conector alimentación 8 pin 12V
- 1 x Conector panel frontal audio
- 1 x cabezal USB 2.0 (soporta 2 puertos USB 2.0) (Soporta Protección ESD)
- 1 x cabezal USB 3.2 Gen1 (soporta 2 puertos USB 3.2 Gen1) (Soporta Protección ESD)

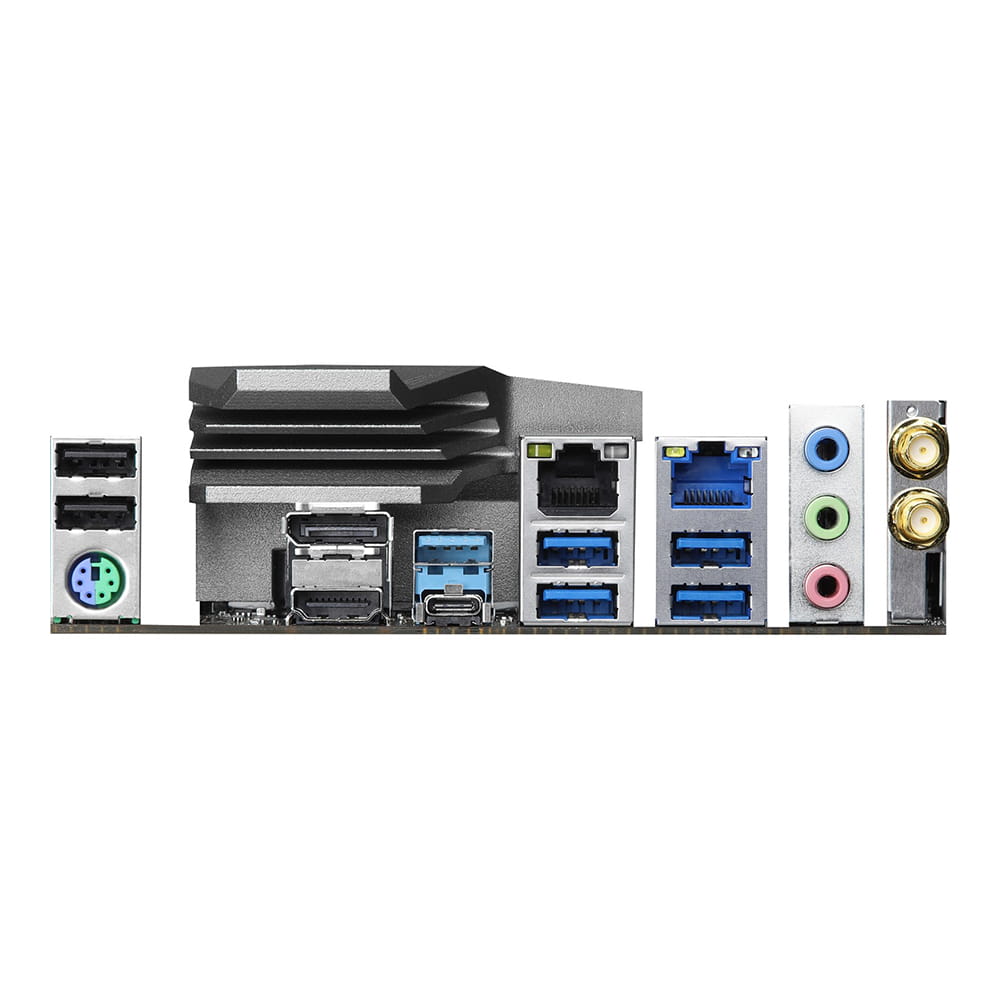

Panel trasero Entrada/salida - 2 x Puertos de antena
- 1 x Puerto PS/2 Teclado/Ratón
- 1 x puerto HDMI
- 1 x DisplayPort 1.4
- 2 x puertos USB 2.0 (Soporta Protección ESD)
- 4 x puertos USB 3.2 Gen2 Type-A (10 Gb/s) (Soporta Protección ESD)
- 1 x USB 3.2 Gen1 Type-A Port (Soporta Protección ESD)
- 1 x puerto USB 3.2 Gen1 Type-C (Soporta Protección ESD)
- 2 x Puertos con LED LAN RJ-45 (LEDs de Activación/conexión y velocidad)
- Conectores HD Audio: entrada de línea / Altavoz Delantero / Micrófono
Accesorios - Guía de instalación rápida, CD de Soporte, Placa entrada/salida
- 2 x cables de datos SATA
- 2 x Antenas WiFi ASRock 2.4/5 GHz
- 2 x Tornillos para Sockets M.2
Formato Formato Mini-ITX: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
