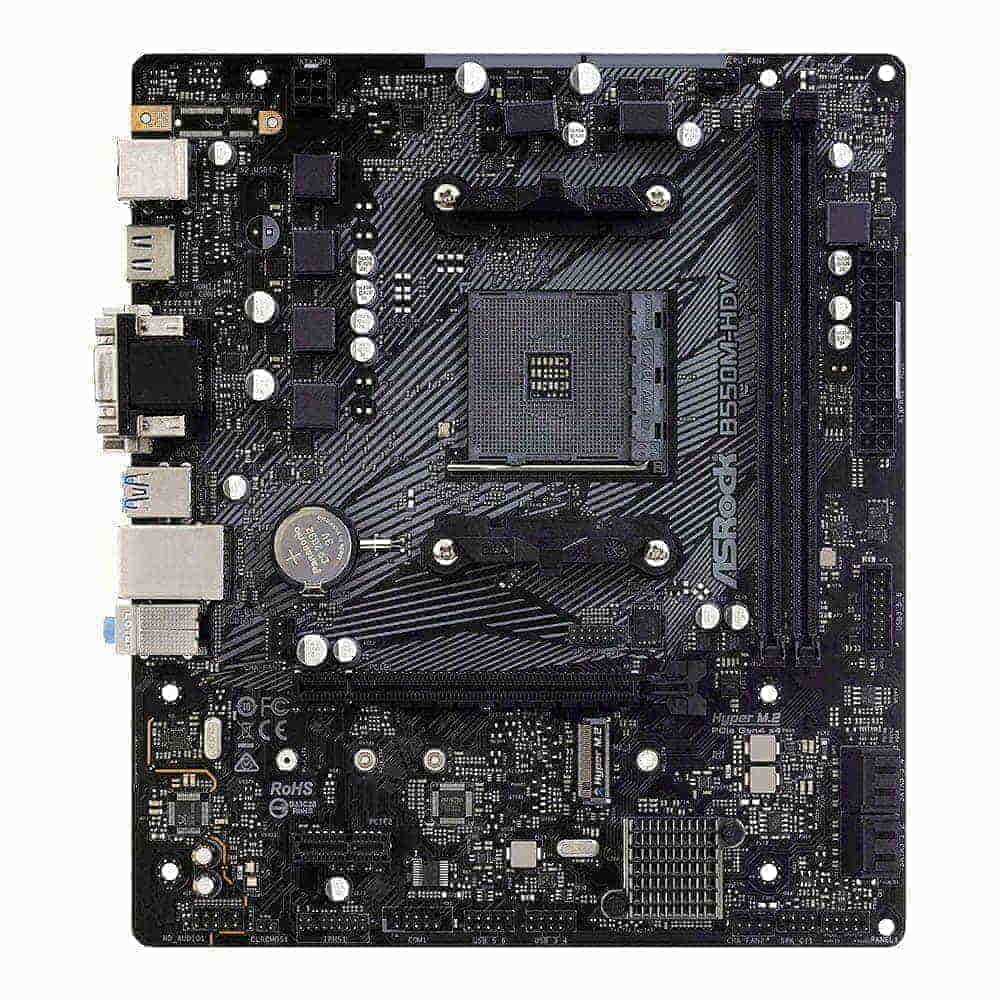

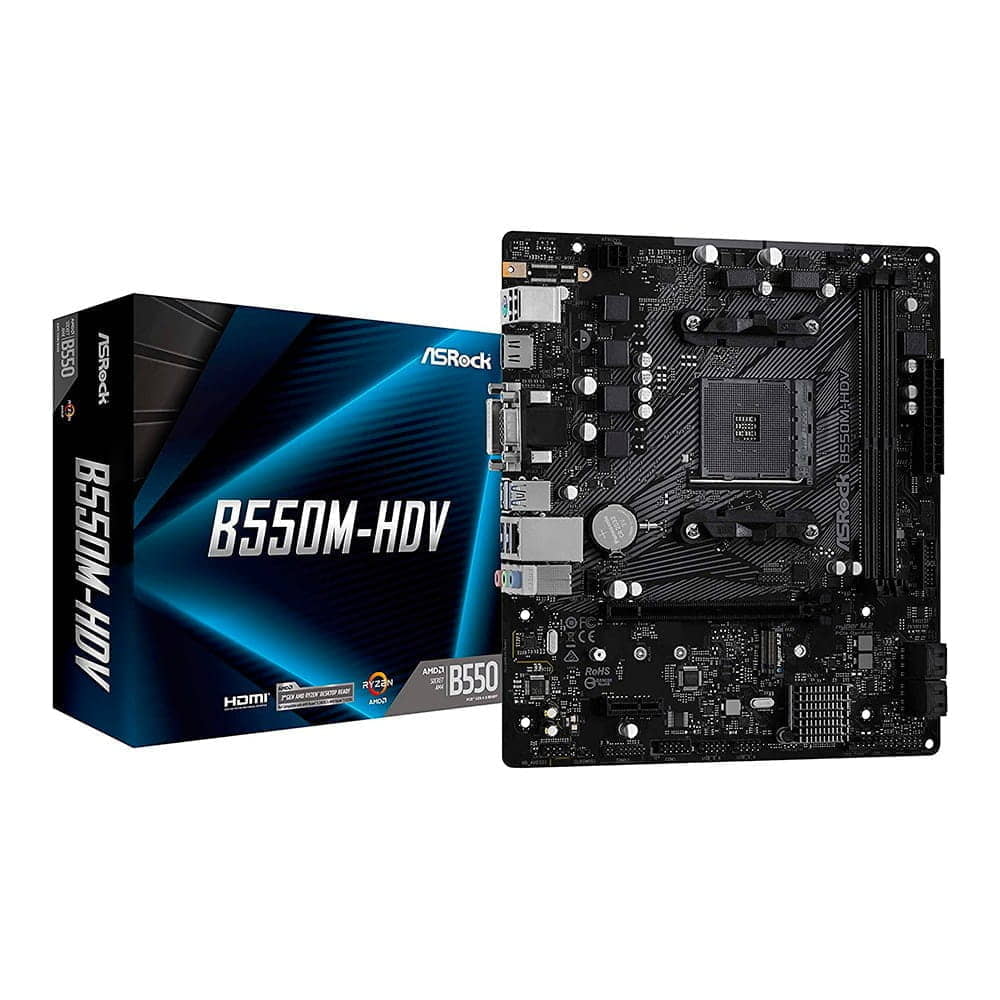

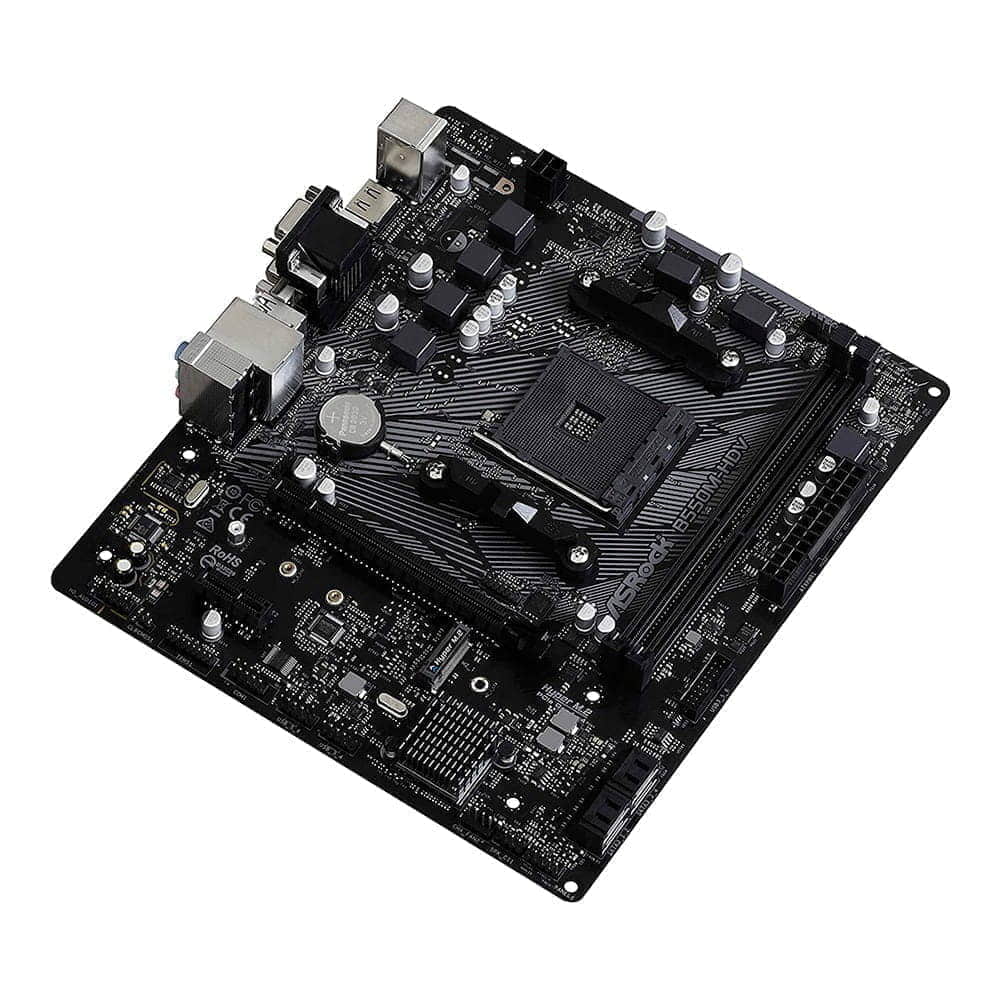

Asrock B550M-HDV. Socket AM4. Micro-ATX.

Asrock B550M-HDV. Socket AM4. Micro-ATX.

Asrock
  • Supports 3rd Generation AMD AM4 Ryzen ™ Processors / Future AMD Ryzen ™ Processors
  • 6-phase power design
  • Supports DDR4 4733+ (OC) RAM
  • 1x PCIe 4.0 x16, 1x PCIe 3.0 x1
  • Graphics Output Options: HDMI, DVI-D, D-Sub
  • 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
  • 4x SATA3, 1x Hyper M.2 (PCIe Gen4 x4 and SATA3)
  • 6x USB 3.2 Gen1 (2 front, 4 rear)
  • Gigabit LAN

P/N: 90-MXBDJ0-A0UAYZ - EAN/UPC: 4710483931635

68,69 € Without VAT
83,11 € With VAT
In stock in secondary storage
Approximate delivery between 23 junio and 24 junio
2 years
of guarantee
Envío
shipping
100%
Secure pay

The AMD B550 chipset offers PCIe® 4.0 support for graphics and storage devices on standard motherboards so you can rest assured that your system will not be obsolete prematurely. All motherboards with AMD 500 series chipsets are ready to work with today's advanced 3rd Gen Ryzen processors based on the "Zen 2" architecture, but that's not all. The platform will also support future Ryzen processors with "Zen 3" architecture so your system is never left behind and keeps you on the cutting edge.

Highlights...

* Supports 3rd generation AMD AM4 Ryzen ™ processors / future AMD Ryzen ™ processors.
* Supports DDR4 4733+ (OC) RAM.
* 7.1 CH HD Audio (Realtek ALC887 Audio Codec).
* 6x USB 3.2 Gen1 (2 front, 4 rear).
* Gigabit LAN

PROCESADOR
Fabricante de procesador AMD
Socket de procesador Zócalo AM4
Procesador compatible AMD Ryzen
Máx.número de procesador SMP 1
MEMORIA
tipos de memoria compatibles DDR4-SDRAM
Número de ranuras de memoria 2
Tipo de ranuras de memoria DIMM
Canales de memoria Dual-channel
ECC Si
No ECC Si
Velocidades de reloj de memoria soportadas 2133,2400,2667,2933,3200,3466,3600,3733,3800,3866,4000,4133,4200,4266,4333,4400,4466,4533,4600,4666 MHz
Memoria interna máxima 64 GB
Memoria sin buffer S
REGULADORES DEL ALMACENAJE
Interfaces de disco de almacenamiento soportados M.2,Serial ATA III
GRÁFICOS
Adaptador gráfico incorporado Si
Graphics chipset AMD
Adaptador gráfico Radeon Vega
HDCP Si
Versión DirectX 12.0
INTERNO I/O
USB 2.0, conectores 4
Conectores USB 3.2 Gen 1 (3.1 Gen 1) 2
Número de conectores SATA III 4
Conector de audio en panel frontal Si
Conector de potencia ATX (24 pines) Si
Conector de ventilador CPU Si
Número de conectores a ventilador de chasis 2
Conectores de poder (4 pin) periferales (Molex) 1

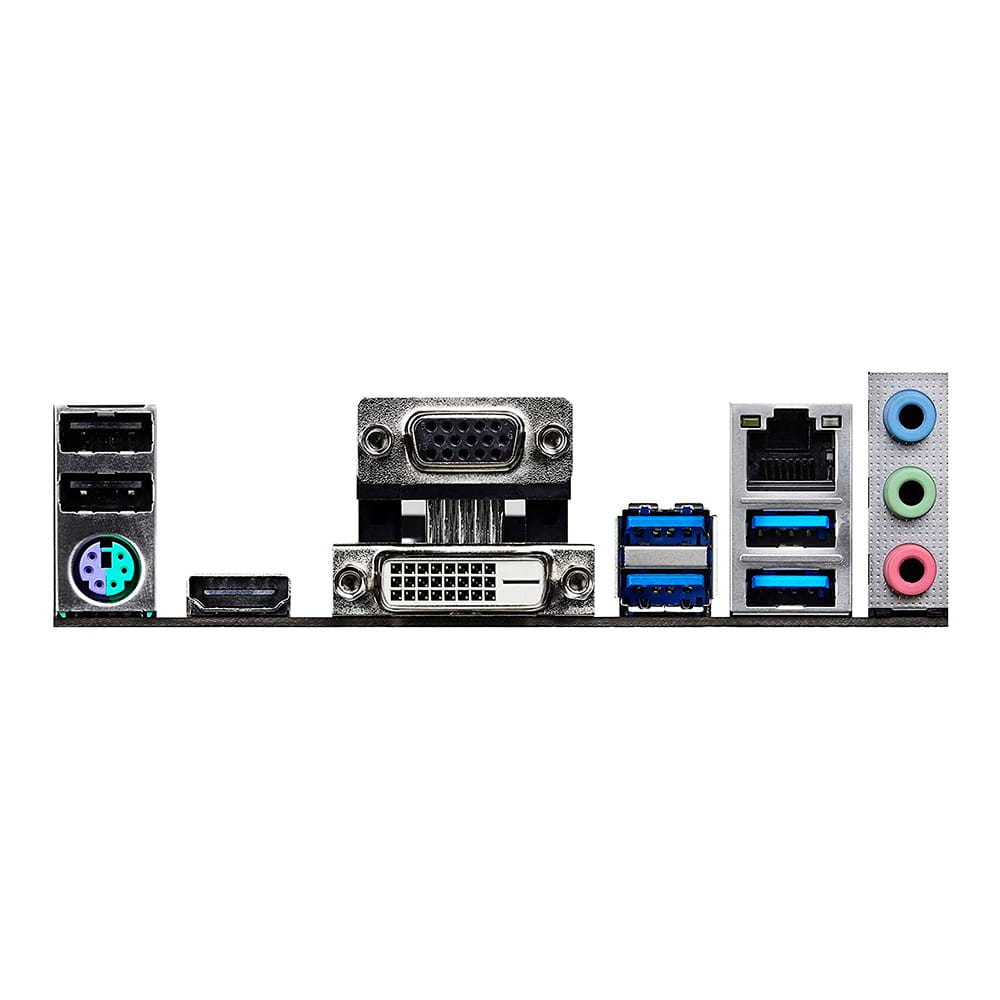

PANEL TRASERO PUERTOS DE I/O (ENTRADA/SALIDA)
Cantidad de puertos USB 2.0 2
Cantidad de puertos tipo A USB 3.2 Gen 1 (3.1 Gen 1) 4
Ethernet LAN (RJ-45) cantidad de puertos 1
Puerto de ratón PS/2 1
Cantidad de puertos VGA (D-Sub) 1
Número de puertos HDMI 1
Cantidad de puertos DVI-D 1
CONEXIÓN
Ethernet Si
Tipo de interfaz ethernet Gigabit Ethernet
Controlador LAN Realtek RTL8111H
Conexión de redes Si
Wifi No
CARACTERÍSTICAS
Componente para PC
Factor de forma Micro ATX
Familia del chipset AMD
Chipset AMD B550
Chip de sonido Realtek ALC887
Canales de salida de audio 7.1 canales
