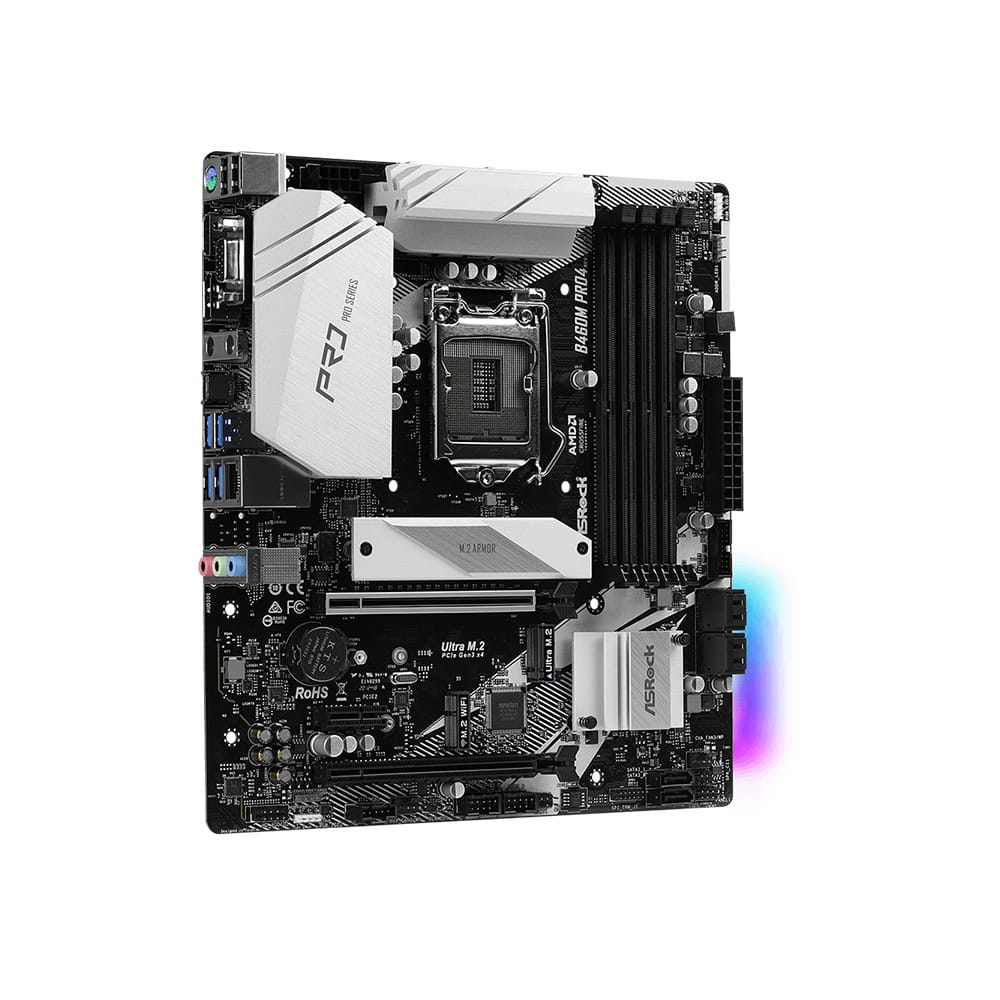

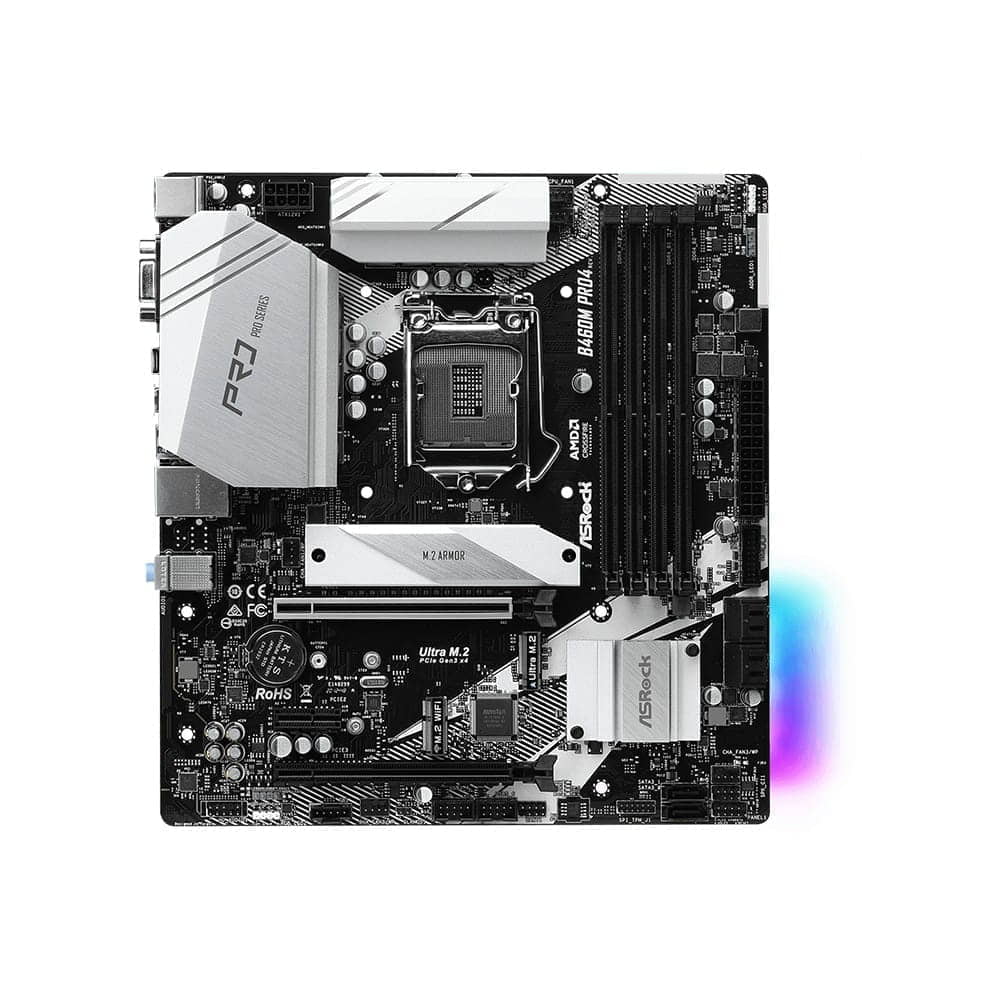

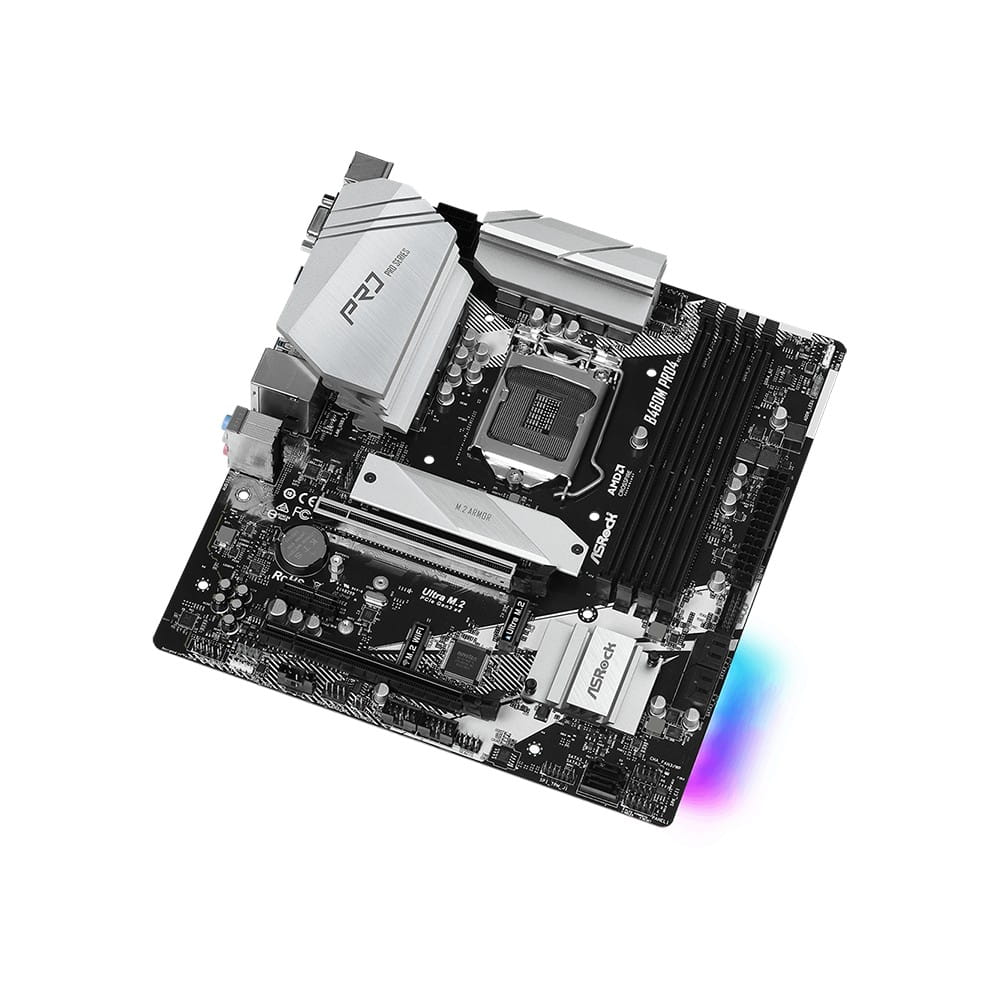

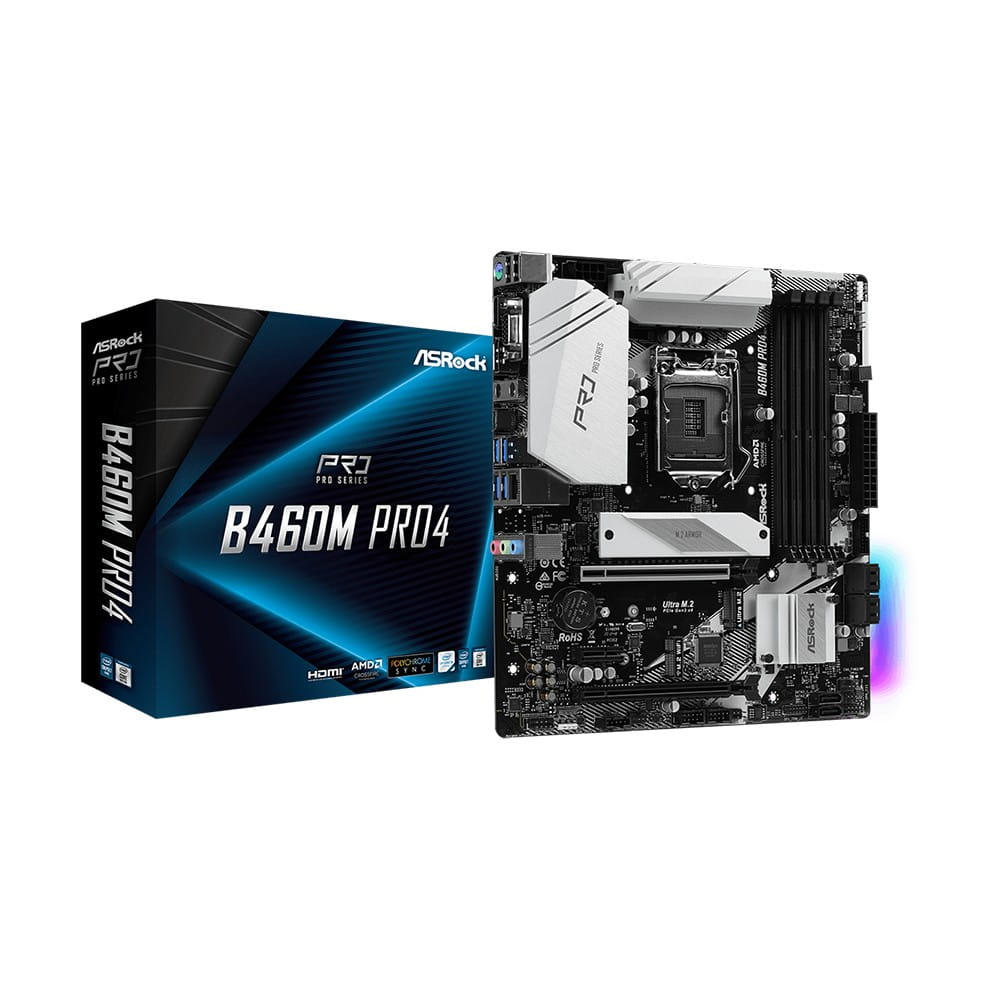

Asrock B460M Pro4. Socket 1200. Micro-ATX.
Asrock B460M Pro4. Socket 1200. Micro-ATX.
- Supports 10th generation Intel Core processors.
- 1200 plug.
- Supports DDR4 2933MHz.
- 2 PCIe 3.0 x16, 1 PCIe 3.0 x1, 1 M.2 (Key E) for WiFi.
- AMD Quad CrossFireX and CrossFireX.
- Graphics output options: HDMI, D-Sub, DisplayPort.
- 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), Audio Nahimic.
- 6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 and SATA3), 1 Ultra M.2 (PCIe Gen3 x4).
- 7 USB 3.2 Gen1 (2 front, 4 rear, 1 rear Type-C).
- Intel Gigabit LAN.
of guarantee
shipping
Secure pay
Who said that only the K-series CPUs and the Z-family platform can be made at full power? Through ASRock BFB (Boost Frequency Boost) technology, users can install their K series CPUs on selected ASRock 400 series motherboards and enjoy base frequency enhancement with the hidden power of processors immediately.
While ASRock BFB brings non-K-series CPUs to life, the boost frequency still depends on the cooling system applied to your computer.
Whether you're using headphones, earphones, external or internal speakers, via USB, Wi-Fi, analog output, or even HDMI, Nahimic Audio gives you the most engaging, vibrant, and detail-rich listening experience.
The sound tracker is a visual indicator that points out the directions from which the predominant sounds come. Each sound is correctly positioned 360 ° on a radar for complete immersion during play.
ASRock motherboards offer amazing performance and superior aesthetics to master your own way of colorful lighting! ASRock offers very complete control to make the built-in RGB LEDs or connected LED strips, CPU fans, coolers, chassis and any RGB devices seamless. Devices can also be paired through Polychrome RGB Sync certified accessories.
Intel® LAN provides the best performance performance, lowest CPU utilization, highest stability, and is capable of offering the best network experience to users.
Good M.2 SSD protection is important for longevity and stability. ASRock provides a complete M.2 armor solution that makes SSDs work at a certain low temperature.
Highlights ...
* Supports 10th generation Intel Core processors.
* Socket 1200.
* Supports DDR4 2933MHz.
* 2 PCIe 3.0 x16, 1 PCIe 3.0 x1, 1 M.2 (Key E) for WiFi.
* AMD Quad CrossFireX and CrossFireX.
* Graphics output options: HDMI, D-Sub, DisplayPort.
* 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), Audio Nahimic.
* 6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 and SATA3), 1 Ultra M.2 (PCIe Gen3 x4).
* 7 USB 3.2 Gen1 (2 front, 4 rear, 1 rear Type-C).
* Intel Gigabit LAN.
CPU | Supports 10th Gen Intel® Core™ Processors (Socket 1200) Digi Power design 9 Power Phase design Supports Intel® Turbo Boost Max 3.0 Technology |
Chipset | Intel B460 |
Memoria | Dual Channel DDR4 Memory Technology 4 x DDR4 DIMM Slots Supports DDR4 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory Supports ECC UDIMM memory modules (operate in non-ECC mode) Max. capacity of system memory: 128GB Supports Intel® Extreme Memory Profile (XMP) 2.0 15μ Gold Contact in DIMM Slots |
Gráfica | Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1** Graphics, Media & Compute: Microsoft® DirectX 12, OpenGL 4.5, Intel® Built In Visuals, Intel® Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1 Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft® PlayReady 3.0, Intel® SGX Content Protection, UHD/HDR Blu-ray Disc Three graphics output options: D-Sub, HDMI and DisplayPort 1.4 Supports Triple Monitor Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required) Supports HDCP 2.3 with HDMI 1.4 and DisplayPort 1.4 Ports Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.4 Ports |
Audio | 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec) Premium Blu-ray Audio support Supports Surge Protection ELNA Audio Caps PCB Isolate Shielding Individual PCB Layers for R/L Audio Channel Nahimic Audio |
LAN | Gigabit LAN 10/100/1000 Mb/s Giga PHY Intel® I219V Supports Wake-On-LAN Supports Lightning/ESD Protection Supports Energy Efficient Ethernet 802.3az Supports PXE |
Slots de expansión | 2x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3)) 1x PCI Express 3.0 x1 Slot Supports AMD Quad CrossFireX™ and CrossFireX™ 1x M.2 Socket (Key E), supports type 2230 WiFi/BT module |
Almacenamiento | 6x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 17), NCQ, AHCI and Hot Plug 1x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s) 1x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) |
Conectores internos | 1x SPI TPM Header 1x Chassis Intrusion and Speaker Header 2x RGB LED Headers 2x Addressable LED Header 1x CPU Fan Connector (4-pin) 1x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) 3x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) 1x 24 pin ATX Power Connector 1x 8 pin 12V Power Connector 1x Front Panel Audio Connector 1x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 3 AIC R2.0 Card only) 2x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) 1x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |

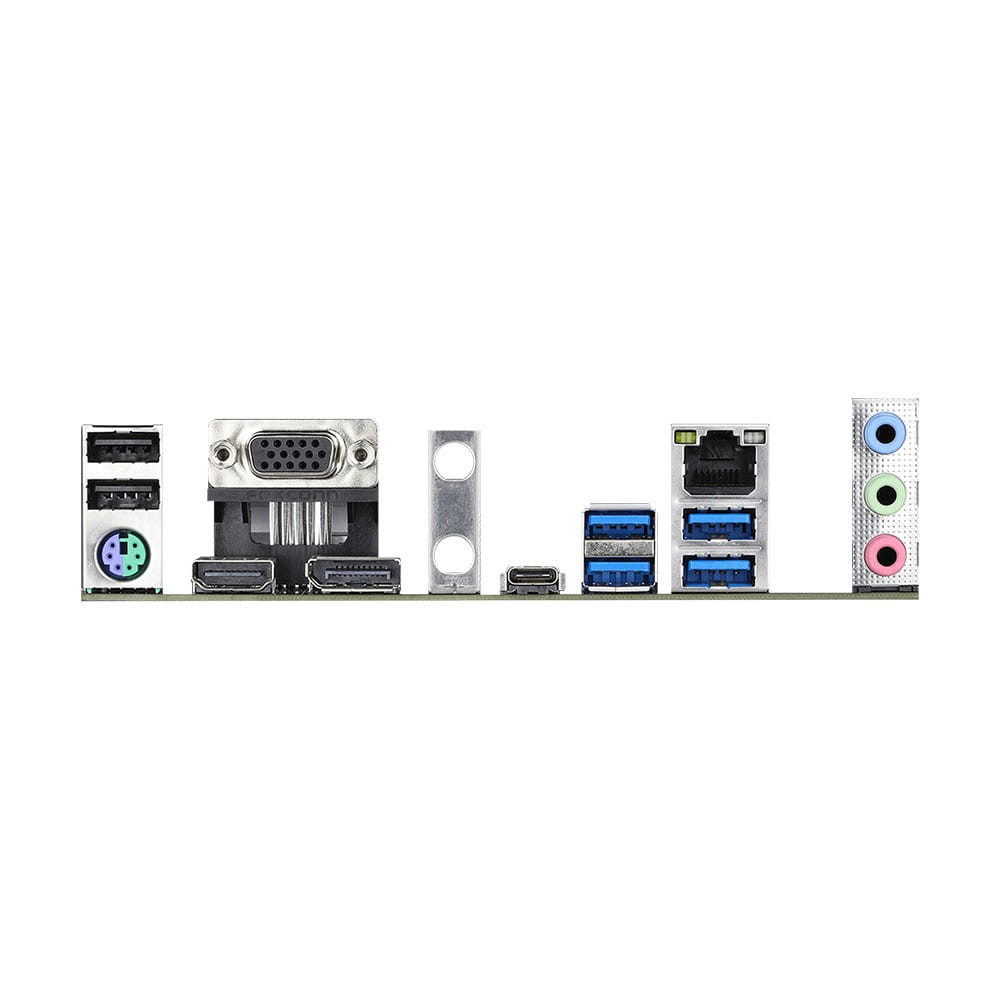

Conectores panel trasero | 1x Antenna Bracket 1x PS/2 Mouse/Keyboard Port 1x D-Sub Port 1x HDMI Port 1x DisplayPort 1.4 4x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection) 1x USB 3.2 Gen1 Type-C Port (Supports ESD Protection) 2x USB 2.0 Ports (Supports ESD Protection) 1x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Line in / Front Speaker / Microphone |
Monitor de hardware | Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans CASE OPEN detection Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, VPPM, PCH, VCCSA, VCCST |
Formato | Micro ATX |
Dimensiones | 24.4 x 22.9 cm |
Certificaciones | FCC, CE ErP/EuP ready (ErP/EuP ready power supply is required) |
