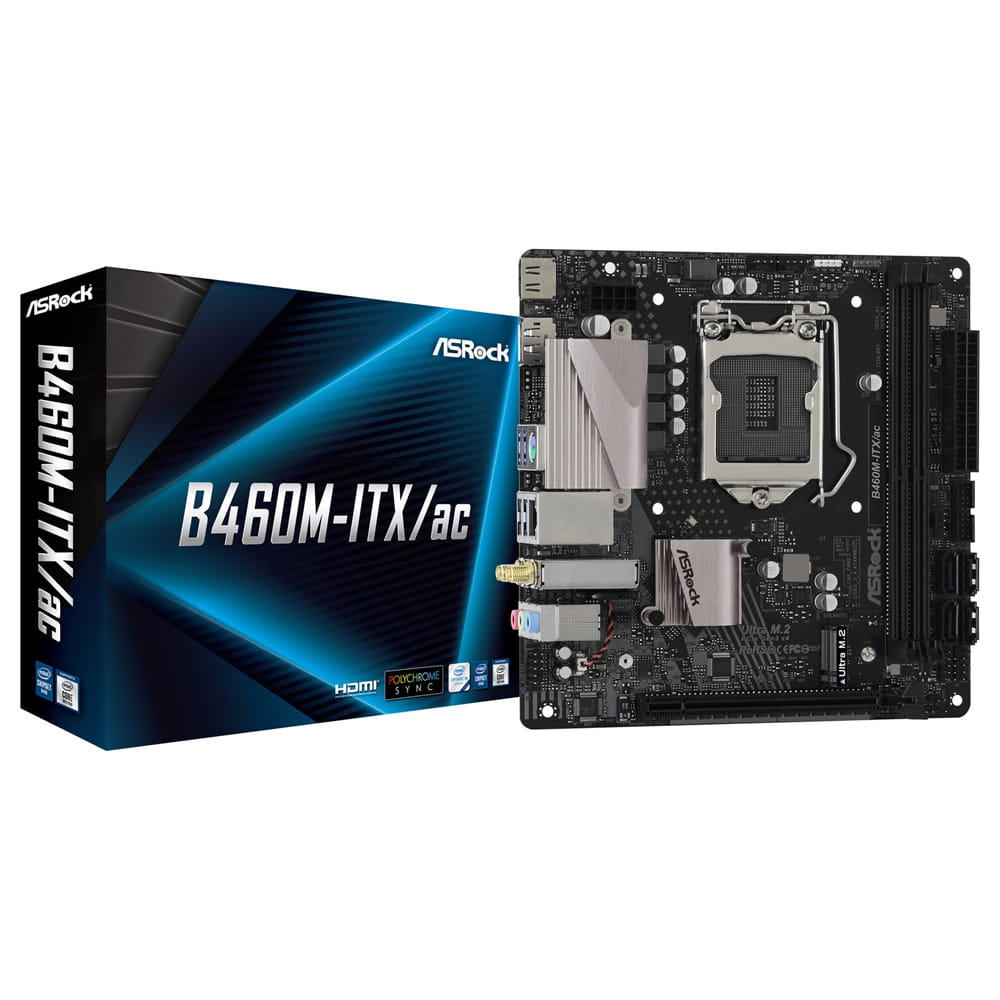

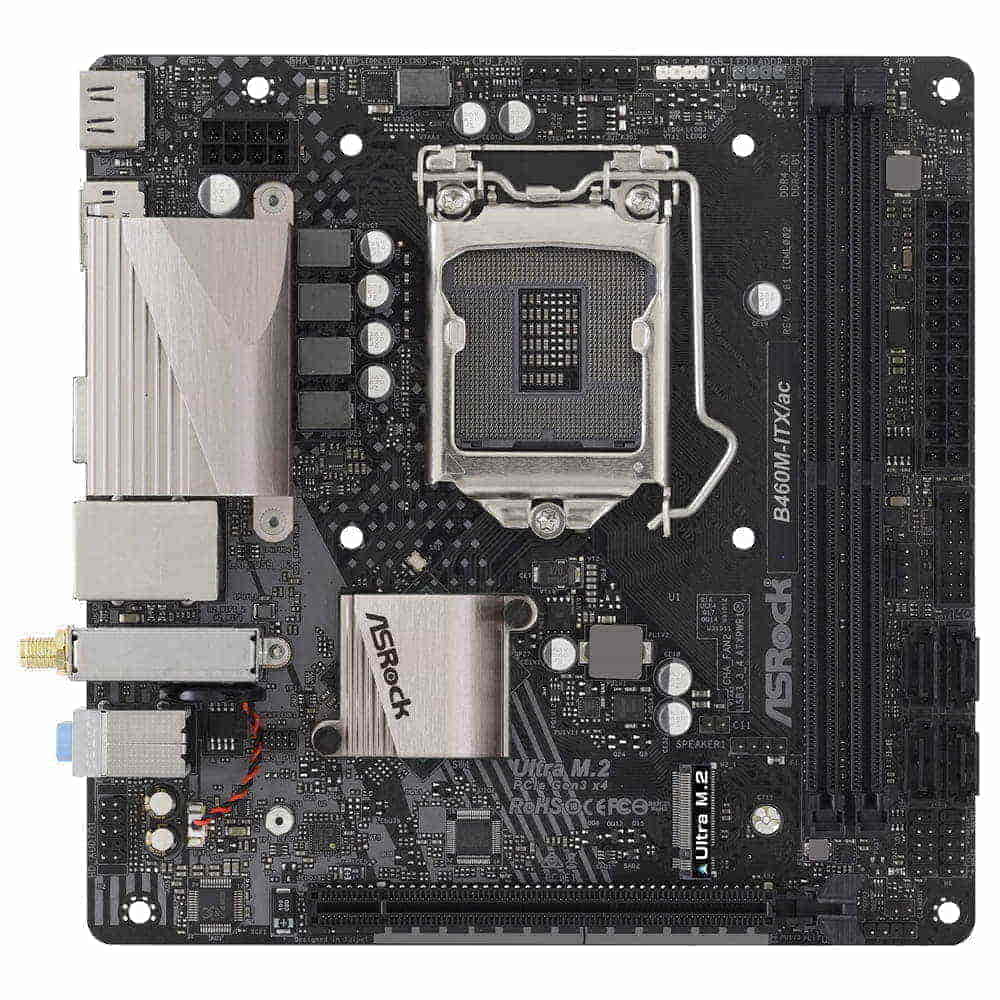

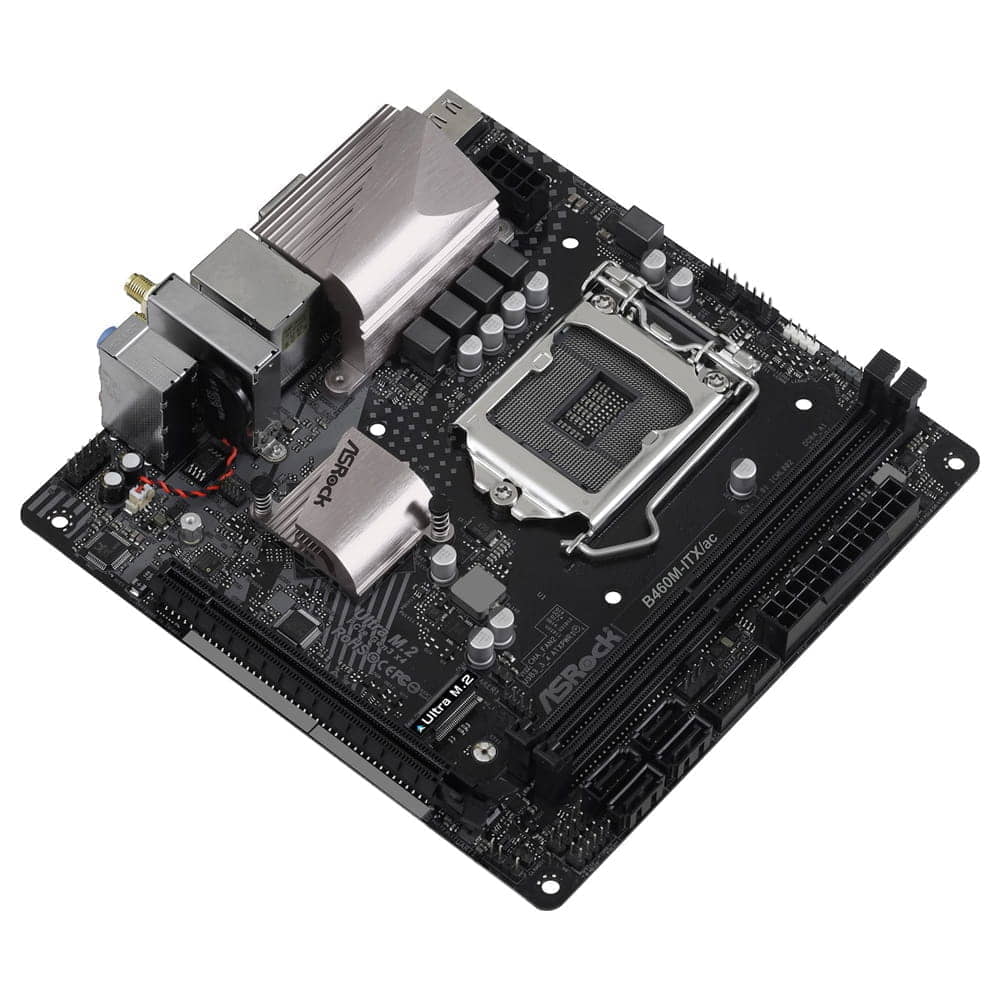

Asrock B460M-ITX/AC. Socket 1200. Mini-ITX.

Asrock B460M-ITX/AC. Socket 1200. Mini-ITX.

Asrock
  • Supports 10th Gen Intel Core Processors (Socket 1200).
  • Supports DDR4 2933 MHz.
  • Graphics Output Options: HDMI, DisplayPort.
  • 7.1 CH HD Audio (Realtek ALC887 Audio Codec).
  • 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3).
  • 6 USB 3.2 Gen1 (2 Front, 4 Rear).
  • Intel Gigabit LAN.
  • Intel 802.11ac WiFi + BT 4.2.

P/N: 90-MXBCS0-A0UAYZ - EAN/UPC: 4710483931321

102,87 € Without VAT
124,47 € With VAT
In stock
Approximate delivery between 27 octubre and 28 octubre
2 years
of guarantee
sending
shipping
100%
Secure pay

Who ever said that only K series CPUs and the Z-family platform are capable of being performed with maximum power. Via ASRock BFB (Boost Frequency Boost) Technology, users may install their non K series CPUs to ASRock’s 400 series motherboards (even non Z models) and enjoy the base frequency boost with the hidden power of processors immediately.

While ASRock BFB breathes life into non K series CPUs and non Z series motherboards, the boost frequency currently still depends on the cooling system applied on your rig.

** BFB frequency performance results may vary between different CPUs and hardware configurations. Frequency shown in this chart is for reference only.

Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

Compared to traditional chokes, ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

ASRock engineers took enormous effort to make the CPU backplate area big enough to accommodate the wide variety of CPU coolers.

No one has time for weak WiFi signals and sluggish internet! That's why this motherboard comes with a 802.11ac WiFi (2.4G / 5G WiFi) module which supports wireless networks and Bluetooth v4.2.

Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!

The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSDs.

Supports Intel® Optane™ memory technology and Intel® Optane™ storage technology that redefines a new standard of high performance and responsiveness.

This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.

Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.

Highlights...

* Supports 10th Gen Intel Core Processors (Socket 1200).
* Supports DDR4 2933 MHz.
* Graphics Output Options: HDMI, DisplayPort.
* 7.1 CH HD Audio (Realtek ALC887 Audio Codec).

Características
CPU Intel® Socket 1200 for 10th Gen Intel® Core, Pentium® Gold and Celeron® Processors *
Supports Intel® 14 nm CPU
Chipset Intel® B460
Memoria - Tecnología de memoria DDR4 de doble canal
- 2 x ranuras DIMM DDR4
- Soporta memoria DDR4 2933/2800/2666 / 2400/2133 no ECC, sin búfer
- Soporta módulos de memoria ECC UDIMM (operan en modo no ECC)
- Máx. capacidad de la memoria del sistema: 64 GB
- Compatible con Intel® Extreme Memory Profile (XMP) 2.0
- 15μ Gold Contact en ranuras DIMM
Gráfica - Códecs acelerados por hardware: AVC / H.264, HEVC / H.265 de 8 bits, HEVC / H.265 de 10 bits, VP8, VP9 de 8 bits, VP9 de 10 bits, MPEG 2, MJPEG, VC-1
- Gráficos, medios y computación: microsoft ® DirectX 12, OpenGL 4.5, Intel ® construido En las representaciones visuales, Intel ® Quick Sync video, híbrido / gráficos intercambiables, OpenCL 2.1
- Pantalla y Seguridad de contenido: Rec. 2020 (Amplia gama de colores), Microsoft ® PlayReady 3.0, Intel ® SGX protección de contenido, UHD / HDR Blu-ray Disc
- Doble salida de gráficos: soporte HDMI y DisplayPort 1.4 puertos de controladores de pantalla independientes
- Soporta HDMI 1.4 con máx. resolución de hasta 4K x 2K (4096x2160) @ 30Hz
- Compatible con DisplayPort 1.4 con máx. resolución de hasta 4K x 2K (4096x2304) @ 60Hz
- Admite sincronización automática de labios, color profundo (12bpc), xvYCC y HBR (audio de alta velocidad de bits) con puerto HDMI 1.4 (se requiere monitor HDMI compatible)
- Admite HDCP 2.3 con HDMI 1.4 y puertos DisplayPort 1.4
: admite reproducción 4K Ultra HD (UHD) con puertos HDMI 1.4 y DisplayPort 1.4
Audio - Audio 7.1 CH HD (Códec de audio Realtek ALC887)
- Admite protección contra sobretensiones
LAN Gigabit LAN 10/100/1000 Mb / s
- Giga PHY Intel ® I219V
- Admite Wake-On-LAN
- Admite protección contra rayos / ESD
- Admite Ethernet 802.3az de bajo consumo de energía
- Admite PXE
LAN inalámbrico - Módulo WiFi Intel® 802.11ac
- Admite IEEE 802.11a / b / g / n / ac
- Admite doble banda (2.4 / 5 GHz)
- Admite conexiones inalámbricas de alta velocidad de hasta 433 Mbps
- Admite Bluetooth 4.2 / 3.0 + Clase de alta velocidad II
Ranuras de expansión  1 x ranura PCI Express 3.0 x16 (PCIE1: modo x16)
- 1 x conector vertical M.2 (clave E) con el módulo WiFi-802.11ac incluido (en la E / S posterior)
Almacenamiento - 4 x conectores SATA3 6.0 Gb / s, compatible con RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 17), NCQ, AHCI y Hot Plug
- 1 x Ultra M.2 Socket (M2_1 ), admite el módulo M Key type 2280 M.2 SATA3 6.0 Gb / s y el módulo M.2 PCI Express hasta Gen3 x4 (32 Gb / s)
Conectores - 1 x Encabezado de intrusión en el chasis
- 1 x Encabezado de LED RGB
- 1 x Encabezado de LED direccionable
- 1 x Conector del ventilador de la CPU (4 pines)
- 1 x Conector del ventilador del chasis (4 pines)
- 1 x Conector del ventilador del chasis / bomba de agua (4 pines) (Control inteligente de velocidad del ventilador)
- 1 x conector de alimentación ATX de 24 pines
- 1 x conector de alimentación de 12V de 8 pines
- 1 x conector de audio del panel frontal
- 1 x Encabezado USB 2.0 (admite 2 puertos USB 2.0) (admite protección ESD)
- 1 x encabezado USB 3.2 Gen1 (admite 2 puertos USB 3.2 Gen1) (admite protección ESD)

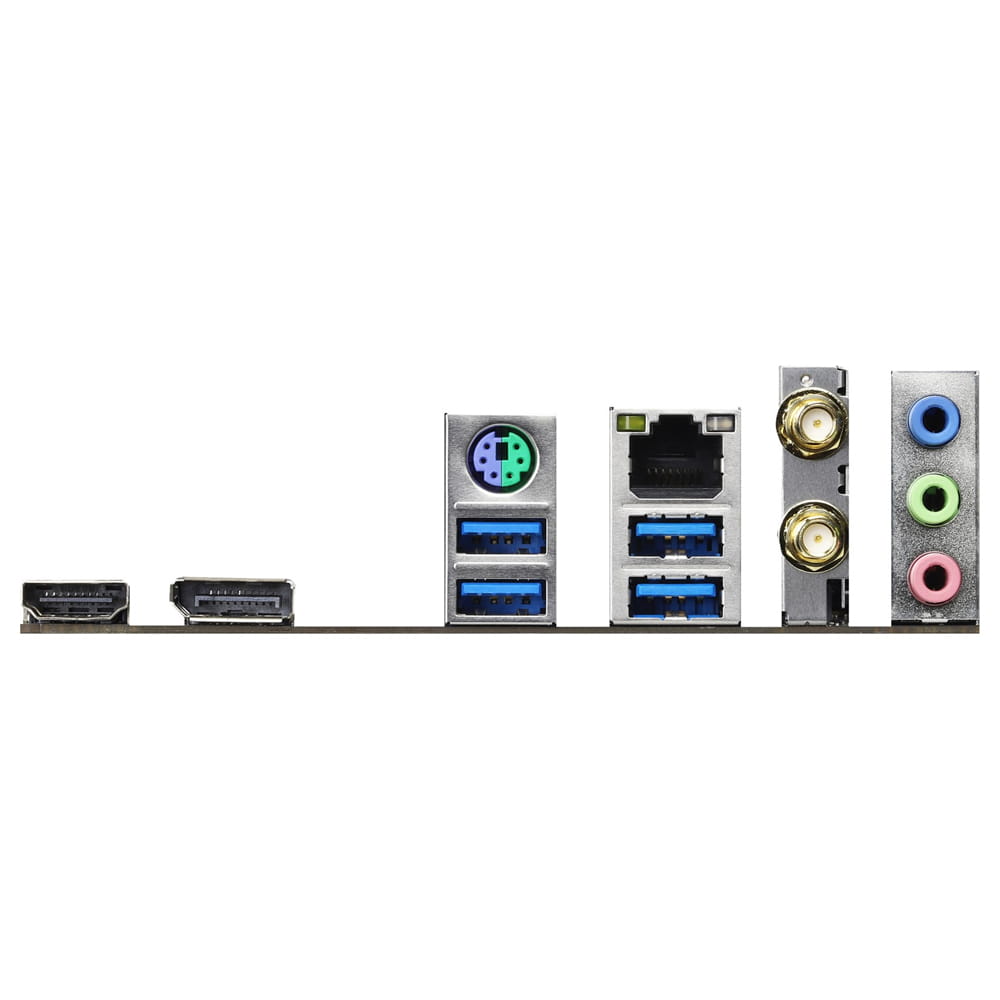

Panel posterior de E / S - 2 x puertos de antena
- 1 x puerto de mouse / teclado PS / 2
- 1 x puerto HDMI
- 1 x DisplayPort 1.4
- 4 x puertos USB 3.2 Gen1 (admite protección ESD)
- 1 x puerto LAN RJ-45 con LED (ACT / LINK LED y SPEED LED)
- Conectores de audio HD: Entrada de línea / Altavoz frontal / Micrófono
Accesorios - Guía de instalación rápida, CD de soporte, protección de E / S
- 2 x cables de datos SATA
- 2 x antenas ASRock WiFi 2.4 / 5 GHz
- 1 x tornillo para conector M.2
Capacidad de gestión WOL by PME, PXE
Sistema operativo Windows® 10 64-bit
Formato de fábrica - Factor de forma Mini-ITX: 6.7 pulgadas x 6.7 pulgadas, 17.0 cm x 17.0 cm
- Diseño de condensador sólido
