Asrock B460 Steel Legend. Socket 1200.

Asrock B460 Steel Legend. Socket 1200.

Asrock
  • Supports 10th generation Intel Core processors (Socket 1200).
  • 9-phase Dr.MOS power design.
  • Supports DDR4 2933MHz.
  • 2 PCIe 3.0 x16, 2 PCIe 3.0 x1, 1 M.2 (key E) for WiFi.
  • AMD CrossFireX.
  • Graphics output options: HDMI, DisplayPort.
  • 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), Nahimic Audio.
  • 6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 and SATA3), 1 Ultra M.2 (PCIe Gen3 x4).
  • 7 x USB 3.2 Gen1 (1 x rear Type-C, 3 x rear Type-A, 2 x front, 1 x front Type-C).
  • Dragon 2.5 Gigabit LAN.
  • ASRock Polychrome SYNC.

P/N: 90-MXBCQ0-A0UAYZ - EAN/UPC: 4710483931284

131,18 € Without VAT
158,73 € With VAT
In stock
Approximate delivery between 07 octubre and 08 octubre
2 years
of guarantee
sending
shipping
100%
Secure pay

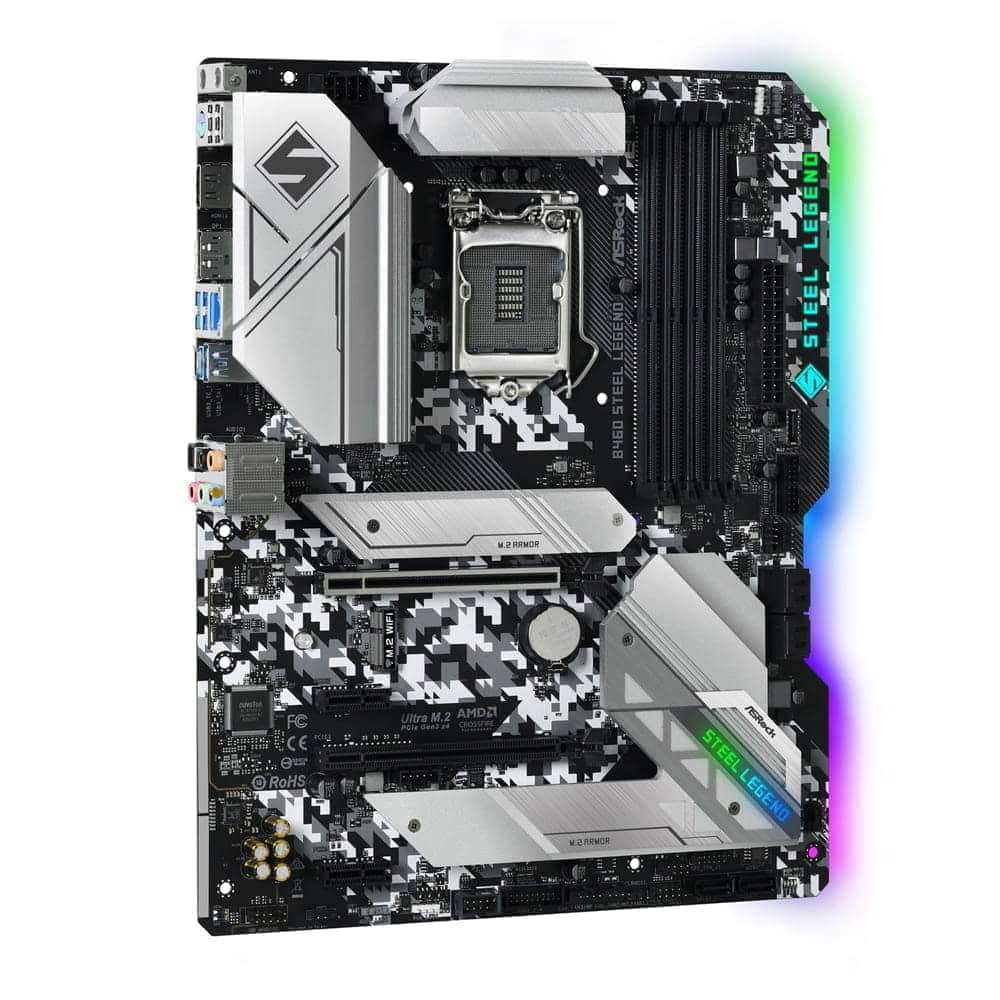

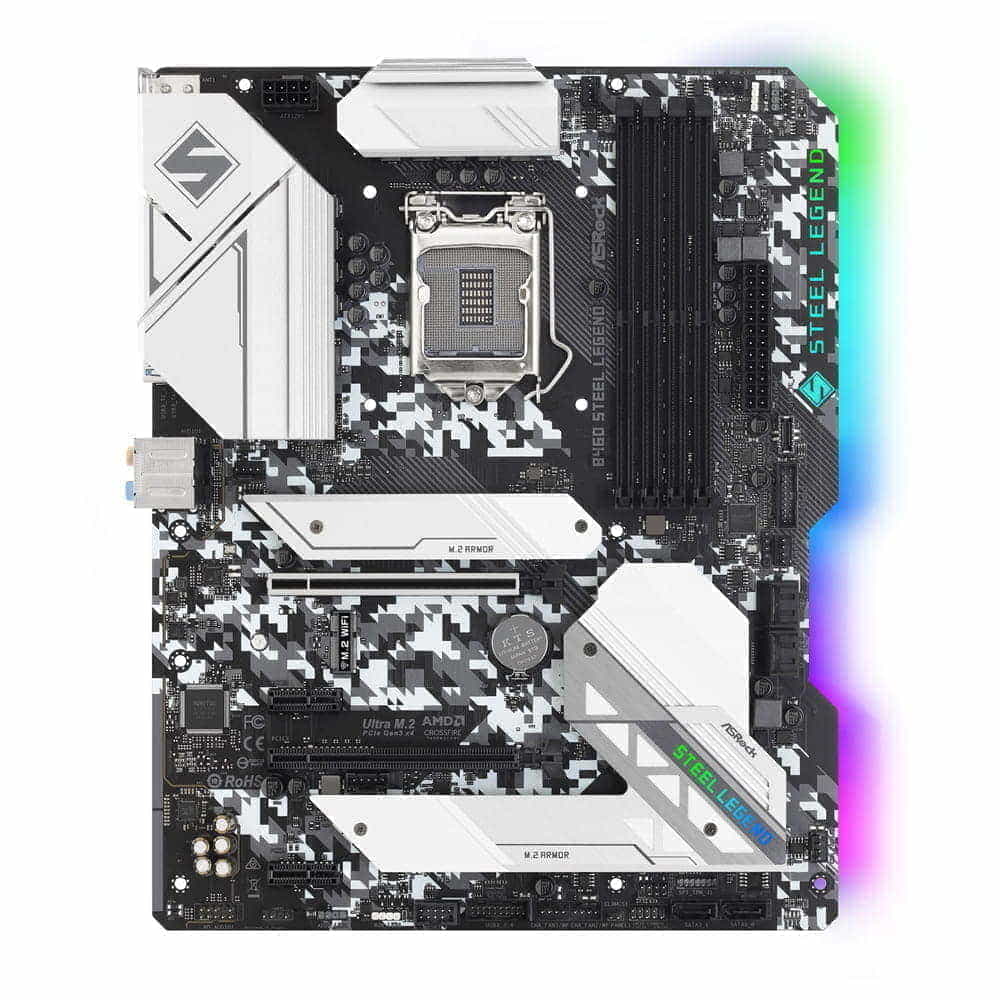

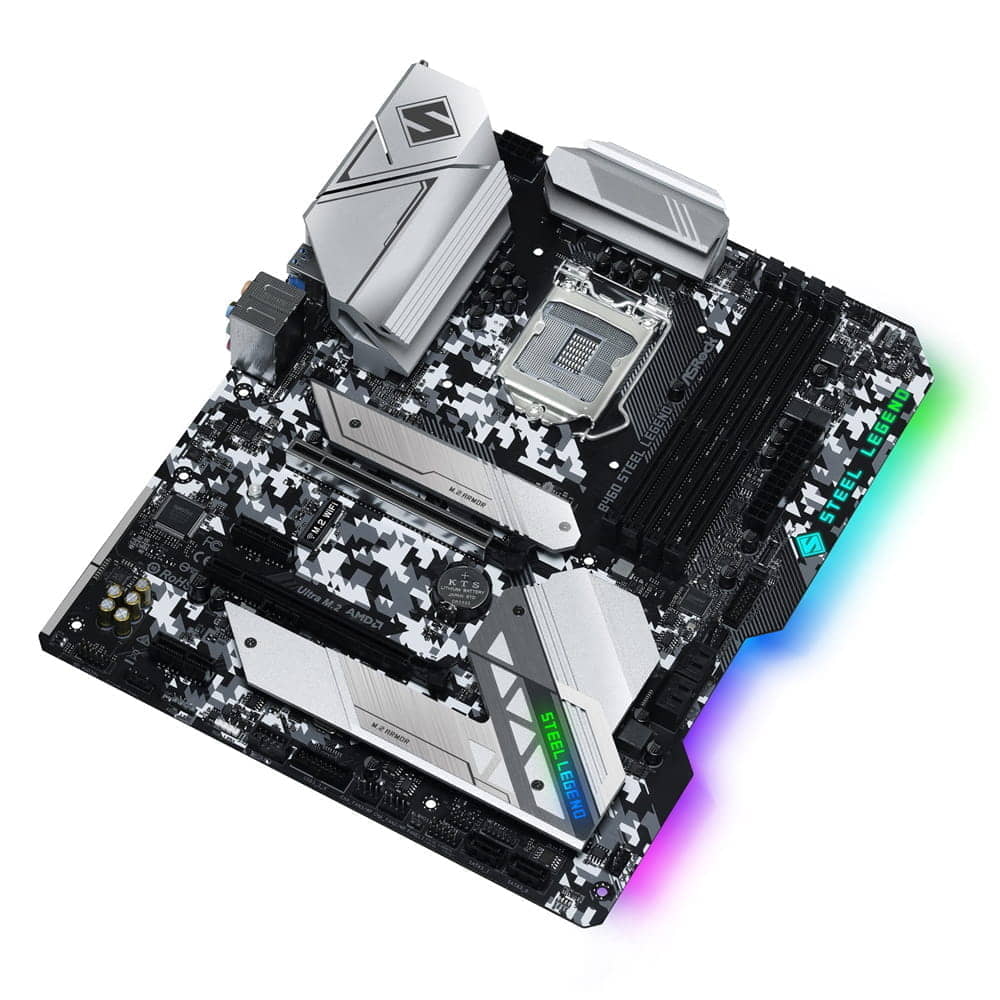

The ASRock B460 STEEL LEGEND motherboard is based on the Intel® B460 chipset and supports Intel® processors for the tenth generation 1200 socket. It has four DDR4 DIMM slots in dual channel operation for up to 128GB of RAM. Additional ASRock B460 STEEL LEGEND features include two PCIe 3.0 x16 slots and two PCIe 3.0 x1 slots. The motherboard also supports Intel® Optane ™ memory technology and has 8-channel sound, a 2.5 gigabit LAN interface, six SATA3 connectors, two M.2 connectors, and a host of USB interfaces.

Steel Legend represents the philosophical state of rock solid durability and irresistible aesthetics. Built around the most demanding specifications and features, the Steel Legend series is aimed at everyday users and mainstream enthusiasts! Provides a wide variety of materials / components to ensure stable and reliable performance.

Whether you're using headphones, earphones, internal or external speakers, via USB, Wi-Fi, analog output, or even HDMI, Nahimic Audio gives you the most engaging, vibrant, and detail-rich listening experience.

The sound tracker is a visual indicator that points out the directions from which the predominant sounds come. Each sound is properly positioned 360 ° on a radar for complete immersion during play.

Who said that only the K-series CPUs and the Z-family platform can be made at full power? Through ASRock BFB (Boost Frequency Boost) technology, users can install their K series CPUs on select ASRock 400 series motherboards and enjoy base frequency enhancement with the hidden power of righ now.

Dr.MOS is the integrated power amp solution that is optimized for synchronous inversion reduction voltage applications! Compared to traditional discrete MOSFETs, it intelligently provides a higher current for each phase, thereby providing improved thermal output and superior performance.

Compared to traditional shocks, ASRock's premium 60A power shocks make saturation current up to three times better, thereby providing improved and enhanced Vcore voltage to the motherboard.

ASRock motherboards offer amazing performance and superior aesthetics to master your own way of colorful lighting! ASRock offers very complete control to make the built-in RGB LEDs or connected LED strips, CPU fans, coolers, chassis and any RGB devices seamless. Devices can also be paired through Polychrome RGB Sync certified accessories.

The 2.5Gb / s smart LAN platform is built for maximum network performance for the demanding requirements of high-quality home networks, content creators, online gamers, and streaming media. Increase network performance up to 2.5 times bandwidth compared to standard gigabit Ethernet, you'll enjoy a faster and uncompromising connectivity experience for gaming, file transfers, and backups.

Good M.2 SSD protection is important for longevity and stability. ASRock provides a complete M.2 armor solution that makes SSDs work at a certain low temperature.

Two Ultra M.2 sockets supporting SATA3 6Gb / s and PCIe Gen3 x4 modes, with data transfer rates up to 32Gb / s, and compatible with ASRock U.2 Kit to install some of the PCIe Gen3 U. 2 fastest in the world x4 SSD.

The advanced PCI-E steel slot includes a solid cover that prevents any signal interference with graphics cards. It also ensures that the heavy graphics cards are securely installed in the PCI-E slot securely.

The USB 3.2 Gen1 Type-C front header offers a data transfer rate of up to 5 Gbps and a next-generation reversible USB design on the front panel of the computer case.

In addition to the integrated LAN port, users can also choose 802.11ac wireless connections through the M.2 slot (Key E).

An easy troubleshooting tool that shows the CPU / DRAM / VGA / BOOT working every time you start the system. Post Status Checker is a quick and easy way to identify the source of the problem.

Highlights...

* Supports 10th generation Intel Core processors (Socket 1200).
* 9-phase Dr.MOS power design.
* Supports DDR4 2933MHz.
* 2 PCIe 3.0 x16, 2 PCIe 3.0 x1, 1 M.2 (key E) for WiFi.
* AMD CrossFireX.
* Graphics output options: HDMI, DisplayPort.

Procesador
Zócalo de la CPU Socket 1200
Marca de CPU Intel
Procesadores instalados (máx.) 0 (1)
Fabricante de procesador compatible Intel
Procesadores Soportados Procesadores Intel Core de décima generación
Soporte de 64 bits si
Enchufe LGA1200
Procesador compatible Celeron, Core i3, Core i5, Core i7, Pentium
Socket de procesador 1151

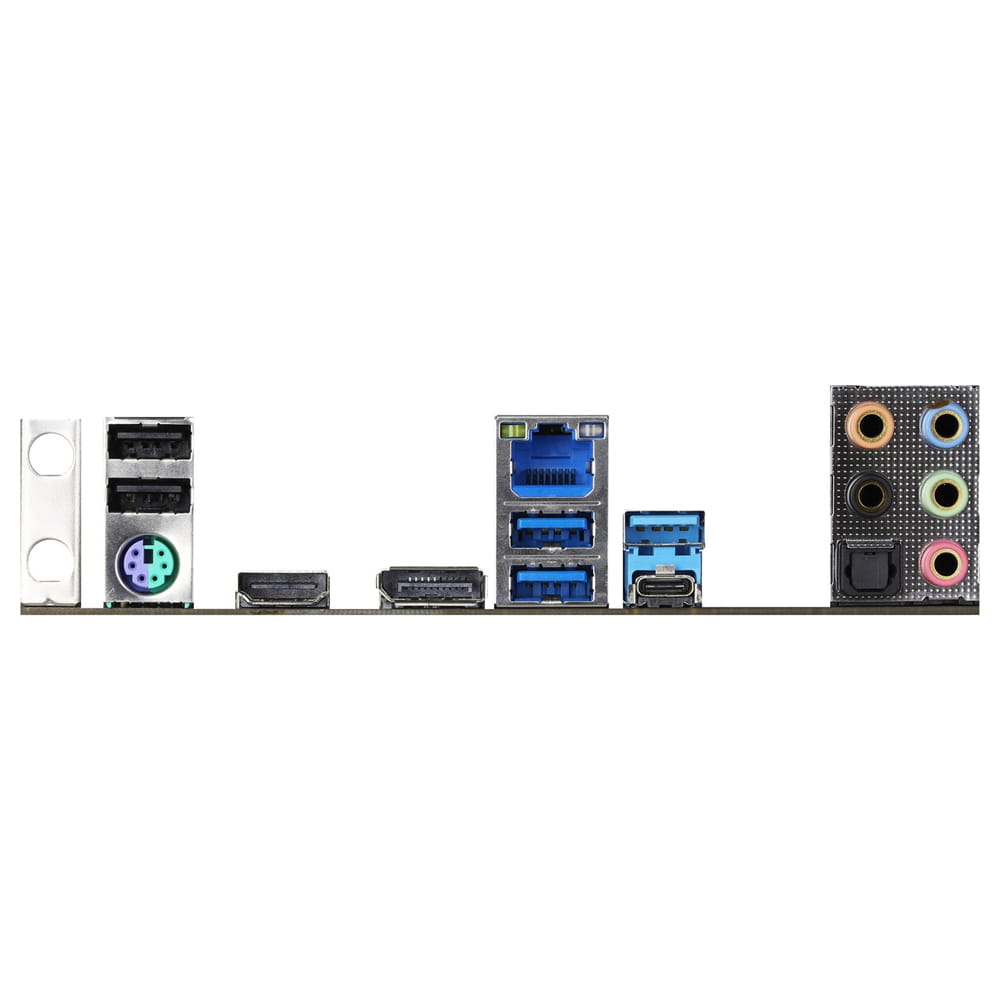

Puertos USB 1 x USB 3.0 Tipo-C
3 x USB 3.0 Tipo-A
2 x USB 2.0
DisplayPorts 1 x DisplayPort
Puerto HDMI 1 x HDMI
Puerto combinado de teclado / mouse 1 x PS / 2
Puertos RJ-45 1 x RJ-45
Puertos de entrada de línea de audio 1 x Jack de 3,5 mm
Puertos de salida de línea de audio 3 x conectores de 3,5 mm
Puerto de entrada de micrófono 1 x Jack de 3,5 mm
Puerto S / PDIF 1 x salida óptica S / PDI
Conectores SATA 6 x SATA III
Conectores USB 1 x conector USB 3.1 tipo C
2 x encabezados USB 3.0 (admite 4 puertos)
2 x encabezados USB 2.0 (admite 3 puertos)
Altavoz 1 x encabezado de altavoz
Conectores de panel frontal 1 x panel frontal
1 x audio frontal
Soporte de ventilador de enfriamiento 1 x cabezal del ventilador de la CPU 1 x cabezal del ventilador
de la CPU / bomba de agua
5 x encabezados del ventilador del chasis / bomba de agua
Puerto (s) Thunderbolt 1 x encabezado Thunderbolt AiC
Conector de intrusión en el chasis 1 x encabezado de intrusión en el chasis
Encabezado TPM 1 x encabezado SPI TPM
Puerto del conector de alimentación 1 x 20 + 4 pines ATX
1 x 4 + 4 pines EPS
Otros conectores 1 x M.2, zócalo 3, tecla M (tipo 2242/2260/2280/22110)
1 x M.2, zócalo 3, tecla M (tipo 2242/2260/2280)
1 x M.2, zócalo 1, E Llave (Tipo 2230) para módulo Wi-Fi
2 x encabezados LED direccionables
2 x encabezados LED RGB
Velocidad del bus de memoria 2933/2800/2666/2400/2133 MHz
Tipo de memoria DDR4
RAM máxima 128 GB
Ranura de memoria 4 x DIMM
Número de ranuras PCI Express 2 x PCI Express 3.0 x16 (@ x16, x4)
2 x pci express 3.0 x1
Memoria interna máxima 64 GB
Sonido integrado Realtek LC1200
Factor de forma ATX
