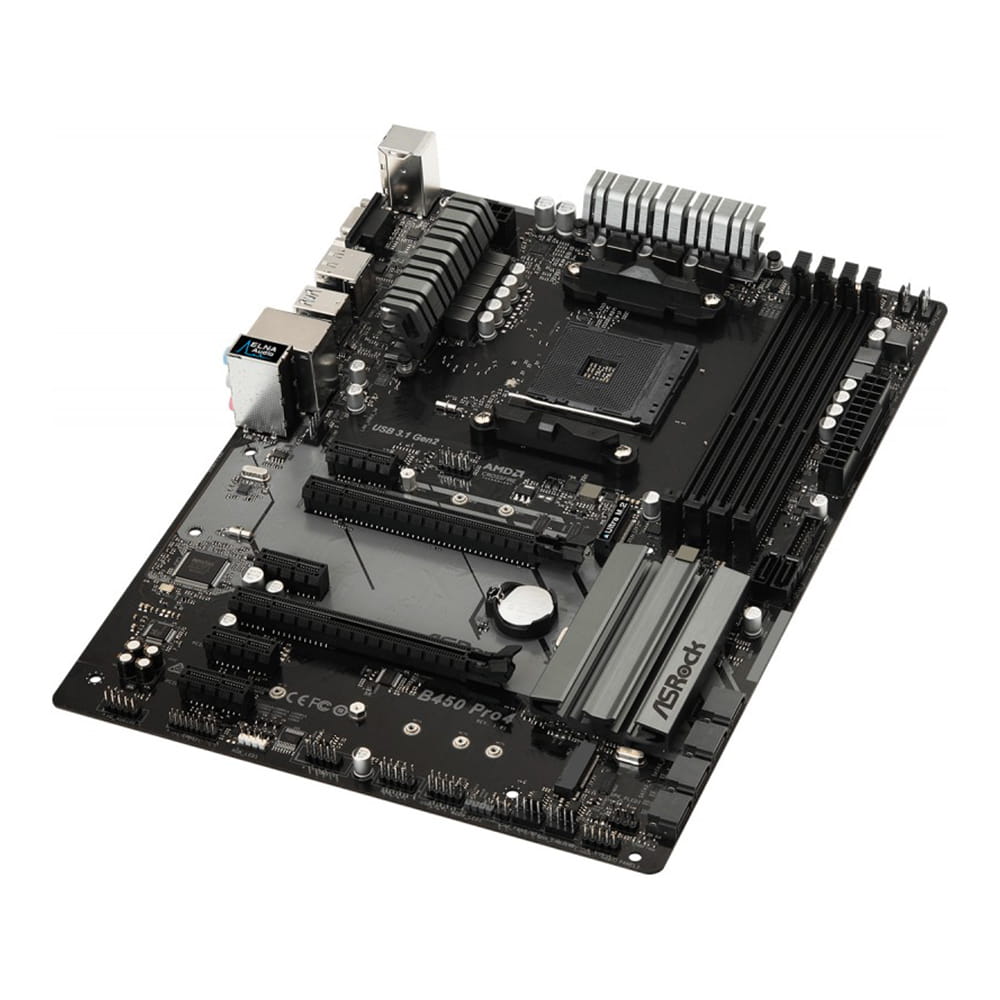

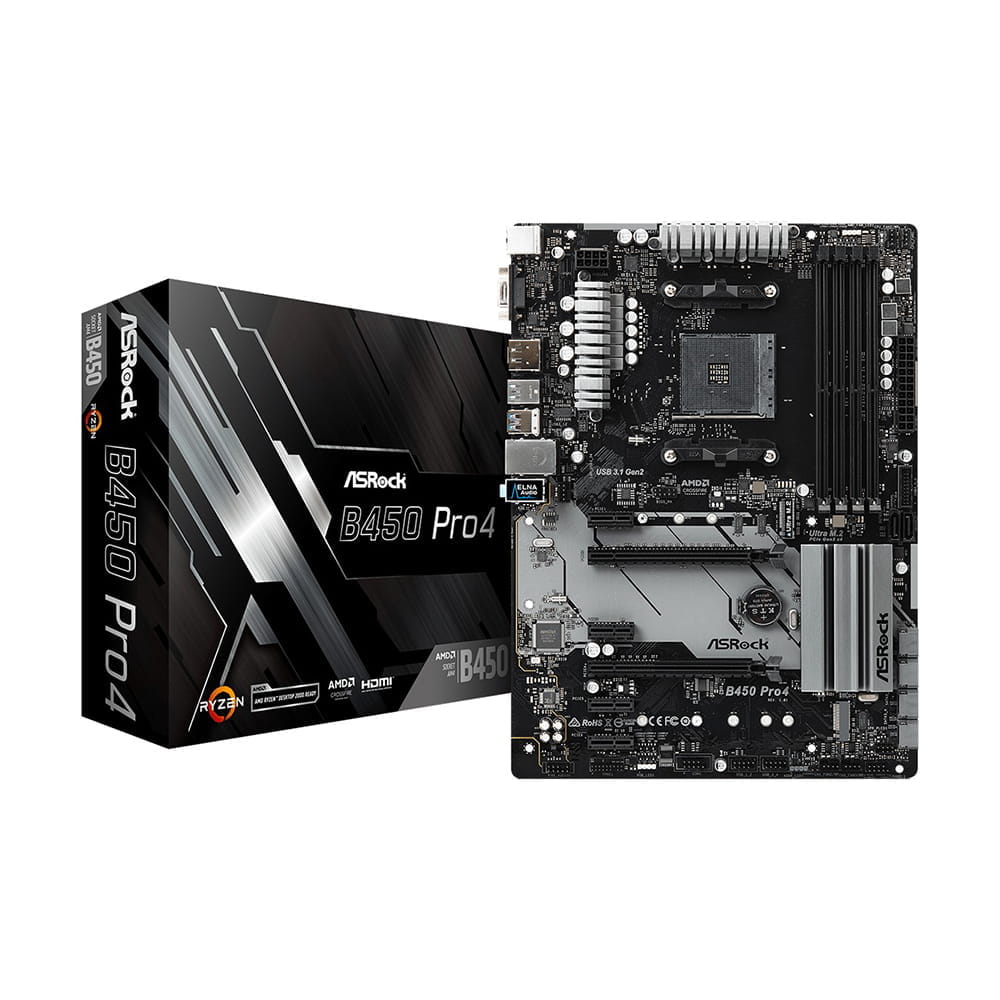

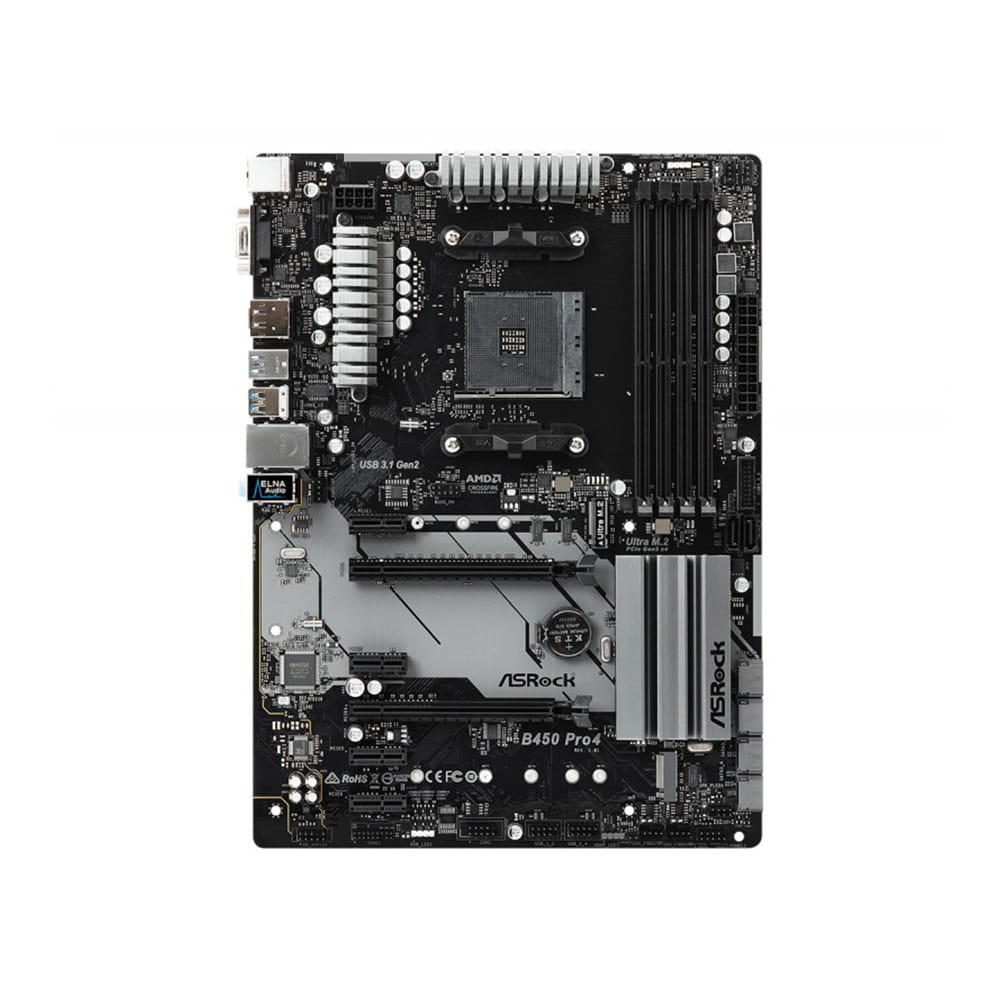

Asrock B450 Pro4. Socket AM4.

Asrock B450 Pro4. Socket AM4.

Asrock
  • AMD AM4 socket.
  • Supports DDR4 3200+ (OC) memory.
  • 2 PCIe 3.0 x16, 4 PCIe 2.0 x1.
  • AMD Quad CrossFireX ™.
  • Graphics output options: HDMI, Display Port, D-Sub.
  • 7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Capacitors.
  • 6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4), 1 M.2 (PCIe Gen3 x2 & SATA3).
  • 2 USB 3.1 Gen2 (Rear Type A + C).
  • 6 USB 3.1 (2 Front, 4 Rear).
  • Realtek Gigabit LAN.

P/N: 90-MXB8B0-A0UAYZ - EAN/UPC: 4717677336252

72,10 € Without VAT
87,24 € With VAT
In stock in secondary storage
Approximate delivery between 30 noviembre and 01 diciembre
2 years
of guarantee
sending
shipping
100%
Secure pay

Equipped with M.2 slot that supports both SATA3 6Gb / s and PCIe Gen3 x4 Ultra M.2 interface that achieves data transfer speeds of up to 32Gb / s, and is compatible with ASRock U.2 Kit to install some of The world's fastest U.2 PCIe Gen3 x4 SSDs.

This motherboard has a pair of USB 3.1 Gen2 Type A and Type C ports on the back to support next generation USB 3.1 devices and to deliver data transfer speeds of up to 10 Gbps.

It comes with 2-ounce copper inner layers, using only carefully selected copper materials for the PCB layers, providing a lower temperature and higher energy efficiency for overclocking.

Complete with all three types of most connectors used! Equipped with a D-Sub + DisplayPort + HDMI combo. Also, the HDMI port with support for 4K playback.

Graphics, charts and even more graphics! You have demanded more image, so this motherboard supports triple monitor. You can choose a maximum of three display interfaces to connect monitors and use them simultaneously without installing another graphics card.

ASRock applies solid capacitors on this motherboard. With these solid capacitors, this motherboard can work more stable and ensure a longer lifespan.

Who says high-quality audio is only available on high-end motherboards? ASRock applies ELNA audio capacitors on entry-level and conventional motherboards! Compared to traditional solid capacitors, ELNA audio capacitors is simply 3uA. This is the key to significantly reducing the noise level and satisfying the pickiest music lover.

Unlike traditional motherboards that use analog power, this motherboard uses next-generation digital PWM (Pulse Width Modulation) design that provides more efficient and trouble-free CPU Vcore voltage, so the stability and life of the motherboard is much larger.

The ASRock A-Tuning tuning program is a software utility with a new interface, plus new features and utilities.

Some sensitive digital components on the motherboard are vulnerable to power surges, excessive current can cause the system to malfunction immediately. ASRock Full Spike Protection includes several technologies to prevent your motherboard components from being damaged by these unexpected power surges.

ASRock APP Shop is designed for your comfort. We offer users various applications and support software to download. You can easily optimize your system and keep your motherboard up to date with ASRock APP Shop.

Highlights..

* AMD AM4 socket.
* Supports DDR4 3200+ (OC) memory.
* 2 PCIe 3.0 x16, 4 PCIe 2.0 x1.
* Graphics output options: HDMI, Display Port, D-Sub.
* 7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Capacitors.

CPU - Socket AMD AM4
- Diseño Digi Power
- Diseño de fase de alimentación 9
Chipset AMD Promontory B450
Memoria - Tecnología de memoria Dual Channel DDR4
- 4 x ranuras DDR4 DIMM
- Las CPUs de la serie AMD Ryzen (Matisse) admiten DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered*
- Las CPUs de la serie AMD Ryzen (Pinnacle Ridge) admiten DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered*
- Las CPUs de la serie AMD Ryzen (Picasso) admiten DDR4 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered*
- Las CPUs de la serie AMD Ryzen (Summit Ridge) admiten DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered*
- Las CPUs de la serie AMD Ryzen (Raven Ridge) admiten DDR4 3200+(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered*
- Máxima capacidad de memoria del sistema: 64GB**
- Admite módulos de memoria Extreme Memory Profile (XMP)
- Ranuras DIMM con contactos 15μ Oro
BIOS - 128Mb AMI UEFI Legal BIOS con soporte GUI Multilingüe
- Soporta "Plug y Play"
- Activación compatible con ACPI 5.1
- Soporta jumperfree
- Soporta SMBIOS 2.3
- DRAM multi-ajuste de voltaje

Gráficos

- Gráficos AMD Radeon™ Vega Series integrados en APU de la serie Ryzen*
- DirectX 12, Pixel Shader 5.0
- Memoria compartida por defecto 2GB. La memoria compartida máxima soporta hasta 16 GB.**
- Múltiples opciones de salida gráficos: D-Sub, HDMI y DisplayPort 1.2
- Soporta Triple Monitor
- Soporta HDMI con maxima resolución hasta 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz
- Soporta DisplayPort 1.2 con maxima resolución hasta 4K x 2K (4096x2160) @ 60Hz
- Soporta D-Sub con maxima resolución hasta 1920x1200 @ 60Hz
- Soporta Auto Lip Sync, Deep Color (12bpc), xvYCC y HBR (High Bit Rate Audio) con HDMI (Se necesita compatibilidad con monitor HDMI)
- Soporta HDCP 1.4 con puertos HDMI y DisplayPort
- Soporta 4K Ultra HD (UHD) con puertos HDMI y DisplayPort 1.2
Audio - Audio 7.1 CH HD con protección de contenido (Códec de audio Realtek ALC892)
- Soporta audio Premium Blu-ray
- Soporta protección contra sobretensiones
- Capacitadores de audio ELNA
LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111H
- Soporta Wake-On-LAN
- Suporta Protección Lightning/ESD
- Soporta Ethernet 802.3az eficiente energéticamente
- Soporta PXE

Ranuras de expansión

CPUs AMD series Ryzen (Matisse, Summit Ridge y Pinnacle Ridge)
- 2 x ranuras PCI Express 3.0 x16 (PCIE2: modo x16; PCIE4: modo x4)*
CPUs AMD series Ryzen (Picasso, Raven Ridge)
- 2 x ranuras PCI Express 3.0 x16 (PCIE2: modo x8; PCIE4: modo x4)*
CPUs AMD series Athlon
- 2 x ranuras PCI Express 3.0 x16 (PCIE2: modo x4; PCIE4: modo x2)*

- 4 x ranuras PCI Express 2.0 x1
- Compatible con AMD Quad CrossFireX™ y CrossFireX™**

Almacenaje

- 4 x conectores SATA3 de 6.0 Gb/s, Soporta RAID (RAID 0, RAID 1 y RAID 10), NCQ, AHCI y Hot Plug*
- 2 x conectores SATA3 6.0 Gb/s de ASMedia ASM1061, soporta funciones NCQ, AHCI y "Hot Plug"
- 1 x Socket Ultra M.2 (M2_1), soporta módulo M.2 PCIe M Key type 2242/2260/2280 hasta Gen3 x4 (32 Gb/s) (con Matisse, Picasso, Summit Ridge, Raven Ridge y Pinnacle Ridge) o Gen3 x2 (16 Gb/s) (con APU Athlon series)**
- 1 x Socket M.2 (M2_2), soporta modulo tipo M Key 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s y módulo M.2 PCIe hasta Gen3 x2 (16 Gb/s
Conectores - 1 x cabezal de puertos COM
- 1 x cabecera TPM
- 1 x LED de alimentación y header de altavóz
- 1 x Encabezado RGB LED*
- 1 x Encabezado LED direccionable**
- 1 x Cabecera Ventilador LED AMD***
- 1 x conector ventilador Procesador (4-pin)****
- 1 x conector del ventilador CPU / Bomba de agua (4-pin) (Control de velocidad ventilador Smart Fan)*****
- 3 x conectores ventilador bomba de agua Chasis (4-pin) (Control de velocidad ventilador Smart Fan)******
- 1 x conector alimentación 24 pin ATX
- 1 x conector alimentación 8 pin 12V
- 1 x Conector panel frontal audio
- 2 x cabezales USB 2.0 (soporta 4 puertos USB 2.0) (Soporta Protección ESD)
- 1 x cabezal USB 3.1 Gen1 (soporta 2 puertos USB 3.1 Gen1) (Soporta Protección ESD)

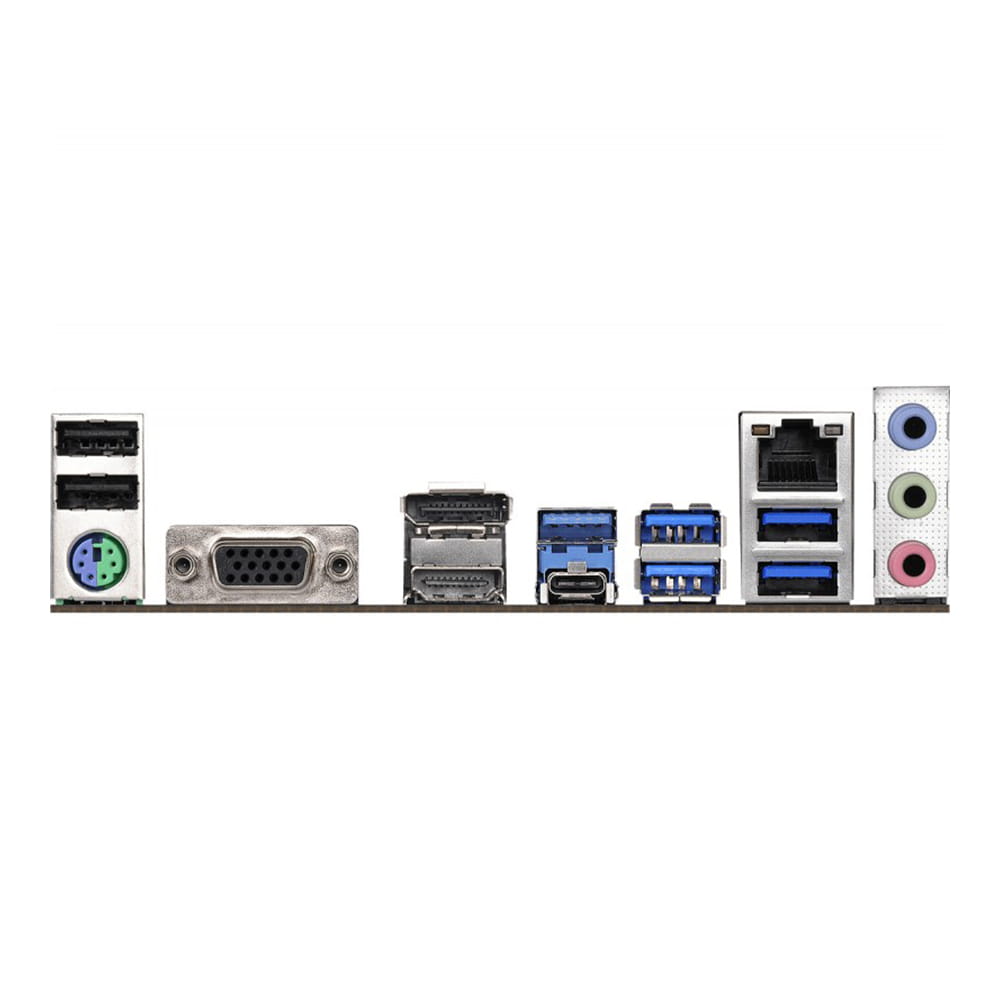

Panel trasero Entrada/salida - 1 x Puerto PS/2 Teclado/Ratón
- 1 x puerto D-Sub
- 1 x puerto HDMI
- 1 x DisplayPort 1.2
- 2 x puertos USB 2.0 (Soporta Protección ESD)
- 1 x puerto USB 3.1 Gen2 Type-A (10 Gb/s) (Soporta Protección ESD)
- 1 x puerto USB 3.1 Gen2 Type-C (10 Gb/s) (Soporta Protección ESD)
- 4 x puertos USB 3.1 Gen1 (Soporta Protección ESD)
- 1 x Puerto LAN RJ-45 con LED (ACT/LINK LED y SPEED LED)
- Conectores HD Audio: entrada de línea / Altavoz Delantero / Micrófono
Accesorios - Guía de instalación rápida, CD de Soporte, Placa entrada/salida
- 2 x cables de datos SATA
- 2 x Tornillos para Sockets M.2

Monitorización del hardware

- Sensor de Temperatura: CPU, MB
- Ventilador Tacómetro: CPU, CPU / bomba de agua, ventilador bomba de agua Chasis
- Ventilador silencioso (Ajuste automático de la velocidad del ventilador del chasis por la temperatura de la CPU): CPU, CPU / bomba de agua, ventilador bomba de agua Chasis
- Ventilador con Control de velocidad múltiple: CPU, CPU / bomba de agua, ventilador bomba de agua Chasis
- Control de voltaje: +12V, +5V, +3.3V, Vcore
Formato - Formato ATX: 12.0-in x 8.8-in, 30.5 cm x 22.4 cm
- Diseño Capacitadores sólidos
