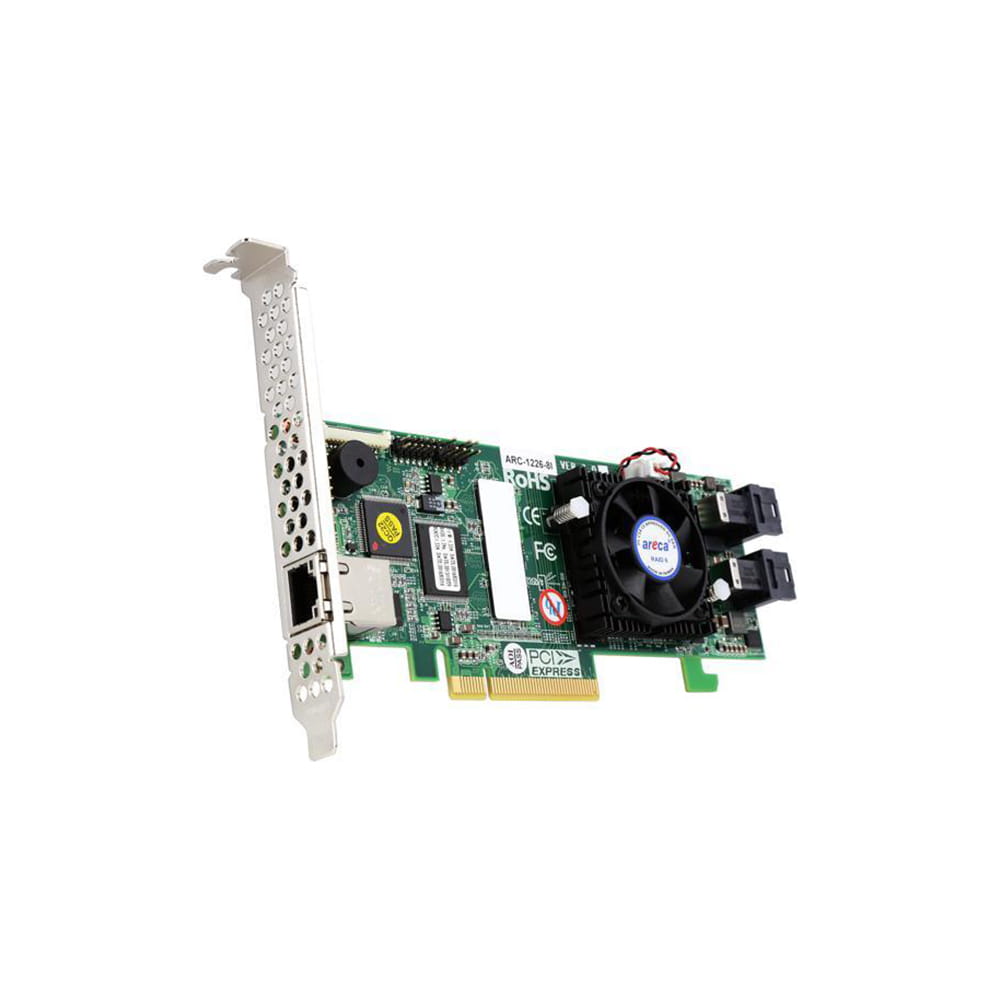

Areca ARC-1226-8I. 8 Puertos internos. SAS/SATA.

Areca ARC-1226-8I. 8 Puertos internos. SAS/SATA.

Areca
  • Supports up to (8) 12 Gb / s SAS, SATA, or SSD drives.
  • Supports up to 1GB of DDR3-1600 cache.
  • Supports read / write cache mapping by policy.
  • Supports optional flash-based backup module (FBM) protection with SuperCap or battery.
  • Controller-level hardware encryption and self-encrypting drive management.
  • Management of SGPIO cabinets and Bus series.
  • Redundant flash image for adapter availability.
  • Multiple RAID 0 and RAID 10 (1E) support (RAID 00 and RAID100).

P/N: ARC-1226-8I

554,41 € Without VAT
670,84 € With VAT
Only 5 units left
Approximate delivery between 29 octubre and 30 octubre
2 years
of guarantee
sending
shipping
100%
Secure pay

The internal PCIe 3.0 ARC-12x6 host RAID controllers are cost-effective solutions for connecting up to 4/8 12 Gb / s SAS peripheral devices.

The 12 Gb / s SAS is designed for backward compatibility with 6 Gb / s and 3Gb / s SAS / SATA hard drives. The 12Gb / s SAS interface supports 12Gb / s SAS disk drives for data-intensive applications and 6Gb / s SATA drives for bulk storage of reference data at low cost.

The ARC-1216-4i / 4x and ARC-1226-8i / 8x RAID controllers only support direct connection to SAS / SATA 4/8 drives without supporting expansion function.

The default ARC-12x6 series supports 1GB integrated DDR3-1600 SDRAM memory.

Highlights ...

* Ports: 4 internal through SATA.
* RAID: 0.1, 1E, 3, 5, JBOD.
* Processor: (Intel IOP 332).
* Cache: 256 MB.

Host Bus PCIe 3.0 x8
Motor RAID Motor RAID Intel
Cache DDR3-1600 1 GB
HDDs 8x 12 Gbps SAS/SATA
S.O. soportados Windows 10/8/Server 2012 R2/7/2008/Vista/XP/2003
Linux
FreeBSD
VMware
Solaris 10/11 x86/x86_64
Mac OS X 10.4 or higher
Nivel RAID 0, 1, 10 (1E), 3, 5, 6, 10, 30, 50, 60
Dimensiones  169,5mm x 64,4mm
Perfíl Bajo perfíl

The internal PCIe 3.0 ARC-12x6 host RAID controllers are cost-effective solutions for connecting up to 4/8 12 Gb / s SAS peripheral devices.

The 12 Gb / s SAS is designed for backward compatibility with 6 Gb / s and 3Gb / s SAS / SATA hard drives. The 12Gb / s SAS interface supports 12Gb / s SAS disk drives for data-intensive applications and 6Gb / s SATA drives for bulk storage of reference data at low cost.

The ARC-1216-4i / 4x and ARC-1226-8i / 8x RAID controllers only support direct connection to SAS / SATA 4/8 drives without supporting expansion function.

The default ARC-12x6 series supports 1GB integrated DDR3-1600 SDRAM memory.

Highlights ...

* Ports: 4 internal through SATA.
* RAID: 0.1, 1E, 3, 5, JBOD.
* Processor: (Intel IOP 332).
* Cache: 256 MB.

Host Bus PCIe 3.0 x8
Motor RAID Motor RAID Intel
Cache DDR3-1600 1 GB
HDDs 8x 12 Gbps SAS/SATA
S.O. soportados Windows 10/8/Server 2012 R2/7/2008/Vista/XP/2003
Linux
FreeBSD
VMware
Solaris 10/11 x86/x86_64
Mac OS X 10.4 or higher
Nivel RAID 0, 1, 10 (1E), 3, 5, 6, 10, 30, 50, 60
Dimensiones  169,5mm x 64,4mm
Perfíl Bajo perfíl
