Arctic Liquid Freezer II - 240
Arctic Liquid Freezer II - 240
- High static pressure for better cooling performance.
- Wide RPM range.
- Low energy consumption.
- Less vibrations.
- Lifespan extension.
- High quality bearing.
- PWM for synchronized fan / pump control.
of guarantee
shipping
Secure pay

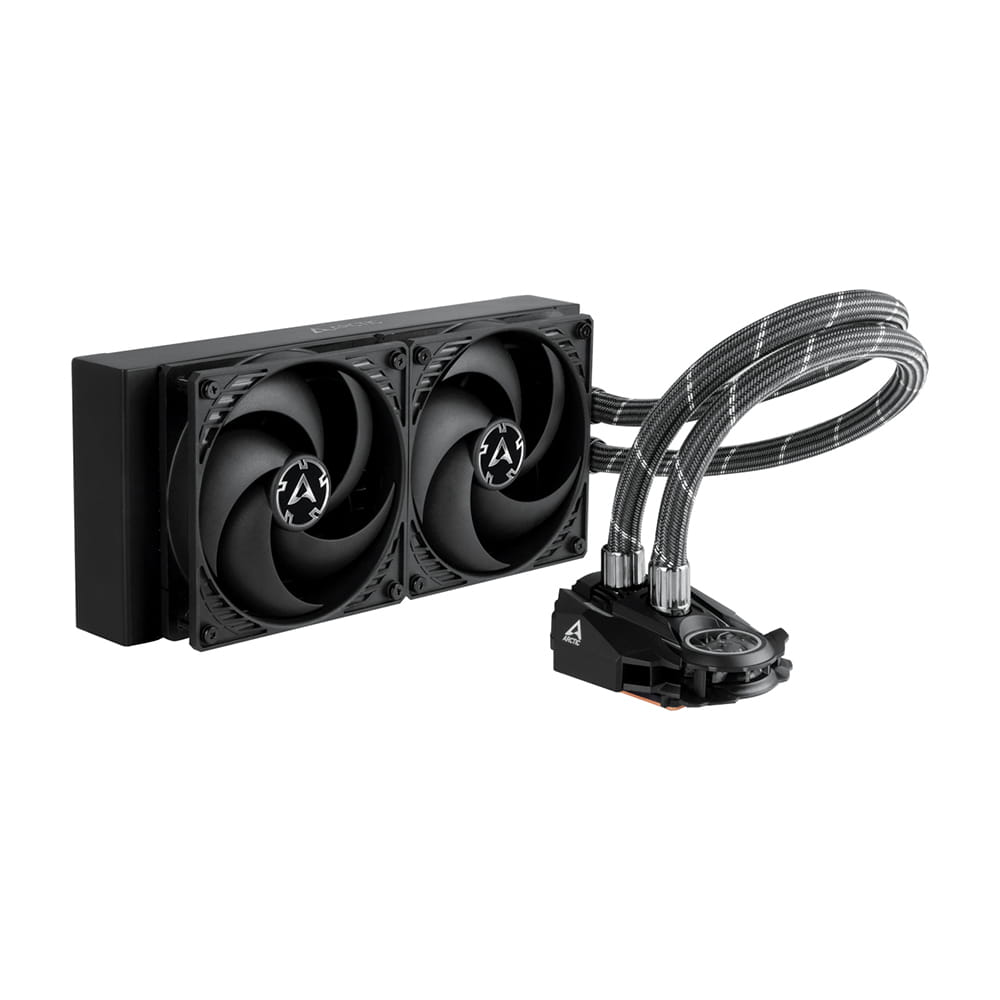

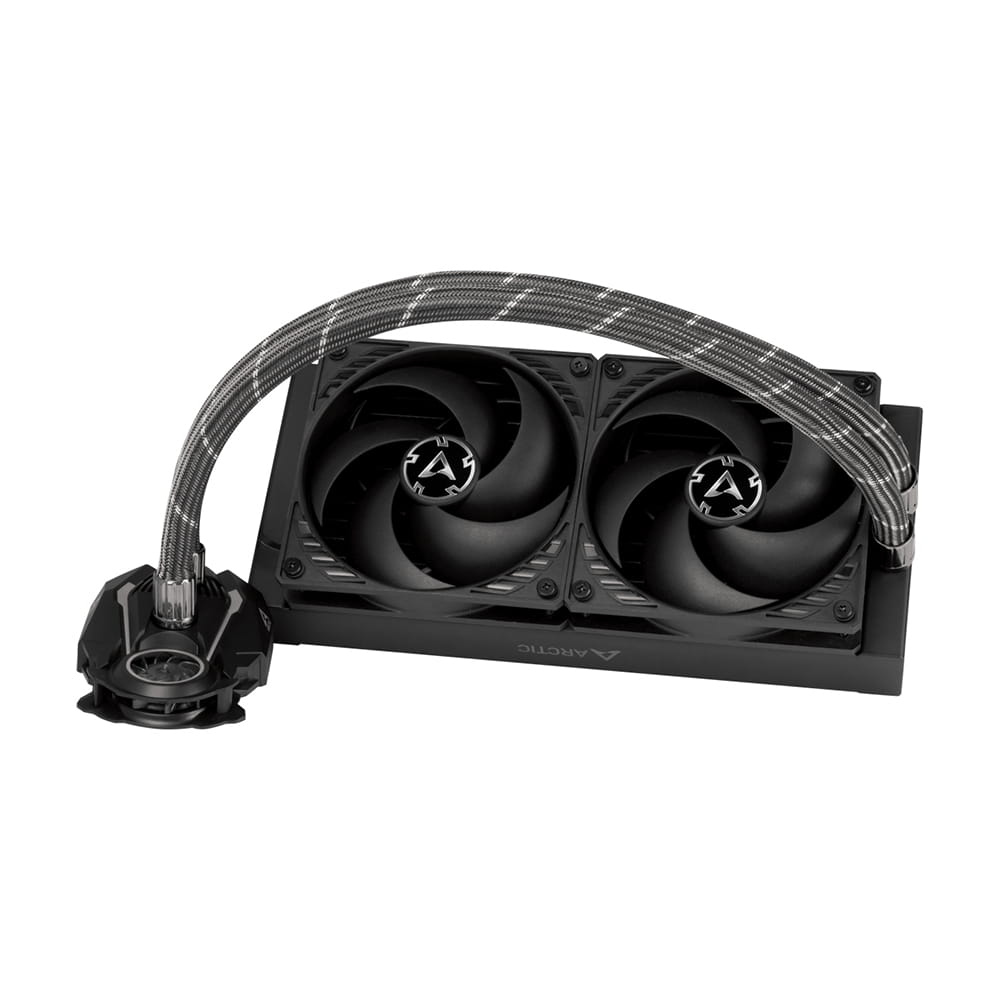

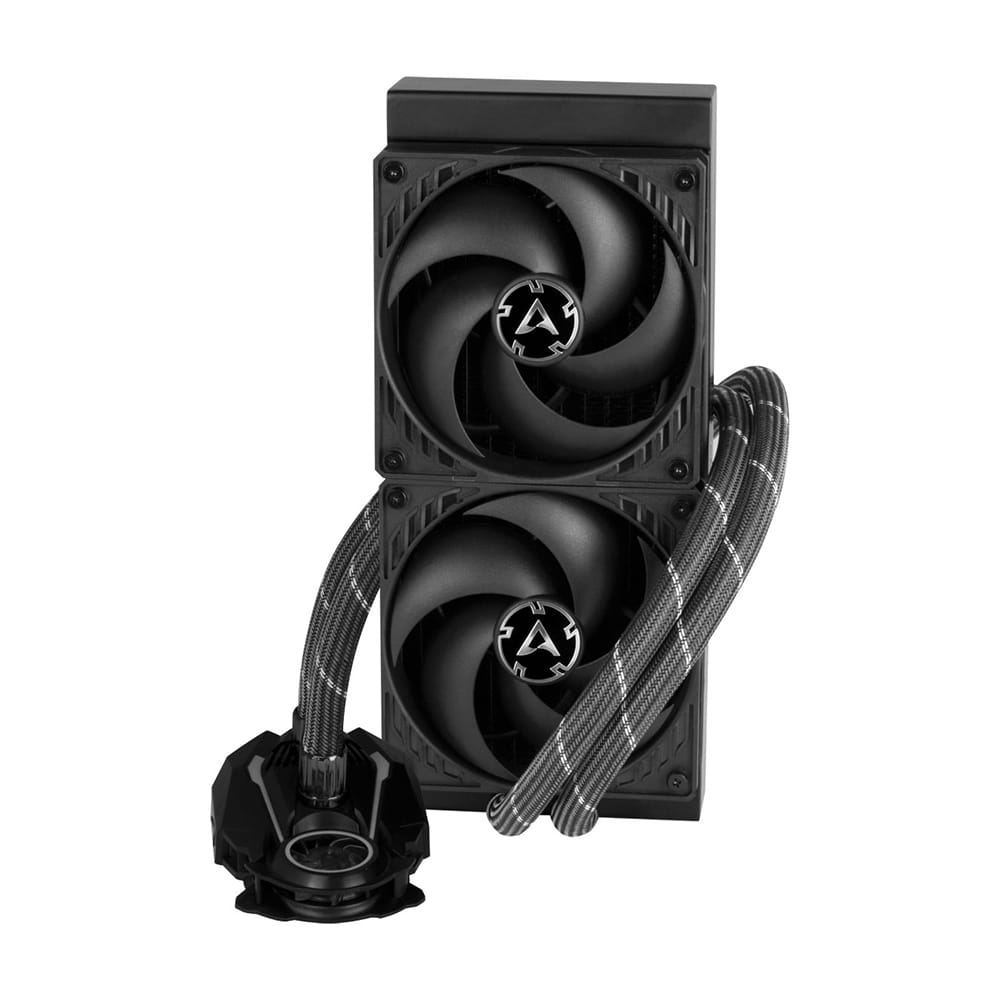

At ARCTIC we are proud of our new all-in-one liquid cooling system. For the Liquid Freezer II series, we have used our experience in the field of liquid refrigeration to develop a completely new compact water pump. The new Liquid Freezer II pump offers the ideal balance between high cooling performance and low noise. All versions of the Liquid Freezer II have a cable management system built into the lined hoses to keep your PC case well organized. Our powerful P-series fans provide fast heat transfer thanks to their high static pressure and excellent performance. We recommend the Liquid Freezer II series for those seeking superior performance and quiet cooling at a fair price.

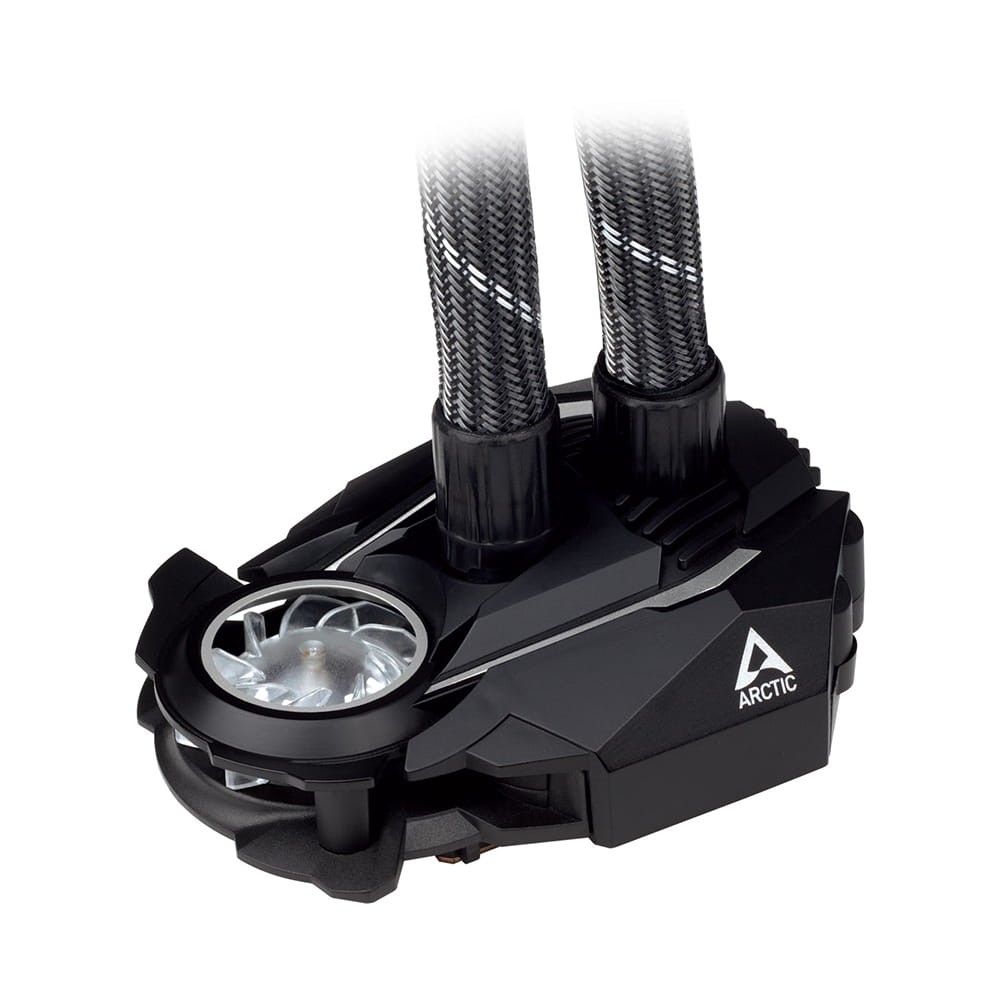

Liquid Freezers II are equipped with a new, copper-based, PWM-controlled pump for better efficiency, low power consumption and quiet operation. Unlike most of our competitors' pumps, which run at full load even when in idle mode, our pump consumes less power and produces less noise if there is no need for cooling, even with an additional fan for VRMs.
An additional 40mm fan along with the pump helps cool down the VRMs on the motherboard. This prevents overheating, especially during overclocking and allows continuous heavy loads.
The closed water circuit offers maintenance-free cooling, so there is no need to add more water or additives.
Highlights...
* High static pressure for better cooling performance.
* Wide RPM range.
* Low energy consumption.
* Extension of useful life.
* MX-2 thermal paste pre-applied.
Datos Generales | ||||
VRM Fan | 40 mm, 1.000 – 3.000 RPM (Controlled by PWM) | |||
Pump | 800 – 2.000 RPM (Controlled by PWM) | |||
Power Consumption | 1.0 W – 2.7 W (Pump and VRM Fan) | |||
Cold Plate | Copper, Micro Skived Fin | |||
Tube Length | 450 mm | |||
Tube Diameter | Outer: 12.4 mm, Inner: 6.0 mm | |||
Dimensions (w/o tubes) | 98 mm x 78 mm x 53 mm | |||
Fan x 2 | ||||
Fan Speed | 200 – 1 800 RPM (Controlled via PWM) | |||
Airflow | 56.3 CFM | |||
Static Pressure | 2.2 mm H2O | |||
Current/Voltage | 0.08 A / 12 V DC | |||
Bearing | Fluid Dynamic Bearing | |||
Noise Level | 0.3 Sone | |||
Connector | 4-pin-Connector | |||
Dimensions | 120 mm x 120 mm x 25 mm |
