Appliot EMP501 Modular

Appliot EMP501 Modular

Ordenadores Ibertronica

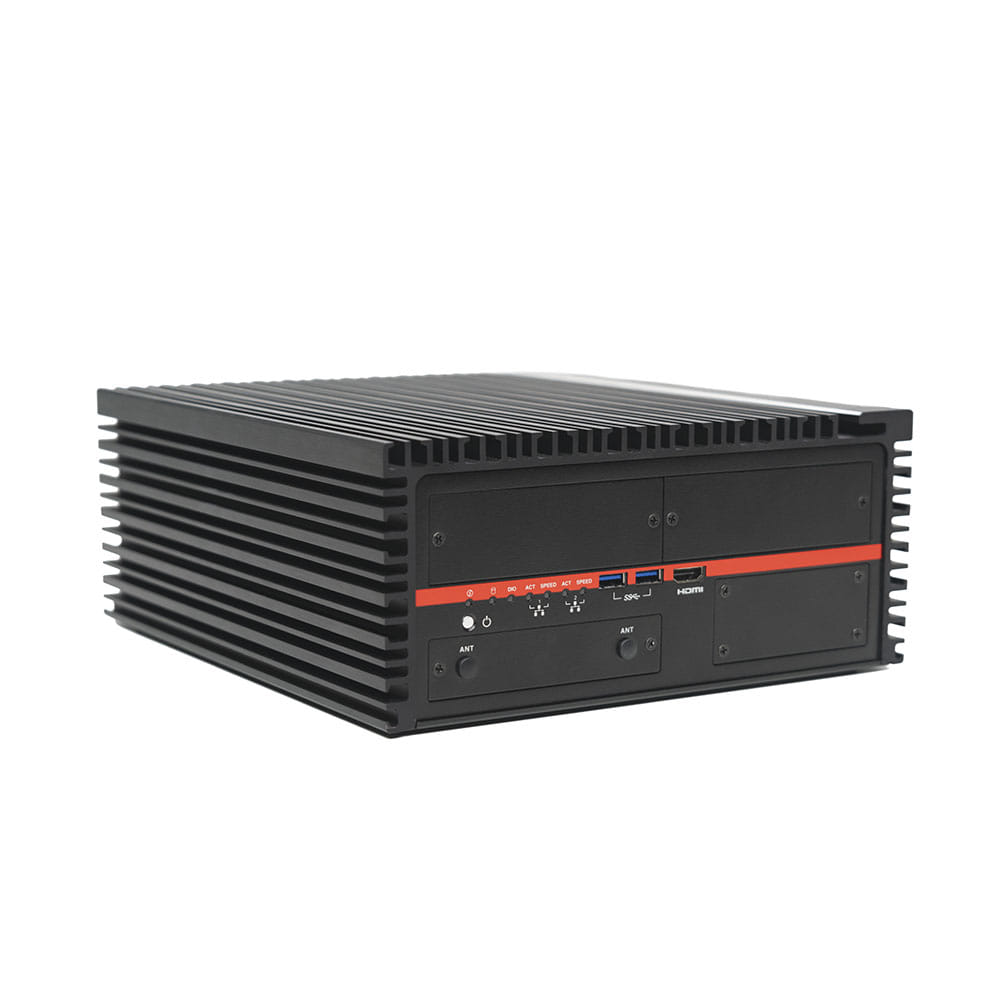

  • Industrial, passive, compact, multitasking and modular workstation.
  • Compatible with i3, i5, i7 and Xeon processors (up to 6 cores).

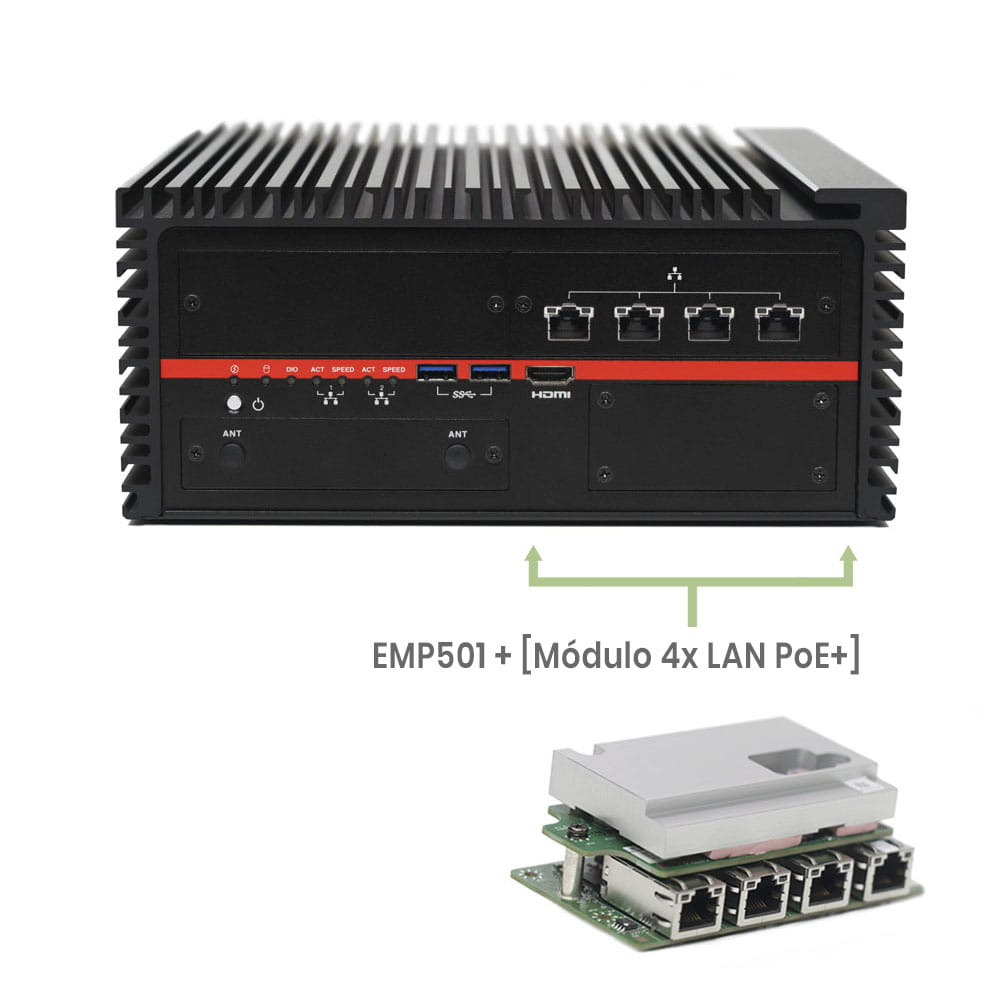

  • 2 optional expansion modules (LAN, PoE +, M12, serial / DIO, CarPC).
  • Triple HD monitor, multi-screen scenarios (control center).
  • Supports extreme temperatures (-40ºC / + 70ºC).
  • Designed for IOT, industrial, ICT, virtualization and control environments.
  • Voltage range, ready for installation in transport.

Item code: ORDEMP501

1.167,70 € Without VAT
1.412,92 € With VAT
Canon Digital not included: 5,45 € + Taxes
Only 1 unit left
Approximate delivery between 29 octubre and 02 noviembre
2 years
of guarantee
sending
shipping
100%
Secure pay
Barebones Barebones
Processor Processor
Memories Memories
mSATA Drives mSATA Drives
SSD SSD
Expansion modules Expansion modules
2º Módulo de expansión 2º Módulo de expansión
M.2 M.2
Transformers Transformers
Operating system Operating system

Compact Fanless Industrial Station (Xeon / i3 / i5 / i7), applicable to different jobs and tasks individually or simultaneously. Equipment designed to cover different types of operations depending on the accessories that we integrate, its modularity allows it to stand out within several industrial fields among which we can highlight:

Automation host.
Industrial control and monitoring center (SCADA).
Industry 4.0 (IOT devices: sensors / actuators, assembly lines).
Virtualization server, storage or processes.
Depending on the optional modules we can use them for the following applications:

-Up to 12 LAN -> Server, firewall, virtualization, data control, DMZ, router.
-Up to 10 PoE + -> Remote station, IP (video surveillance), Access point, ip voice, lighting applications.
-Up to 10 COM -> Home automation, automation, manufacturing, mechanization and communication.
-Up to 16 DIO -> High security industrial applications, controllers, installations on trains, buses, etc.

It also has an integrated pcie x16 expansion port where you can add professional video, audio, network, fiber, etc. cards for professional editing, development, communication, processing or monitoring applications.

Another very interesting feature of this equipment is the option of integrating a 3G / 4G module (includes 2 SIM slots), which allows you to install it in heavy vehicles, trucks, trains, buses, along with your vehicle mounting kit. fleets of vehicles, ambulances, refrigerated trucks, etc., in addition to the support of the DIO module (optional) we can also interact with sensors and actuators that may be present in these vehicles (temperature sensors, lighting, GPS positioning, surveillance or monitoring of the merchandise or passengers).

Workstation that can be connected to the electrical network, car, battery or power device through its terminal block or connection block whenever it is within its voltage range (9-48V), with possible applications in remote meteorological stations , agricultural, livestock, wind, etc., can also use as digital signare: multi-screen totem, information panels, animation, media players, at the level of automation in lighting control, refrigeration, temperature control, manufacturing, robot handling or mechanization systems, instruments that require high precision.

Highlights ....

* Multitasking device.
* Up to 12Tb of SSD storage.
* Solution for digital home (home automation).
* Protections (OVP, OCP, ESD).
* Certifications CE, FC, E13, EN50121 and EN50155.
* High resolution (DP 1.2 (4K @ 60Hz), HDMI 1.4 (4K @ 30Hz) DVI-I (FHD @ 60Hz).
* Compatible with ECC memories (Xeon processor).

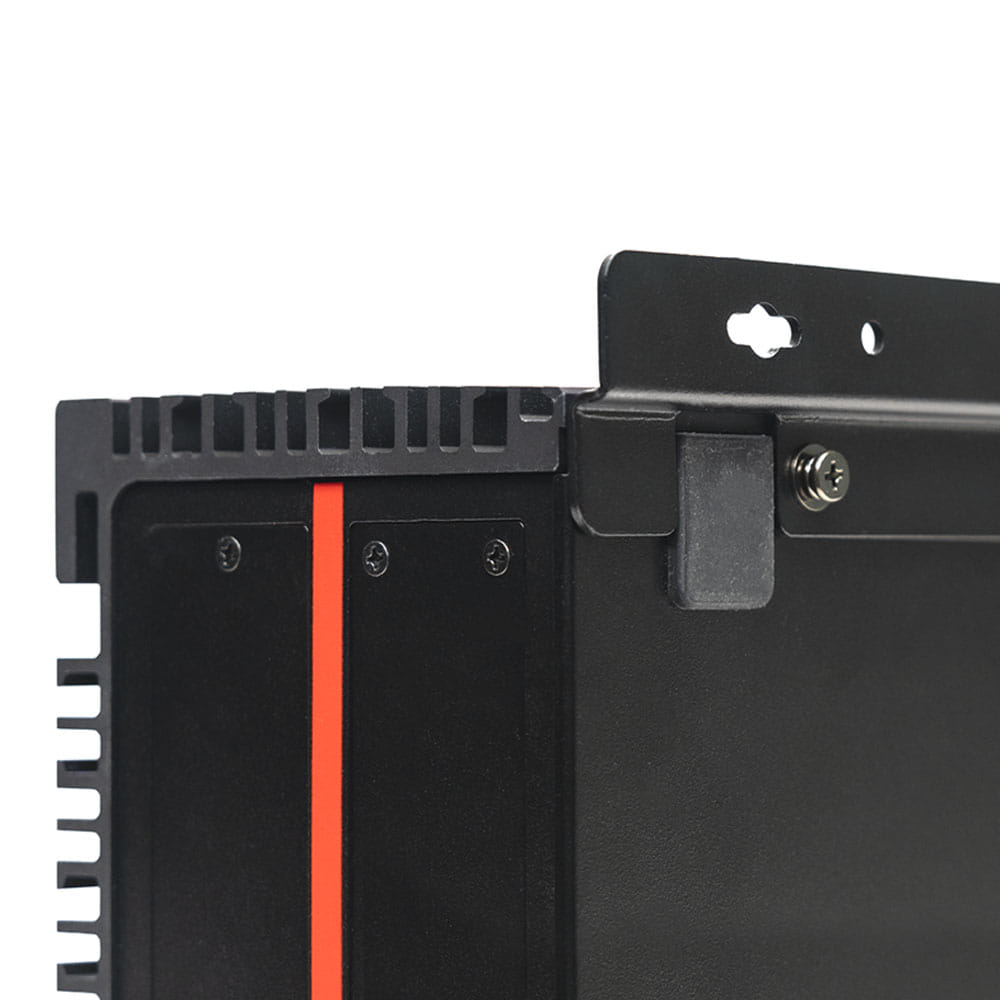

* Adapter for vehicle mounting.

CPU
Memory
VGA Intel HD Graphics
LAN Intel I219-LM Giga LAN + I210-IT Giga LAN
Audio Realtek ALC662
Storage 3x 2.5 SSD (1 bahia extraible,2 internas)
2x mSATA
1x M.2
Wireless
Motherboard Form Factor
Dimensions 268 x 246 x 108 mm
Material
Color Black / Red

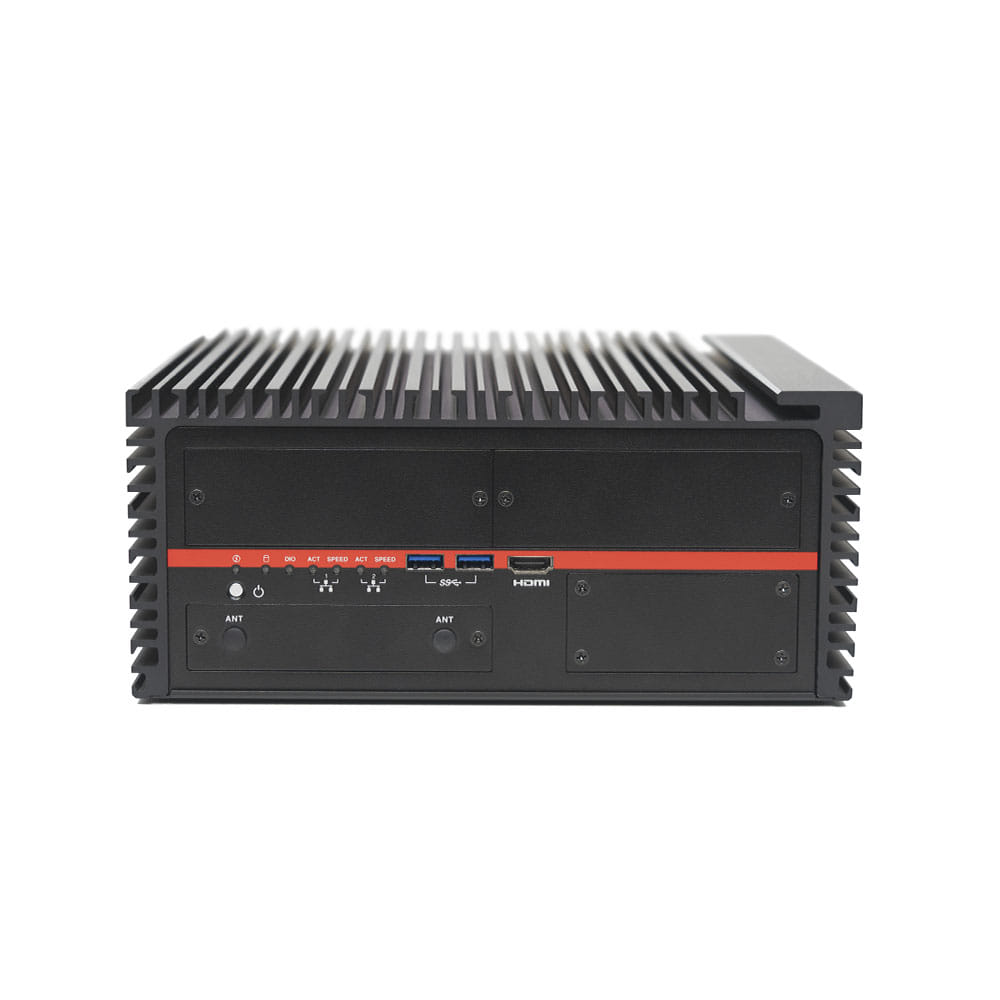

Front Ports 1x HDMI 1.4
2x USB 3.0
2x SIM slot con cubierta protectora
1 x 2.5" SATAIII HDD/SSD Bay

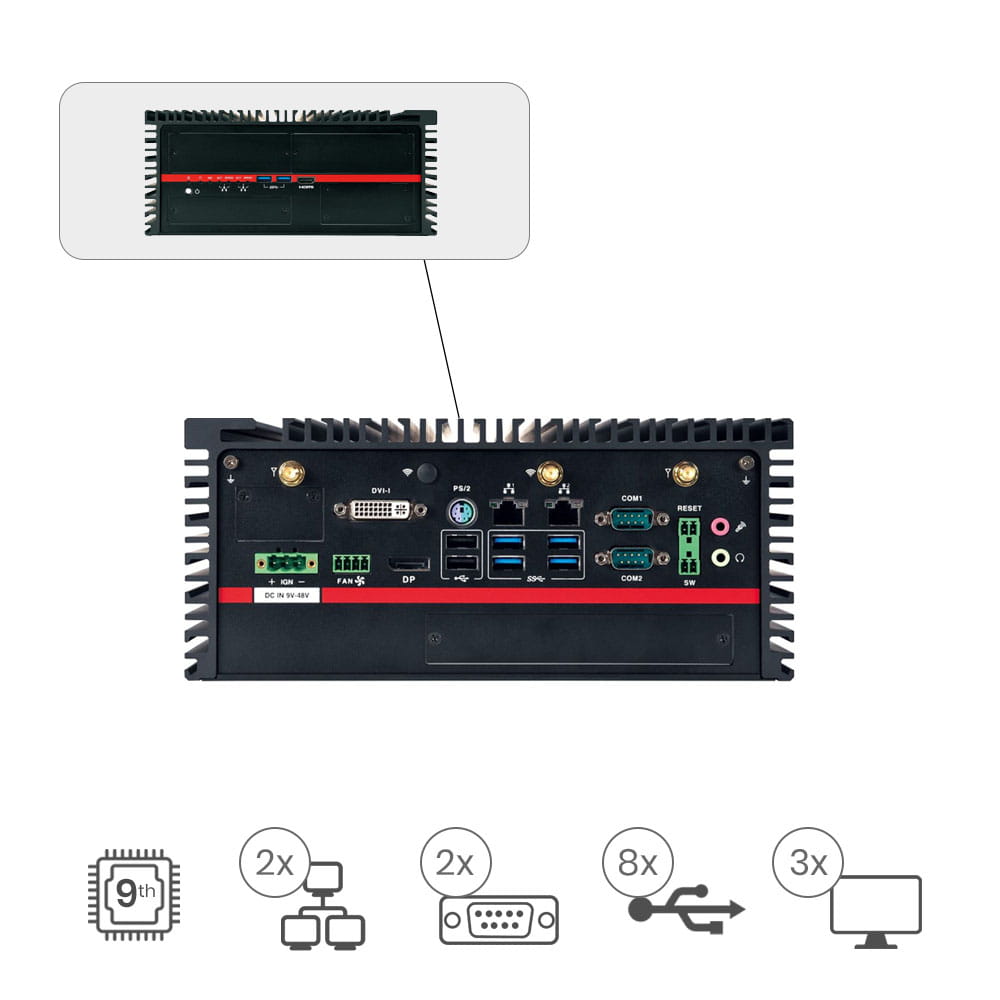

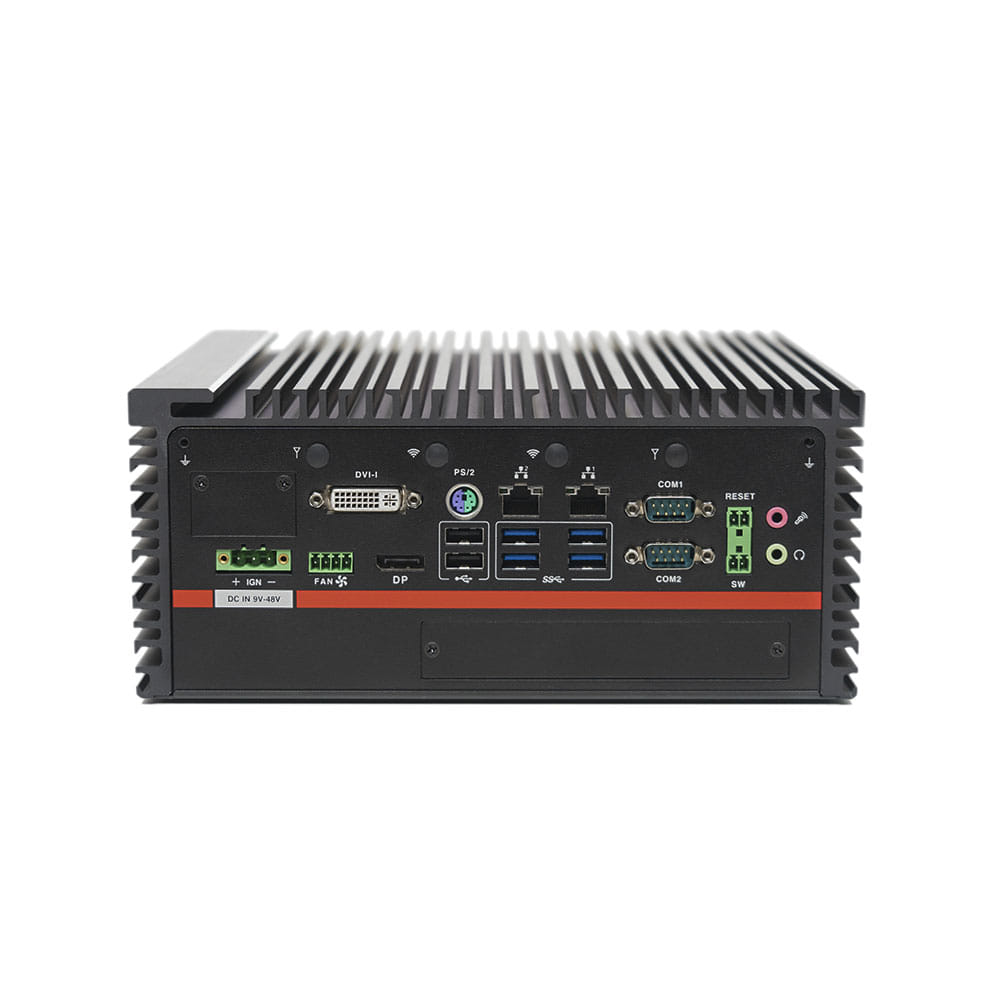

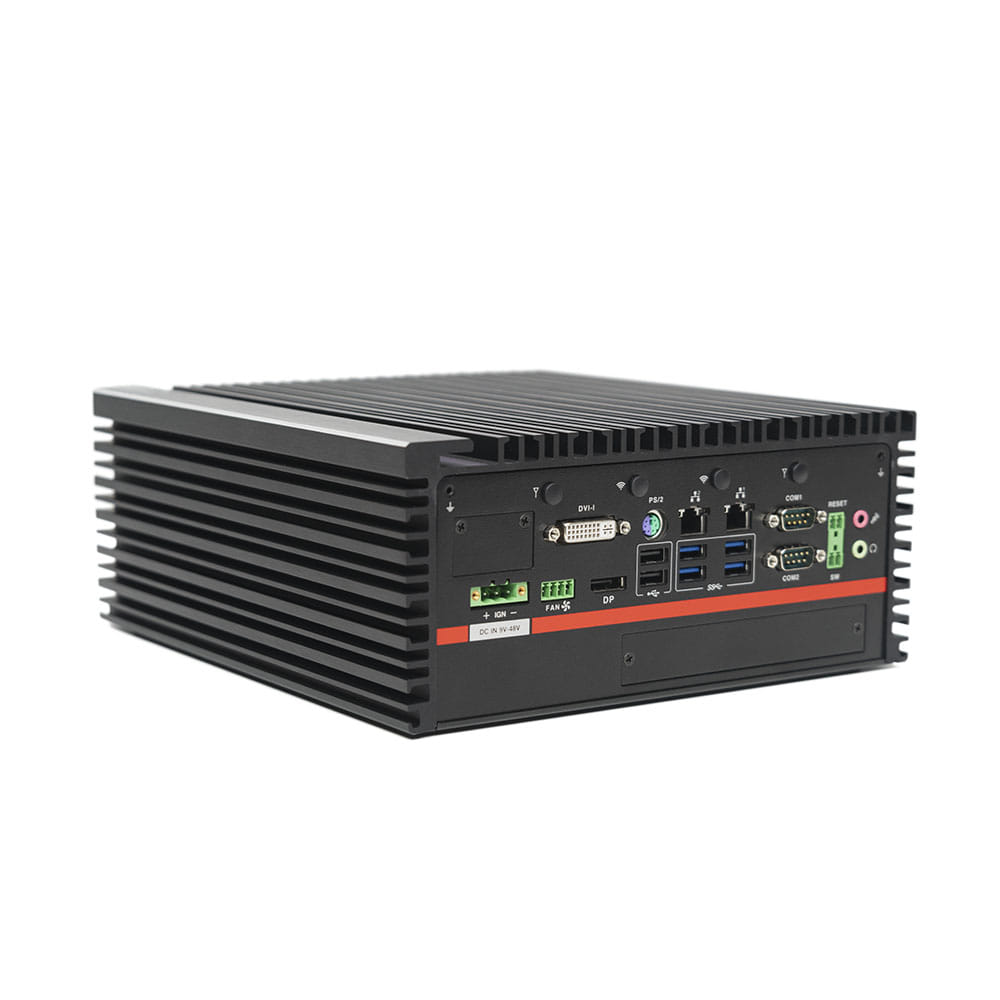

Rear Ports 1x DP 1.2
1x DVI-I
2 x RJ-45
4 x USB 3.1 Gen 2 (10 Gbps)
2 x USB 2.0
2 x RS232 / 422 / 485 (Support Power 5V / 12V)
1x Mic-in
1x Line-out
1x PS/2
1x PCIe x16 slot
1x 2-pin Reset remoto (Terminal Block)
1x 3-pin conector alimentacion (Terminal Block)
1x 4-pin conector ventilador(terminal Block externo)
1x 2-pin encendido/apagado remoto (Terminal Block)
4x Antema SMA Antenna (Opcional para WiFi/LTE )
Power 9~48V Rango de Voltaje DC con conector (terminal block)
Temperatures Operating: 35W TDP Processor: -40°C to 70°C / 51~65W TDP Processor: -40°C to 50°C / 71~80W TDP Processor: -40°C to 40°C
Storage: -40 ~ 85°C (-40 ~185°F)
Aplications
Certificates CE / FCC Class A / certificacion E-Mark (E13, No.10R-0515319) / EN50155
