Appliot EMP101 Modular

Appliot EMP101 Modular

Ordenadores Ibertronica
  • Industrial computer with modular connectivity design.
  • Intel Apollo Lake-M N4200.
  • Possibility of extending serial connectivity, with optional expansion modules.
  • You can choose between two available options, with or without POE.
  • No moving parts, completely fanless.
  • High resistance to shocks and vibrations.
  • Voltage range of (8-24V)
  • Extended temperature range from (-25 to 70 ° C).
  • Small dimensions and minimal consumption.

Item code: ORDEMP101

677,77 € Without VAT
820,10 € With VAT
Canon Digital not included: 5,45 € + Taxes
Only 2 units left
Approximate delivery between 25 septiembre and 28 septiembre
2 years
of guarantee
sending
shipping
100%
Secure pay
Barebones Barebones
Expansion modules Expansion modules
Memories Memories
SSD SSD
Transformers Transformers

EMP101 incorporates a modular expansion architecture design, through a wide range of connectivity possibilities, which will allow you to choose from several options to offer the most appropriate to each function, applying the one that best suits your needs.

The modules available, to extend the connectivity of the equipment are the following:

  • DVI expansion module.
  • VGA expansion module.
  • DisplayPort expansion module.

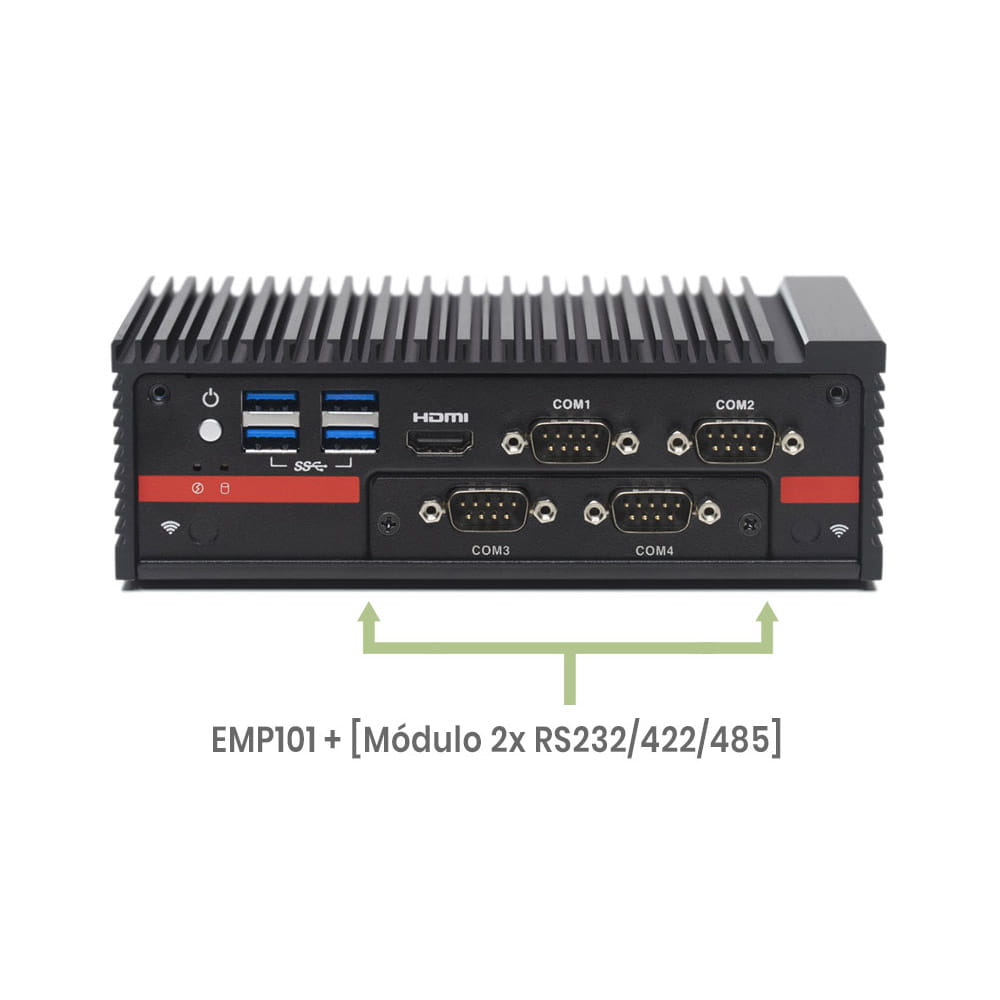

  • Expansion module with 2 - RS232 / 422/485.

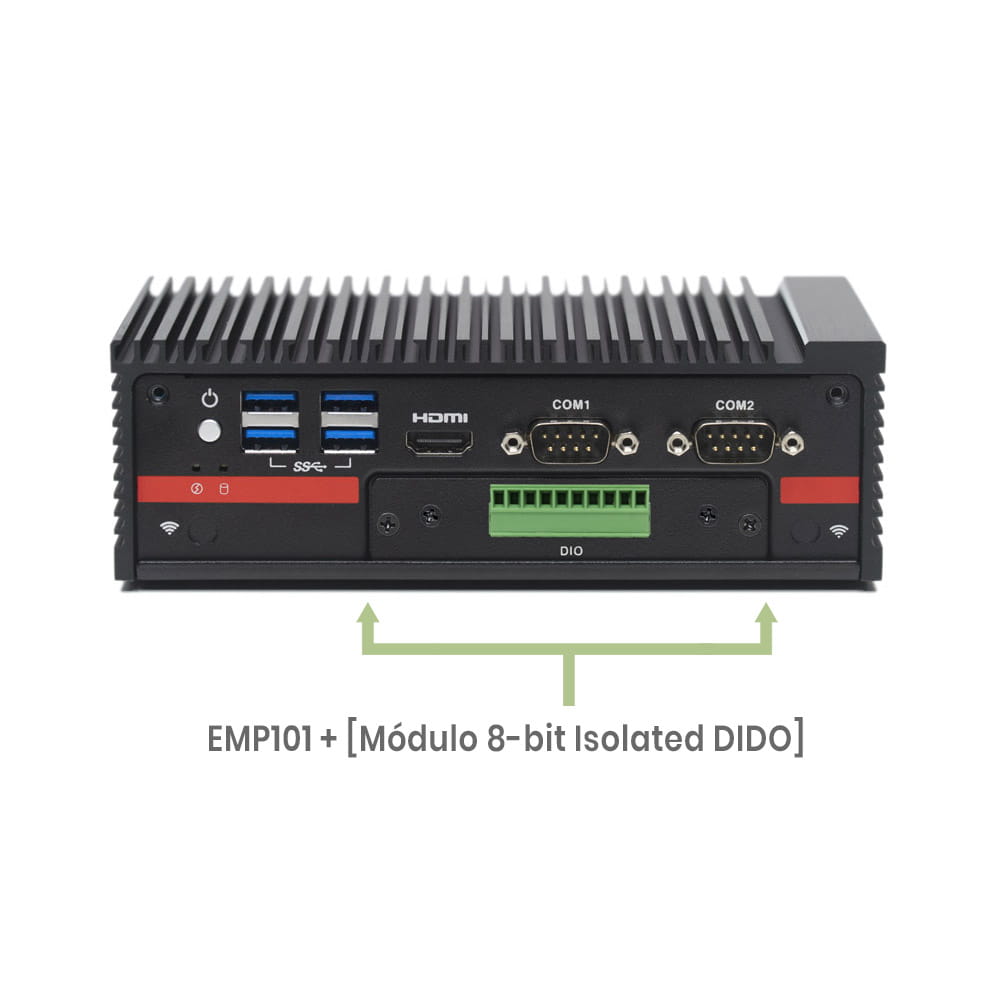

  • DIDO module (4X DI, 4X DO).

Specially designed to improve the quality and performance of automation systems in an industrial environment, although they are deployed in a multitude of operational scenarios (companies, factories, security and surveillance, process control and a long etc.) since They provide a high degree of robustness and reliability.

It will allow you to control processes, manage data and make appropriate modifications to improve productivity and grow your business.

Highlights ...

* Industrial computer with modular connectivity design.
* Intel Apollo Lake-M N4200.
* Possibility of extending serial connectivity, with optional expansion modules.
* You can choose between two available options, with or without POE.
* without moving parts, completely fanless.
* High resistance to shocks and vibrations.
* Voltage range of (8-24V)
* Extended temperature range from (-25 to 70 ° C).
* Reduced dimensions and minimal consumption.

CPU Intel Apollo Lake-M N4200
Memory DDR3L 1600MHz  SO-DIMM  Max. 8GB
VGA Intel HD Graphics
LAN 2x Intel I210-IT Giga LAN (2 x Output PoE LAN: Opción POE
1x Realtek RTL8154 LAN (Up to 480Mbps)
Audio Realtek ALC662
Storage 1x 2.5  SSD
Wireless
Motherboard Form Factor
Dimensions 170 x 105 x 57 mm
Material Aluminio / Acero
Color Black / Red

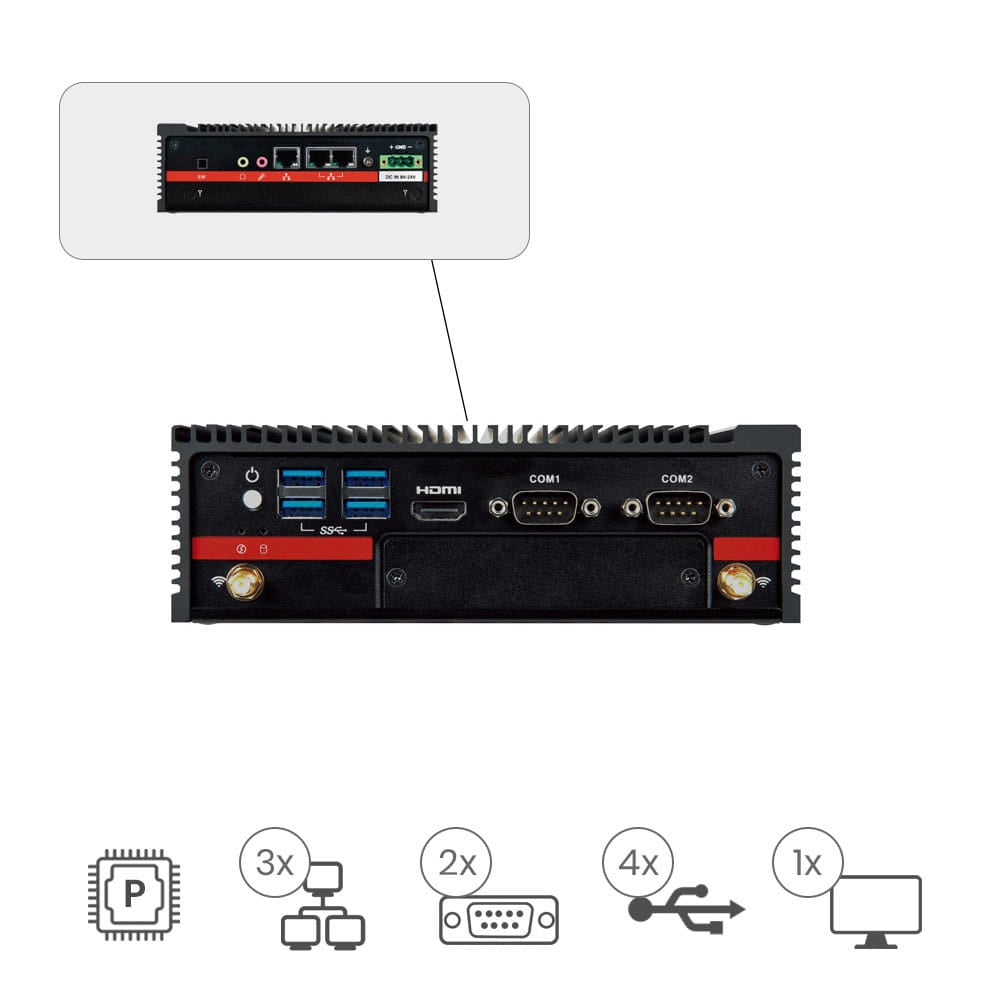

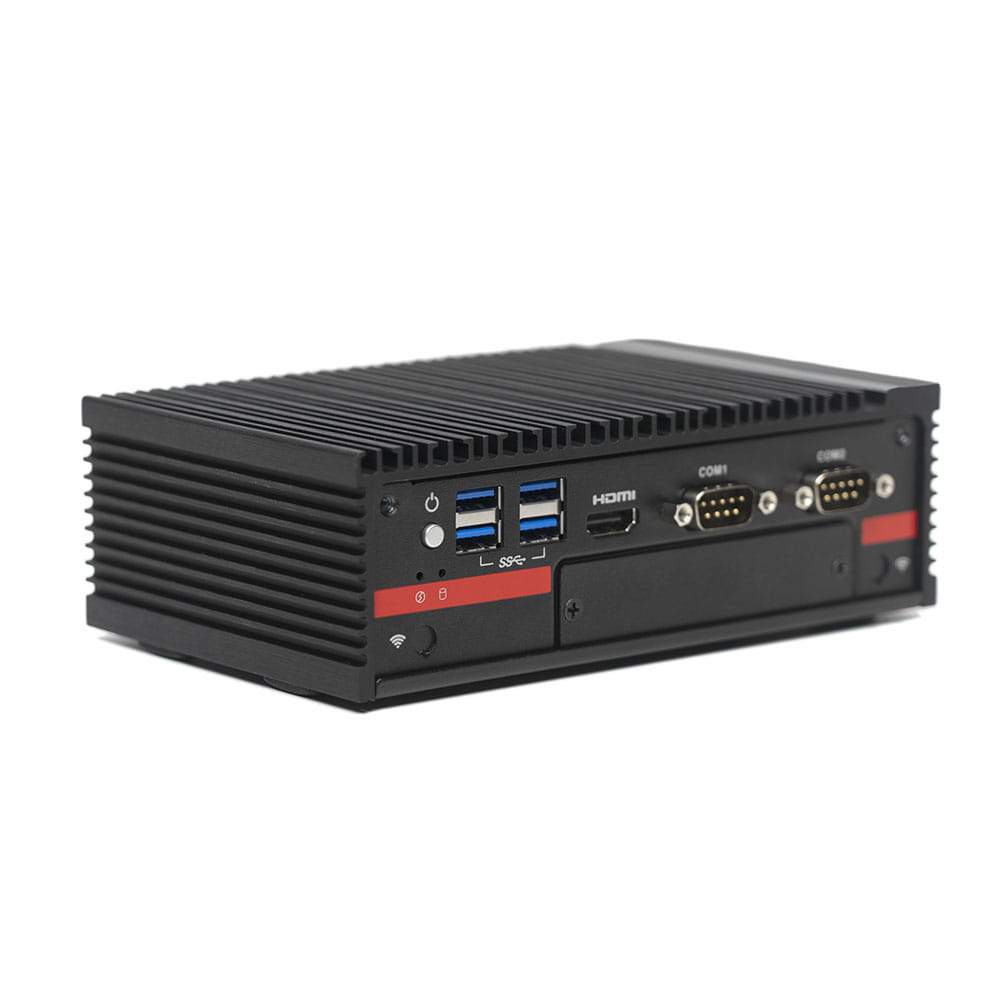

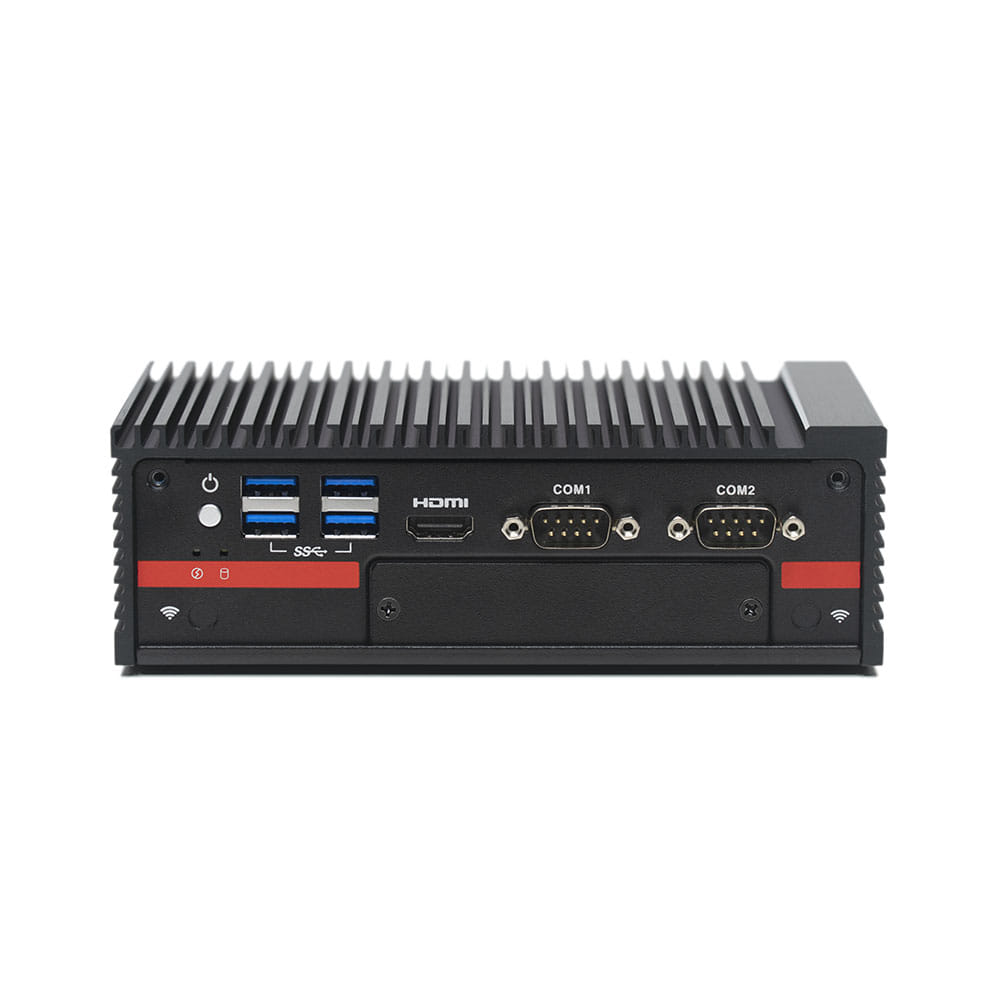

Front Ports 1x HDMI 1.4
4x USB 3.0
2x SMA Antenna (Optional for WiFi/LTE function)
1x Xpansion Module Door
2x RS232 / 422 / 485 (Support Power 5V / 12V)

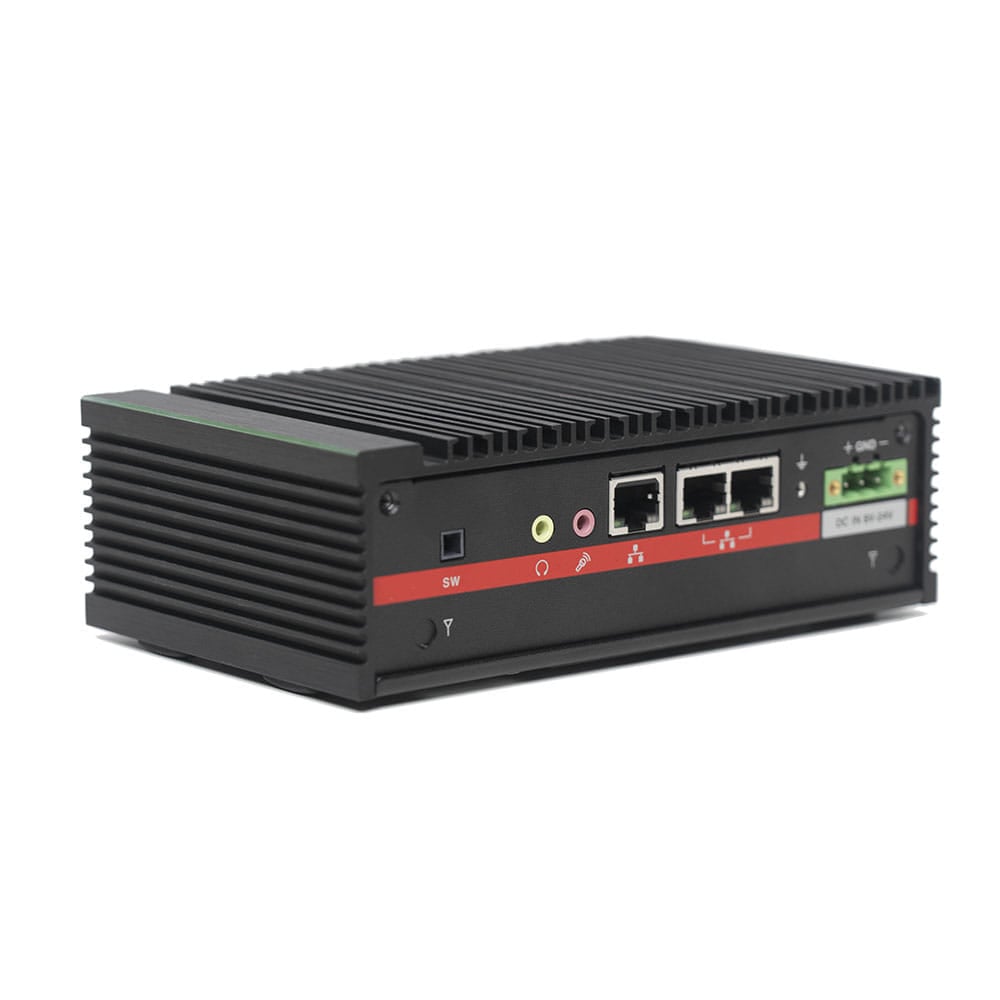

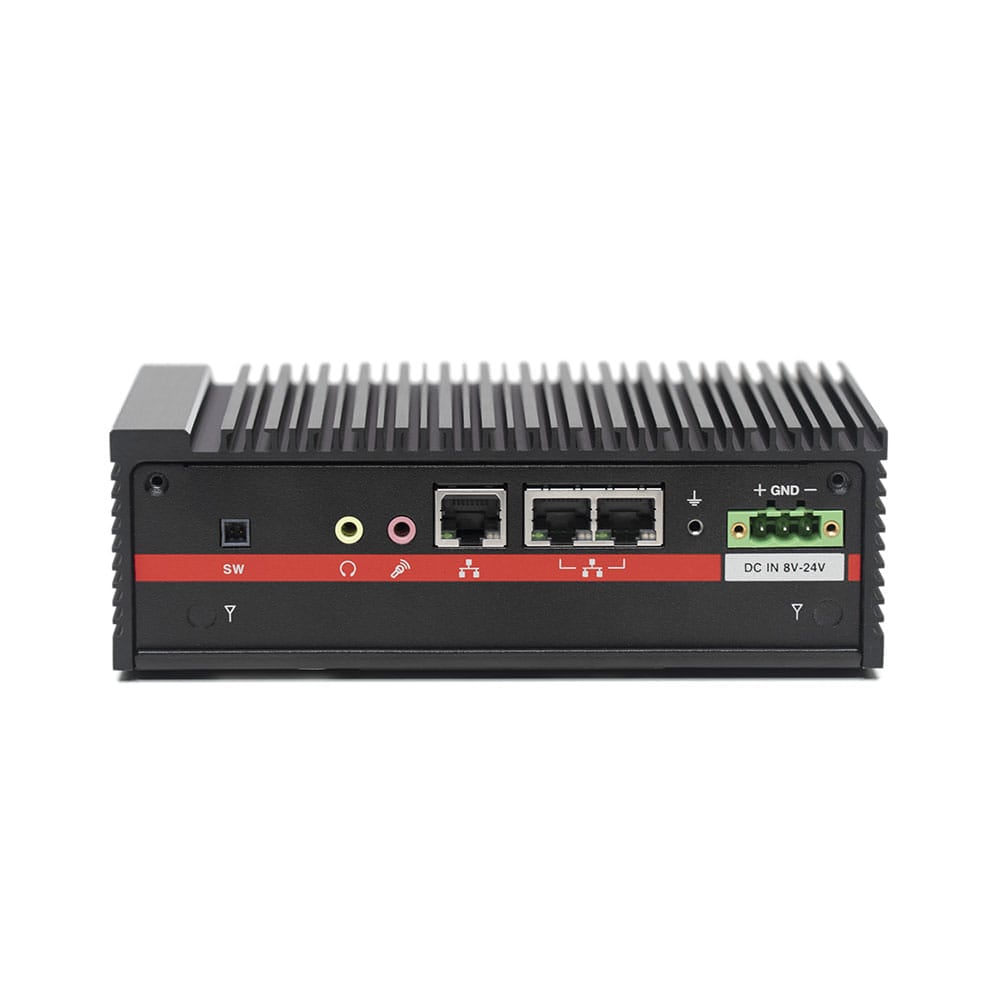

Rear Ports 3x RJ-45
1x Mic-in
1x Line-out
1x 3-pin Terminal Block Power Input
2x SMA Antenna (Optional for WiFi/LTE function)
Power 8~24V Wide Range DC Input w/ Terminal Block Connectivity
Temperatures Operating: -25°C to 70°C
Storage: -40 ~ 85°C (-40 ~185°F)
Aplications
Certificates CE / FCC Class A

EMP101 incorporates a modular expansion architecture design, through a wide range of connectivity possibilities, which will allow you to choose from several options to offer the most appropriate to each function, applying the one that best suits your needs.

The modules available, to extend the connectivity of the equipment are the following:

  • DVI expansion module.
  • VGA expansion module.
  • DisplayPort expansion module.
  • Expansion module with 2 - RS232 / 422/485.
  • DIDO module (4X DI, 4X DO).

Specially designed to improve the quality and performance of automation systems in an industrial environment, although they are deployed in a multitude of operational scenarios (companies, factories, security and surveillance, process control and a long etc.) since They provide a high degree of robustness and reliability.

It will allow you to control processes, manage data and make appropriate modifications to improve productivity and grow your business.

Highlights ...

* Industrial computer with modular connectivity design.
* Intel Apollo Lake-M N4200.
* Possibility of extending serial connectivity, with optional expansion modules.
* You can choose between two available options, with or without POE.
* without moving parts, completely fanless.
* High resistance to shocks and vibrations.
* Voltage range of (8-24V)
* Extended temperature range from (-25 to 70 ° C).
* Reduced dimensions and minimal consumption.

CPU Intel Apollo Lake-M N4200
Memory DDR3L 1600MHz  SO-DIMM  Max. 8GB
VGA Intel HD Graphics
LAN 2x Intel I210-IT Giga LAN (2 x Output PoE LAN: Opción POE
1x Realtek RTL8154 LAN (Up to 480Mbps)
Audio Realtek ALC662
Storage 1x 2.5  SSD
Wireless
Motherboard Form Factor
Dimensions 170 x 105 x 57 mm
Material Aluminio / Acero
Color Black / Red
Front Ports 1x HDMI 1.4
4x USB 3.0
2x SMA Antenna (Optional for WiFi/LTE function)
1x Xpansion Module Door
2x RS232 / 422 / 485 (Support Power 5V / 12V)
Rear Ports 3x RJ-45
1x Mic-in
1x Line-out
1x 3-pin Terminal Block Power Input
2x SMA Antenna (Optional for WiFi/LTE function)
Power 8~24V Wide Range DC Input w/ Terminal Block Connectivity
Temperatures Operating: -25°C to 70°C
Storage: -40 ~ 85°C (-40 ~185°F)
Aplications
Certificates CE / FCC Class A
