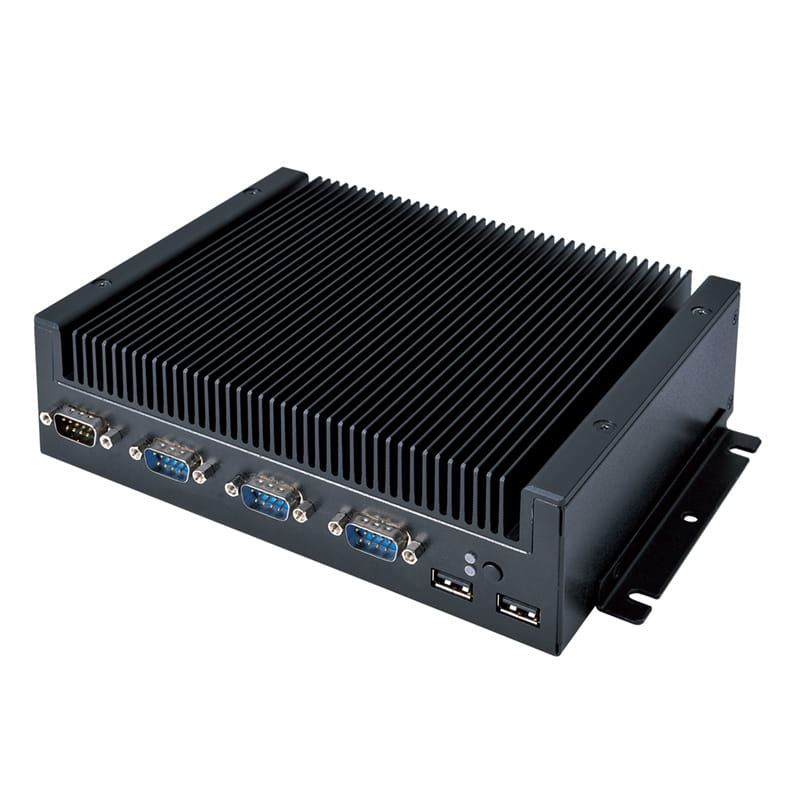

ORDEMC300
- Integrated fanless system with scalable power.
- Intel Kabylake Skylake (up to 3.9GHz).
- Robust, compact, fanless and safe design!
- Extended temperature range (-20 to 80 ° C).
- Wide voltage range from 8 to 24V.
- 1 GPIO programmable 3 COM ports. 2 USB 2.0 and 4 USB 3.0.
- Dual GB LAN Displayport and HDMI.
of guarantee
Insured
Secure pay
Formate | |
Conectividad | |
Conectividad | |
Conectividad | |
Conectividad | |
Processor | |
Processor | |
Processor | |
Processor | |
Aplications | |
Aplications |
Barebones
Memories
mSATA Drives
SSD
Operating system
Appliot EMC301 is specially designed for applications for automation systems, Digital Kiosk, Vending machine, Digital Signage or multimedia player, among others.
Configurable, with up to four proposals, in a power-scalable configuration where you can choose the one that best suits your needs.
Intel Celeron 3955U processor (2M cache, 2.00 GHz).
Intel Core i3-7100U processor (3M cache, 2.40 GHz).
Intel Core i5-7300U processor (3M cache, up to 3.50 GHz).
Intel Core i7-7600U processor (4M cache, up to 3.90 GHz).
Thanks to the energy efficiency of Intel Core I U it offers high powers while maintaining very low consumption and an optimum temperature for its performance, even in the most complicated environments. The operating temperature range is unsurpassed, allowing you to operate continuously in industrial and hostile environments with temperatures between -20 to 80 ° C.

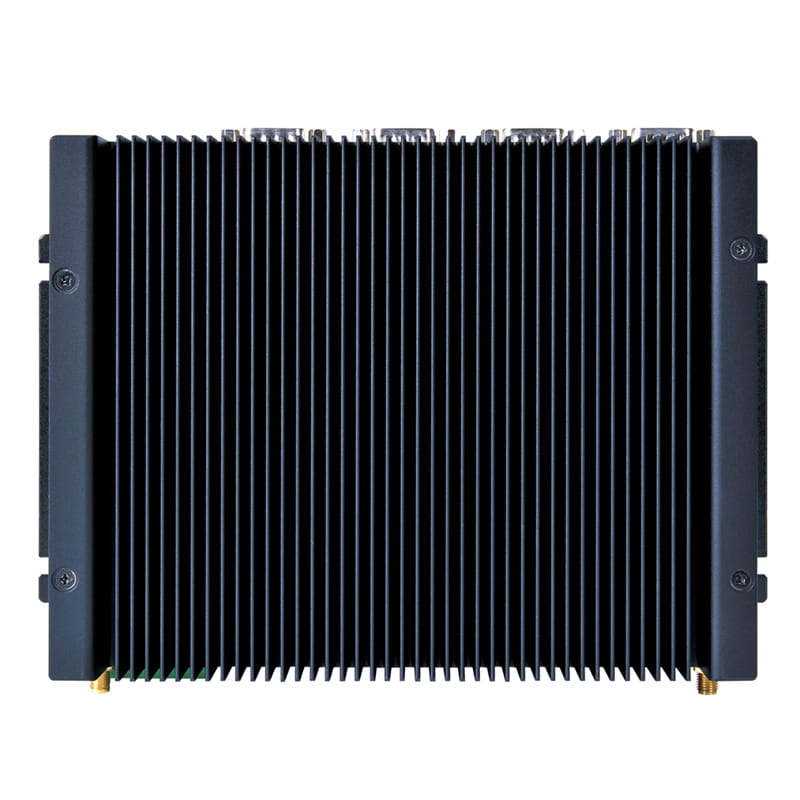

Increase safety through its fanless cooling system; without moving parts, which can generate operating problems, and therefore a much longer and safer life cycle.
On the other hand, one of the contributions of this team is that it has an unbeatable connectivity; * 1GPIO programmable * 3 COM ports * 2 USB 2.0 and 4 USB 3.0
* Dual GB LAN * Displayport and HDMI * Wifi (optional) offering a versatile and complete solution.
Following the advantages we have to mention its wide range of voltage 8 to 24V that allows you to install it in any system powered by electricity or through a battery that supports this range, such as:
- Automotive (fleet of vehicles, trucks (refrigerators, cargo, etc.), buses, etc).
- Stations (meteorological, agricultural, livestock, wind, etc).
- Automatisms (assembly lines, instrumentation, workshops, etc.).
- Intelligent building (monitoring, control (temperature sensors, lighting, etc.), regulation (actuators)).
- Hospitality (cold rooms, POS, environmental control, service, etc.).
Highlights ...
* Integrated fanless system with scalable power.
* Intel Kabylake Skylake (up to 3.9GHz).
* Robust, compact, fanless and safe design!
* Extended temperature range (-20 to 80 ° C).
* Wide voltage range from 8 to 24V.
* 1 GPIO programmable 3 COM ports. 2 USB 2.0 and 4 USB 3.0.
* Dual GB LAN. Displayport and HDMI.
CPU | Compatible con Intel Core i3-7100U; i7-7600U, i5-7300U, Celeron 3965U) |
Memory | DDR4 2133 / 2400MHz / 2 x 260-pin SO-DIMM / Max. 32GB (Non-ECC) |
VGA | Intel HD Graphics |
LAN | Intel I219-LM Giga LAN + Intel I211-AT Giga LAN |
Audio | Realtek ALC283 |
Storage | 1x 2.5 HDD / SSD (Default w/ SATA and SATA Power Cable in Accessories) 1x mSATA |
Wireless | |
Motherboard Form Factor | |
Dimensions | 189 x 147.4 x 55 mm |
Material | Aluminio / Acero |
Color | Black |

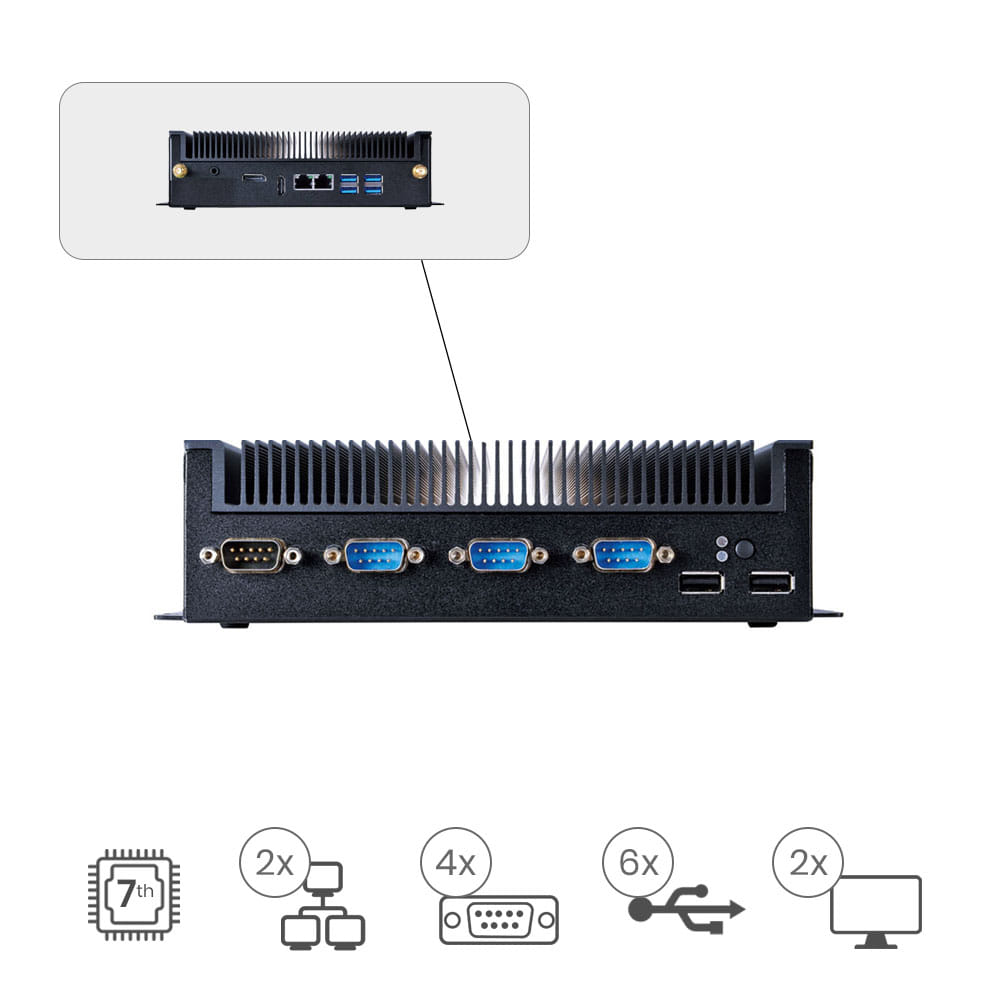

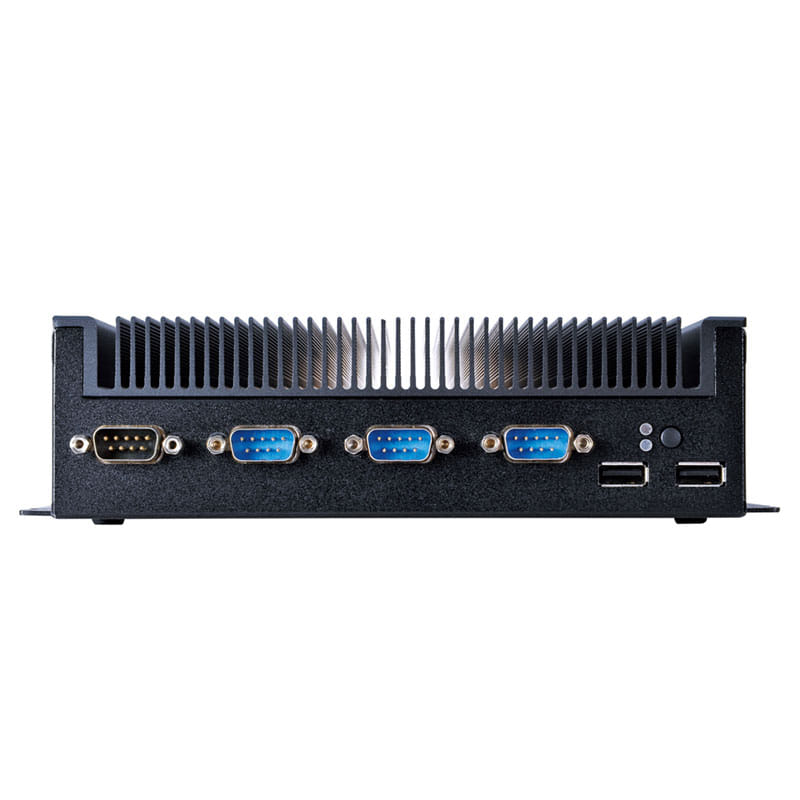

Front Ports | 2x USB 2.0 2x RS232 1x RS232 / 422 / 485 / 8-bit GPIO (DB9 Connector) |

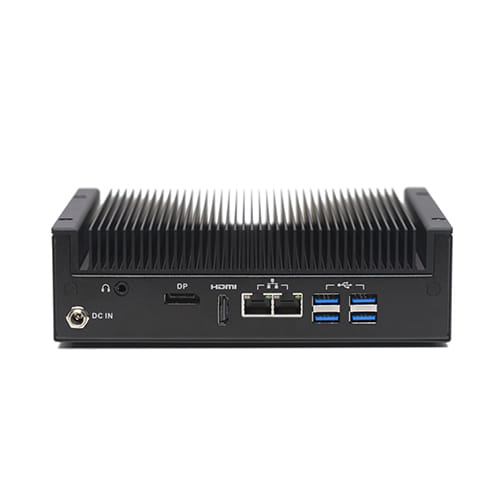

Rear Ports | 1x HDMI 1.4 1x DisplayPort 1.2 2x RJ-45 4x USB 3.0 1x Audio Combo Jack (Mic-in and Line-out) 1x DC-in Jack 2x SMA Antenna (Optional for WiFi/LTE function) |
Power | AC / DC / DC19V / 3.4A / 65W adapter |
Temperatures | Operating: 0~40°C Storage: -20 ~ 80°C |
Aplications | |
Certificates | CE / FCC Class A |
