Appliot CMC102
- Intel Celeron j3160 1.6Ghz processor.
- Completely fanless and silent solution.
- 4Gb of RAM memory expandable up to 8Gb.
- MSATA storage.
- 6 USB ports, 2x USB 2.0 and 4x USB 3.0.
- 2 HDMI outputs, 1 VGA output.
- 1 RS232 port.
- 2x Realtek 8111E Gigabit LAN + WiFI.
of guarantee
Insured
Secure pay
Memories
mSATA Drives
SSD
Operating system

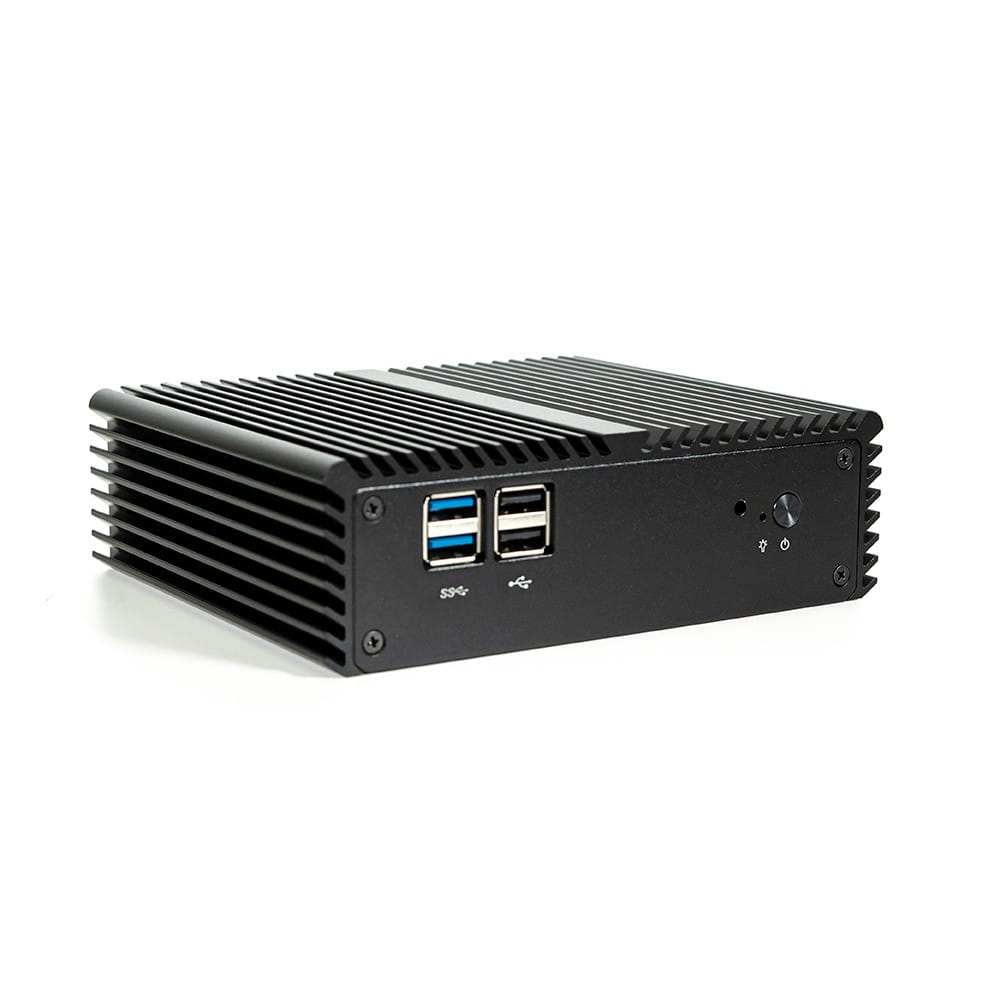

The Appliot CMC102 is a fanless device capable of surprising us by its small size, its robustness and its versatility.
It has an integrated low-power Celeron J13160 processor, dual Gigabit + WIFI network cards, dual HDMI and one VGA output, 6 USB outputs (4 of them USB 3.0) and one RS232 output.
As for storage, how much with a mSata type boot unit and a 2.5 "disk that we propose is SSD so that it does not have any moving parts.

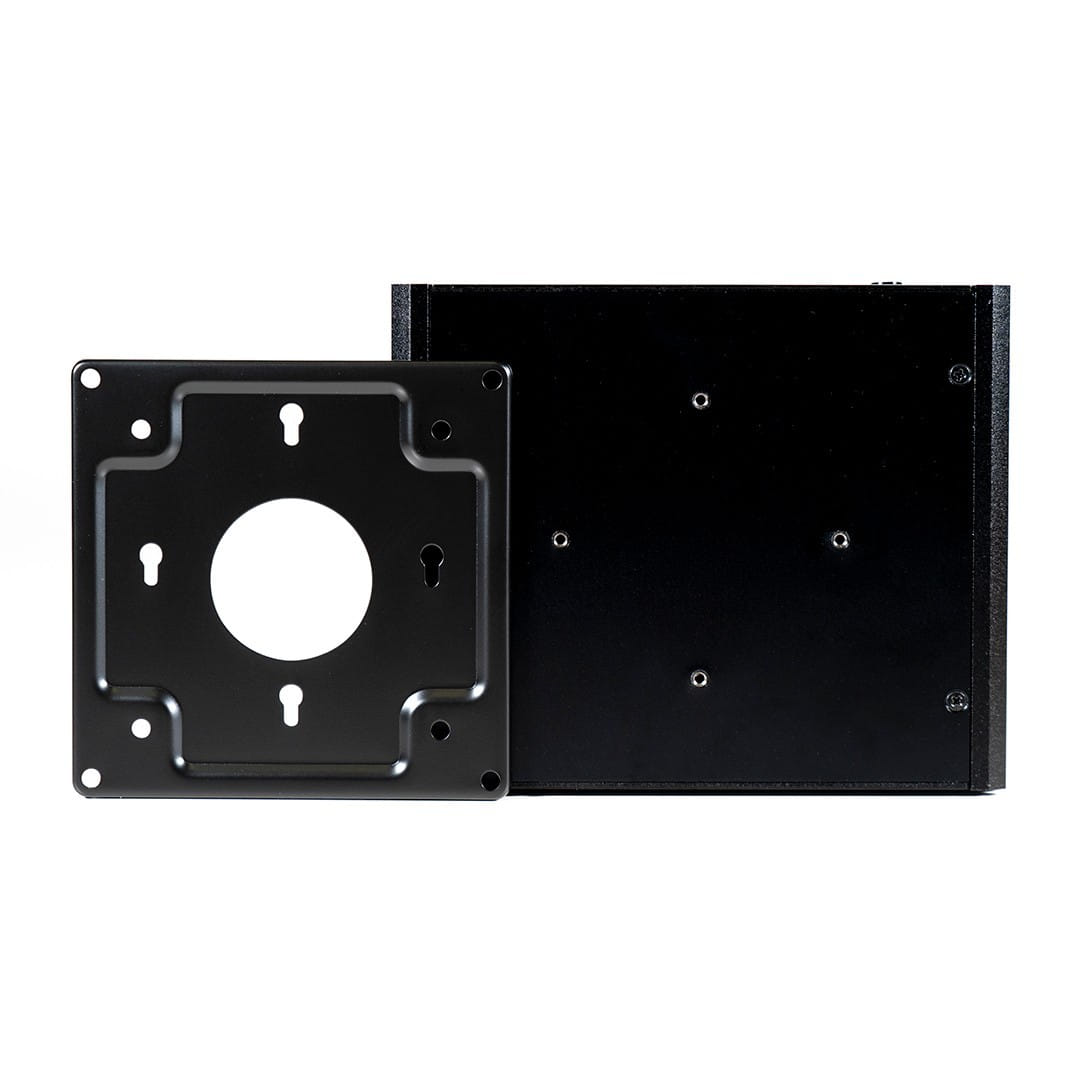

We also include the VESA mount kit, so you can enjoy a whole range of possibilities when installing it wherever it may be needed.
We highlight ...
* Intel Celeron j3160 1.6Ghz processor.
* Completely fanless and silent solution.
* 4Gb of RAM memory expandable up to 8Gb.
* MSATA storage.
* 6 USB ports, 2x USB 2.0 and 4x USB 3.0.
* 2 HDMI outputs, 1 VGA output.
* 1 RS232 port.
* 2x Realtek 8111E Gigabit LAN + WiFI.
CPU | Intel Celeron J3160 (1,6 GHz hasta 2,24 GHz, 6 W) |
Memoria | 1 x 4Gb So-DIMM DDR3 (Ampliable hasta 8Gb) |
VGA | Intel HD |
LAN | 2x LAN Gigabit Realtek 8111E |
Audio | Audio Realtek ALC662 HD |
Almacenamiento | 1x SSD 120Gb mSATA (Ampliable hasta 500Gb) 1x SSD 2.5" SATA |
Wireless | |
Formato placa | |
Dimensiones | 156 x 128 x 48 mm |
Material | Aluminio |
Color | Negro |

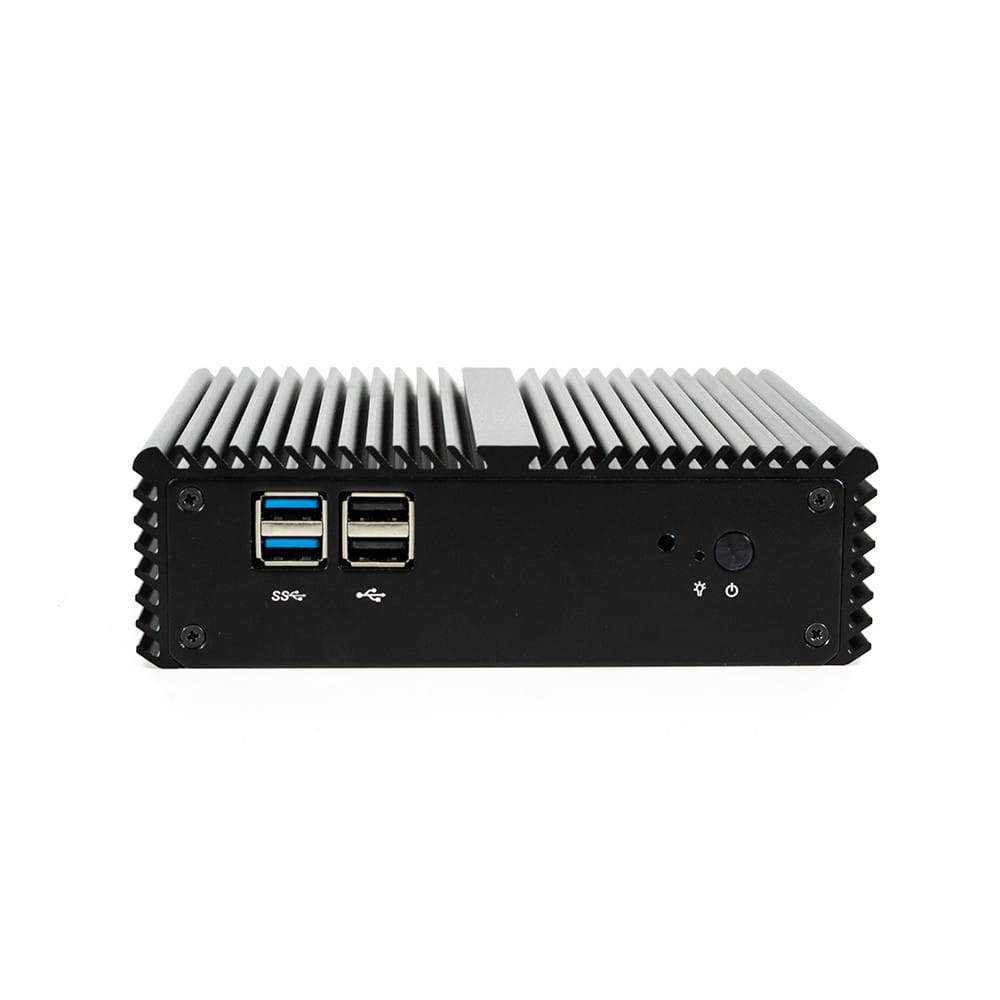

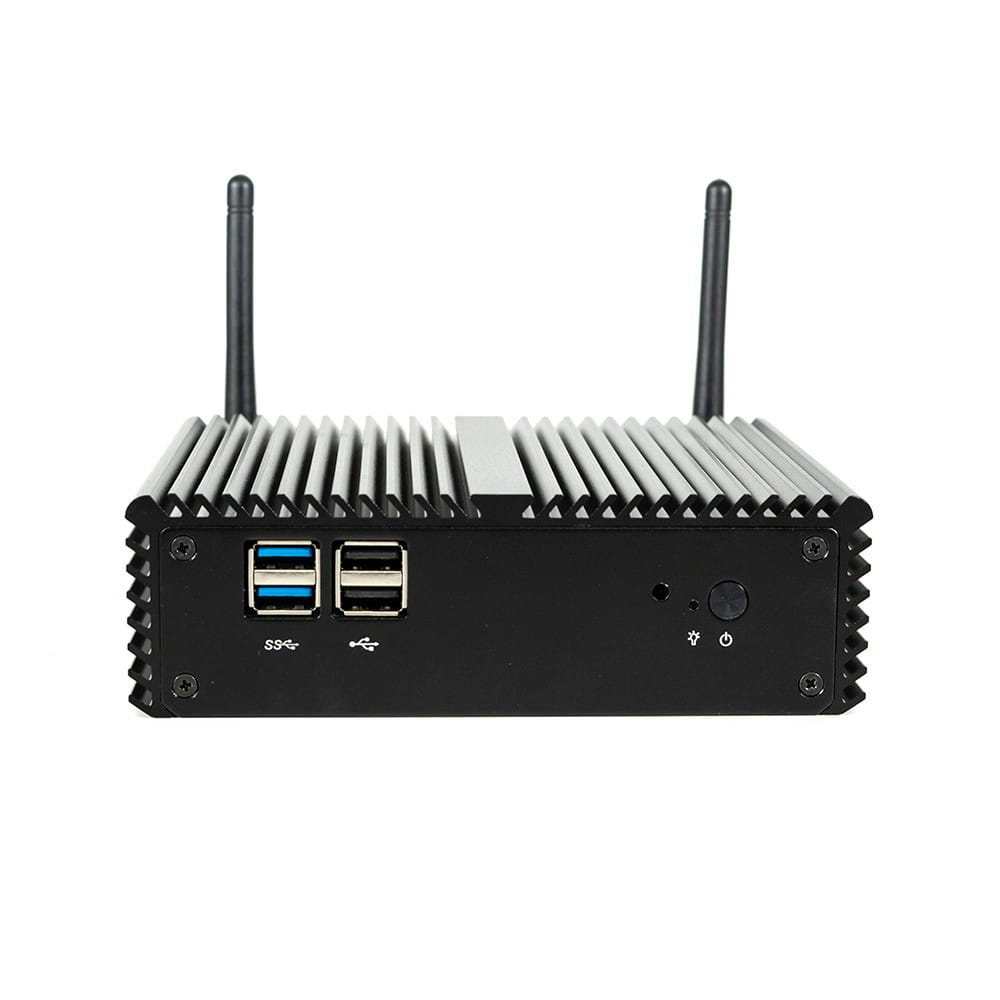

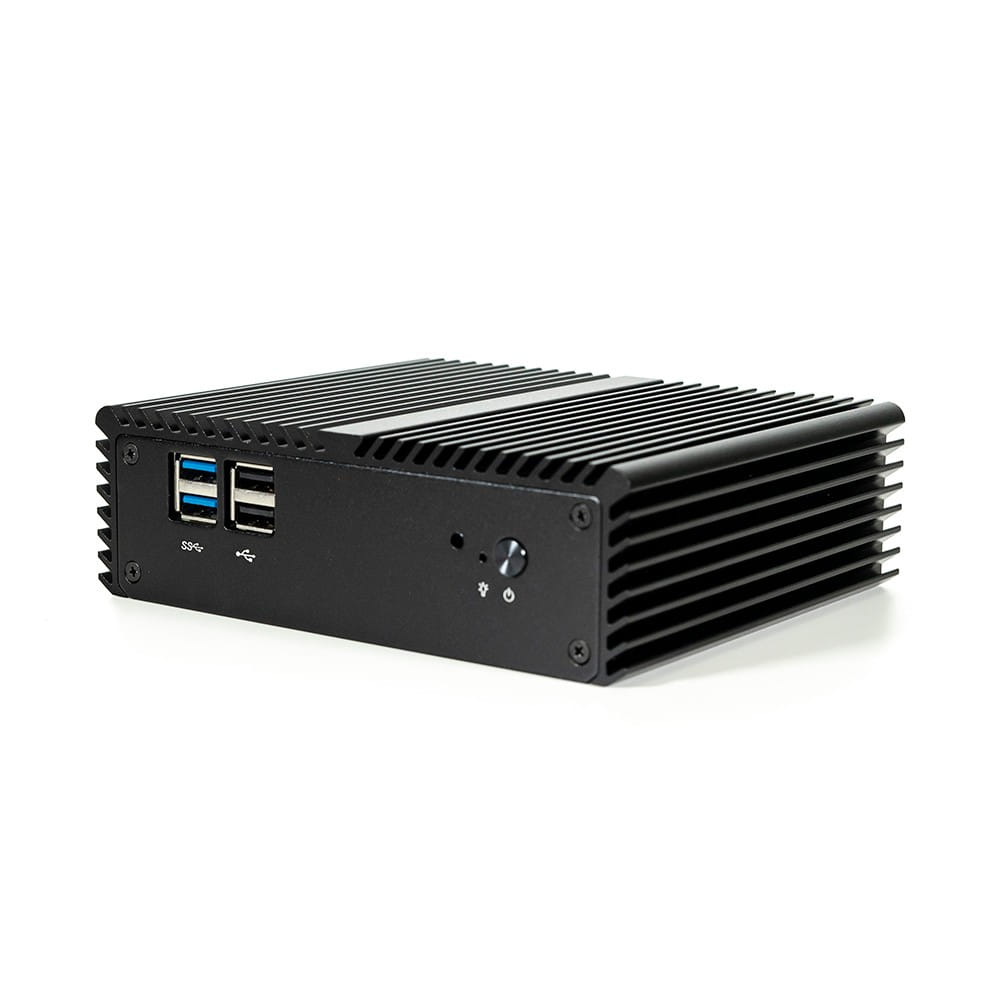

Puertos frontales | 1x Botón de encendido 1x LED encendido 2x USB 2.0 2x USB 3.0 |

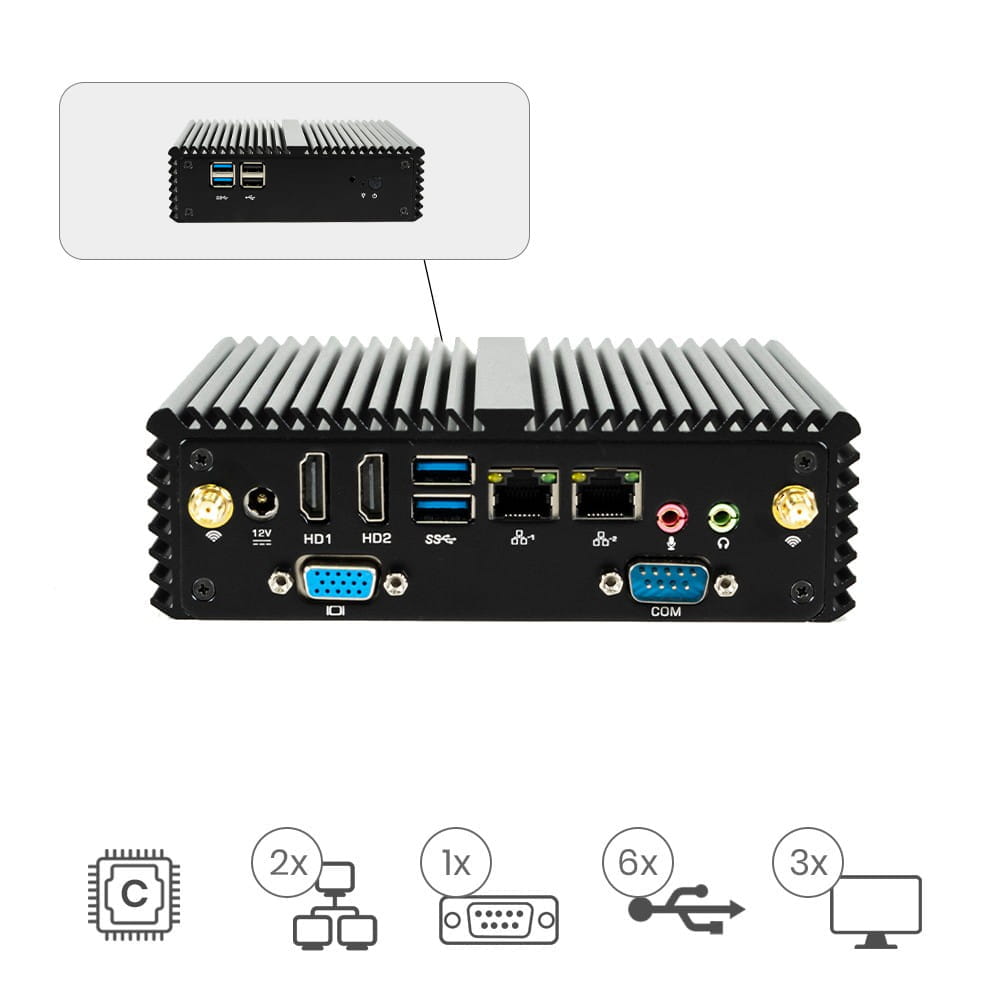

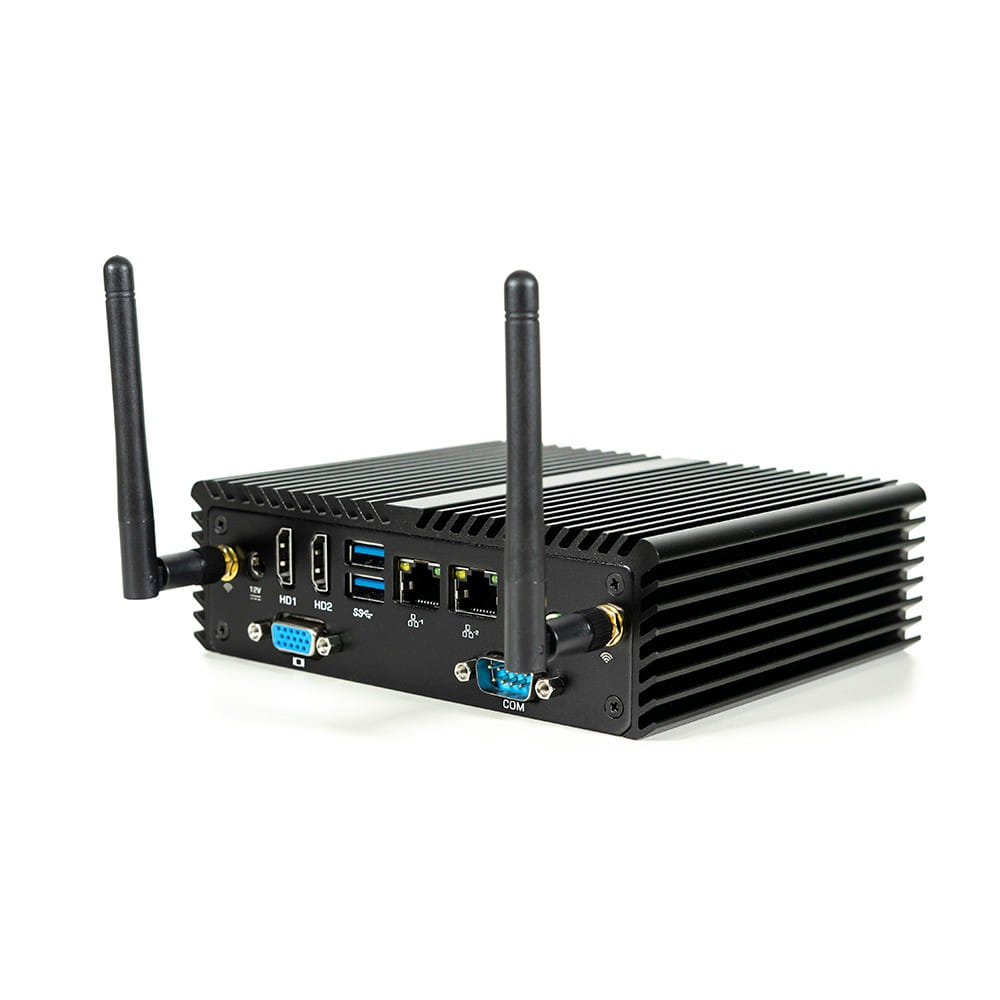

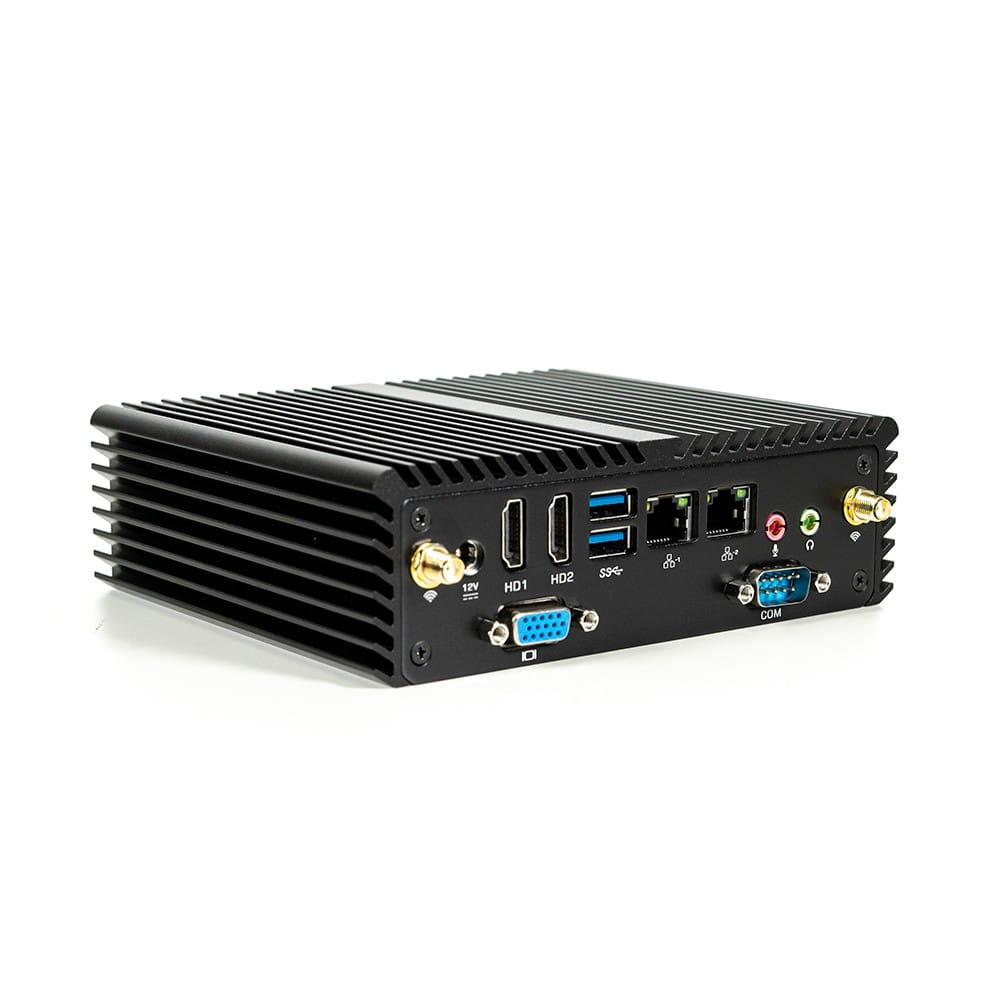

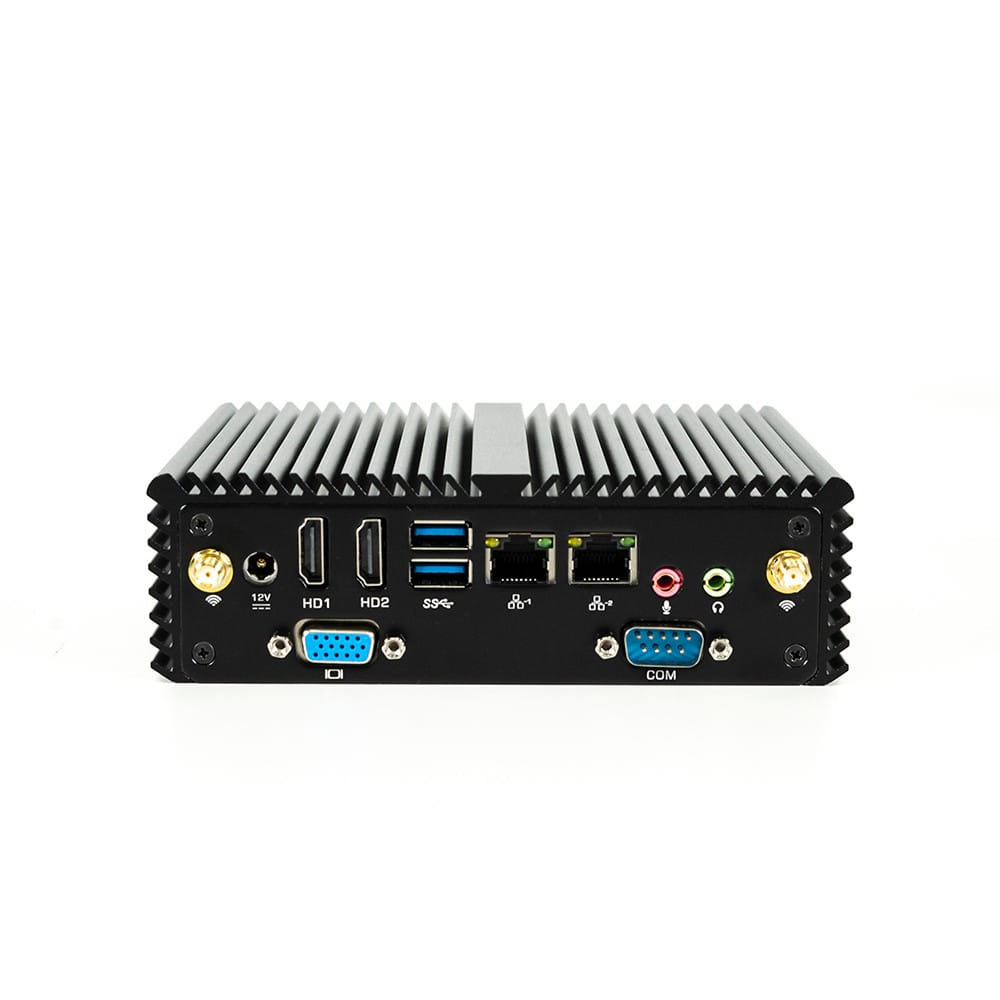

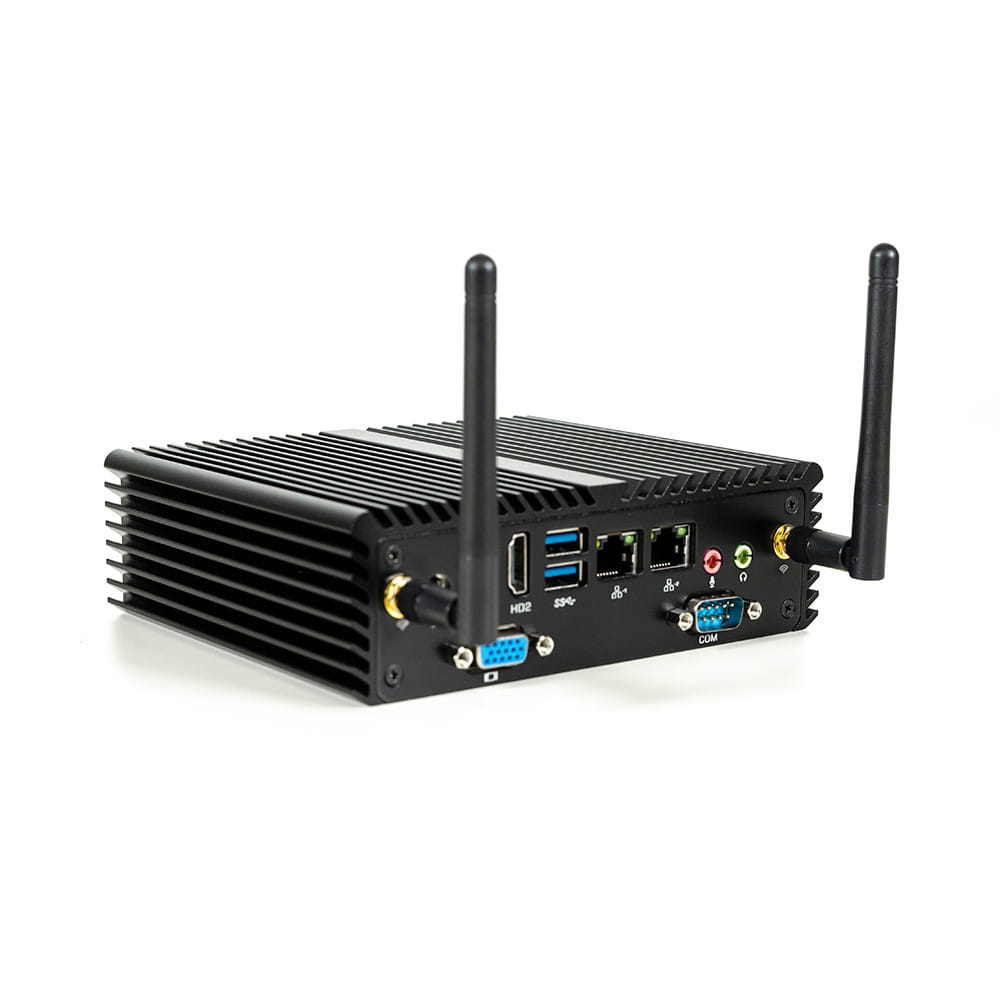

Puertos traseros | 2x HDMI 1x VGA 2x RJ45 2x USB 3.0 1x RS232 2x Entrada micrófono 2x Salida de línea |
Alimentación | 12V3A, 5,5 mm, 2,5 mm |
Temperaturas | Temperatura de funcionamiento: 0 ° C ~ 50 ° C Temperatura de inactividad: -20 ° C ~ 80 ° C Humedad: 10% ~ 90% |
Aplicaciones | |
Certificados |
