Español Appliot AMP112
Appliot AMP112
New Slim model, height 34mm !! in NUC format.
2 HDMI 1920 x 1200.
1 serial port
Easy installation on Wall, Vesa and DIN Rail.
Temperature range between -20 ~ 80 ° C.
9V ~ 24V DC jack.
of guarantee
shipping
Secure pay
SSD
Memories

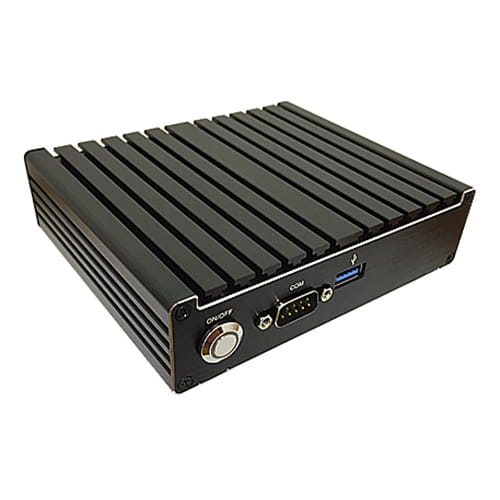

Appliot AMP112 integrates the Intel Bay Trail-M Celeron N2930 SoC Processor 1.83GHz, Quad-Core, 7.5W processor, specially designed for applications such as Digital Signage, Set Top Box, Thin Client, automation, PC, POS / POI, KIOSK, HTPC .
This new model provides an ultra-slim design of great resistance, with a fanless architecture, which guarantees a solid and stable operation. Work continuously 24/7 without interruptions, providing total confidence in work processes
Supports extended temperature ranges between -20 ~ 80 ° C in unfavorable environments.
It has a "Watchdog timer" security system that causes the device to reset if it has been locked.
In front ports it has: Power button and LED, 1 USB 3.0, 1 RS232 Serial Port and the rear ports: 2 USB 2.0, 2 HDMI, 1 RJ45, line-out, Antenna, 9V-24V DC In jack.
Facilitates installation in any space as it also includes wall mount, VESA and DIN rail mounting using clips.
Highlights ...
* Intel Bay Trail-M N2930 SoC Processor 1.83GHz, Quad-Core, 7.5W.
* New Slim model, height 34mm! in NUC format.
* 2 HDMI 1920 x 1200.
* 1 serial port.
* Easy installation on Wall, Vesa and DIN Rail.
* Temperature range between -20 ~ 80 ° C.
* 9V ~ 24V DC jack.
| CPU | Intel Bay Trail-M Celeron N2930 SoC Processor 1.83Ghz, Quad-core, 7.5W |
| Memory | 1x 204-Pin DDR3L-1333 So-DIMM Single Channel up to 8Gb (1.35V required) |
| VGA | Intel HD Graphics |
| LAN | 1x Intel WG82574L Gigabit Ethernet |
| Audio | Realtek ALC887 Audio Codec with SPDIF out |
| Storage | 1x Full size mSATA Slot |
| Wireless | WiFi + Bluetooth |
| Mother board Form Factor | NUC (101 x 101 mm) |
| Dimensions | 129 x 109 x 34 mm (Ancho x Fondo x Alto) |
| Material | Aluminio |
| Color | Black |
| Front Ports | 1x Power Button 1x Power LED 1x COM port 1x USB 3.0 |
| Rear Ports | 2x USB 2.0 ports 2x HDMI 1x RJ-45 port 1x Audio line out with SPDIF out 1x 9V ~ 24V DC-in jack 1x SMA Connector for WiFi Antenna 1x Kensington Lock Hole |
| Power | Adapter: AC 90~240V / DC 12V 3A / 36W |
| Temperatures | Operating: 0 ~ 40°C with air flow Storage: -20 ~ 80°C |
| Aplications | Digital Signage, Set Top Box, Thin Client, Car Entertainment, Smart Mini PC, POS/POI, KIOSK, HTPC |
| Certificates | CE,FCC,ErP For Barebone CE,FCC,TUV,UL,CCC,CB,ErP For Power Adapter |
