Appliot AMP108
- Intel Celeron N3160 SoC processor, 1.60GHz.
- Nuc format and fanless architecture.
- Life cycle until Q1'2031.
- 2x HDMI and 1 DisplayPort for three independent screens.
- COM port
- Extended temperature range of -20 ° C ~ 80 ° C.
- 12V DC-In & 2x LAN, Wireless.
- Kensington Lock anti-theft system.
- ECO design for EuP / ErP.
The prices shown are approximate
of guarantee
Insured
Secure pay
| Formate | |
| Conectividad | |
| Conectividad | |
| Conectividad | |
| Processor | |
| Aplications | |
| Aplications | |
| Aplications | |
| Aplications |
SSD
Memories
Appliot AMP107 is designed for applications such as Digital Signage, Set Top Box, Thin Client, Car Entertainment, Smart Mini PC, POS / POI, KIOSK, HTPC, among others.

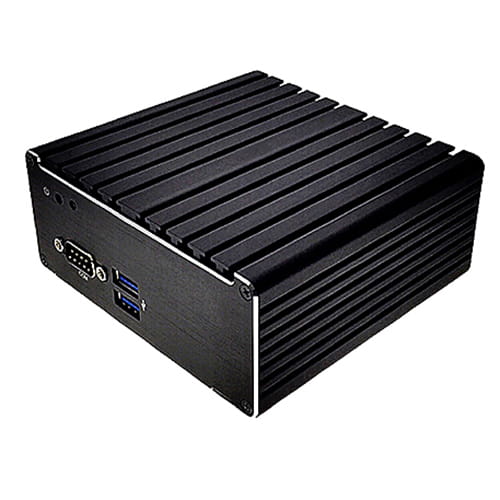

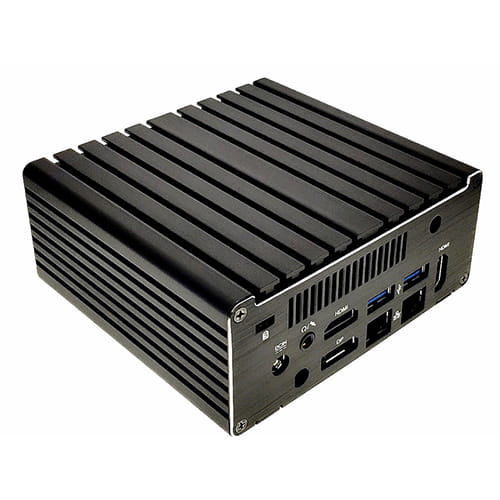

It integrates an Intel Celeron N3160 SoC processor, 1.60GHz. Its design in Nuc format, with dimensions 11.6 x 11 x 4.9 cm !!! It is designed for installation in any space, however small and complicated. To do this, it integrates a Vesa bracket, a wall bracket and DIN rail adapters.
Its architecture is fanless, without moving parts, and therefore guarantees a more stable and fault-free operation, uninterruptedly 24/7.
It has 2 * Intel i211-AT Gigabit LAN, Wireless 802.11 and Bluetooth 4.0 In graphics it integrates Intel HD Graphics 400, 2 HDMI and 1 DisplayPort which will allow you to take up to three monitors simultaneously.
4 USB 3.0 ports and "Watchdog timer" security system that causes the device to reset if it has been blocked.
It supports extended temperature ranges of -20 ° C ~ 80 ° C to work in the most hostile environments.
To complete it incorporates a Kensisngton Lock anti-theft system, anti-theft, to adapt it to any work scenario.
Highlights ...
* Intel Celeron N3160 SoC processor, 1.60GHz.
* Nuc format and fanless architecture.
* Life cycle up to Q1'2031.
* 2x HDMI and 1 DisplayPort for three independent screens.
* COM port.
* Extended temperature range of -20 ° C ~ 80 ° C.
* 12V DC-In & 2x LAN, Wireless.
* Kensington Lock anti-theft system.
* ECO design for EuP / ErP.
| CPU | Intel Celeron N3160 SoC, 1.60GHz – 2.24GHz Burst, Quad-Core, 6W TDP |
| Memory | 1x SODIMM DDR3L-1600 Dual Channel 1.35V required (up to 8 GB) |
| VGA | Intel HD Graphics 400 |
| LAN | 2 x Intel I211-AT PCI-E Gigabit LAN |
| Audio | Realtek ALC662VD HD Audio & Intel® Display Audio |
| Storage | 1 x Full Size mSATA/mini-PCIE Shared Slot |
| Wireless | WiFi + Bluetooth |
| Motherboard Form Factor | |
| Dimensions | 116 x 110 x 49 mm |
| Material | Aluminio |
| Color | Black |

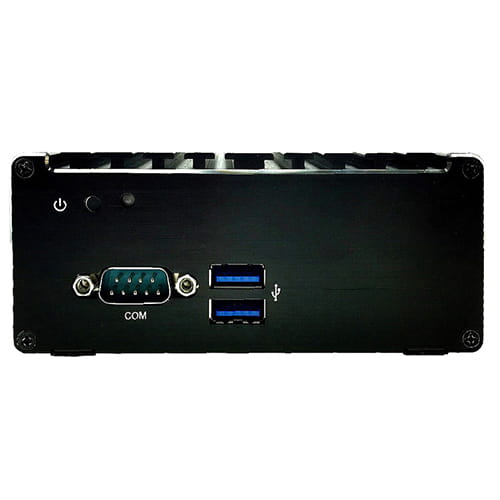

| Front Ports | 1x Power Button 1x Power LED 1x RS232/422/485 COM port 2x USB 3.0 |

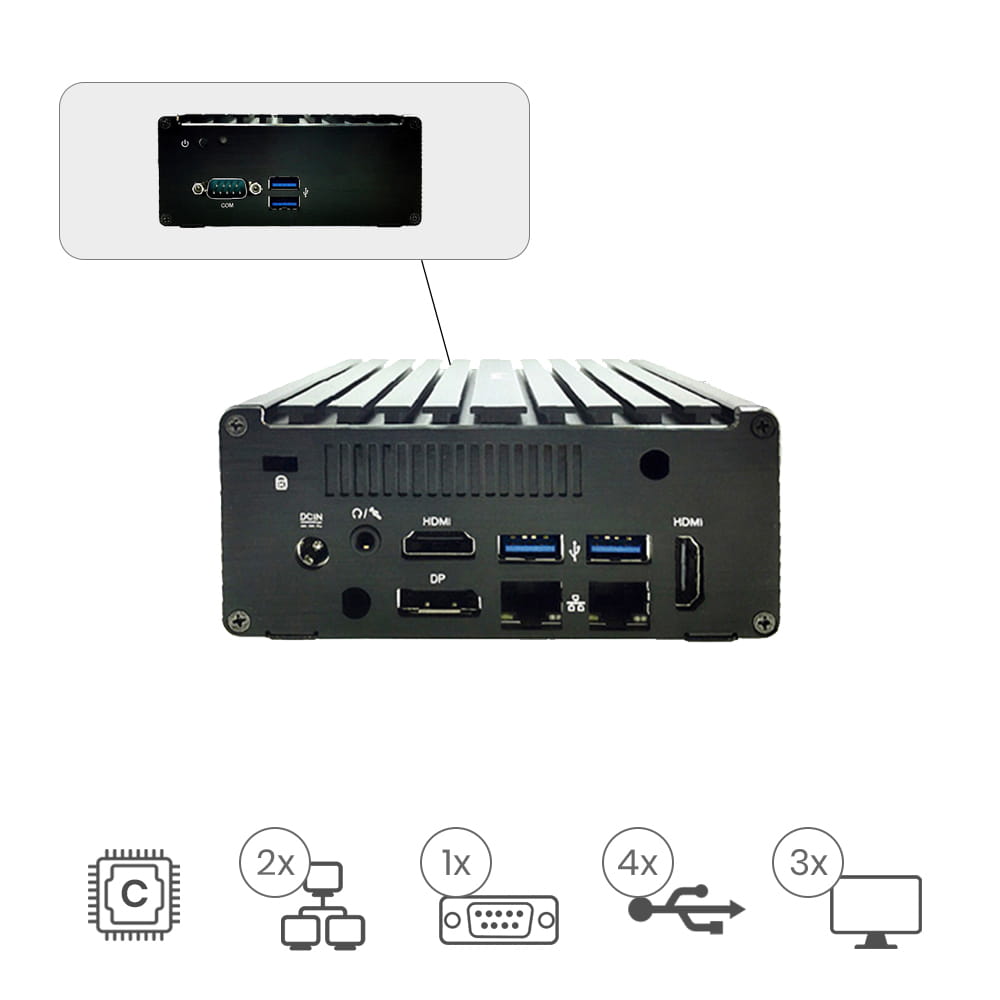

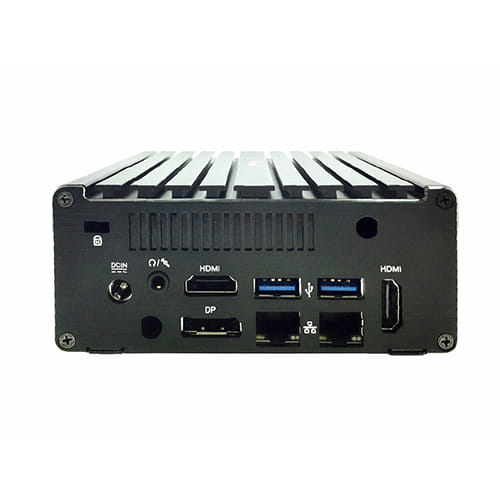

| Rear Ports | 1x +12V 2.5mm Diameter DC-In Power Jack 1x Line out / MIC in Combo Jack 1x Display Port 1.1 (upto 2560 x 1600 @ 60Hz or 3840 x 2160 @ 30Hz) 2x HDMI 1.4b (1920 x 1080 @ 60Hz) 2x USB 3.0 port 2x RJ-45 port 2x SMA Connector for WiFi Antenna 1x Kensington Lock Hole |
| Power | Adapter : AC_90~240V / DC_12V/40W |
| Temperatures | Operating: 0°C ~ 40°C with air flow Storage: -20°C ~ 80°C |
| Aplications | Digital Signage, Set Top Box, Thin Client, Car Entertainment, Smart Mini PC, POS/POI, KIOSK, HTPC |
| Certificates | CE,FCC,ErP For Barebone CE,FCC,TUV,UL,CCC,CB,ErP For Power Adapter |
Appliot AMP107 is designed for applications such as Digital Signage, Set Top Box, Thin Client, Car Entertainment, Smart Mini PC, POS / POI, KIOSK, HTPC, among others.
It integrates an Intel Celeron N3160 SoC processor, 1.60GHz. Its design in Nuc format, with dimensions 11.6 x 11 x 4.9 cm !!! It is designed for installation in any space, however small and complicated. To do this, it integrates a Vesa bracket, a wall bracket and DIN rail adapters.
Its architecture is fanless, without moving parts, and therefore guarantees a more stable and fault-free operation, uninterruptedly 24/7.
It has 2 * Intel i211-AT Gigabit LAN, Wireless 802.11 and Bluetooth 4.0 In graphics it integrates Intel HD Graphics 400, 2 HDMI and 1 DisplayPort which will allow you to take up to three monitors simultaneously.
4 USB 3.0 ports and "Watchdog timer" security system that causes the device to reset if it has been blocked.
It supports extended temperature ranges of -20 ° C ~ 80 ° C to work in the most hostile environments.
To complete it incorporates a Kensisngton Lock anti-theft system, anti-theft, to adapt it to any work scenario.
Highlights ...
* Intel Celeron N3160 SoC processor, 1.60GHz.
* Nuc format and fanless architecture.
* Life cycle up to Q1'2031.
* 2x HDMI and 1 DisplayPort for three independent screens.
* COM port.
* Extended temperature range of -20 ° C ~ 80 ° C.
* 12V DC-In & 2x LAN, Wireless.
* Kensington Lock anti-theft system.
* ECO design for EuP / ErP.
| CPU | Intel Celeron N3160 SoC, 1.60GHz – 2.24GHz Burst, Quad-Core, 6W TDP |
| Memory | 1x SODIMM DDR3L-1600 Dual Channel 1.35V required (up to 8 GB) |
| VGA | Intel HD Graphics 400 |
| LAN | 2 x Intel I211-AT PCI-E Gigabit LAN |
| Audio | Realtek ALC662VD HD Audio & Intel® Display Audio |
| Storage | 1 x Full Size mSATA/mini-PCIE Shared Slot |
| Wireless | WiFi + Bluetooth |
| Motherboard Form Factor | |
| Dimensions | 116 x 110 x 49 mm |
| Material | Aluminio |
| Color | Black |
| Front Ports | 1x Power Button 1x Power LED 1x RS232/422/485 COM port 2x USB 3.0 |
| Rear Ports | 1x +12V 2.5mm Diameter DC-In Power Jack 1x Line out / MIC in Combo Jack 1x Display Port 1.1 (upto 2560 x 1600 @ 60Hz or 3840 x 2160 @ 30Hz) 2x HDMI 1.4b (1920 x 1080 @ 60Hz) 2x USB 3.0 port 2x RJ-45 port 2x SMA Connector for WiFi Antenna 1x Kensington Lock Hole |
| Power | Adapter : AC_90~240V / DC_12V/40W |
| Temperatures | Operating: 0°C ~ 40°C with air flow Storage: -20°C ~ 80°C |
| Aplications | Digital Signage, Set Top Box, Thin Client, Car Entertainment, Smart Mini PC, POS/POI, KIOSK, HTPC |
| Certificates | CE,FCC,ErP For Barebone CE,FCC,TUV,UL,CCC,CB,ErP For Power Adapter |
