Appliot AMP101
- Embedded Fanless pc.
- Intel Celeron N2930 1.83-2.16GHz SoC Quad-Core 7.5W.
- Supports DDR31333 SO-DIMM memory up to 8GB.
- Intel integrated graphics.
- Wireless
- 2x Gigabit LAN and 4 serial ports (3 RS232, 1 RS232 / 422/485).
- Voltage range + 9V ~ + 24V DC.
- Includes adapter for wall mounting and Din Rail Clips.
of guarantee
shipping
Secure pay
Barebones
Memories
Hard drives
Operating system This Complete Mini-PC is the ideal solution if you want to mount a digital signage equipment, recreational, thin client or kiosk apps.
Thanks to its small size it will be very easy to install it anywhere. It integrates an Intel Celeron N2930 processor at 1.83Ghz, with the Intel SoC chipset, a processor that will serve you well for the type of applications we have discussed before.
You will not have to wait again or see that performance suffers if you have to do multitasking. Forget the long loading times and gain time to enjoy what really matters.
Another of its great advantages, is that this equipment integrates two RJ45 Gigalan network cards and WiFi network, so you can connect it with cable if the situation requires it or wirelessly if you have placed it does not have any way to connect it with cable .
Highlights ...
* Small size equipment that adapts to your space needs.
* Fanless design, without moving parts
* Robust and reliable, specially designed to work 24/7.
* Intel Celeron N2930 1.83-2.16GHz SoC Quad-Core 7.5W.
* Supports DDR31333 SO-DIMM memory up to 8GB.
* Integrated Intel graphics.
* Wireless
* 2x Gigabit LAN and 4 Serial Ports (3 RS232, 1 RS232 / 422/485).
* Voltage range + 9V ~ + 24V DC.
* Includes adapter for wall mounting and Din Rail Clips.
| CPU | Intel Celeron N2930 SoC, 1.83GHz – 2.16GHz Burst, Quad-Core, 7.5W TDP/4.5W SDP |
| Memory | DDR3 1333 SO-DIMM hasta 8GB (1.35V) |
| VGA | Intel HD Graphics, 313MHz - 854MHz |
| LAN | 2x Realtek RTL8111G PCI-E Gigabit LAN |
| Audio | Realtek ALC662 HD Audio |
| Storage | 1x 2.5" SATA2 3Gb/s drive bay for HDD or SSD 1x Shared mSATA/mini-PCI Express Combo slot (Full-size) |
| Wireless | Wireless 802.11 b/g/n |
| Motherboard Form Factor | 3.5" SBC (148mm x 102mm |
| Dimensions | 180 (W) * 142 (D) * 48 (H) mm |
| Material | |
| Color | Black |

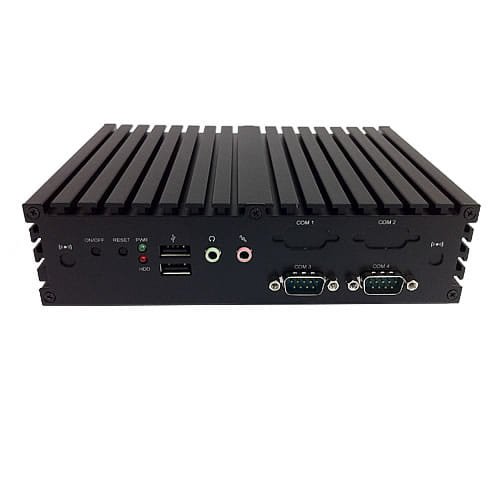

| Front Ports | 1x Power Button 1x Reset Button 2x USB 2.0 ports 1x Line Out Jack 1x Microphone Jack 4x RS232 Serial Ports (2 * installed & 2 * cables included in accessory box) 2x WIFI Antenna holes |
| Rear Ports | 1x USB 3.0 ports 3x USB 2.0 ports 2x RJ-45 ports 1x DVI-I port 1x SMA Connector for WiFi Antenna 1x Line Out jack 1x Kensington Lock Hole 1x +9V ~ +24V DC-in jack |
| Power | 60W AC-DC Adapter |
| Temperatures | Opereating: 0 ~ 40°C Storage: -20 ~ 85°C |
| Aplications | Set Top Box, Thin Client, Car Entertainment, Smart Mini PC, POS/POI, KIOSK |
| Certificates | CE,FCC,ErP For Barebone CE,FCC,TUV,UL,CCC,CB,ErP For Power Adapter |
