Jetway MI92-10 Socket 1200

Jetway MI92-10 Socket 1200

Jetway
  • Supports two DDR4 2666MHz SO-DIMM modules up to 32 GB.
  • It has 2 10/100/1000 Base-TX Ethernet ports.
  • 4x SATA III (6 Gb / s) compatible with RAID 0, 1, 5, 10.
  • Mini-ITX format (6.7-in * 6.7-in, 170 * 170mm).

P/N: MI92-10

280,00 € Without VAT
338,80 € With VAT
In stock in secondary storage
Approximate delivery between 11 noviembre and 12 noviembre
2 years
of guarantee
sending
shipping
100%
Secure pay

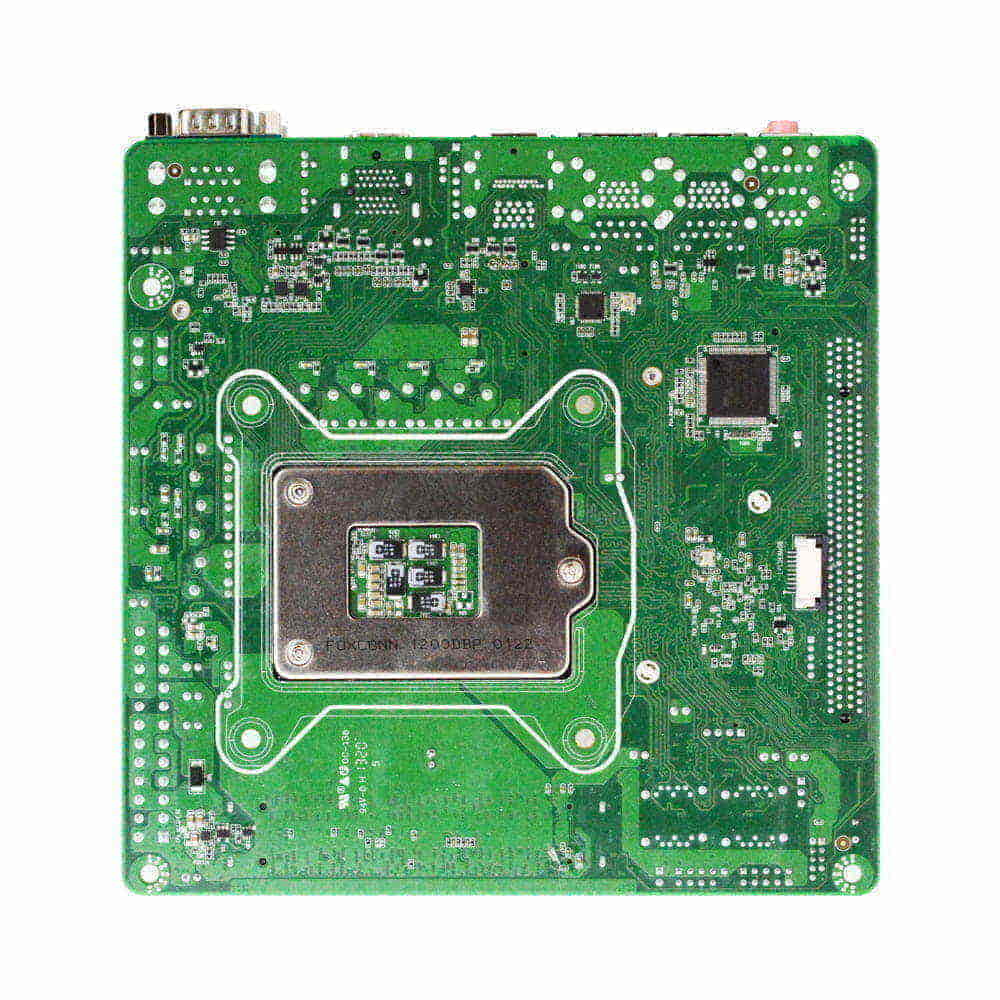

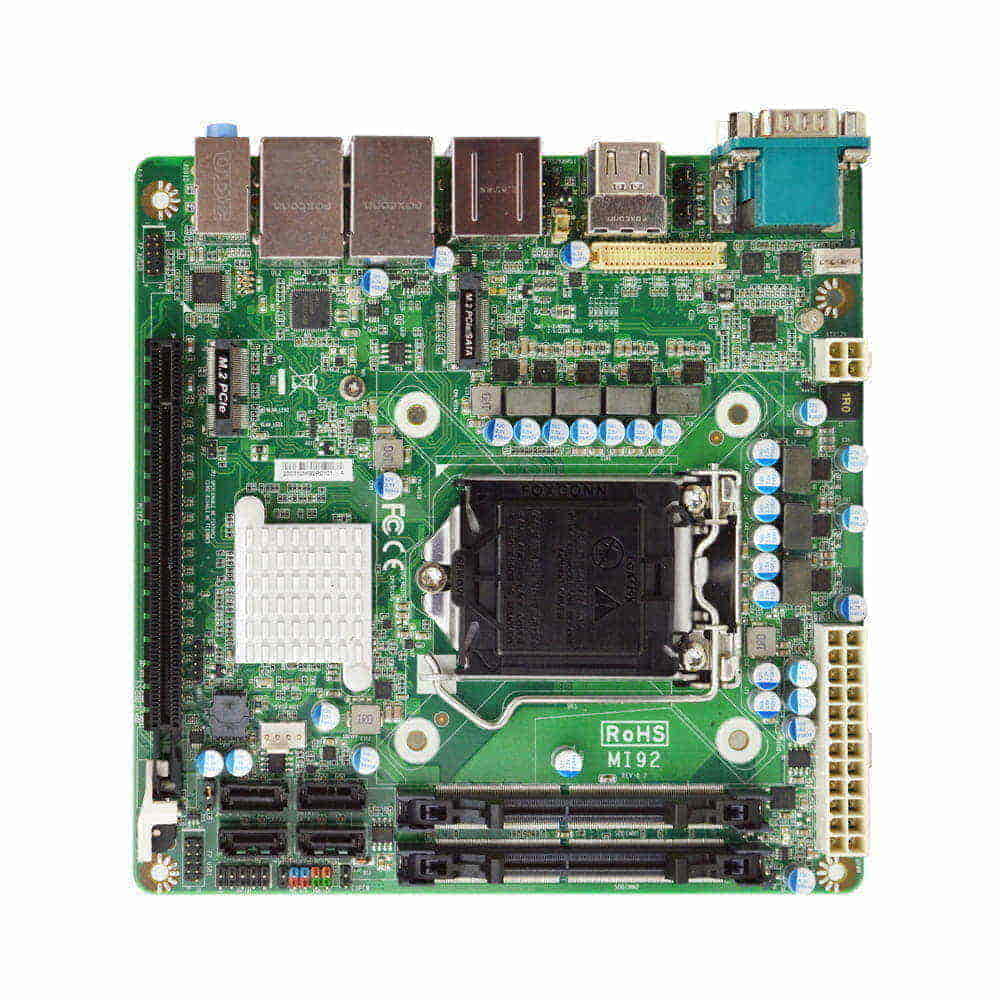

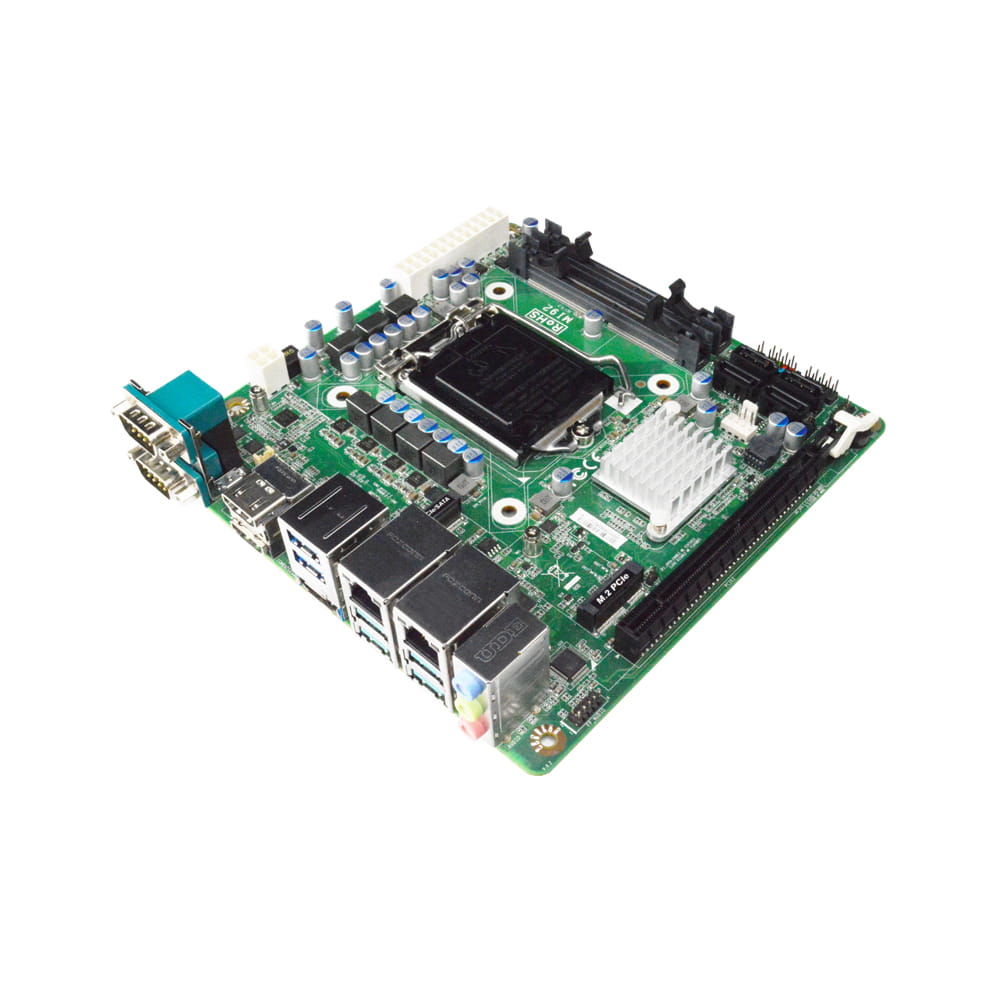

JETWAY MI92-10 / MI92-12 is a Mini-ITX form factor board that adopts 10th generation Intel® Core i7 / i5 / i3 processor, Pentium and Celeron.

The board supports two 2666Mhz DDR4 SO-DIMMs, up to 32GB. With the integrated Intel® Gigabit Ethernet Controller, the MI92-10 / MI92-12 offers two 10/100 / 1000Base-TX Ethernet devices for network transmission. Four SATAIII (6Gb / s) interfaces and one M.2 M-key 2242/2280 (SATA / PCIex4) key support NVMe storage devices.

One M.2 E-key 2230 (PCIex1 / USB2.0) supports CNVio, four USB3.1 Gen.2 ports, two USB3.1 Gen.1 ports, two USB2.0 ports, and two COM ports provide versatile expansion. The PCIex16 slot can support Jetway riser card for different expansion.

The MI92-10 / MI92-12 offers two HDMI1.4 ports, one DP1.4 port, and one eDP port that can support 3 independent displays. Due to the above features, MI92-10 / MI92-12 is suitable for digital signage, industrial PC, factory automation, public sector, digital security and surveillance applications.

highlights...

* Supports two DDR4 2666MHz SO-DIMM modules up to 32 GB.
* It has 2 10/100/1000 Base-TX Ethernet ports.
* 4x SATA III (6 Gb / s) compatible with RAID 0, 1, 5, 10.
* Mini-ITX format (6.7-in * 6.7-in, 170 * 170mm).

Características

Model

– MI92-10
– MI92-12 (Onboard TPM2.0)

Form Factor

– Mini-ITX (6.7-in * 6.7-in, 170 * 170mm)

Processor System

– Intel® 10th LGA 1200 Socket Core i7/i5/i3/Pentium/Celeron Processor (Max. 65W TDP)
– Intel Q470E Express chipset
– AMI 128Mb Flash ROM BIOS

Expansion Slot

– 1* E-key 2230 (PCIex1/USB2.0) support CNVio
– 1* M-key 2242/2280 (SATA/PCIex4) support NVMe
– 1* PCIex16 slot

Memory

– 2* Dual CH non-ECC DDR4 2666MHz SDRAM SO-DIMM up to 32GB

Graphics

– Intel® HD Graphics, shared memory
– 1* eDP (Max Resolution: 1920×1200@60Hz)
– 2* HDMI 1.4 (Max Resolution: 4096×2160@30Hz)
– 1* DP (Max Resolution: 4096×2304@60Hz)
– Support Triple Displays

Ethernet

– 1 * Intel i219LM & 1 * Intel i211AT GbE

Audio

– 6 channel HD audio: Realtek ALC662VD

SATA

– 4* SATAIII support RAID 0, 1, 5, 10

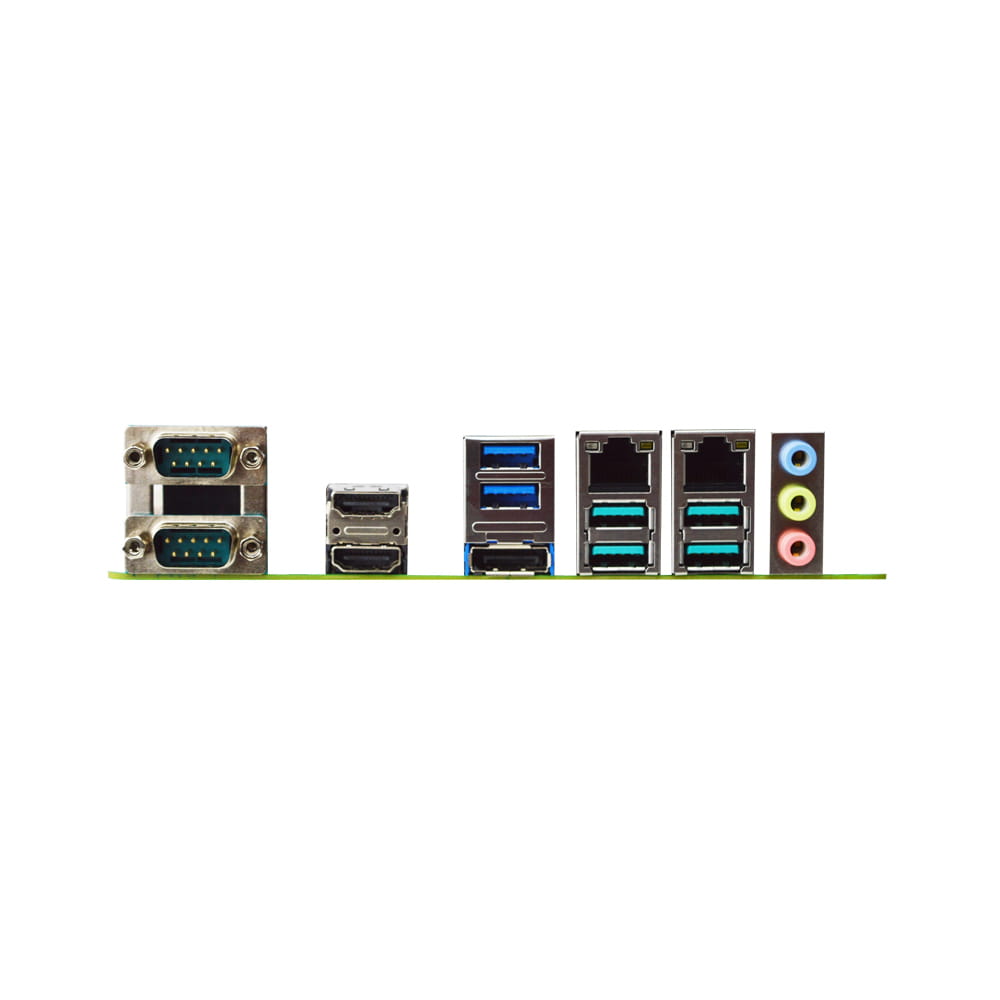

Rear I/O

– 2* HDMI
– 1* DP
– 2* RJ45 Ethernet
– 4* USB 3.1 (Gen. 2) & 2* USB3.1 (Gen. 1)
– Line-in, Line-out, MIC
– 2* COM (COM 1/2 support RS232/422/485)

Internal Connector

– 2* USB 2.0
– 1* eDP
– 4* SATAIII
– 1* M-key 2242/2280 (SATA/PCIex4) support NVMe
– 1* E-key 2230 (PCIex1/USB2.0) support CNVio
– 1* GPIO (8 bit)
– 1* PS/2
– 1* Chassis intrusion
– 1* Audio Header
– 1* SMBUS
– 1* AT mode
– Support onboard TPM2.0 (MI92-12)

Watchdog Timer

– From Super I/O to drag RESETCON#
– 256 segments (10sec ~ 255min)

Power

ATX PWR (4+24 pin), AT/ATX Supported
– AT: Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready

Compliance

– CE, FCC, LVD, RoHS, REACH

Temperature

– Operating: 0°C ~ 60°C
– Storage: -20°C ~ 85°C
– Humidity: 10% ~ 90% RH @40°C (non-condensing)

OS Support

– Windows 10, Linux
